Charging Systems: Generator: Replacement

REPLACE FRONT BEARING

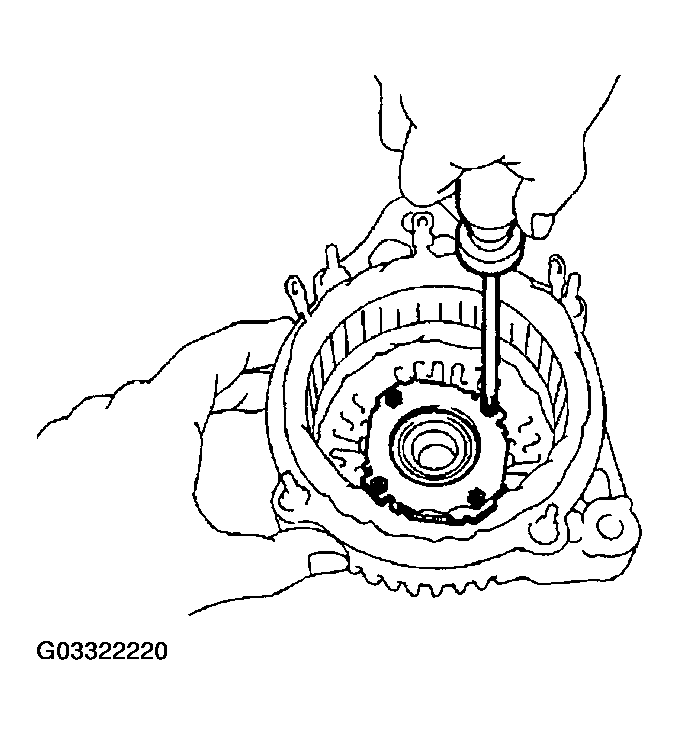

1. Remove the 4 screws and bearing retainer.

  Fig 1: Removing Screws And Bearing Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

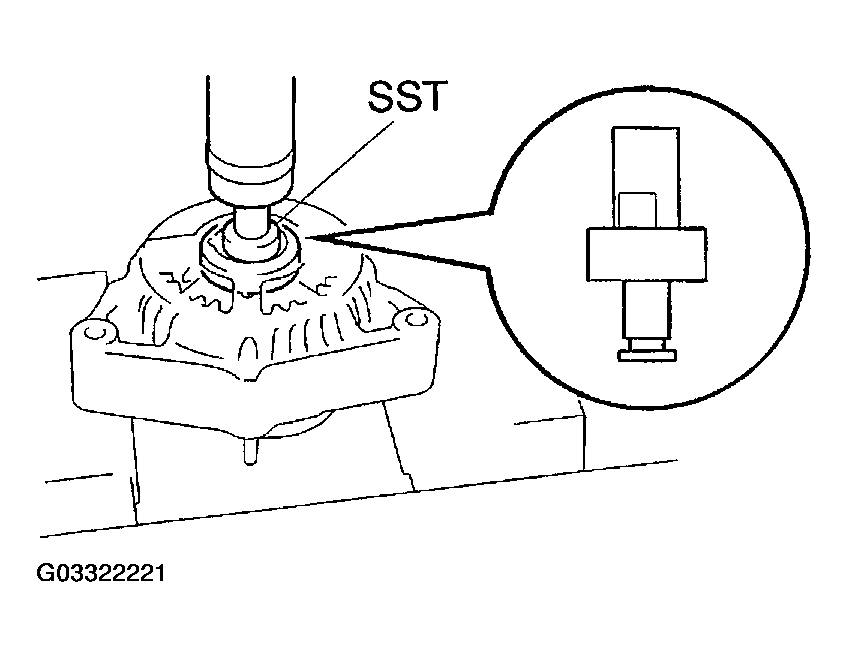

2. Using SST and a press, press out the bearing.

  Fig 2: Removing Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60010 (09951-00260, 09952-06010)

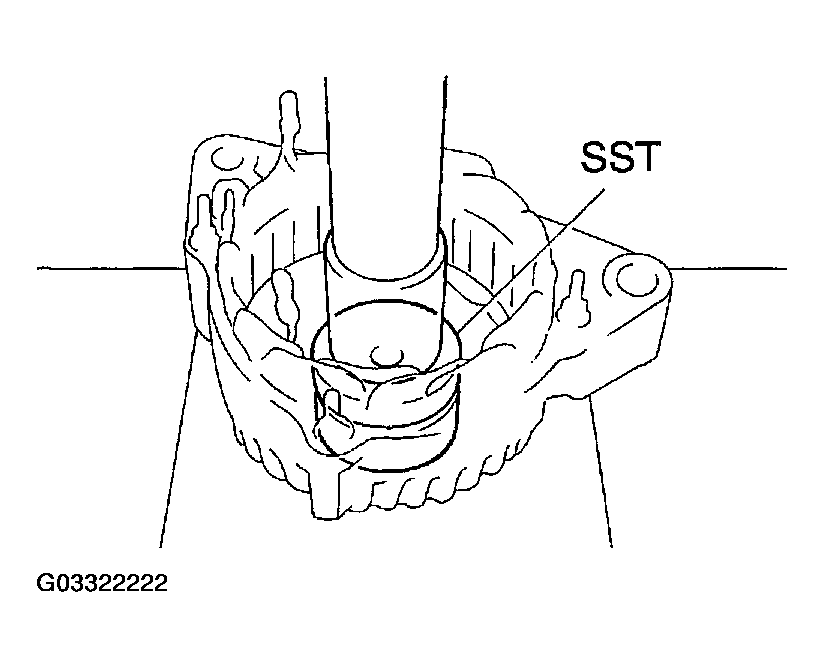

3. Using SST and a press, press in a new bearing.

  Fig 3: Installing Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-60010 (09951-00500)
4. Install the bearing retainer with the 4 screws.
  Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)
REPLACE REAR BEARING

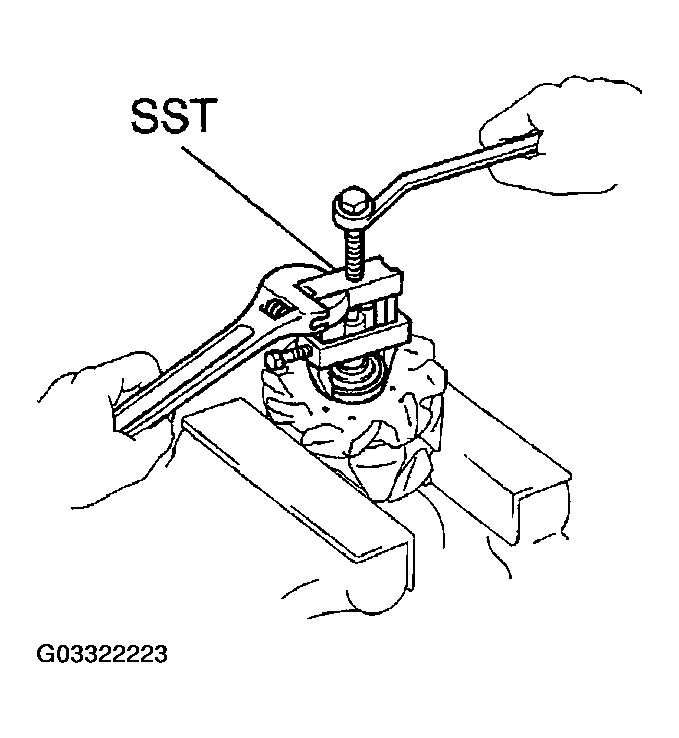

1. Using SST, remove the bearing cover (outside) and bearing.

  Fig 4: Removing Bearing Cover (Inside)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09820-00021

  CAUTION: Be careful not to damage the fan.
2. Remove the bearing cover (inside).

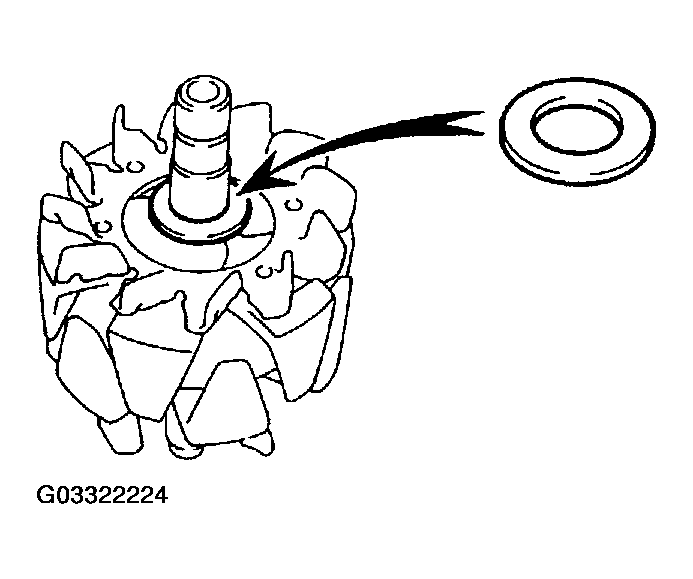

3. Place the bearing cover (inside) on the rotor.

  Fig 5: Placing Bearing Cover (Inside) On Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

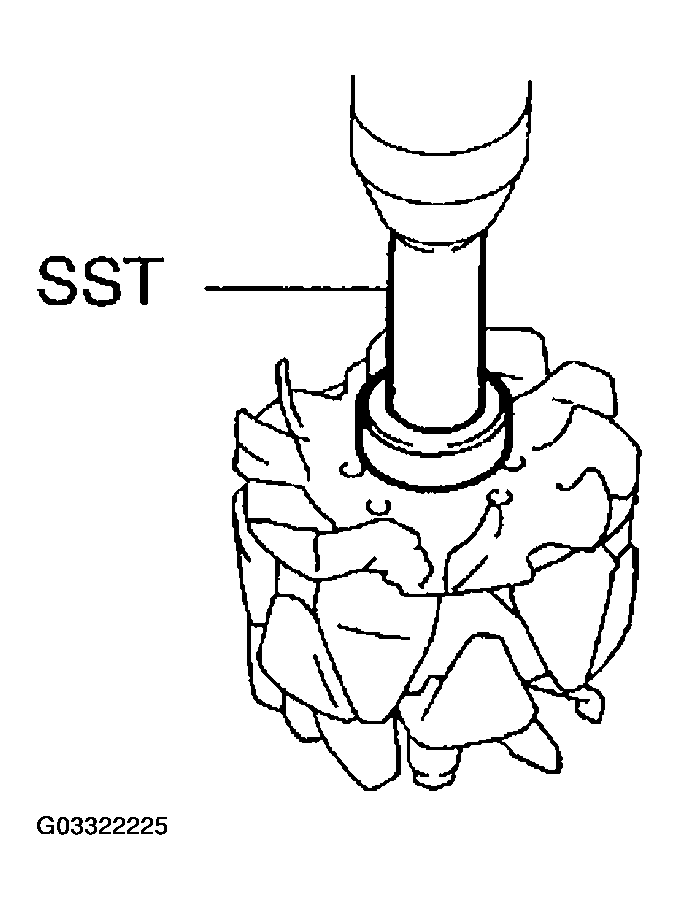

4. Using SST and a press, press in a new bearing.

  Fig 6: Installing Rear Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09820-00031

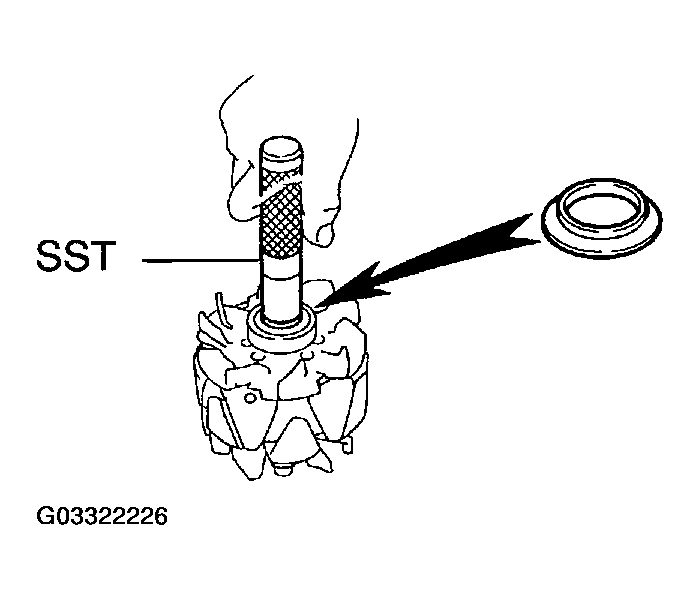

5. Using SST, push in the bearing cover (outside).

  Fig 7: Installing Rear Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09285-76010
