Circuit Protection Devices

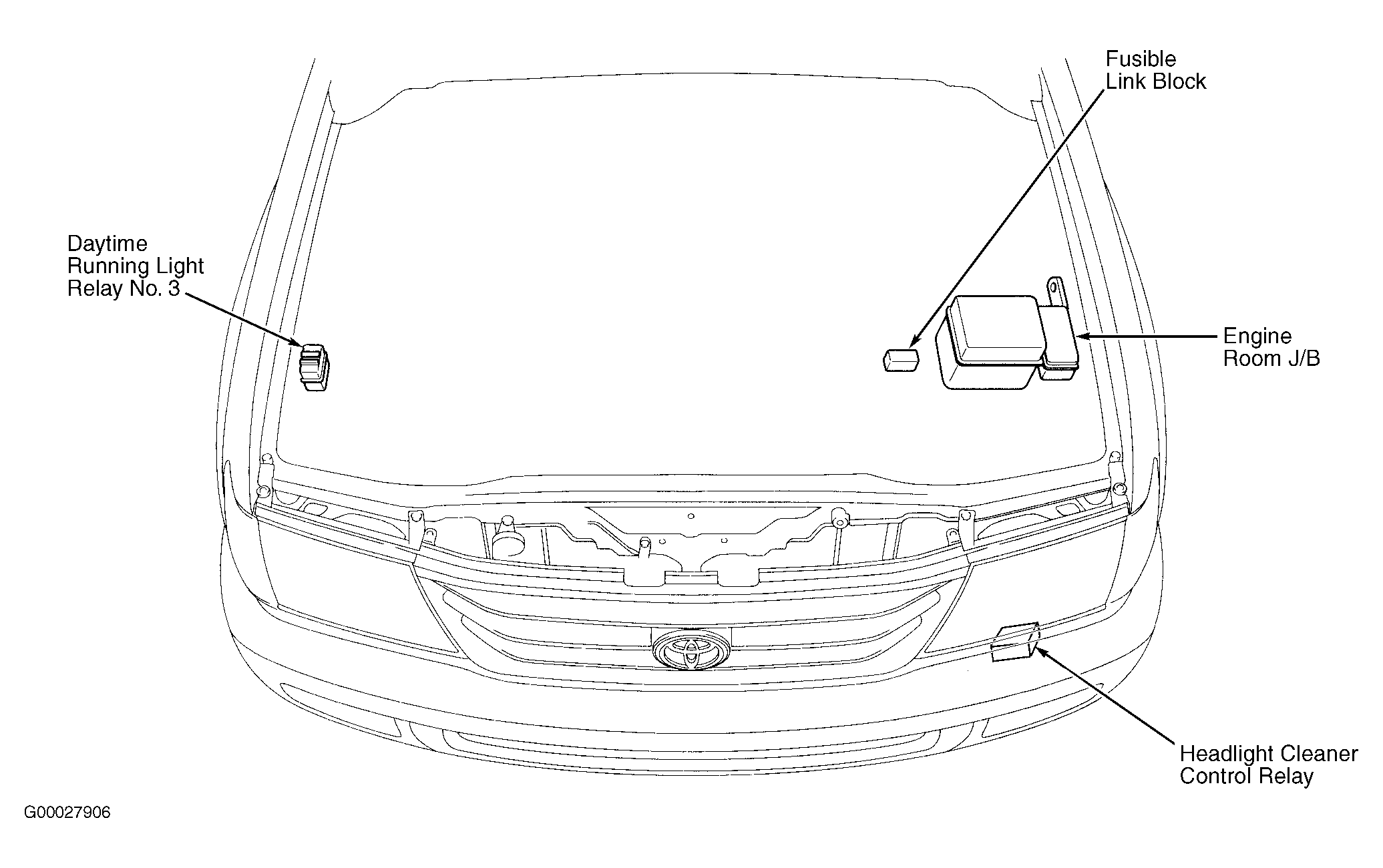

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
Engine Room J/B On left inner fender panel. See Figure.
Fusible Link Block On left side of engine compartment, near battery. See Figure.
Left Kick Panel J/B At left kick panel. See Figure.
Right Kick Panel J/B At right kick panel. See Figure.
