Input Shaft: Reassembly

NOTE: Coat all of the sliding and rotating surfaces with gear oil before reassembly.

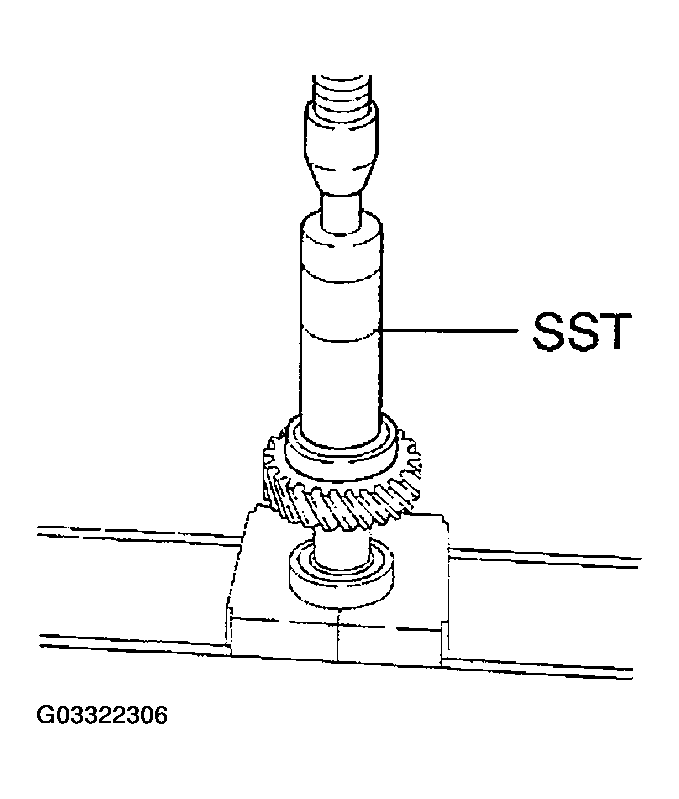

INSTALL FRONT BALL BEARING

Select a snap ring that will allow the minimum axial play.

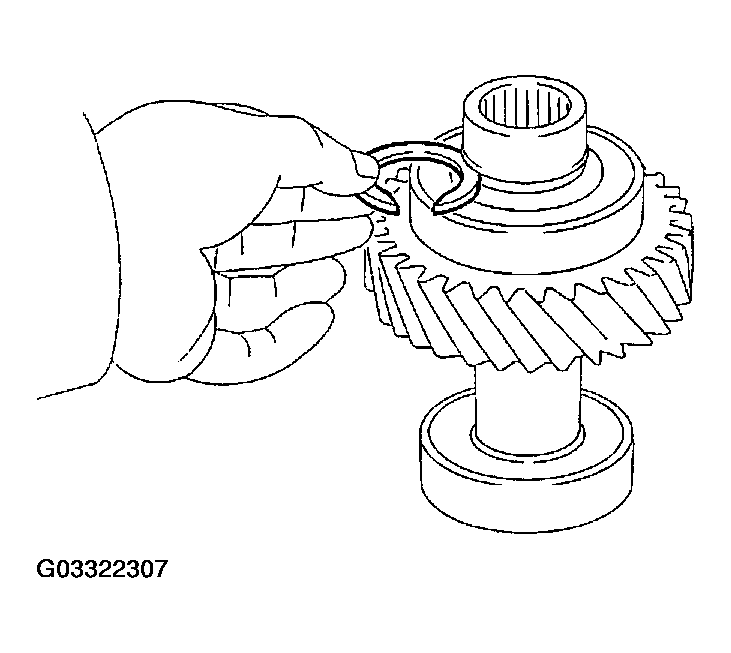

Fig 2: Installing Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SNAP RING THICKNESS

Mark	Thickness mm (in.)	Mark	Thickness mm (in.)
A	2.90 (0.1141)	D	3.05 (0.1201)
B	2.95 (0.1161)	E	3.10 (0.1220)
C	3.00 (0.1181)	F	3.15 (0.1240)

INSTALL REAR BALL BEARING

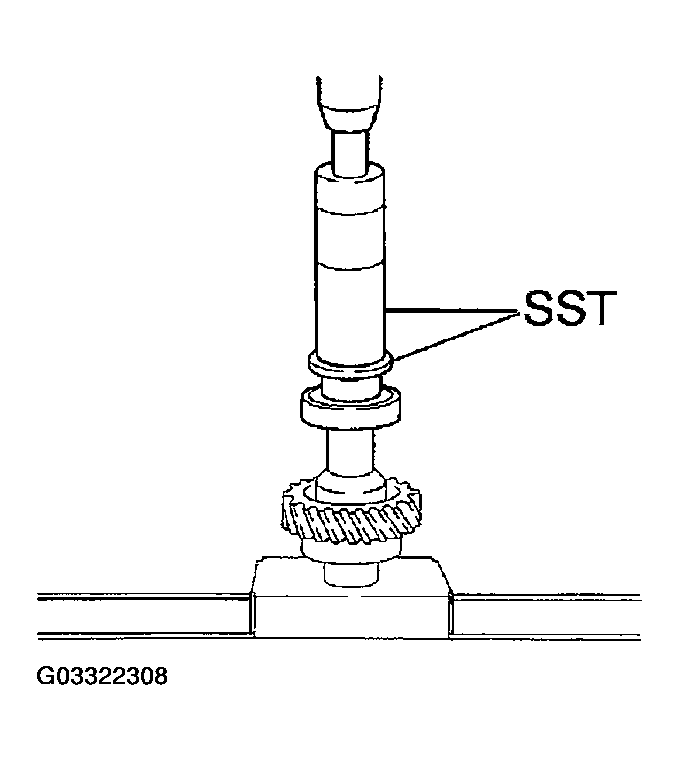

Fig 3: Installing Rear Ball Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST and a press, install the rear ball bearing.
SST 09316-60011 (09316-00011, 09316-00031)

Select a snap ring that will allow the minimum axial play.

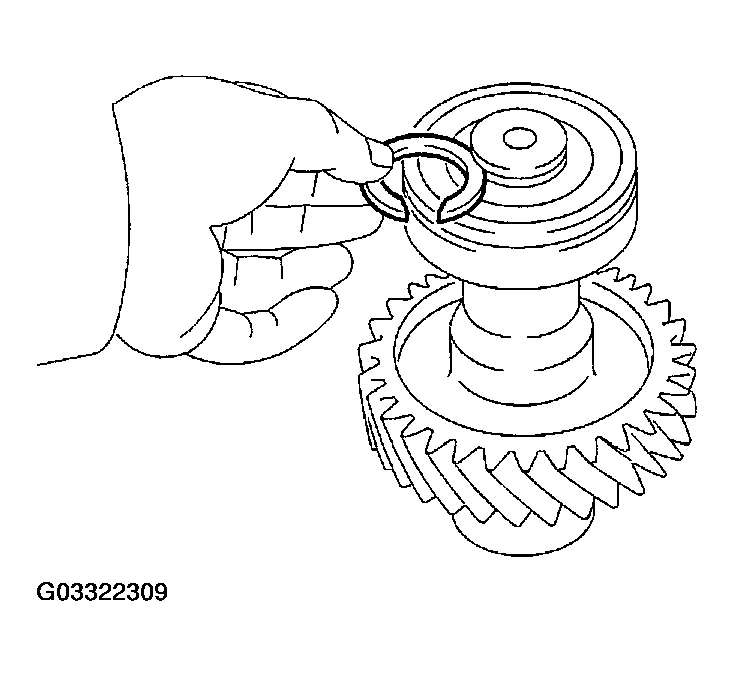

Fig 4: Installing Snap Ring

SNAP RING THICKNESS
