Transfer Shift Lever Assembly: Components

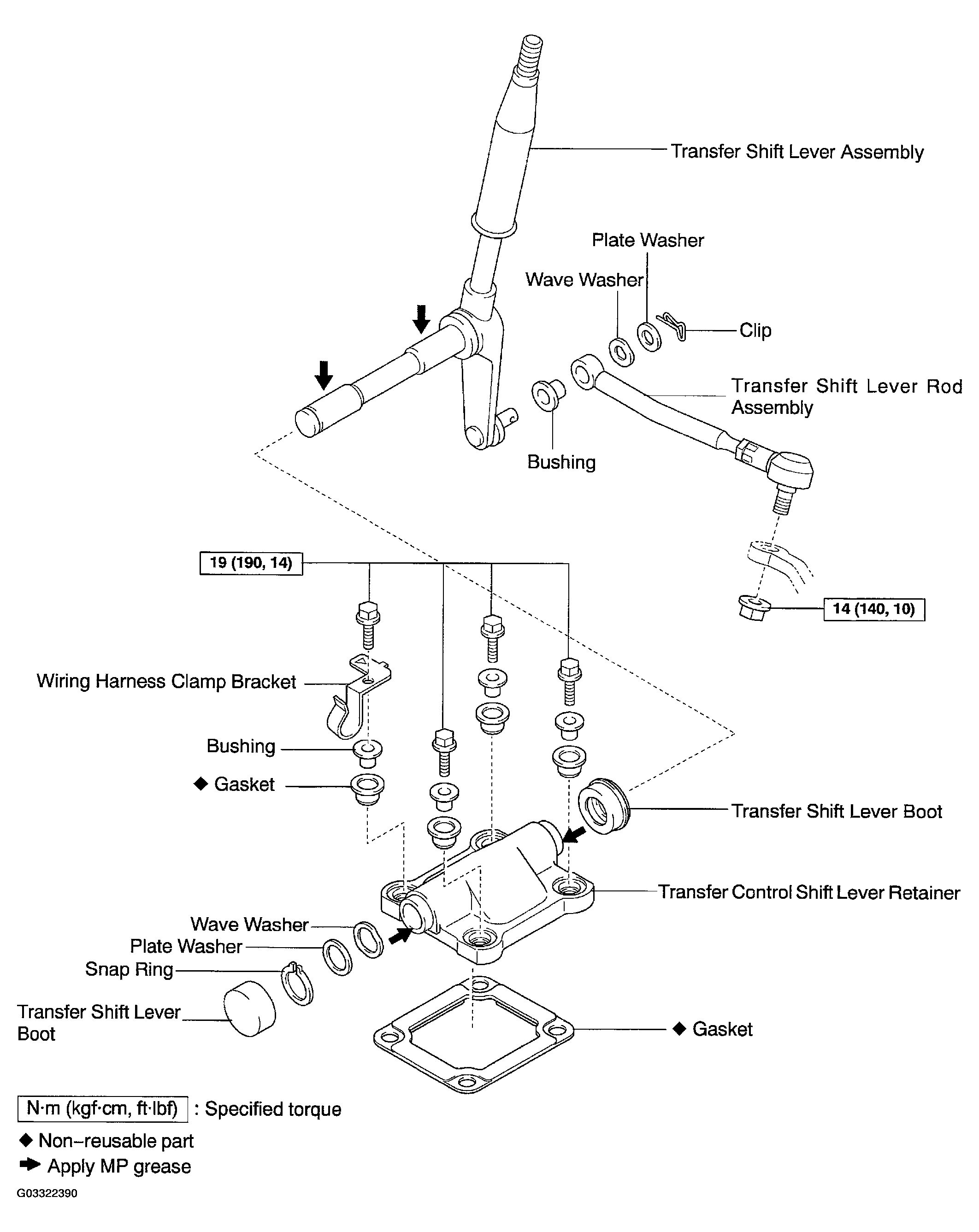

Fig 1: Identifying Transfer Shift Lever Assembly Components
G03322390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
