GENERATOR (SC1 Type): Reassembly

  1. Install rotor to drive end frame.
    1. Place the drive end frame on the pulley.
    2. Install the rotor to the drive end frame.

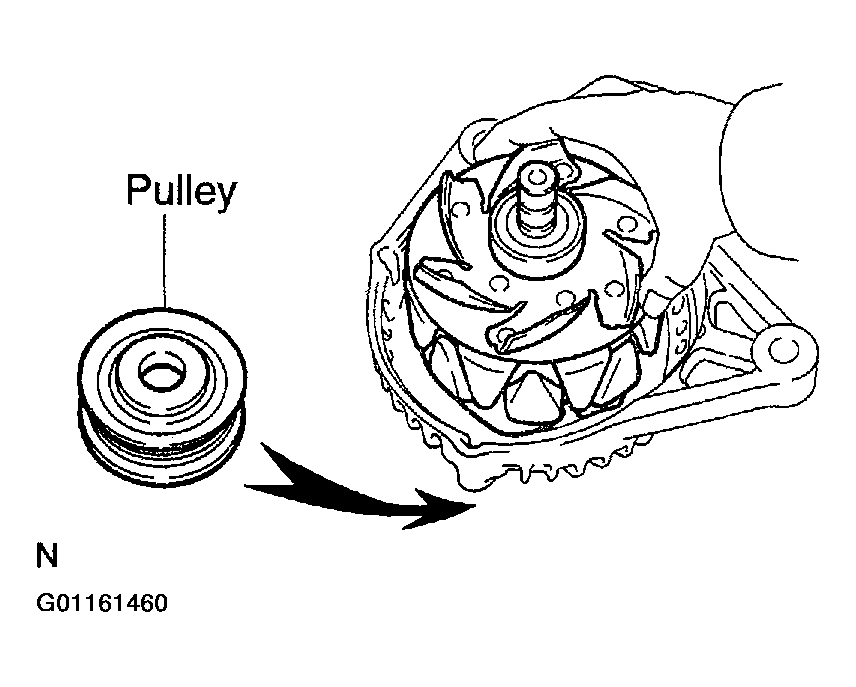

    Fig 1: Installing Rotor To Drive End Frame
    G01161460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install coil assembly.
    1. Place the generator washer on the rotor.
      Fig 2: Installing Washer On Rotor
      G01161461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 29 mm socket wrench and press, slowly press in the coil assembly.

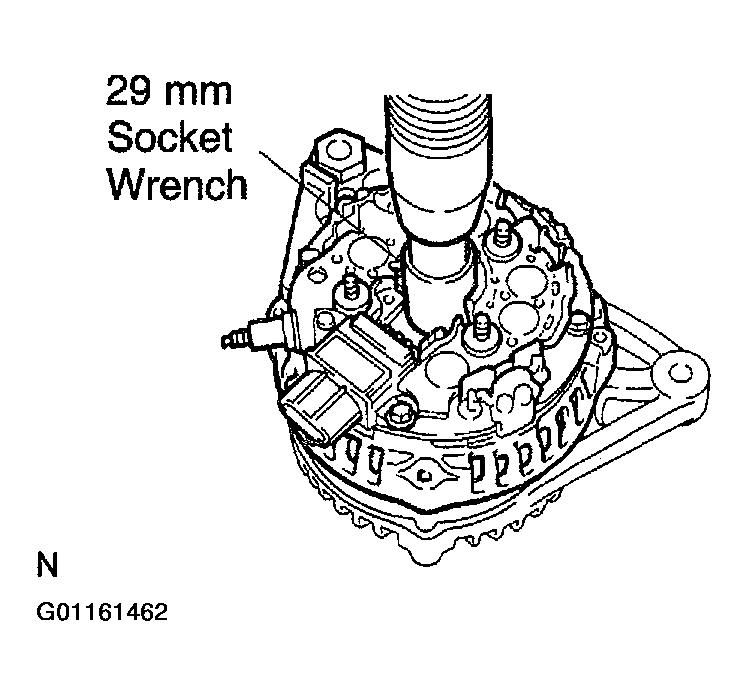

      Fig 3: Pressing In Coil Assembly
      G01161462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the coil assembly with the 4 bolts.
      1. Torque  : 5.8 N.m (59 kgf.cm, 51 in.lbf)

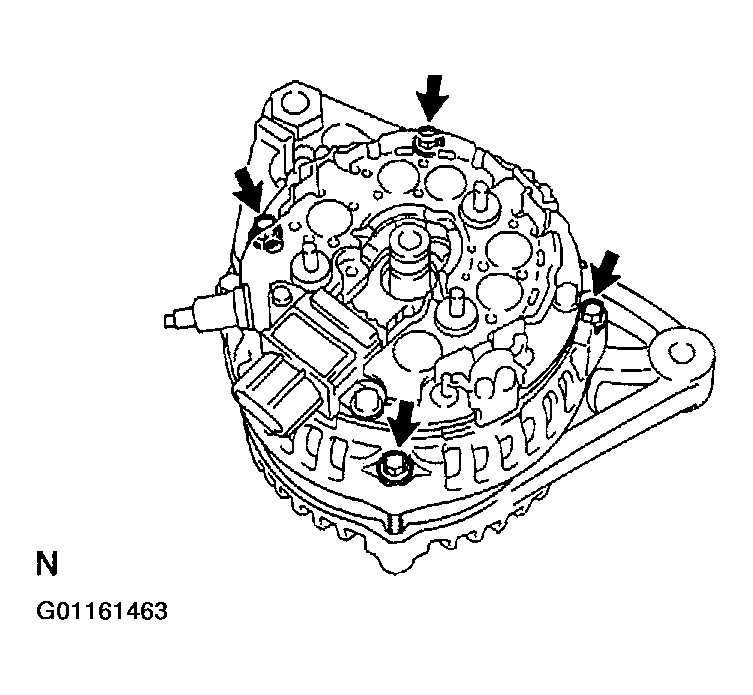

    Fig 4: Locating Coil Assembly Bolts
    G01161463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install pulley.
    1. Install the pulley to the rotor shaft by tightening the pulley nut by hand.

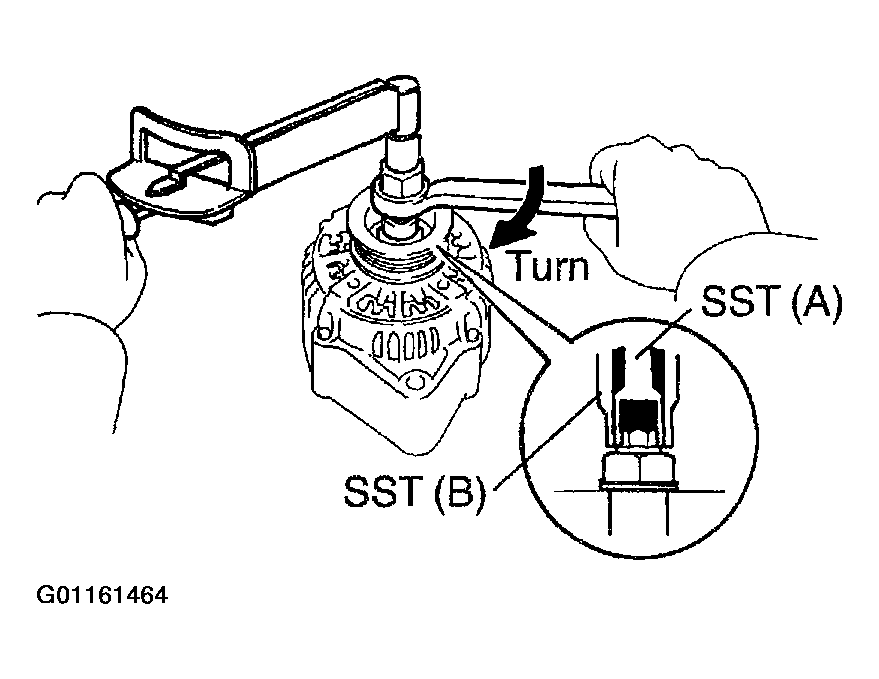

      2. Fig 5: Tightening Pulley Nut By Hand
      G01161464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
      1. SST 09820-63011
      2. Torque  : 39 Nm (400 kgfcm, 29 ft.lbf)
    3. Check that SST (A) is secured to the pulley shaft.
    4. Mount SST (C) in a vise.
    5. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).
      Fig 6: Mounting SST In Vise
      G01161465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. To torque the pulley nut, turn SST (A) in the direction shown in the illustration. See Fig 7.
      1. Torque  : 110.5 Nm (1125 kgfcm, 81 ft.lbf)
        2. Fig 7: Turning SST In Correct Direction
        G01161466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the generator from SST (C).
    8. Turn SST (B), and remove SST (A and B).

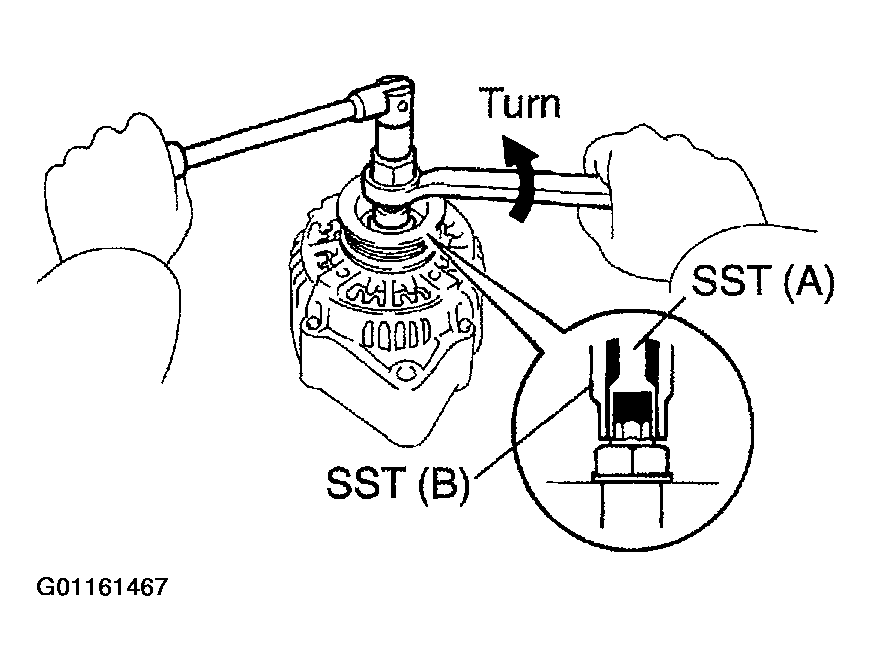

    Fig 8: Removing SST (A & B)
    G01161467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Install brush holder.
    1. Place the front seal plate to the coil assembly.

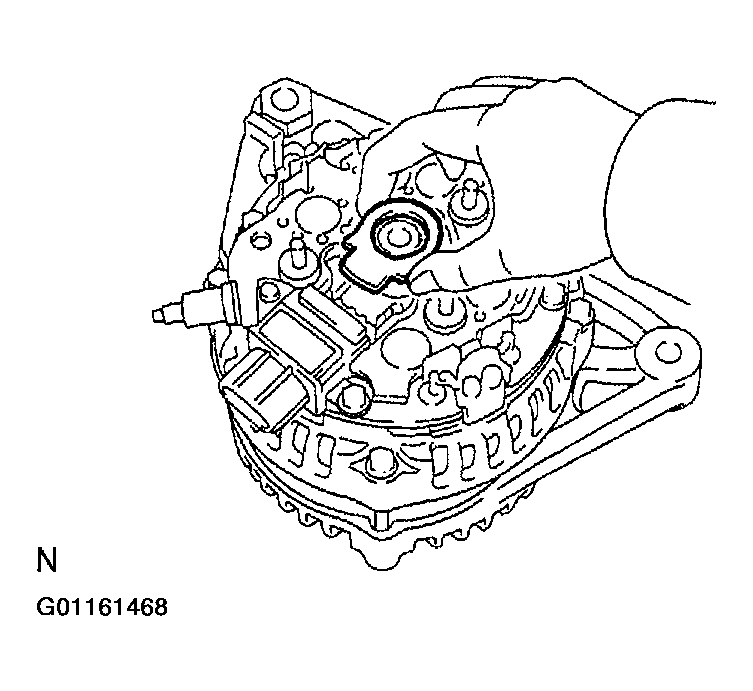

      Fig 9: Installing Brush Holder
      G01161468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place the brush holder on the coil assembly.
      NOTE: Be careful of the holder installation direction.
    3. Install the 2 screws.
      1. Torque  : 1.8 N.m (18 kgf.cm, 16 in.lbf)
    4. Place the real seal plate on the brush holder.

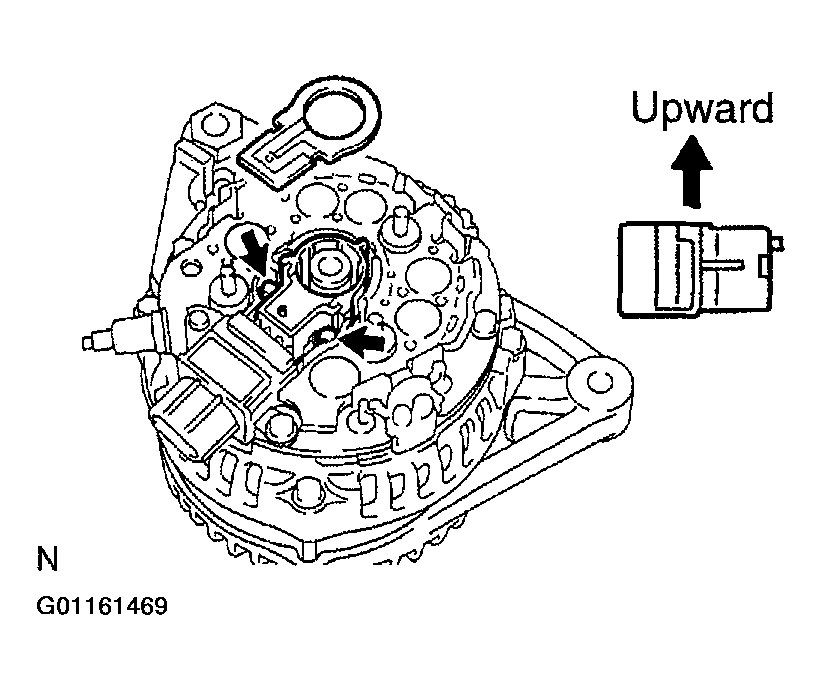

    Fig 10: Pressing Brush Holder On Coil Assembly
    G01161469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Install rear end cover.
    1. Install the terminal insulator.
    2. Install the end cover with the 3 nuts.
      1. Torque  : 4.6 N.m (47 kgf.cm, 41 in.lbf)
  6. Check that rotor rotates smoothly.

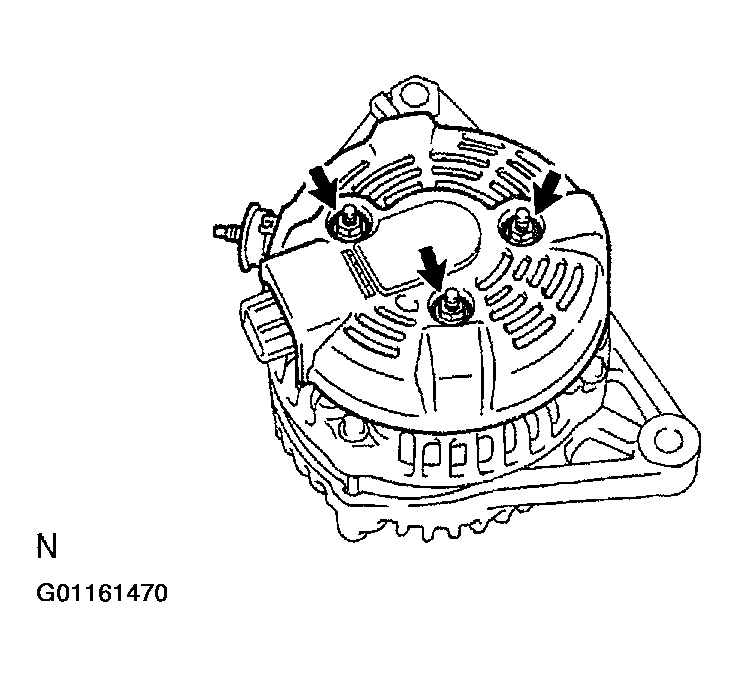

    Fig 11: Installing Rear End Cover
    G01161470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
