Quarter Power Windows: Adjustment

REMOVE REAR SEAT CUSHION ASSY

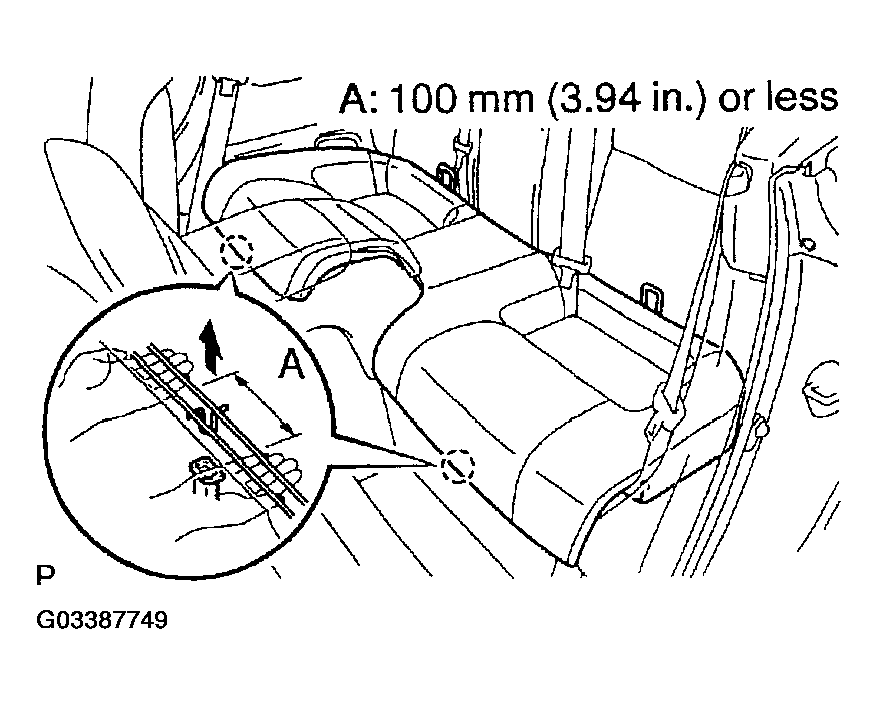

1. Pull up the front portion of the seat cushion assembly, then remove it.

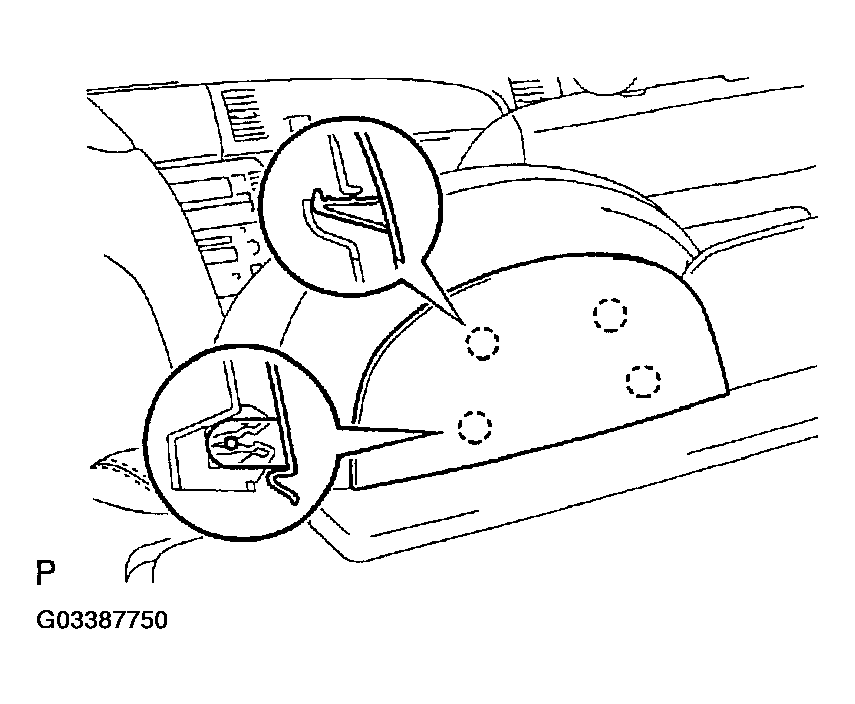

  Fig 1: Removing Rear Seat Cushion Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: In the case, hold the base of the clip up to prevent the cushion frame from being distorted.
REMOVE REAR SEAT HEADREST PLATE COVER
1. Using a screwdriver, remove the rear seat headrest plate cover.
  NOTE: Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.

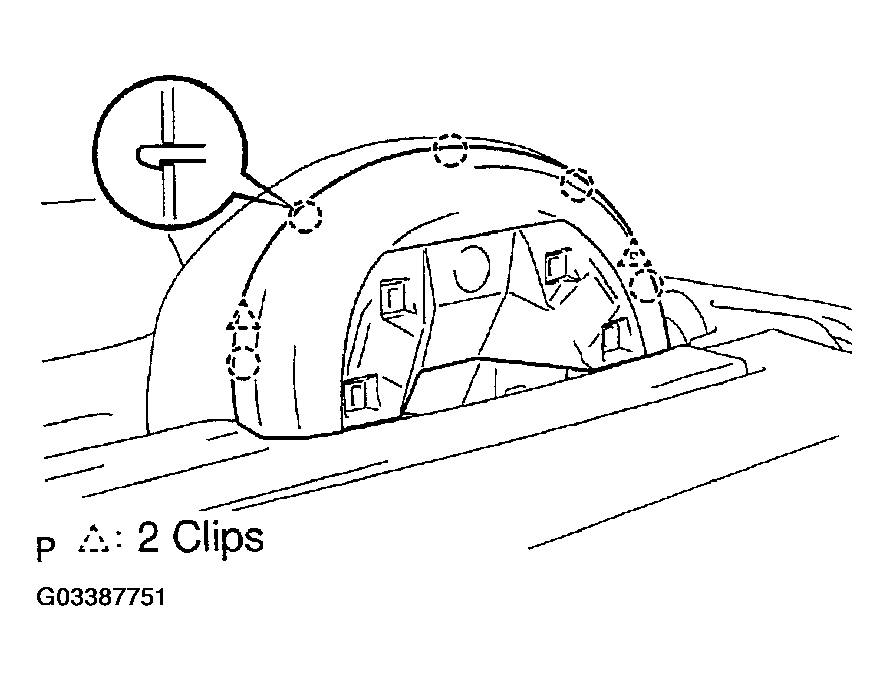

Fig 2: Removing Rear Seat Headrest Plate Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WIND DEFLECTOR BOARD ASSY
1. Remove the 4 bolts and wind deflector board assembly.
REMOVE REAR SEAT HEADREST PLATE
1. Using a screwdriver, remove the rear seat headrest plate.
  NOTE: Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.
Fig 3: Removing Rear Seat Headrest Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST ASSY

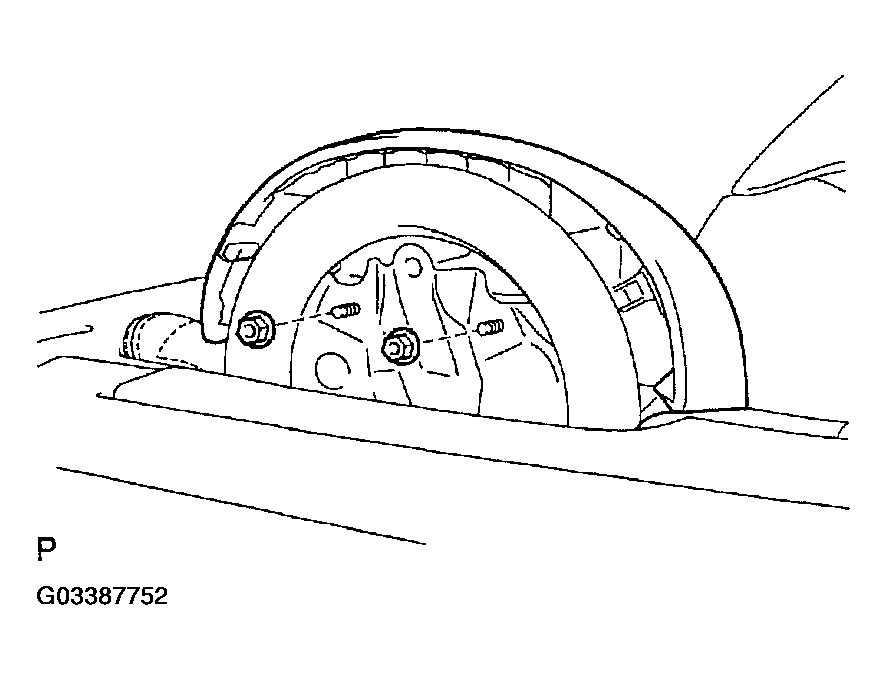

1. Remove the 2 nuts and rear seat headrest assembly.

  Fig 4: Removing Rear Seat Headrest Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Use the same manner described above to the other side.
REMOVE REAR SEAT BACK ASSY

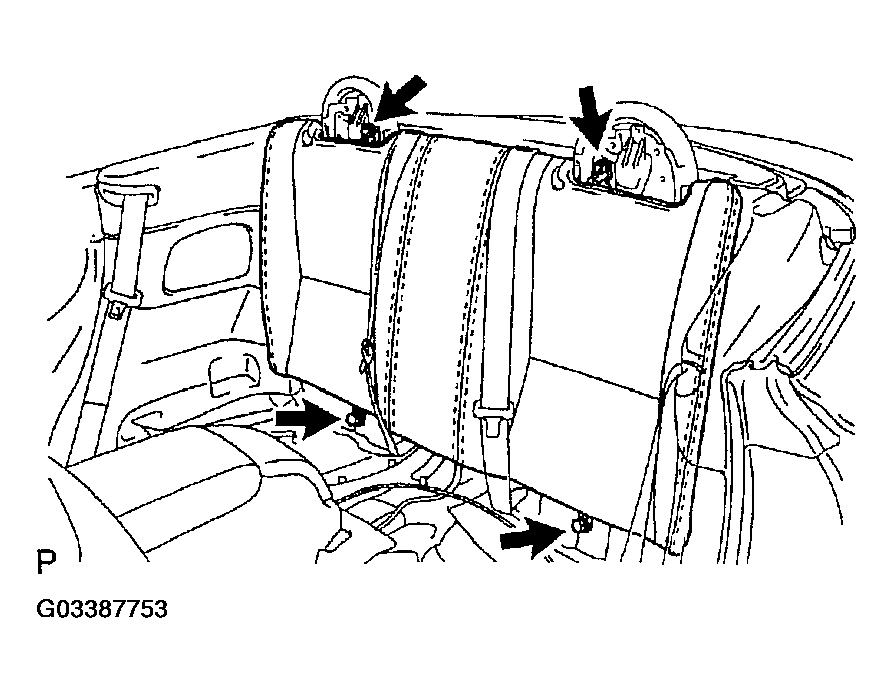

1. Remove the 2 nuts, 2 bolts and rear seat back assembly.
Fig 5: Removing Rear Seat Back Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR SCUFF PLATE ASSY RH
1. Using a screwdriver, remove the door scuff plate RH.
NOTE: Tape the screwdriver tip before use.

Fig 6: Removing Door Scuff Plate RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER TRIM PANEL ASSY FRONT RH

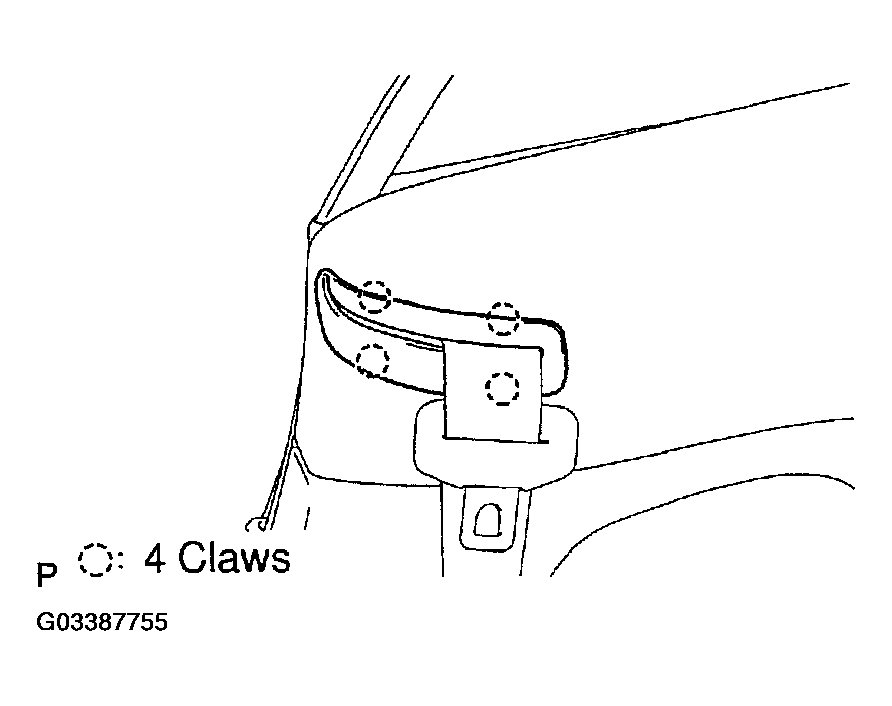

1. Using a screwdriver, release the 4 claws and remove the front seat outer belt garnish.
  NOTE: Tape the screwdriver tip before use.

  Fig 7: Removing Front Seat Outer Belt Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

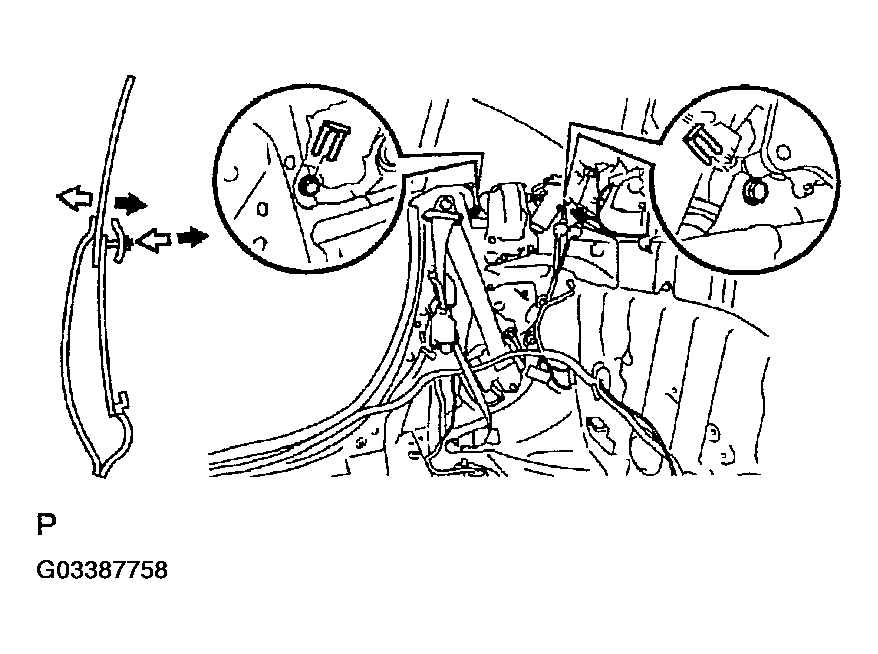

2. Remove the 6 screws and clip.

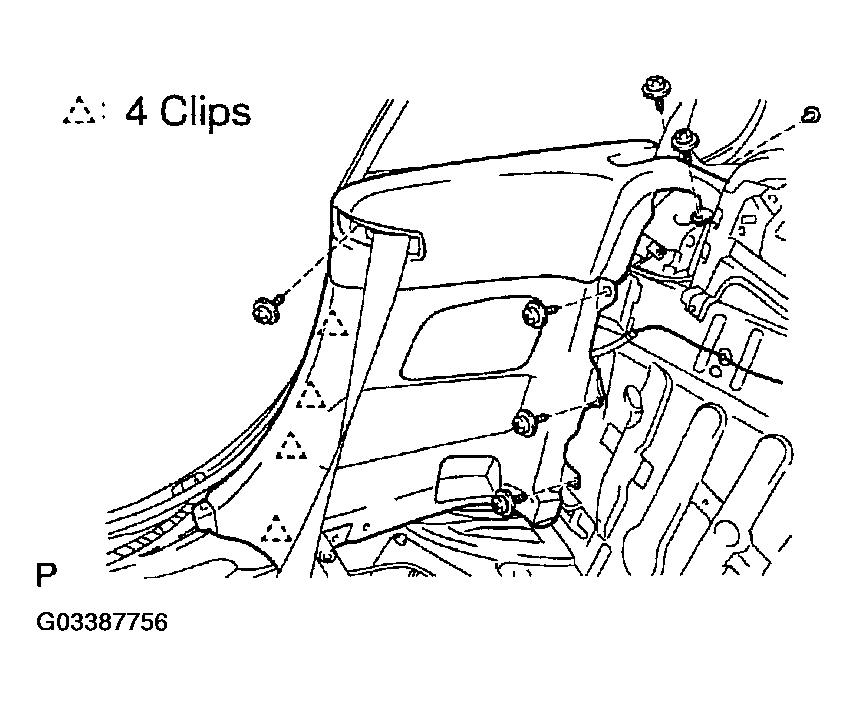

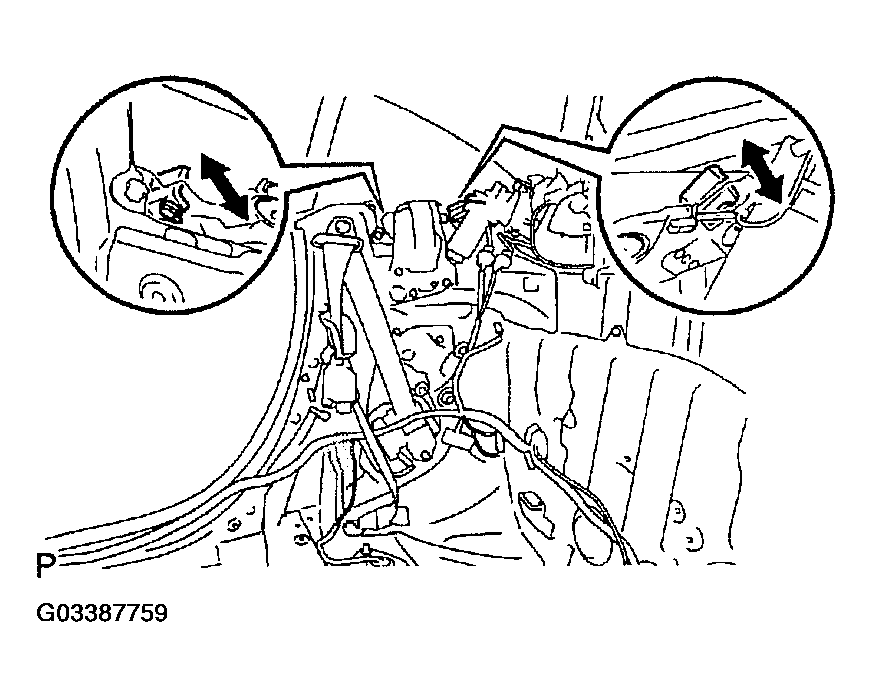

3. Disengage the 4 clips, then remove the quarter trim panel RH.
Fig 8: Removing Quarter Trim Panel RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST QUARTER WINDOW ASSY RH
1. Adjust the upper part of the glass inward/outward.
  1. Loosen the 2 bolts on the quarter window assy.
  2. Using a hexagon wrench, turn the bolt for adjustment.

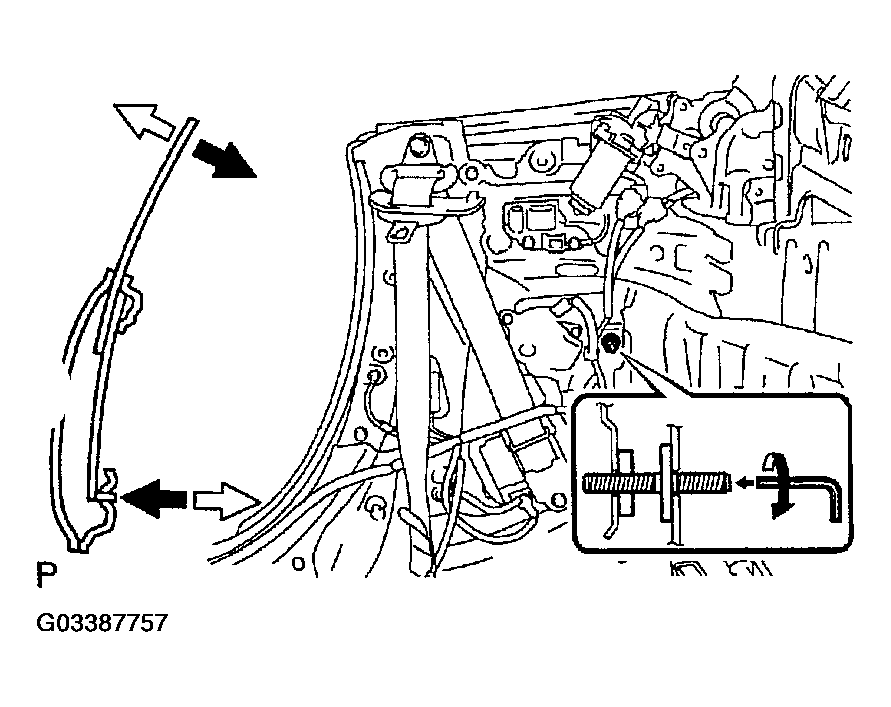

  Fig 9: Adjusting Upper Part Of Glass Inward/Outward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the lower part of the glass inward/outward.
  1. Loosen the 2 bolts on the quarter window assy.
  2. Insert the shim to adjust the glass position (inside outside).
  Fig 10: Using Shims To Adjust Lower Part Of Glass Inward/Outward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When the window is fully closed, adjustment the vertical position of the glass.
  1. Loosen the 3 bolts on the glass for adjustment.
    Vertical position: +/-3 mm (+/- 0.12 in.)
  2. Only when the adjustment is not sufficient at (1), change the position of the door window upper stop for further adjustment.
Fig 11: Adjusting Vertical Position Of Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- When the glass raised, it should reach the 2 upper stops simultaneously.
- Manually close the quarter window assy (See MANUAL CLOSE OPERATION ).

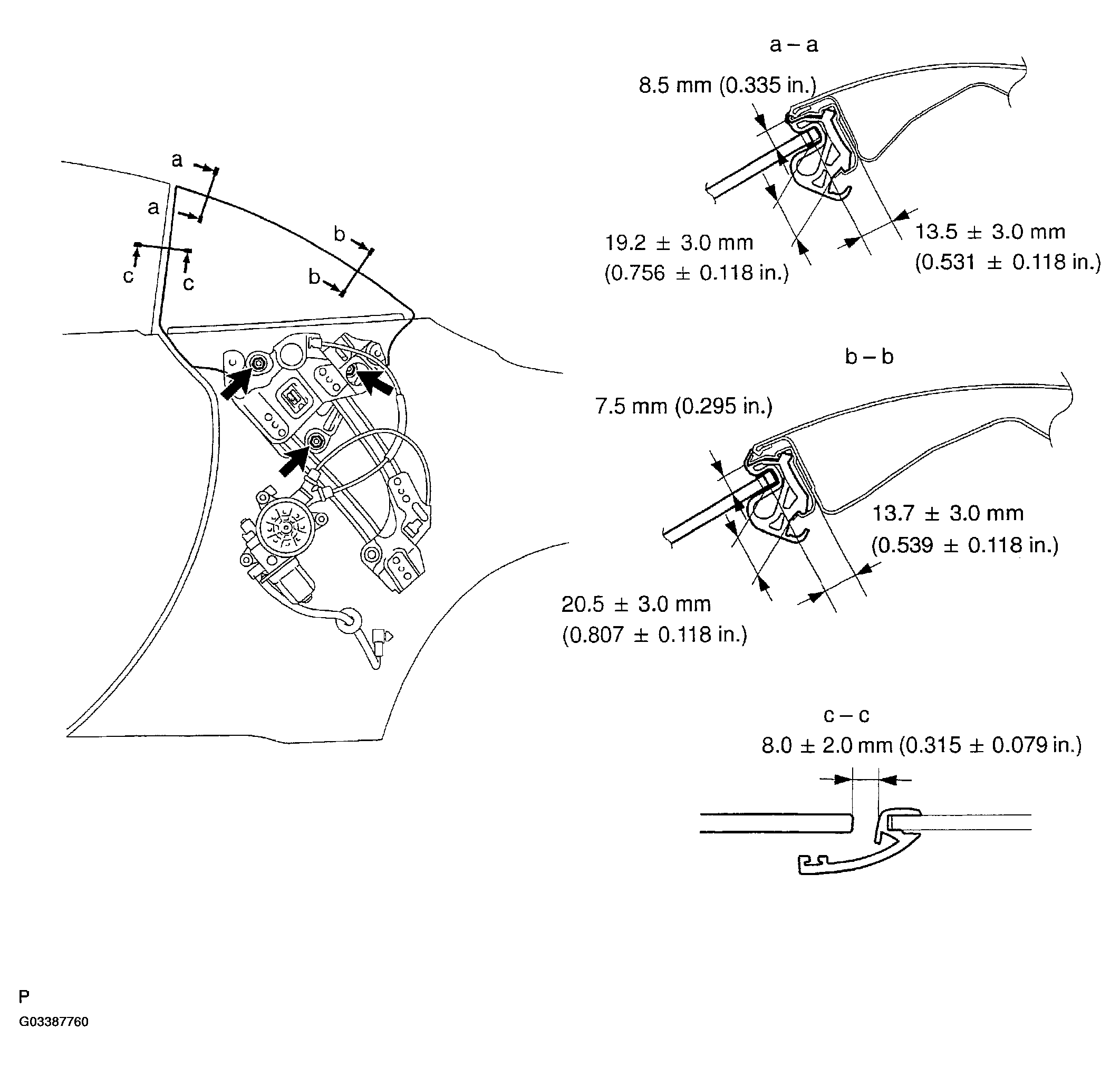

Fig 12: Adjusting Dimension Of Quarter Window Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER TRIM PANEL ASSY FRONT RH
INSTALL DOOR SCUFF PLATE ASSY RH
INSTALL REAR SEAT BACK ASSY (See OVERHAUL )
Torque:

Bolt: 18 N.m (184 kgf.cm, 13 ft.lbf)

Nut: 7.0 N.m (71 kgf.cm, 63 in.lbf)
