Quarter Power Windows: Components

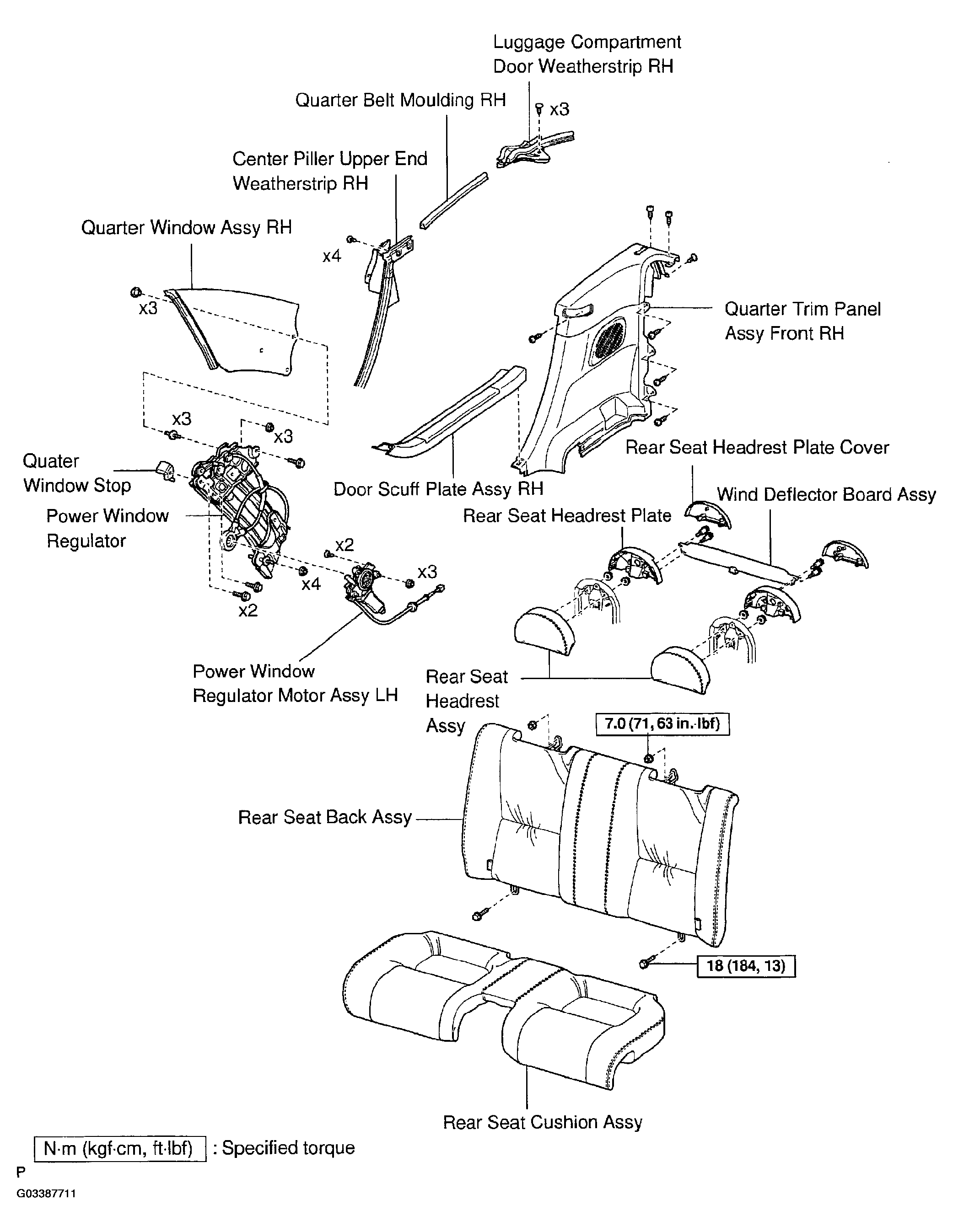

Fig 1: Exploded View Of Quarter Window Assy RH Components
G03387711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
