Speed Sensor

For speed sensor diagnostic trouble code definitions see Fig 1.

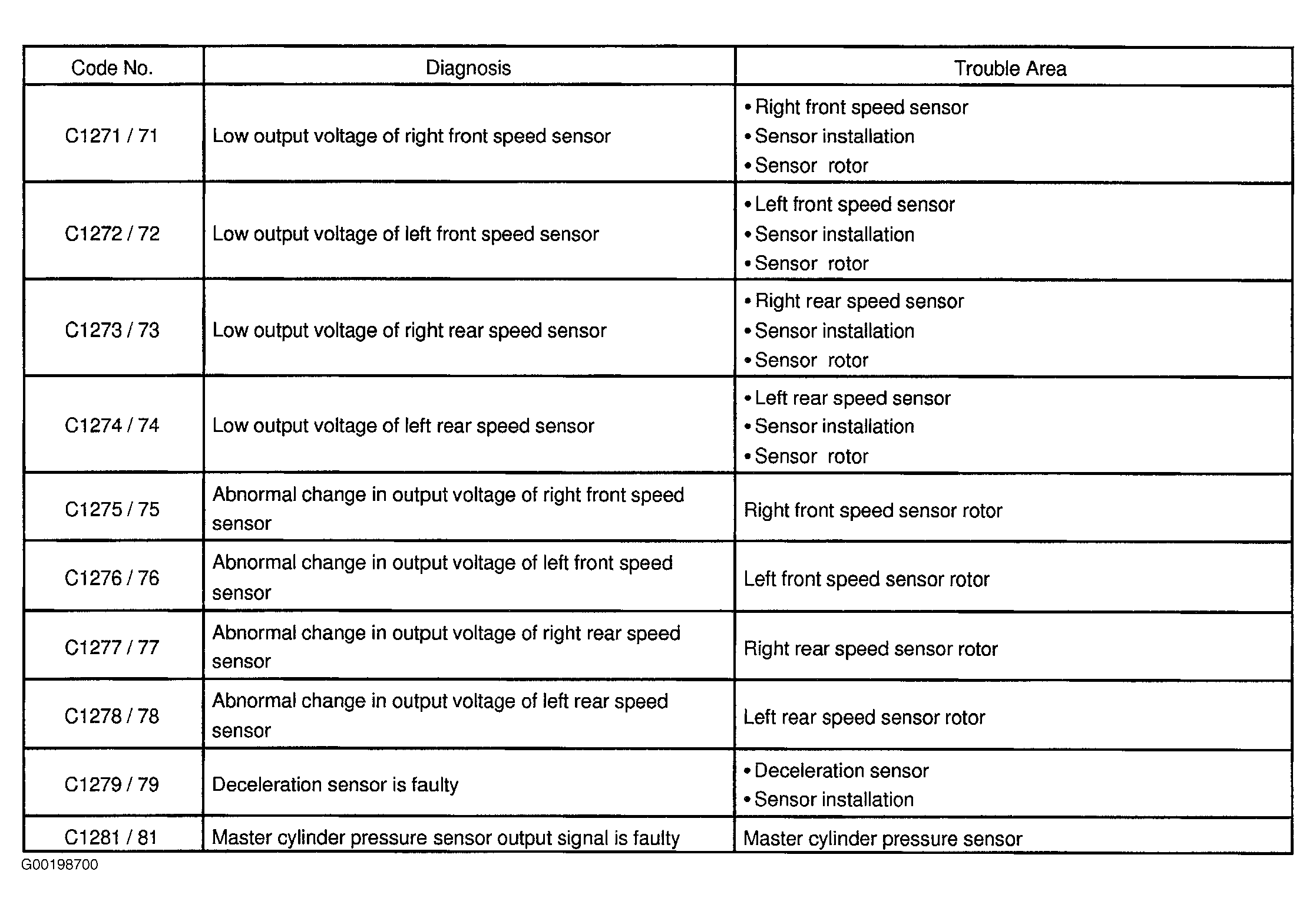

Fig 1: Identifying DTC Of Speed Sensor
G00198700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
