Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2.

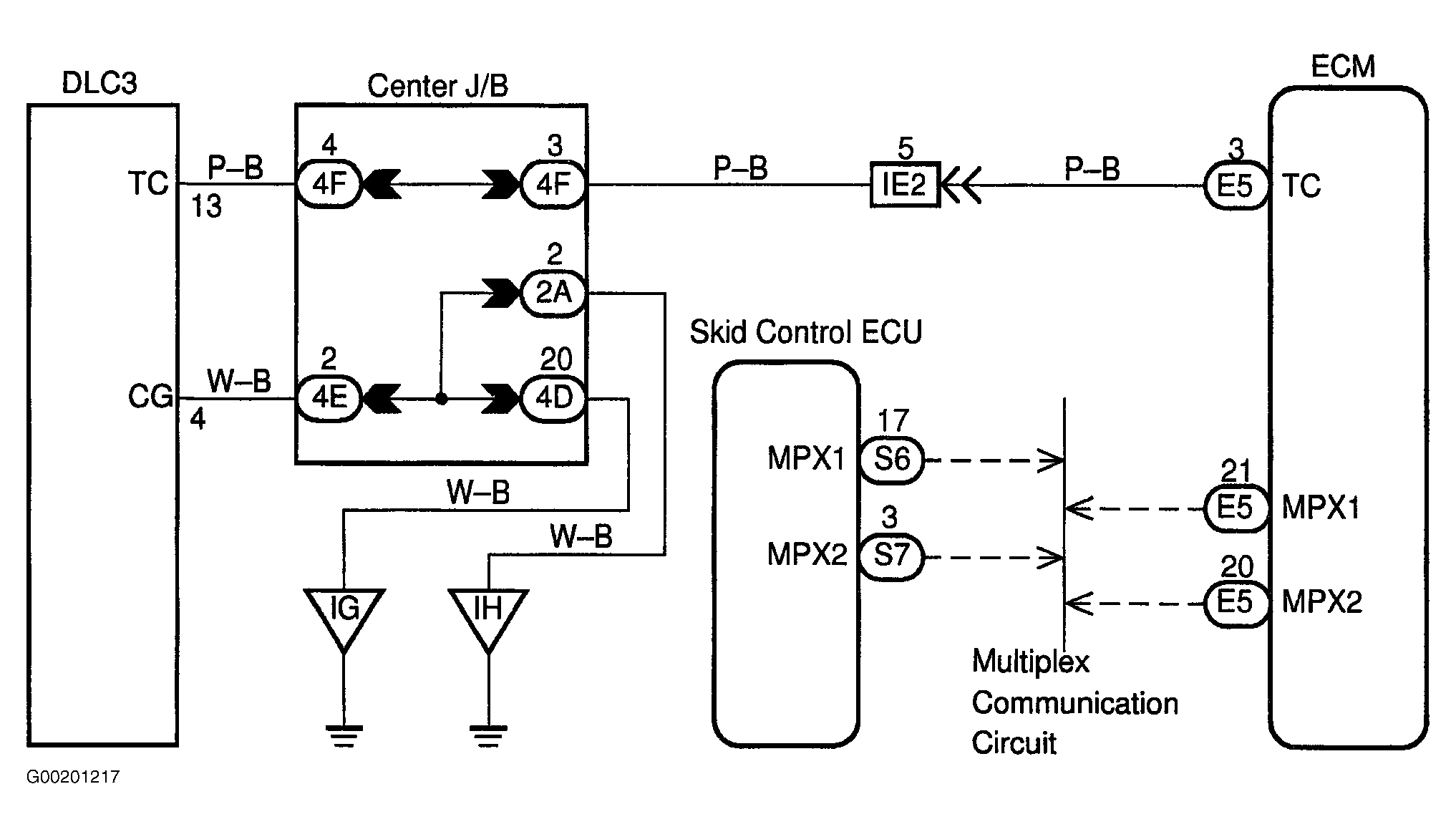

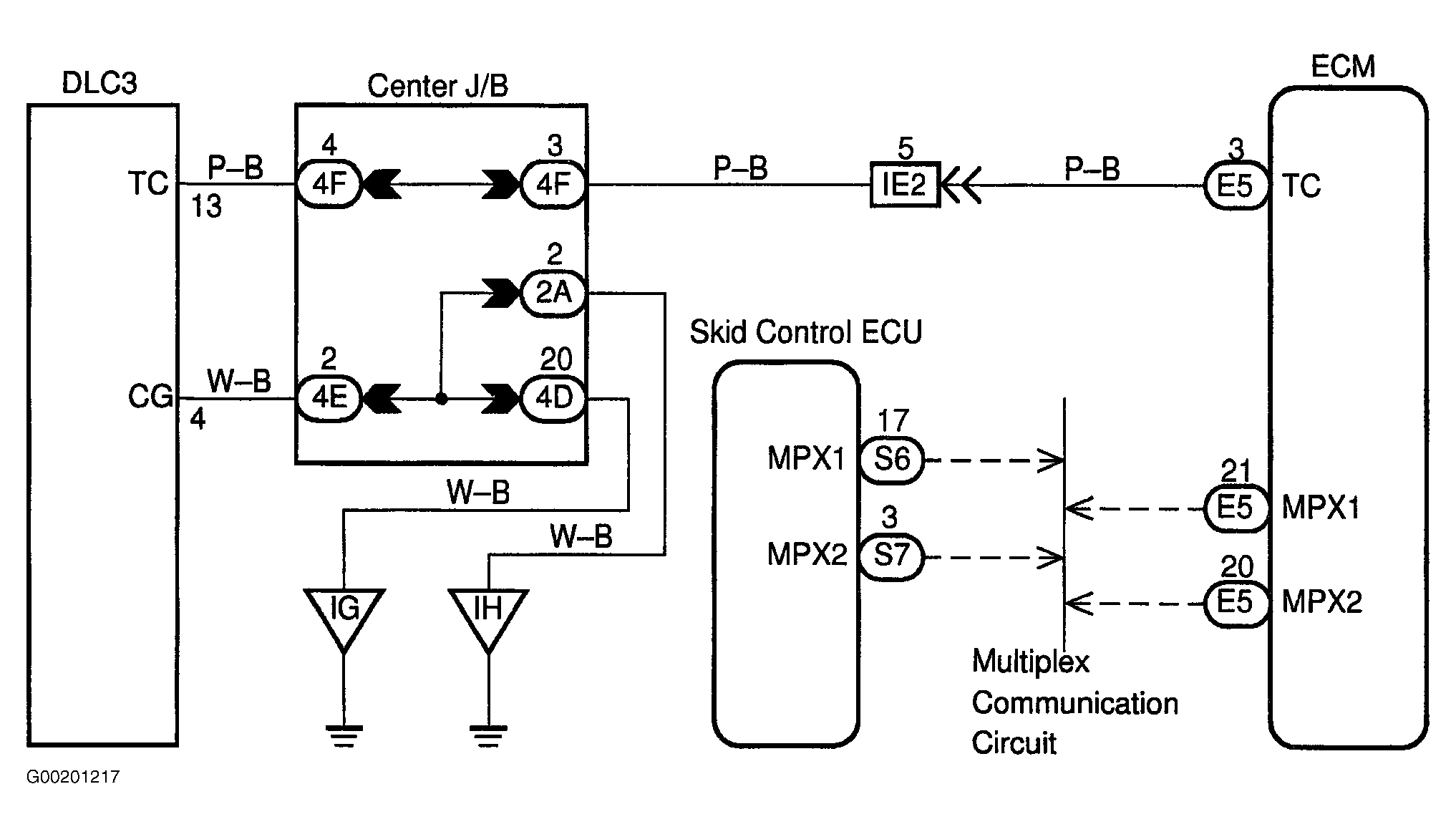

Fig 1: Wiring Diagram Tc Terminal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

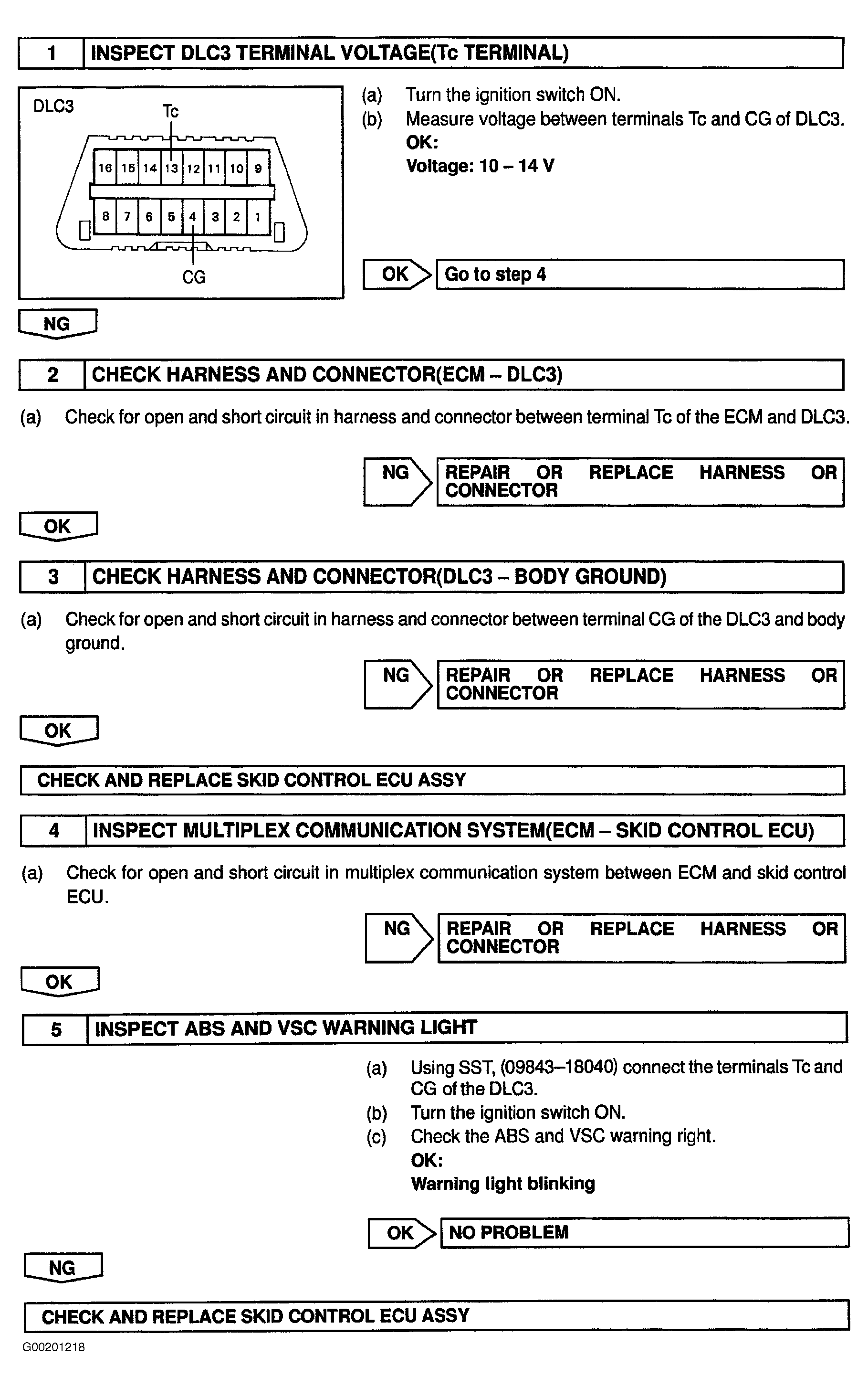

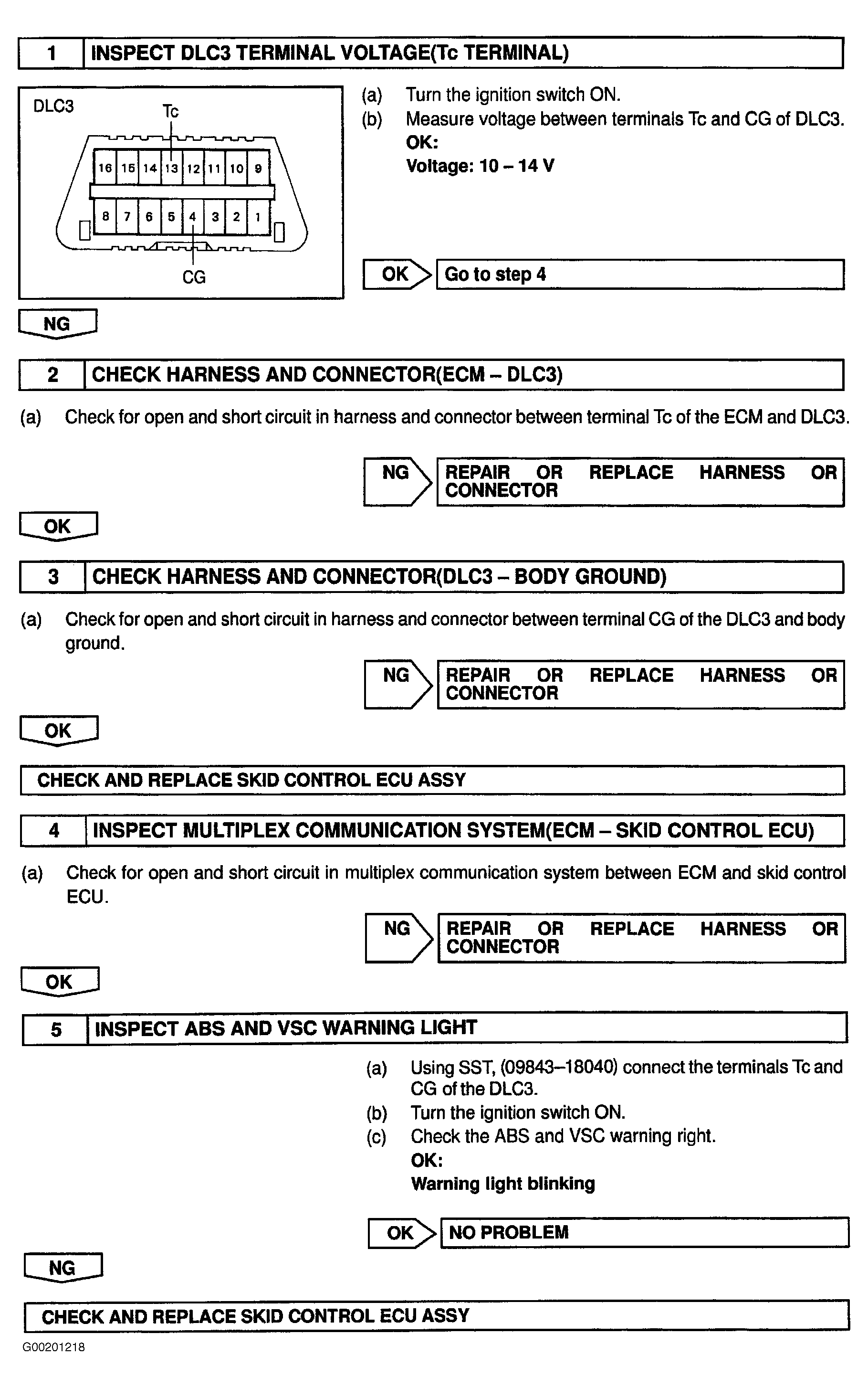

Fig 2: Testing Procedure Tc Terminal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
