Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

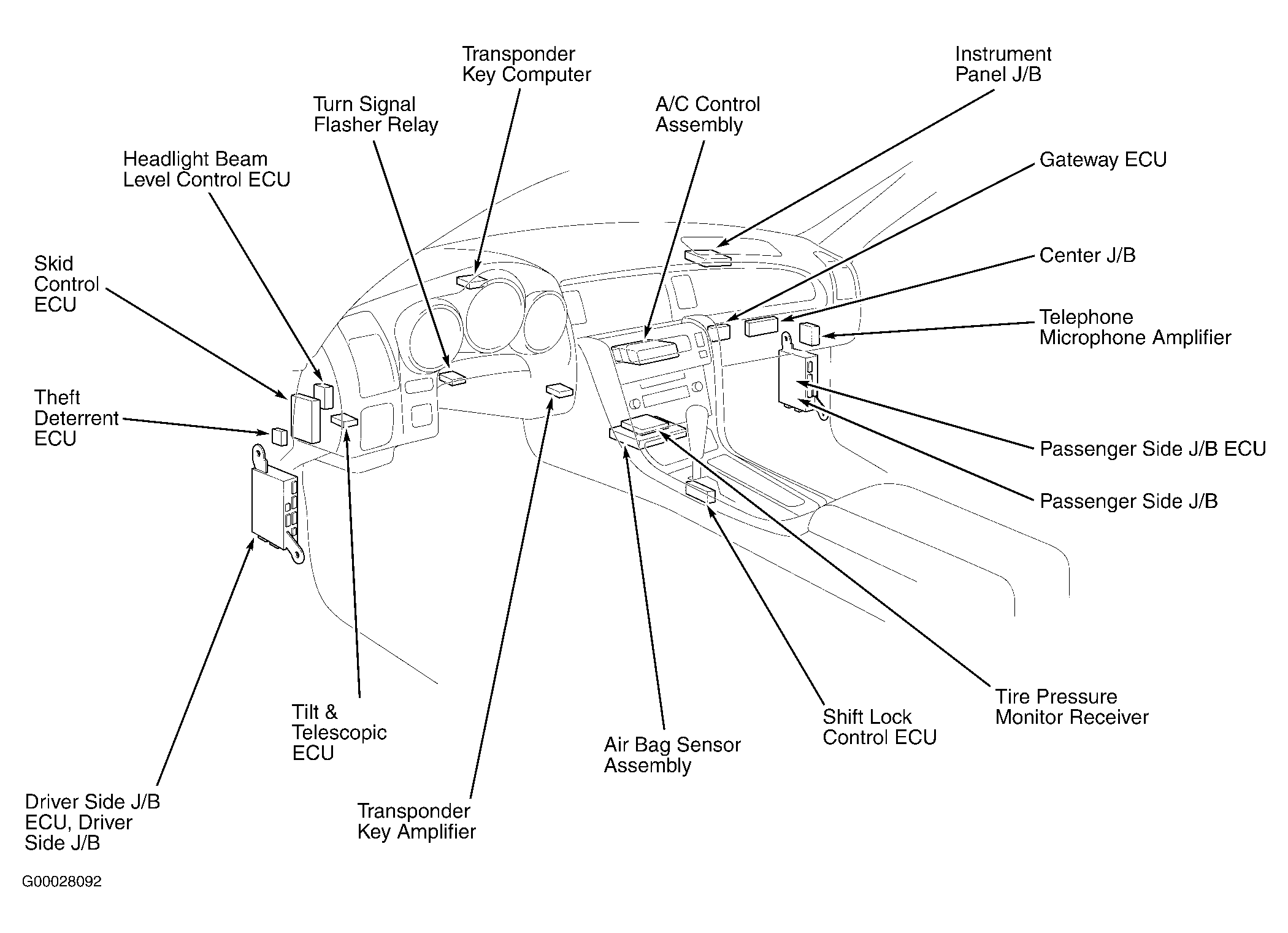

| A/C Control Assembly | Behind center of dash. See Figure. |
| Blower Motor Controller | Behind right side of dash. |

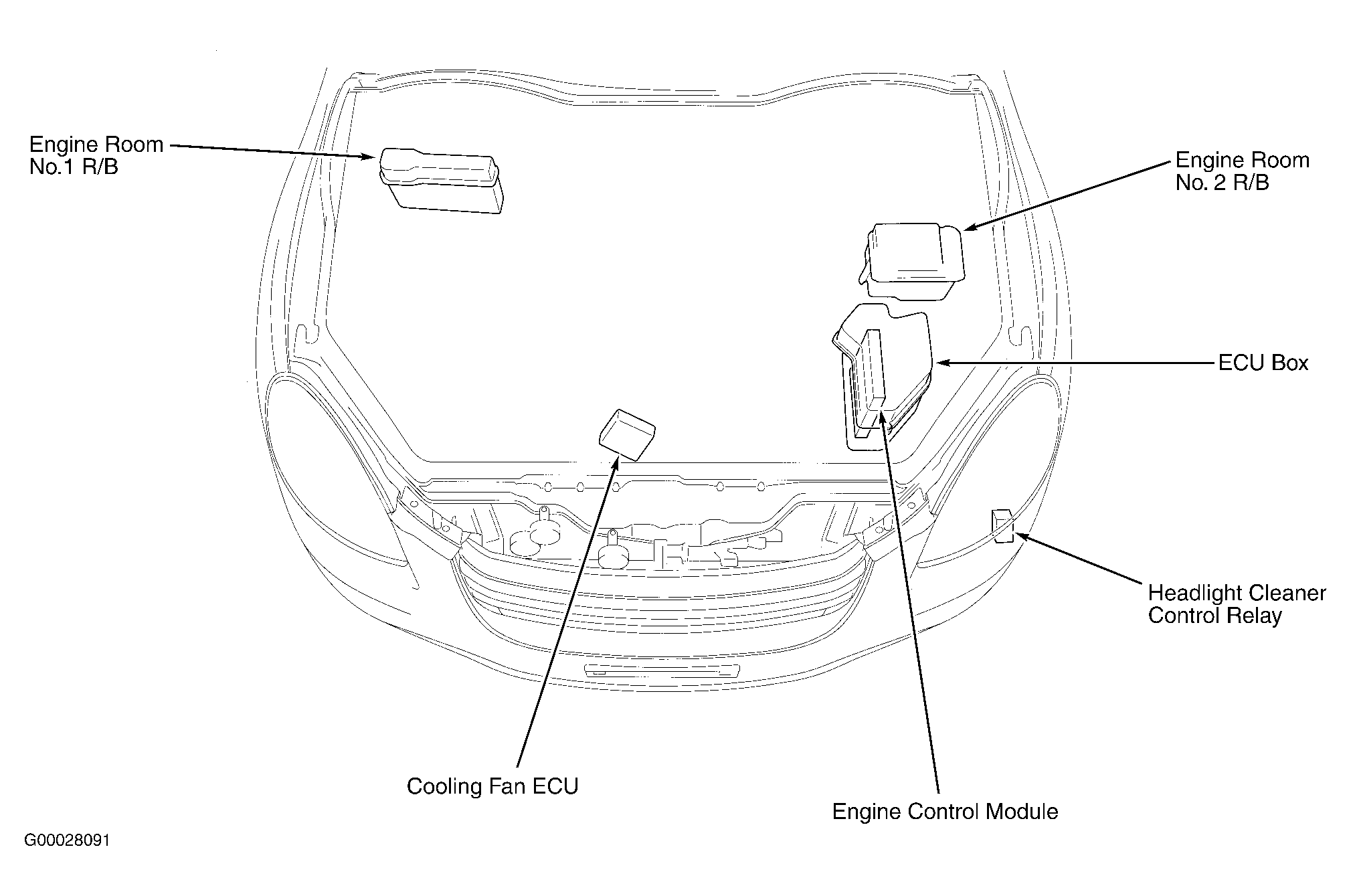

| Cooling Fan ECU | In front of engine compartment, near cooling fan assembly. See Figure. |
| Driver Door ECU | In driver's door. See Figure. |
| Driver Side J/B ECU | Left end of dash. See Figure. |
| Engine Control Module | At left side of engine compartment, in ECU box. See Figure. |

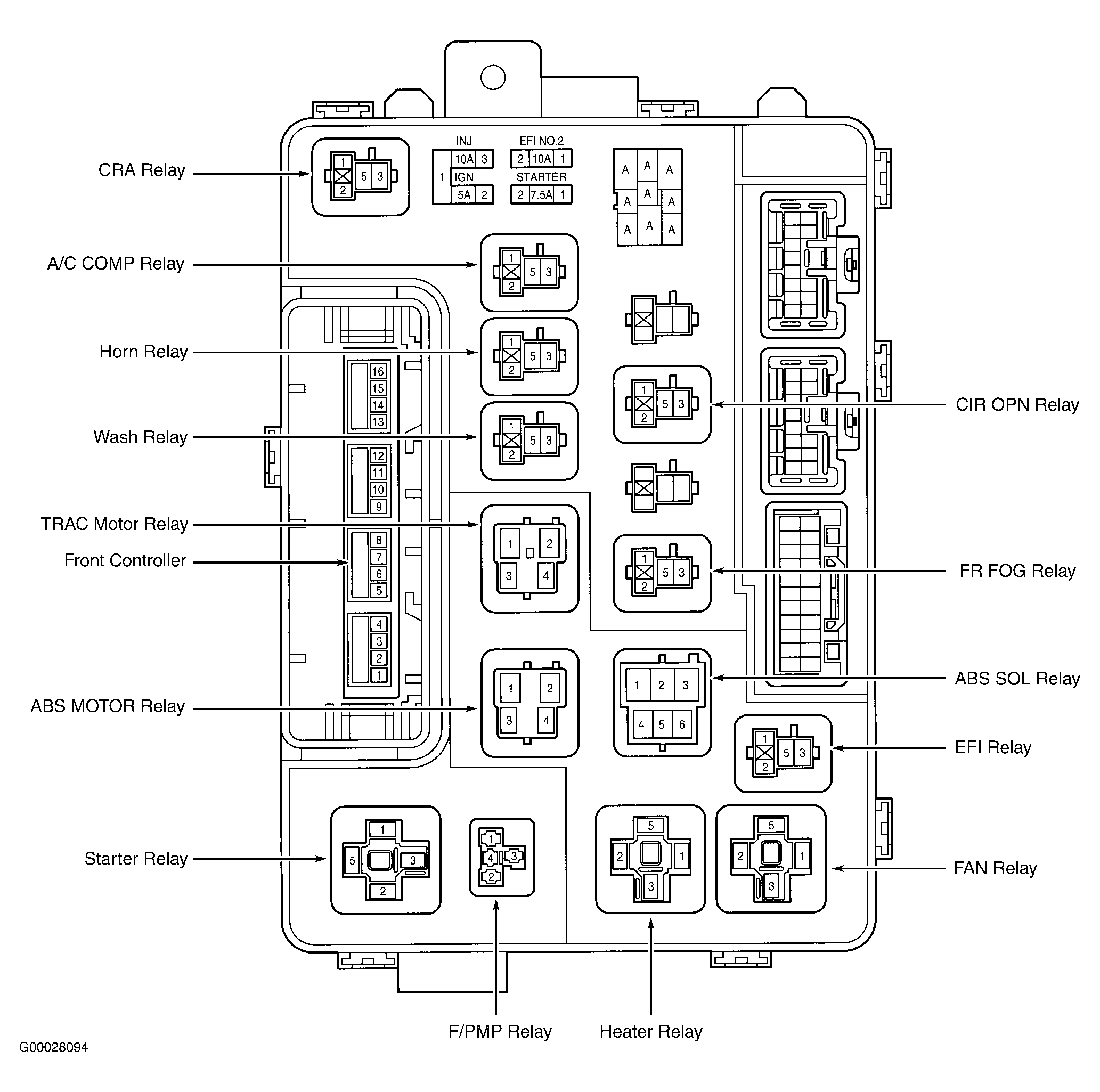

| Front Controller | On engine room No. 2 R/B. See Figure. |
| Gateway ECU | Behind right side of dash. See Figure. |
| Headlight Beam Level Control ECU | Behind left end of dash. See Figure. |

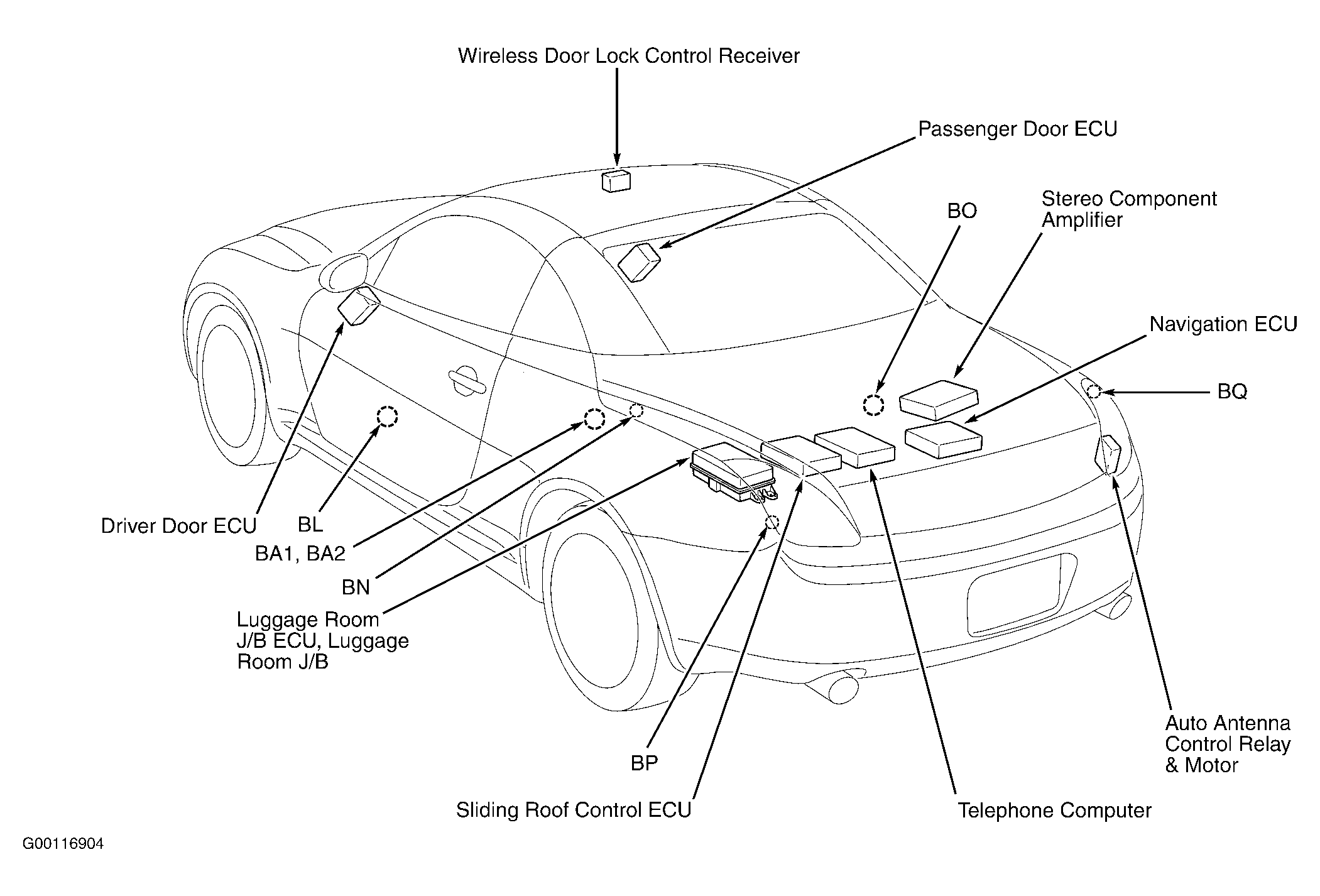

| Luggage Room J/B ECU | At left rear corner of luggage compartment. See Figure. |
| Navigation ECU | At right rear corner of luggage compartment. See Figure. |
| Passenger Door ECU | In right door. See Figure. |
| Passenger Side J/B ECU | Right side kick panel. See Figure. |
| Power Seat ECU | Under respective seat. |
| Seat Heater Controller | Under respective seat. |
| Shift Lock Control ECU | Under center console, near selector lever. See Figure. |
| Skid Control ECU | Behind left end of dash. See Figure. |
| Sliding Roof Control ECU | In left rear of luggage compartment. See Figure. |
| Telephone Computer | Center rear of luggage compartment. See Figure. |
| Theft Deterrent ECU | Behind left end of dash. See Figure. |
| Tilt & Telescopic ECU | Behind left end of dash. See Figure. |
| Tire Pressure Monitor Receiver | Behind center of dash, below radio. See Figure. |
| Transponder Key Computer | Left side of dash, behind gauge assembly. See Figure. |
| Wireless Door Lock Control Receiver | On center of roof header. See Figure. |
