Exhaust Manifold: Components

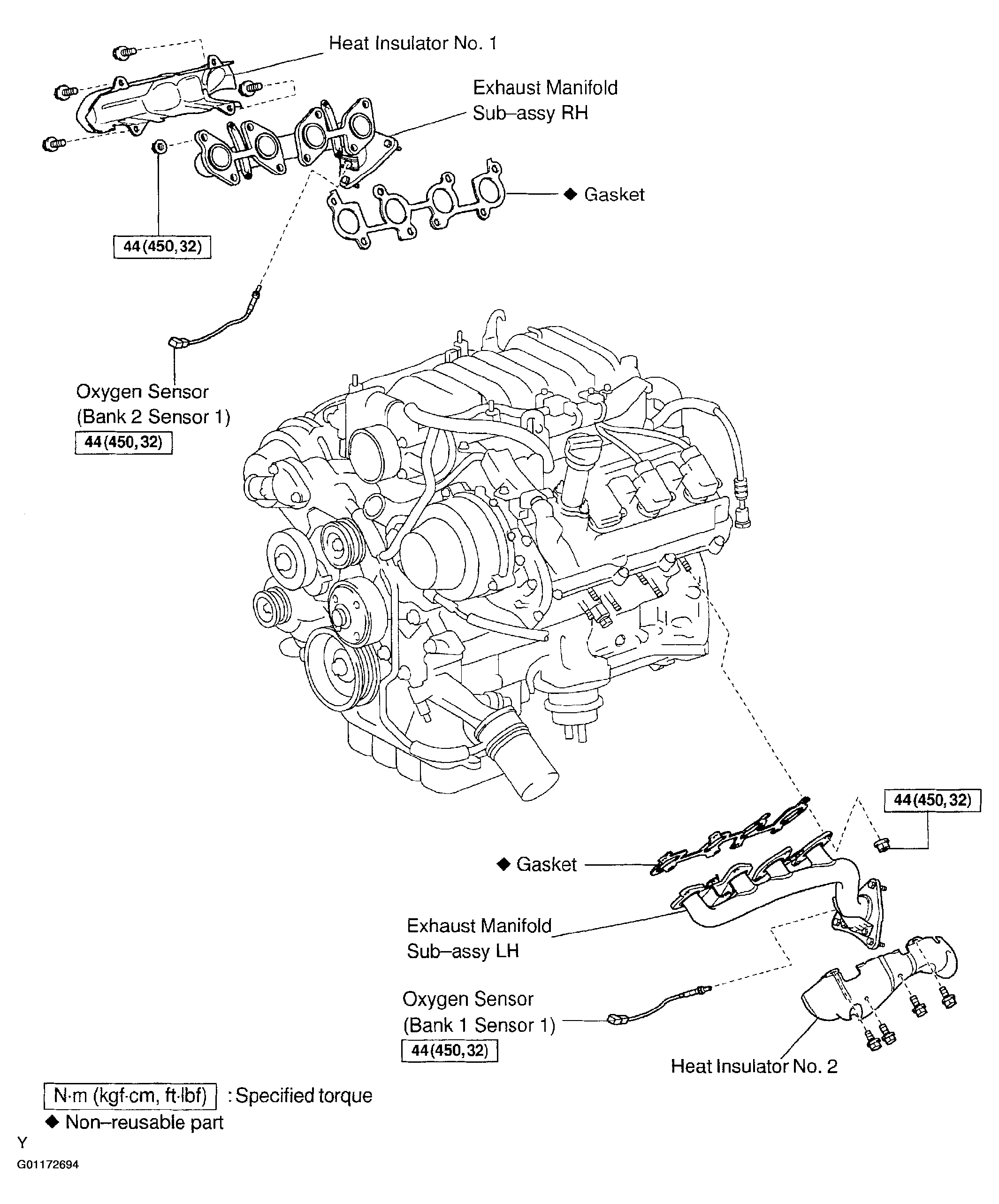

Fig 1: Removing/Installing Exhaust Manifold

G01172694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
