Oil Filter Sub-ASSY: Replacement

REMOVE ENGINE UNDER COVER
DRAIN ENGINE OIL
REMOVE OIL FILTER SUB-ASSY
SST 09228-07501
INSTALL OIL FILTER SUB-ASSY
1. Tighten the oil filter by hand until the oil filter touches the surface of the oil filter bracket.
2. Using SST, give the oil filter additional 3/4 turning to set the filter.
SST 09228-07501
ADD ENGINE OIL
1. Install a new gasket and the drain plug.
  Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
2. Add new oil.
  Oil capacity:

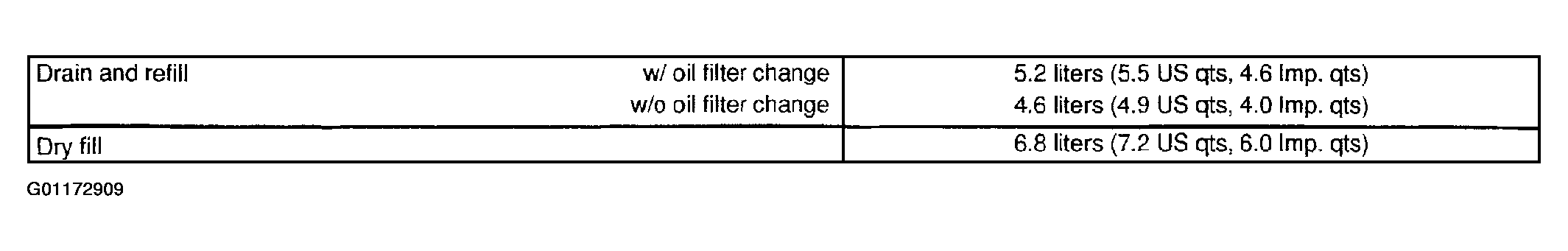

  Fig 1: Oil capacity Specification Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reinstall the oil filter cap.
CHECK ENGINE OIL LEAK
CHECK ENGINE OIL LEVEL
INSTALL ENGINE UNDER COVER
