Partial Engine: Components

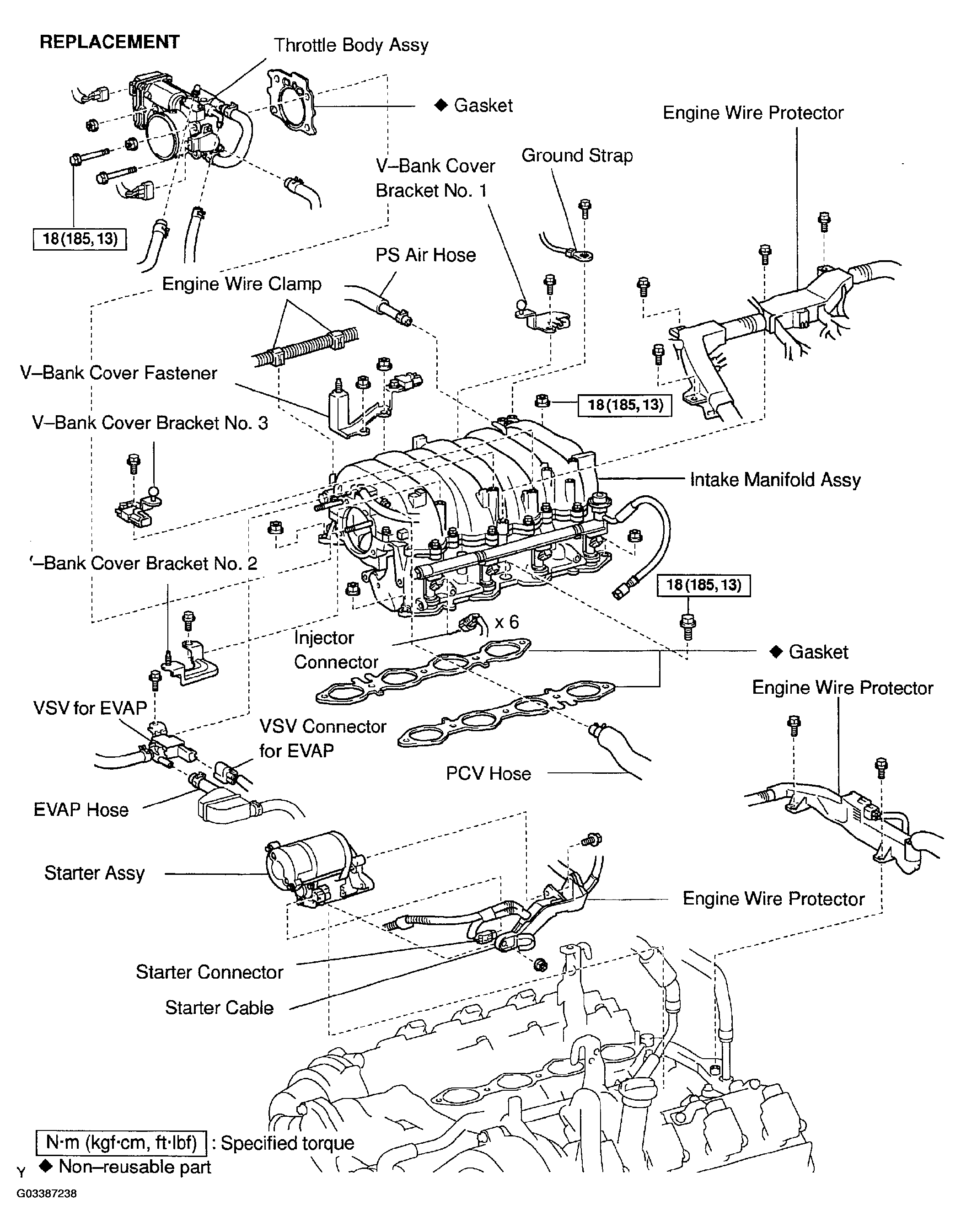

Fig 1: Exploded View Of Partial Engine Assembly Components (1 Of 9)
G03387238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

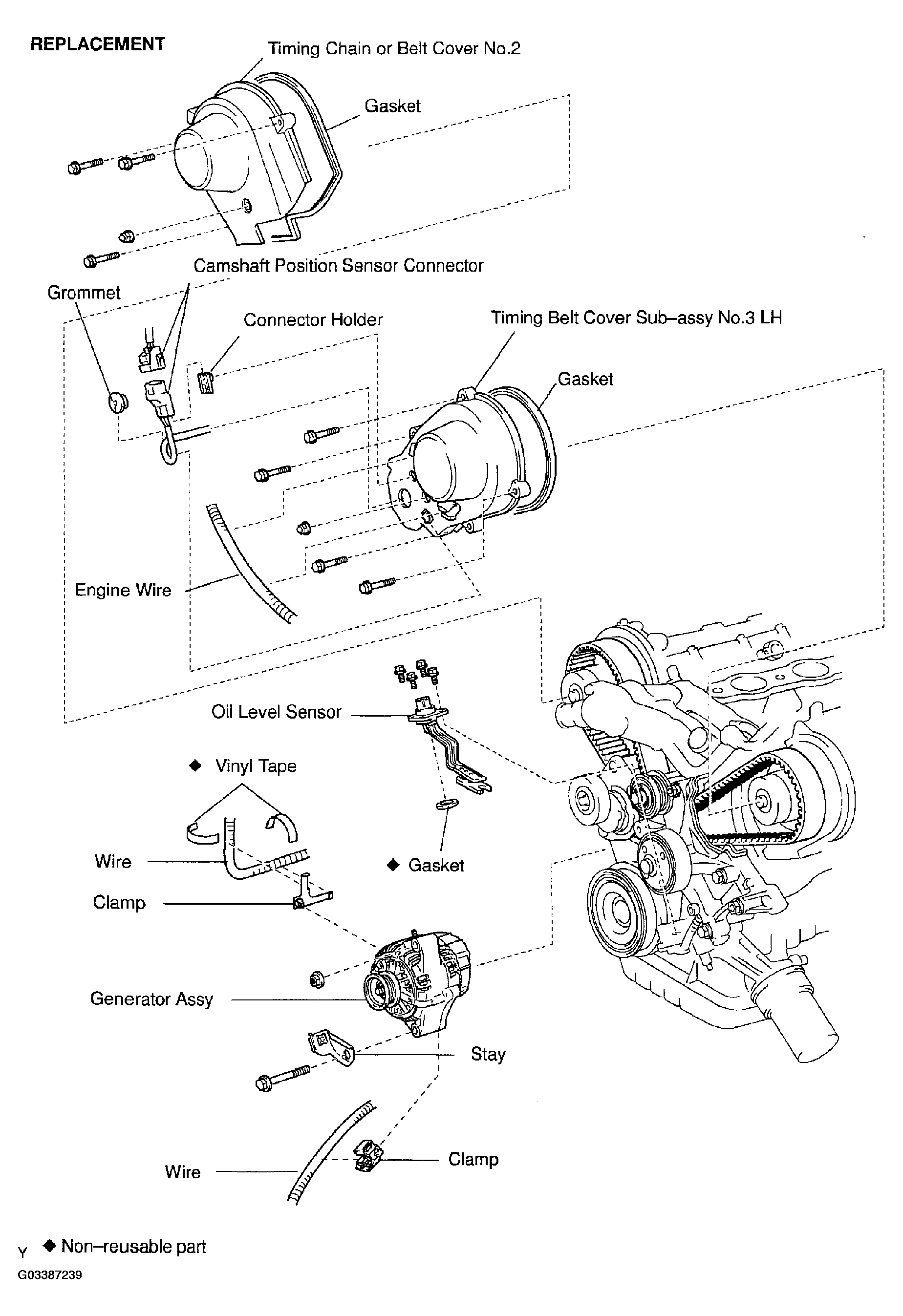

Fig 2: Exploded View Of Partial Engine Assembly Components (2 Of 9)
G03387239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

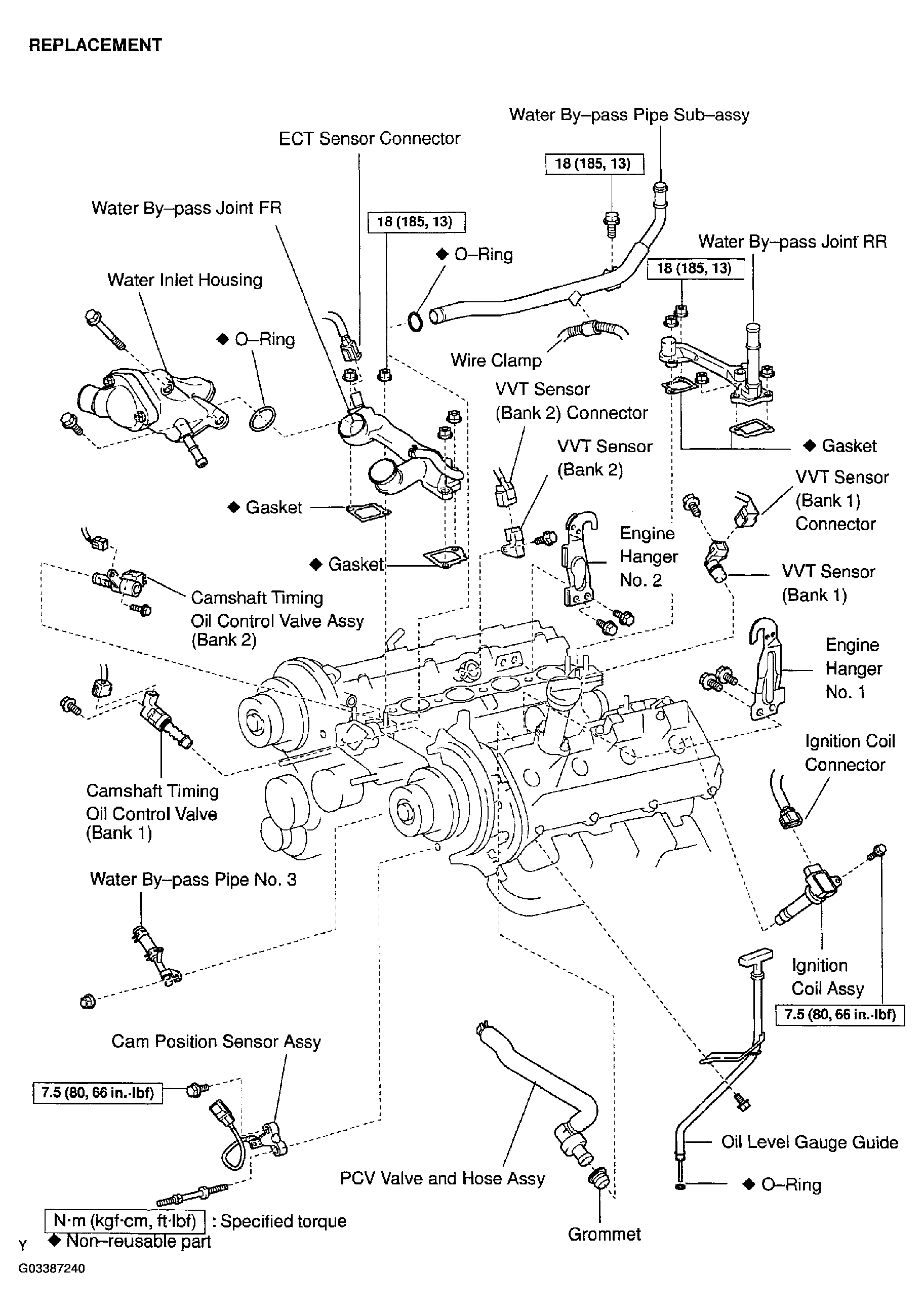

Fig 3: Exploded View Of Partial Engine Assembly Components (3 Of 9)
G03387240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

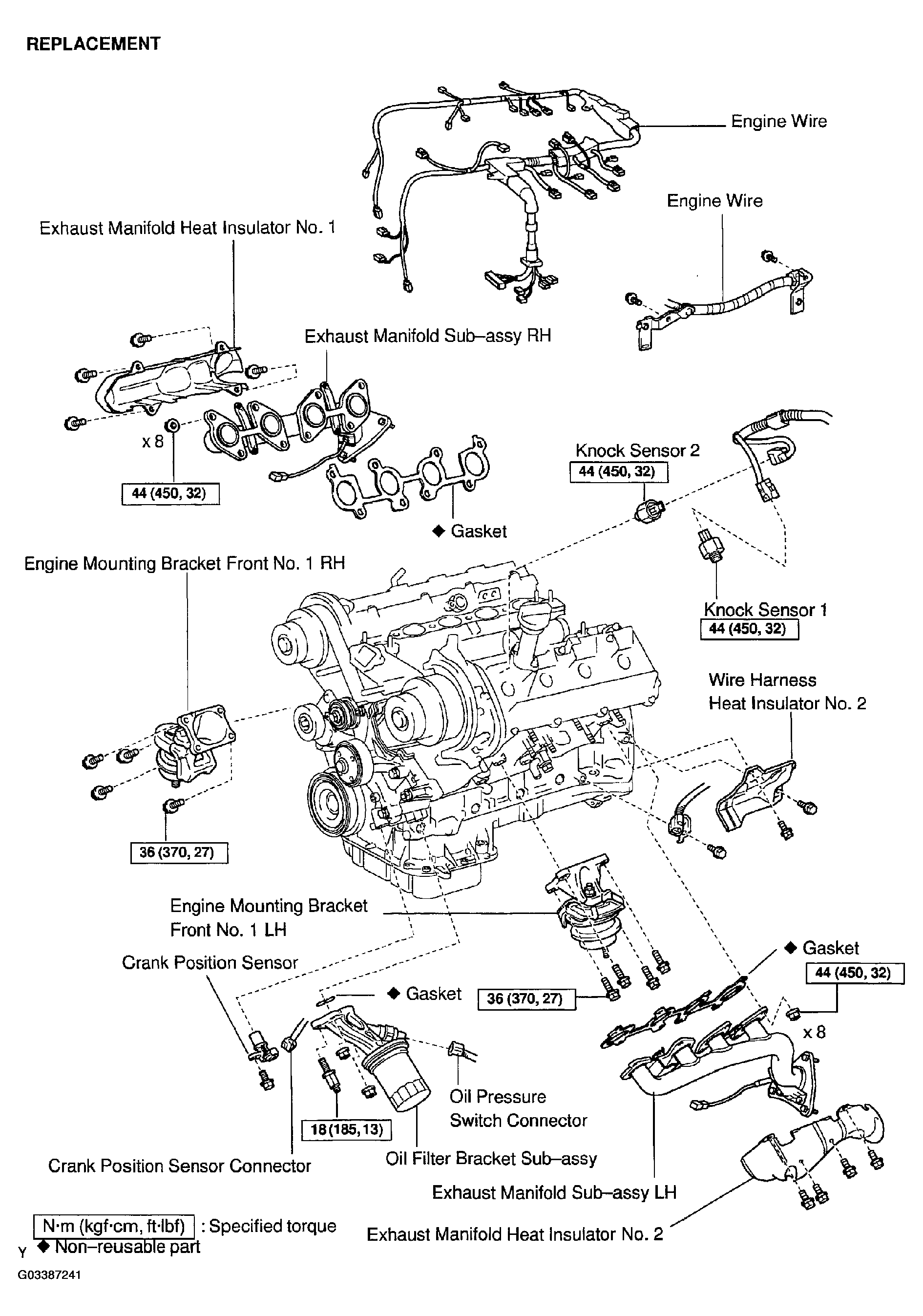

Fig 4: Exploded View Of Partial Engine Assembly Components (4 Of 9)
G03387241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

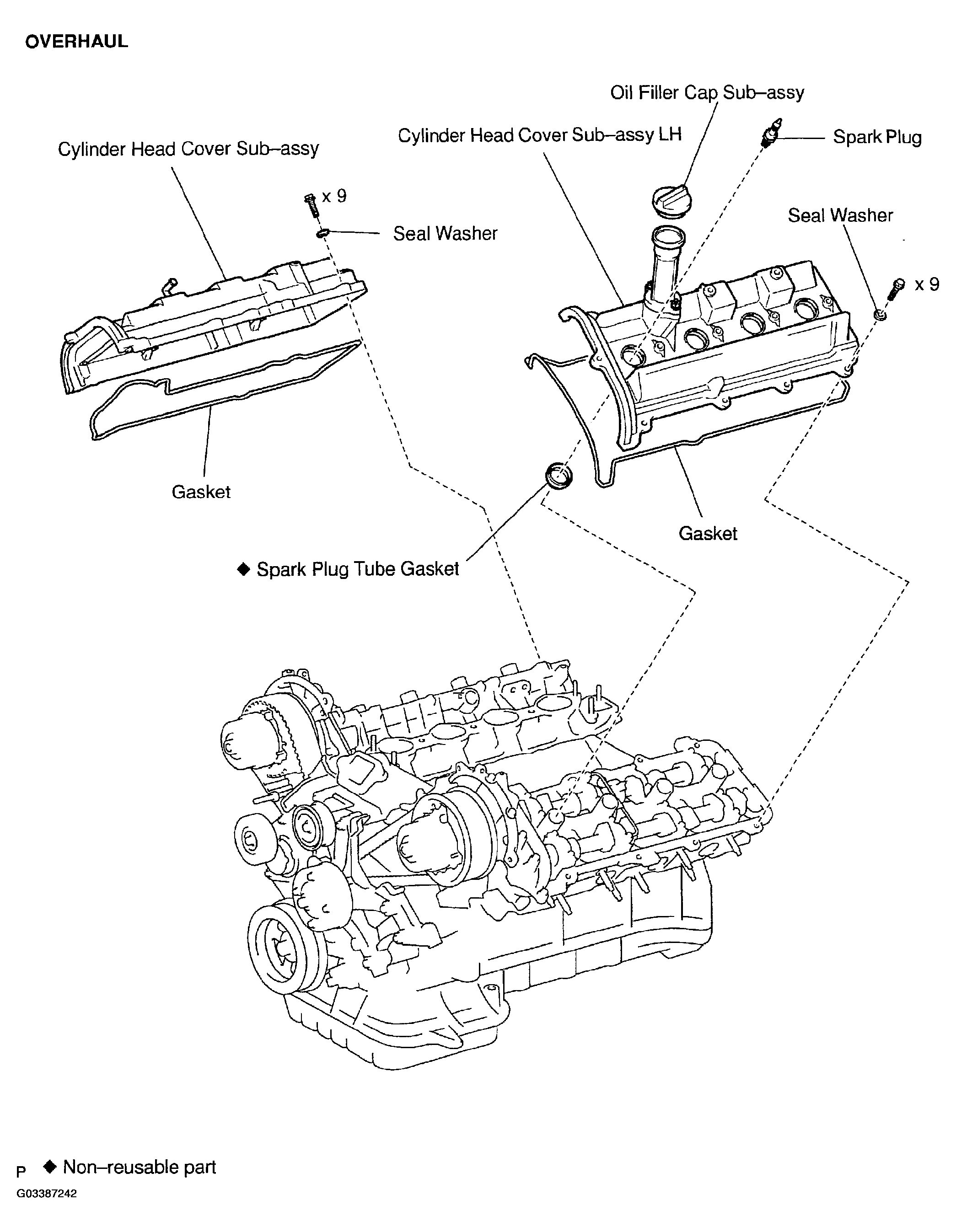

Fig 5: Exploded View Of Partial Engine Assembly Components (5 Of 9)
G03387242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

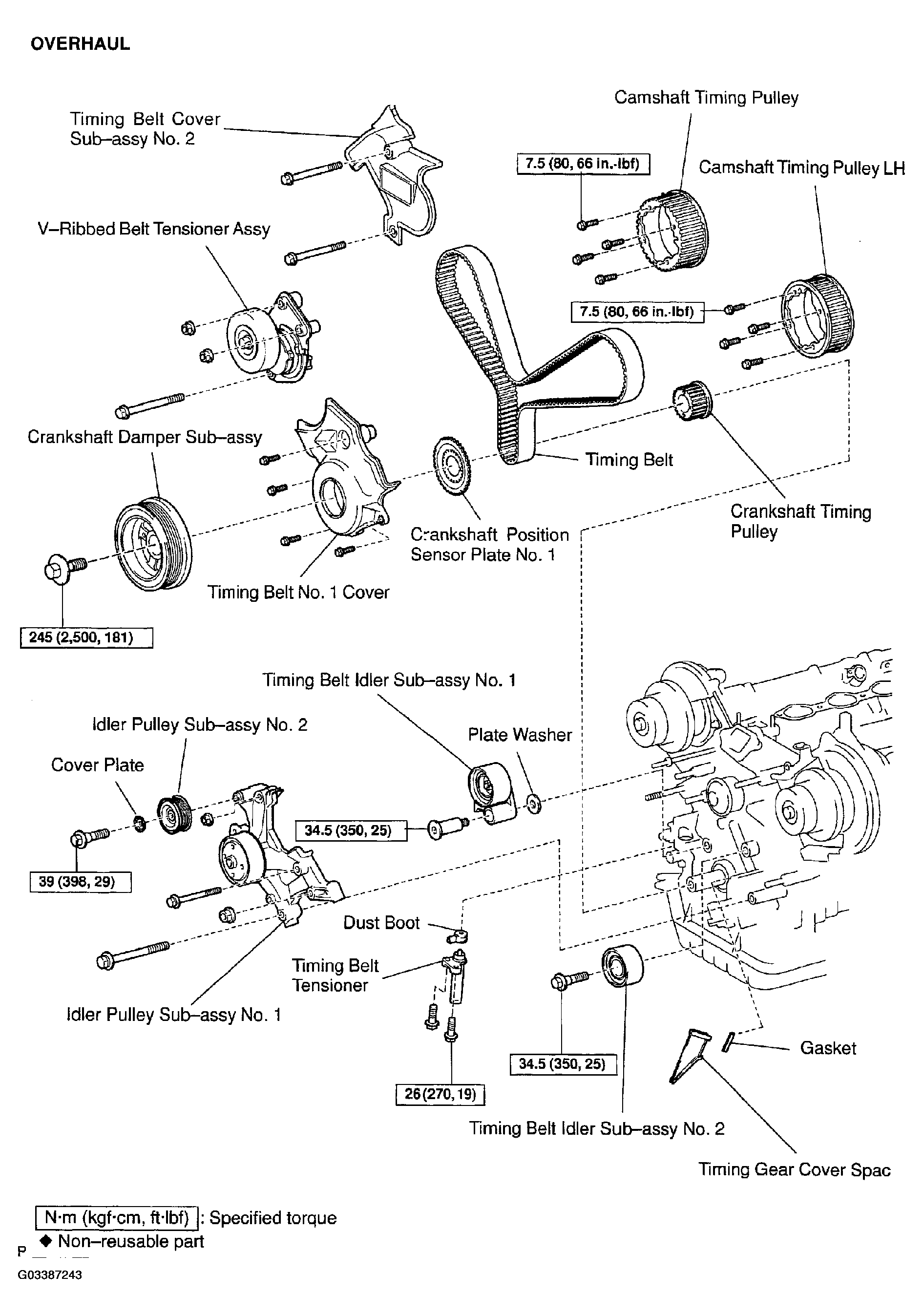

Fig 6: Exploded View Of Partial Engine Assembly Components (6 Of 9)
G03387243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

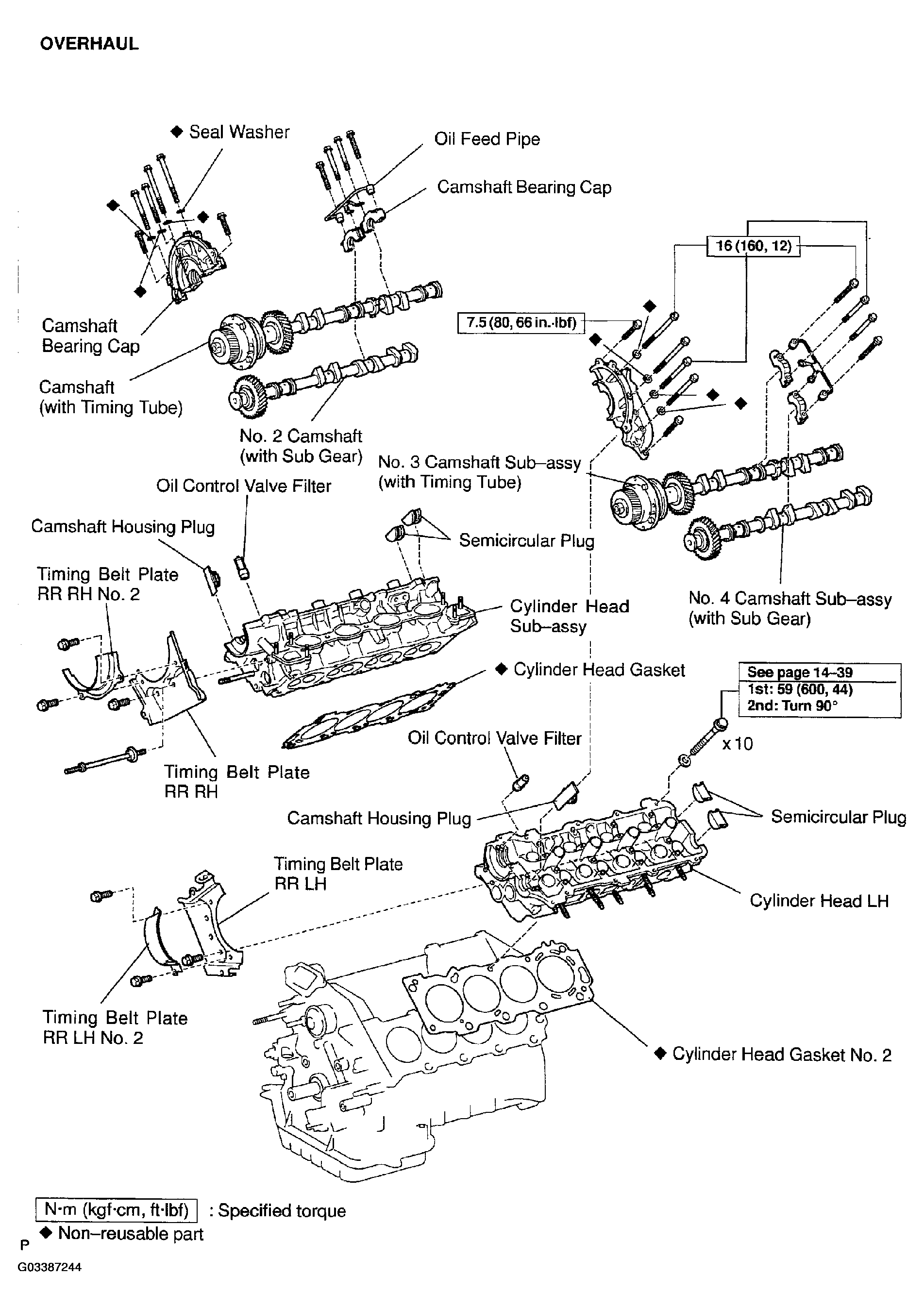

Fig 7: Exploded View Of Partial Engine Assembly Components (7 Of 9)
G03387244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

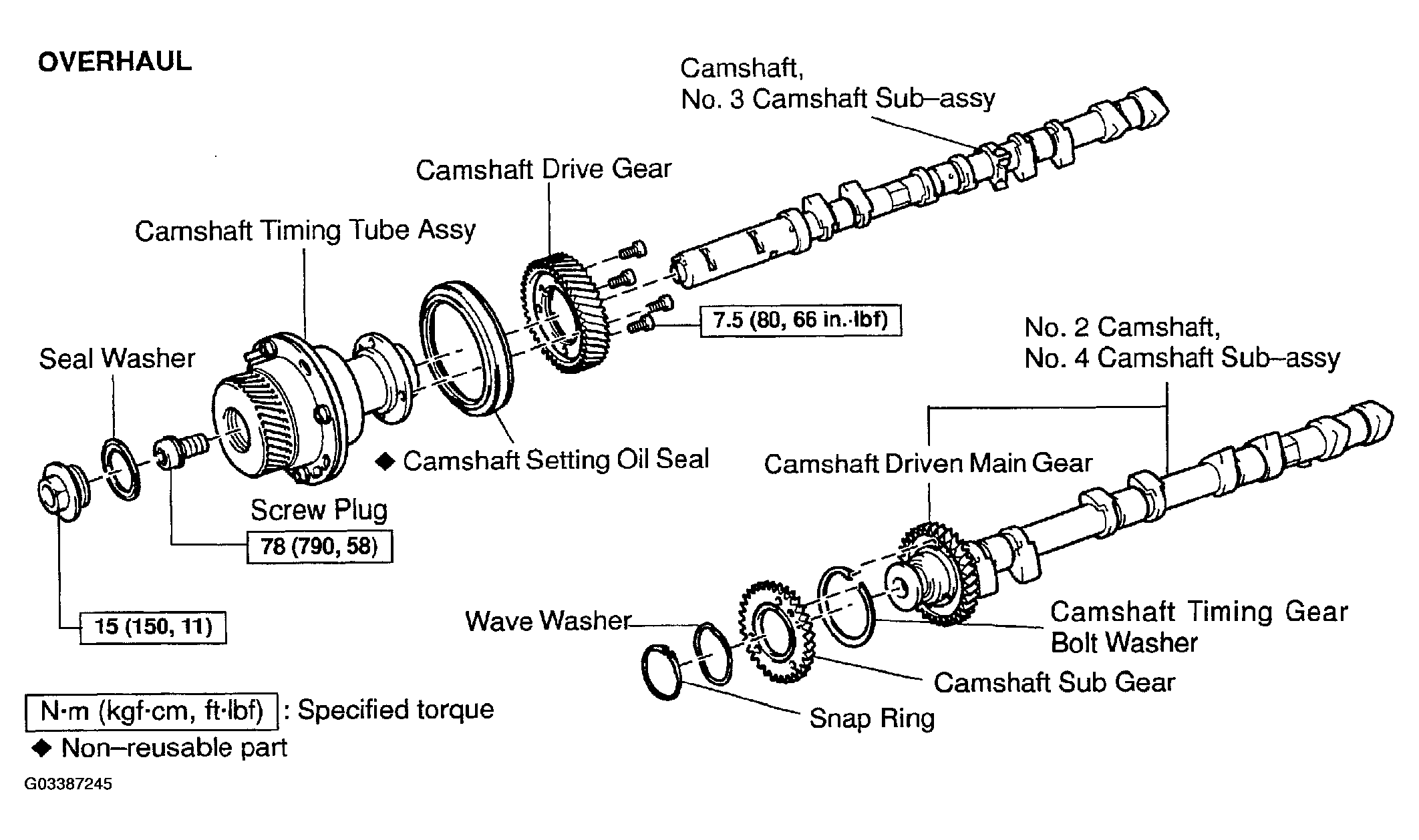

Fig 8: Exploded View Of Partial Engine Assembly Components (8 Of 9)
G03387245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

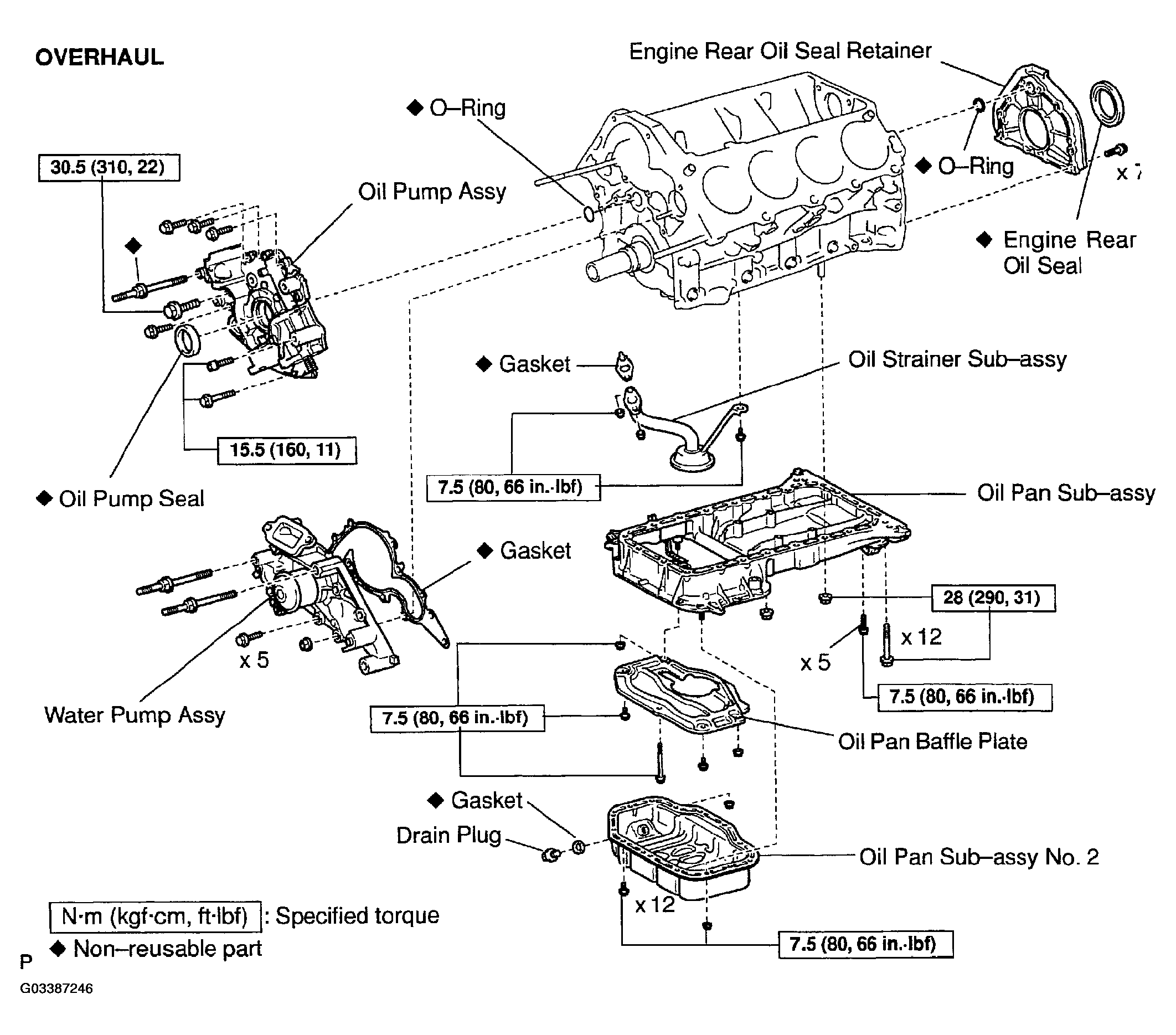

Fig 9: Exploded View Of Partial Engine Assembly Components (9 Of 9)
G03387246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
