Ignition Switch Test (2004)

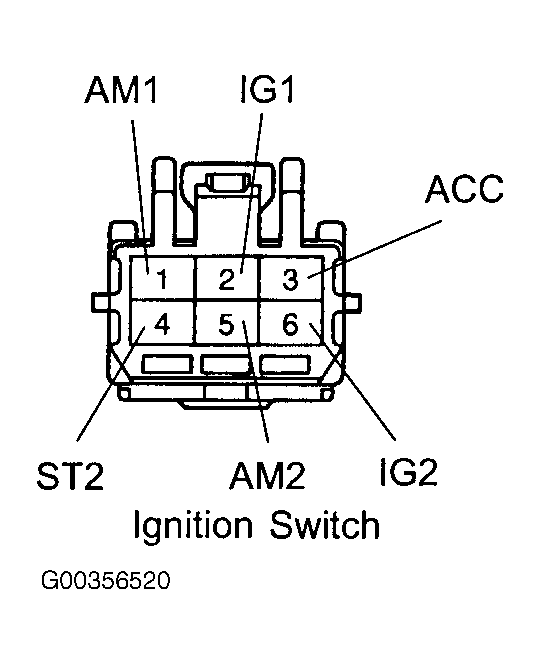

Using ohmmeter, measure resistance between specified terminals. For terminal identification, see Fig 1. For resistance specifications, see IGNITION SWITCH CONNECTOR RESISTANCE . If the resistance is not as specified, replace switch.
IGNITION SWITCH CONNECTOR RESISTANCE
| Switch Condition | Terminal No. | Resistance (Ohm) |
|---|---|---|
| ON | 4 & 5 | Below 1 |
| START | 4 & 5 | 10,000 or more |
