Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

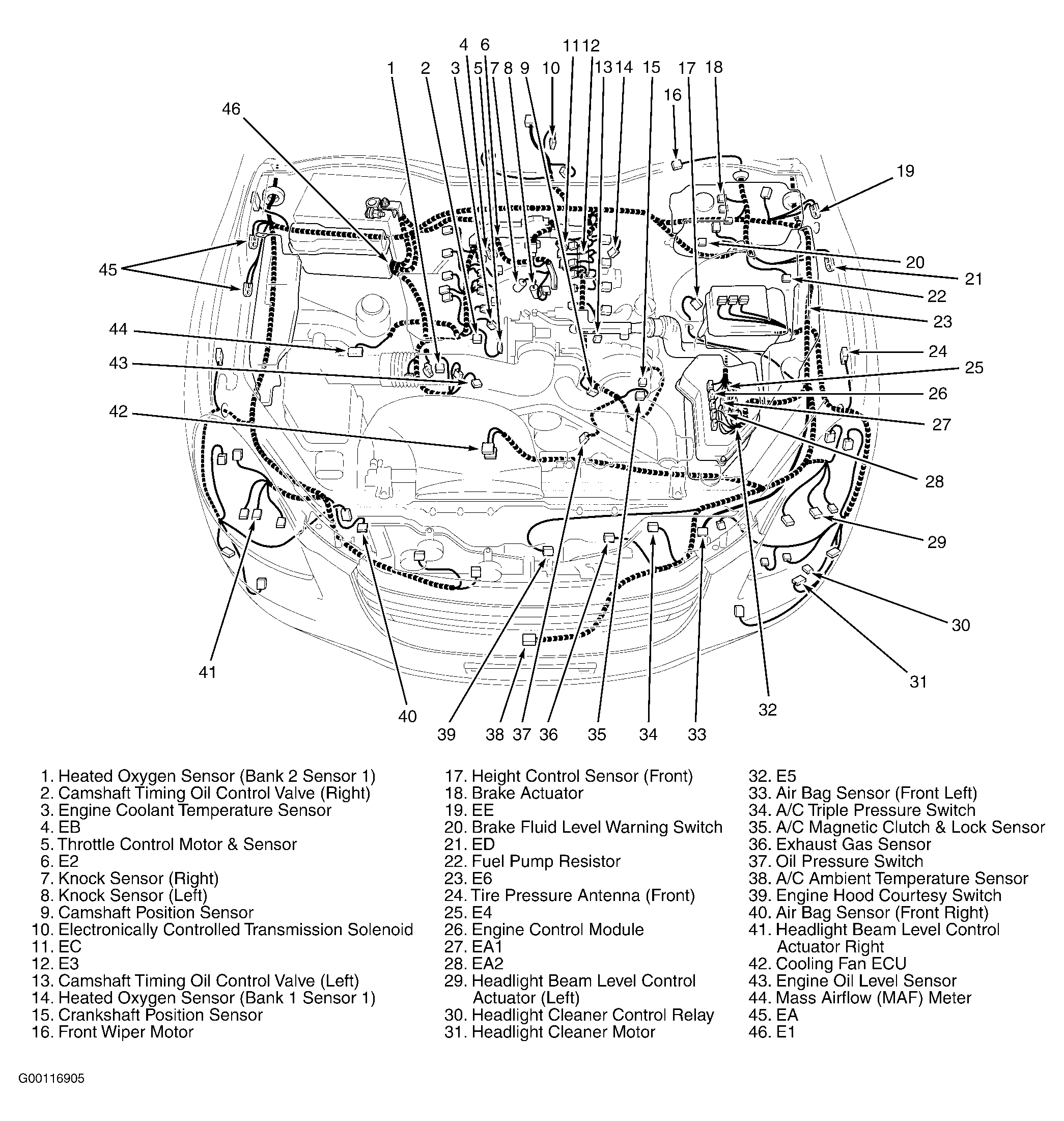

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

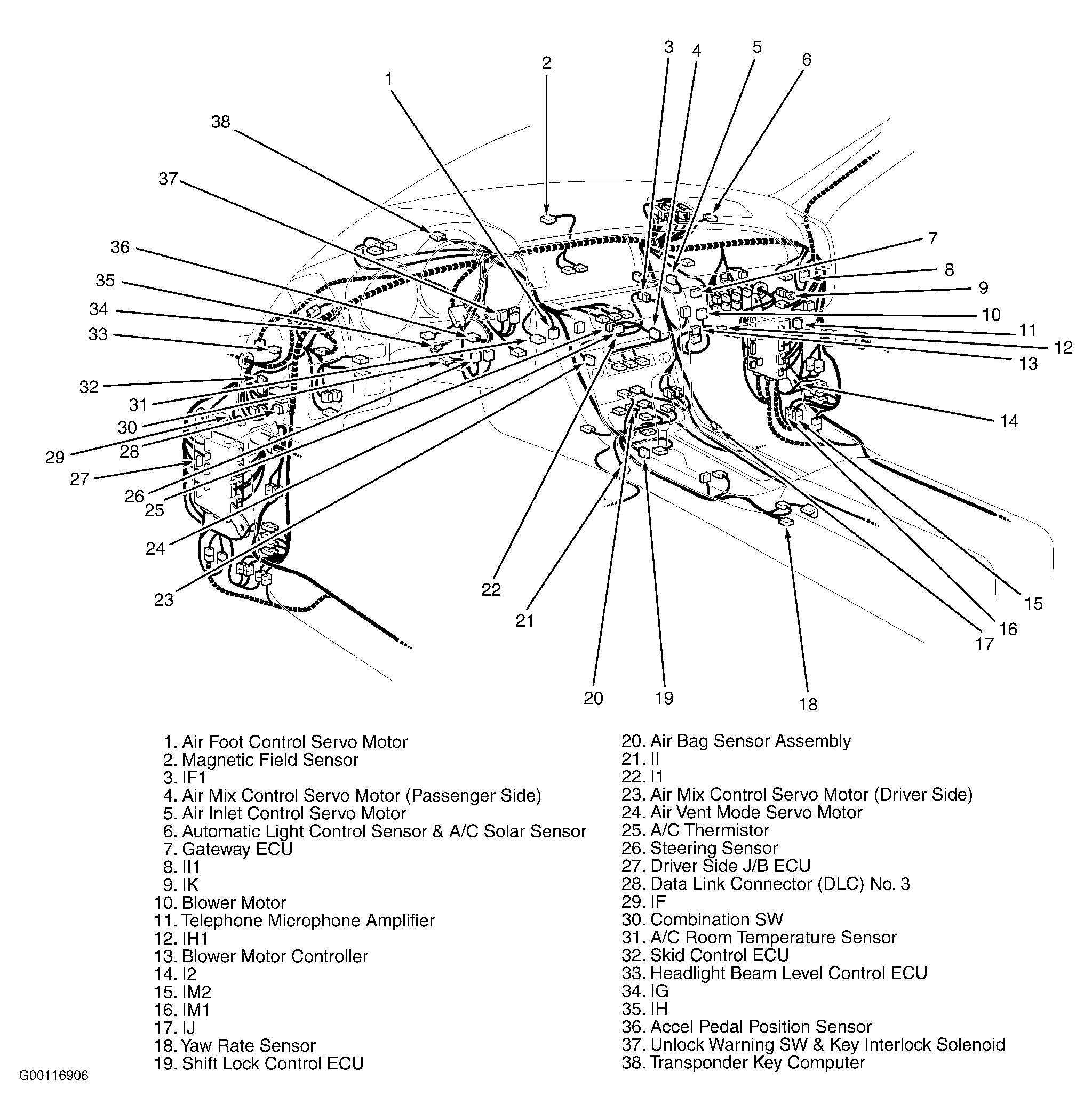

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal Flasher Relay

Fig 3: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER & LUGGAGE COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Auto Antenna Control Relay & Motor

Fig 4: Engine Room No. 2 R/B

ENGINE COMPARTMENT NO. 2 RELAY BLOCK RELAY IDENTIFICATION

Fig 5: Engine Compartment

Fig 6: Dash
