Seat Belt: Components

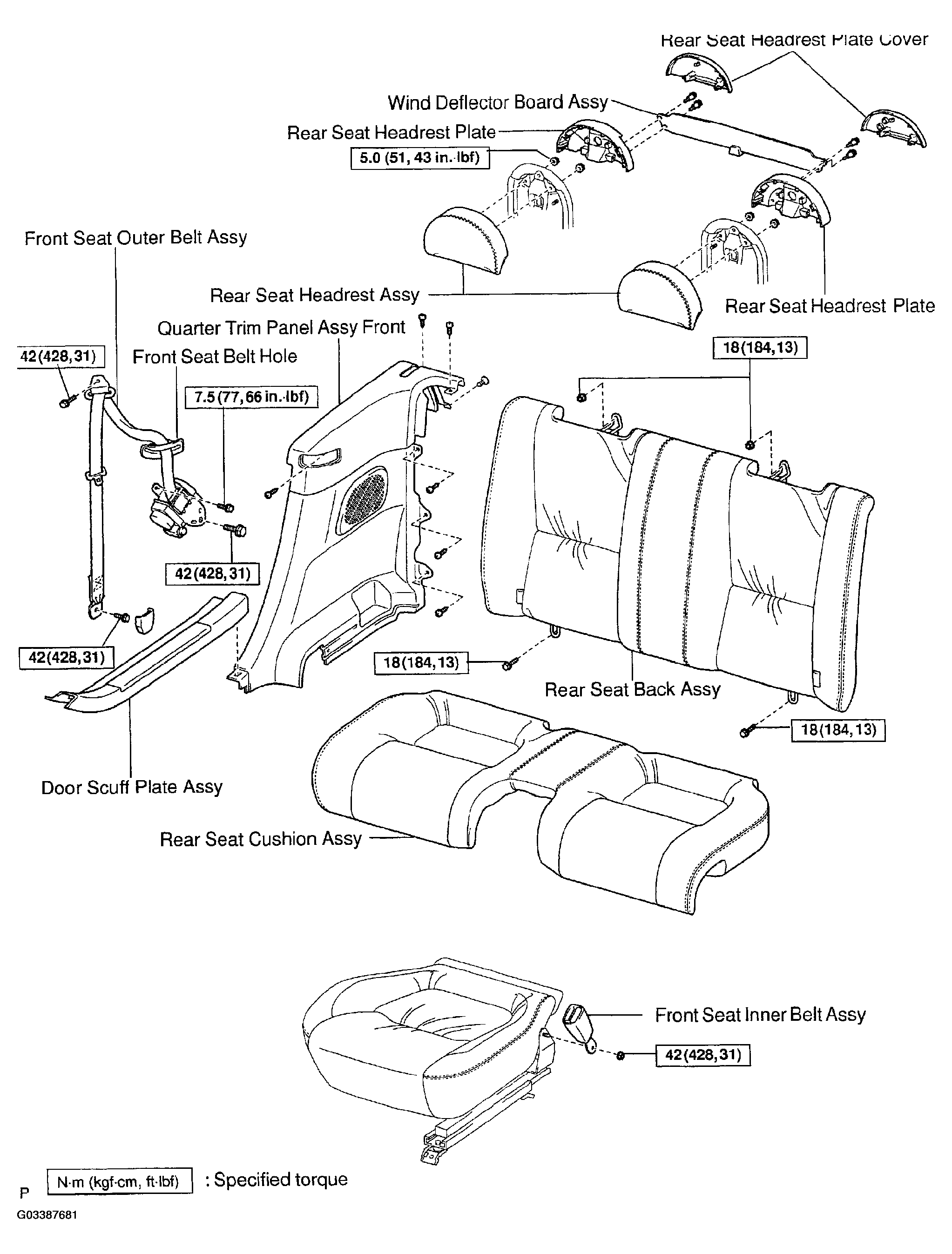

Fig 1: Exploded View Of Front Seat Belt Components
G03387681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
