Rear Wheel Adjustment: Adjustment

Inspect Tire . See 1 .
Measure Vehicle Height . See 2 .
Inspect Camber

Fig 1: Camber Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect Toe-In

Fig 2: Toe-In Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Adjust Camber And Toe-In

Measure the lengths of the toe control link and No. 2 lower suspension arm, as shown in the illustration.

Fig 3: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Length: A - B = 4.0 mm (0.16 in.) or less

If they are not within the specifications, adjust the lengths of them by turning the adjusting cam, as shown, until (A - B) is less than 4.0 mm (0.16 in.).
Measure the camber and toe-in.
Adjust the camber.
1. Loosen the camber adjusting cam nut of lower suspension arm No. 2.
2. Turn the camber adjusting cam of lower suspension arm No. 2 and adjust camber.
  HINT:

  Camber changes about 5.0' (0.08°) with each graduation of the cam.

  Fig 4: Measuring Lengths Of Toe Control Link And Lower Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Torque the camber adjusting cam nut.
  Torque: 110 N.m (1,120 kgf.cm, 81 ft.lbf)
Adjust the toe-in.
1. Loosen the camber adjusting cam nut of toe control link.
2. Turn the camber adjusting cam of toe control link and adjust toe-in.
  HINT:

  Camber changes about 5.0' (0.08°) with each graduation of the cam.
3. Torque the camber adjusting cam nut.

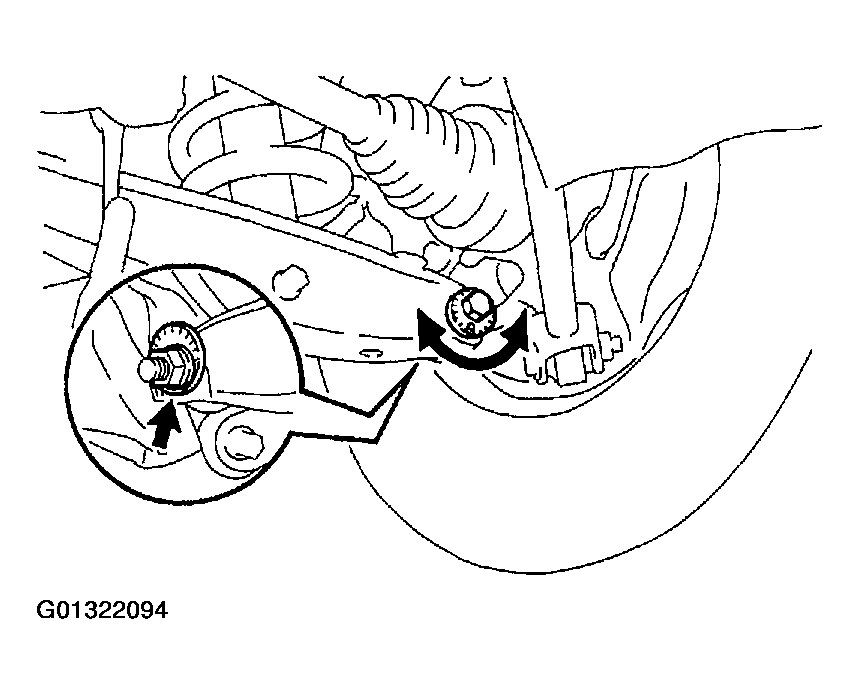

  Fig 5: Loosening Camber Adjusting Cam Nut Of Lower Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

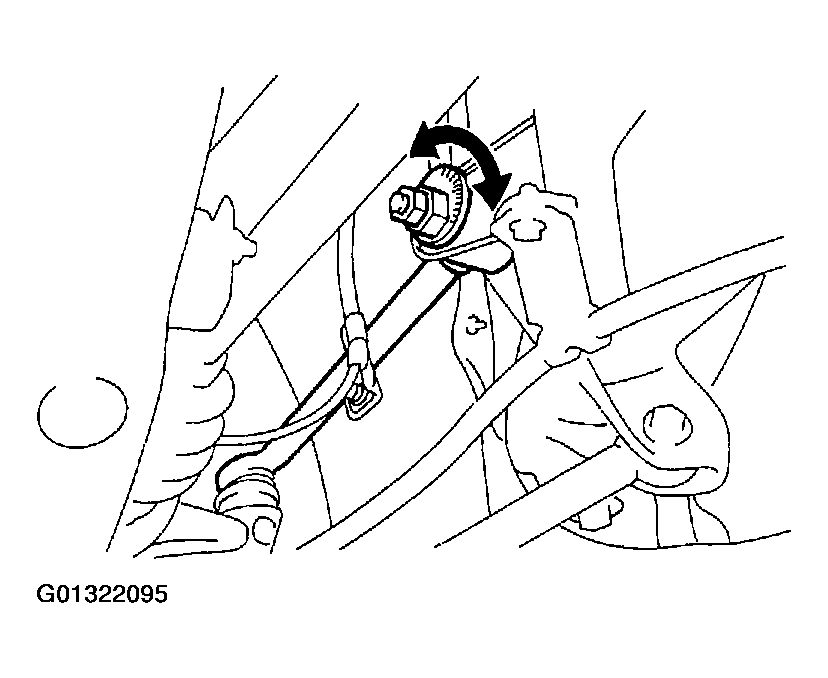

Fig 6: Loosening Camber Adjusting Cam Nut Of Toe Control Link
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
