Speed Sensor Front LH: Replacement

HINT:

Replace the RH side by the same procedures with LH side.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector and clamp.

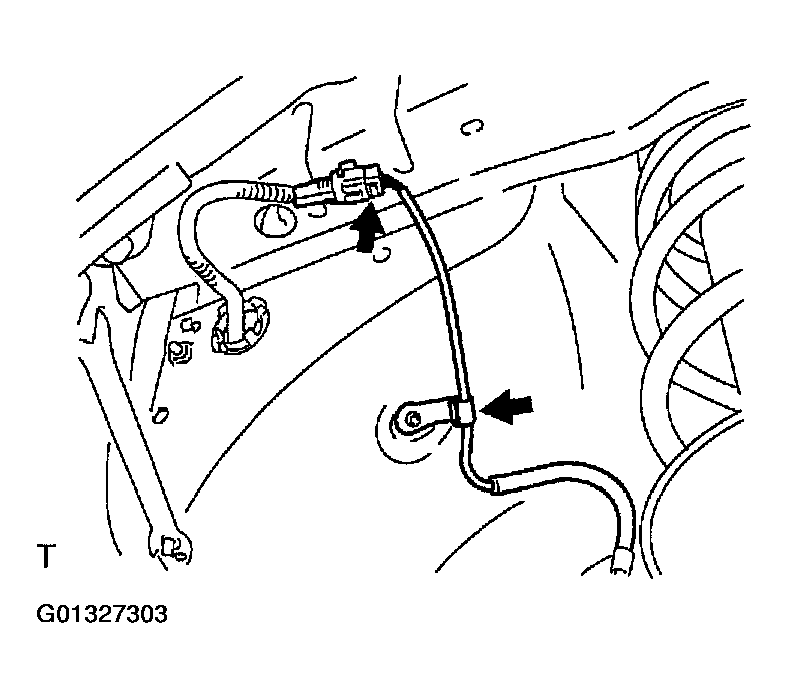

  Fig 1: Disconnecting Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamp bolts holding the sensor harness and clamp from the body and shock absorber.

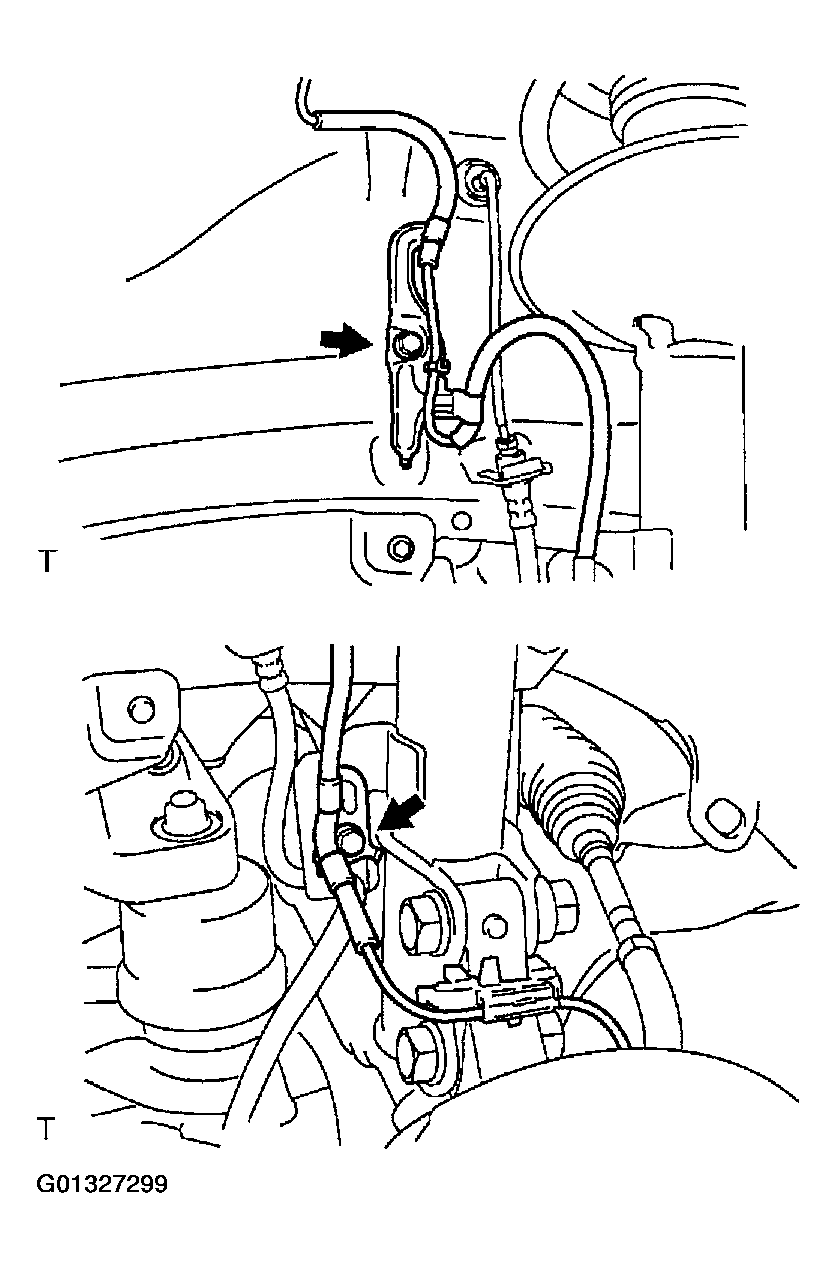

  Fig 2: Removing Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and speed sensor FR LH.
  NOTE: Do not stick and foreign matter on the sensor tip.

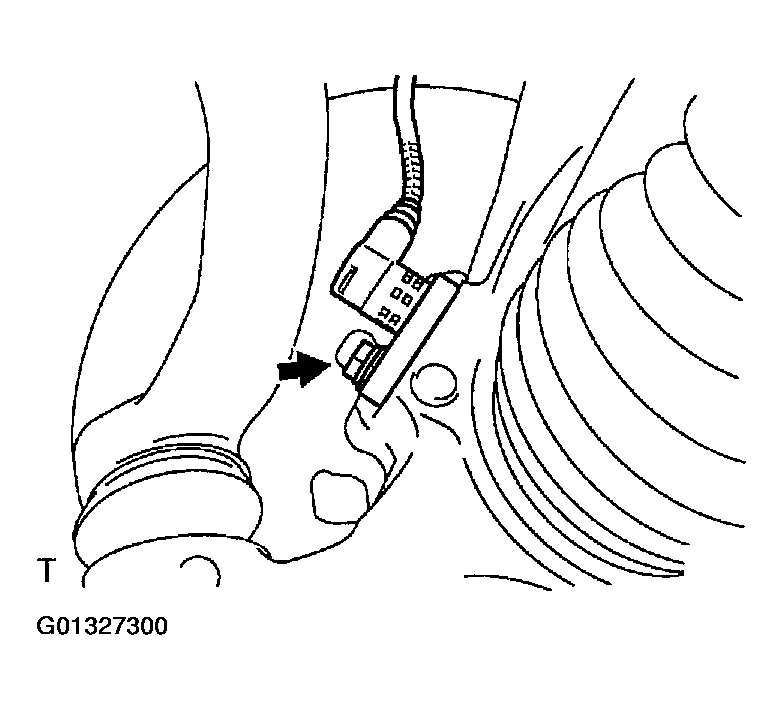

  Fig 3: Removing Speed Sensor FR LH And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR FRONT LH
1. Install the speed sensor FR LH with the bolt.
  1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
  NOTE: Make sure the sensor tip is clean.

  Fig 4: Installing Speed Sensor FR LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor harness clamps with the 2 bolts "A" and "B" to the body and shock absorber.
  Torque:
  1. Bolt A: 5.0 N.m (51 kgf.cm, 44 in..lbf)
  2. Bolt B: 18.8 N.m (192 kgf.cm, 14 ft.lbf)
3. Connect the clamp to the knuckle.

  Fig 5: Installing Sensor Harness Clamps With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the speed sensor connector and clamp.

  Fig 6: Connecting Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
INSTALL FRONT WHEEL
1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
CHECK ABS SPEED SENSOR SIGNAL(See PRE-CHECK
