Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| ABS R/B | On left front corner of engine compartment. |

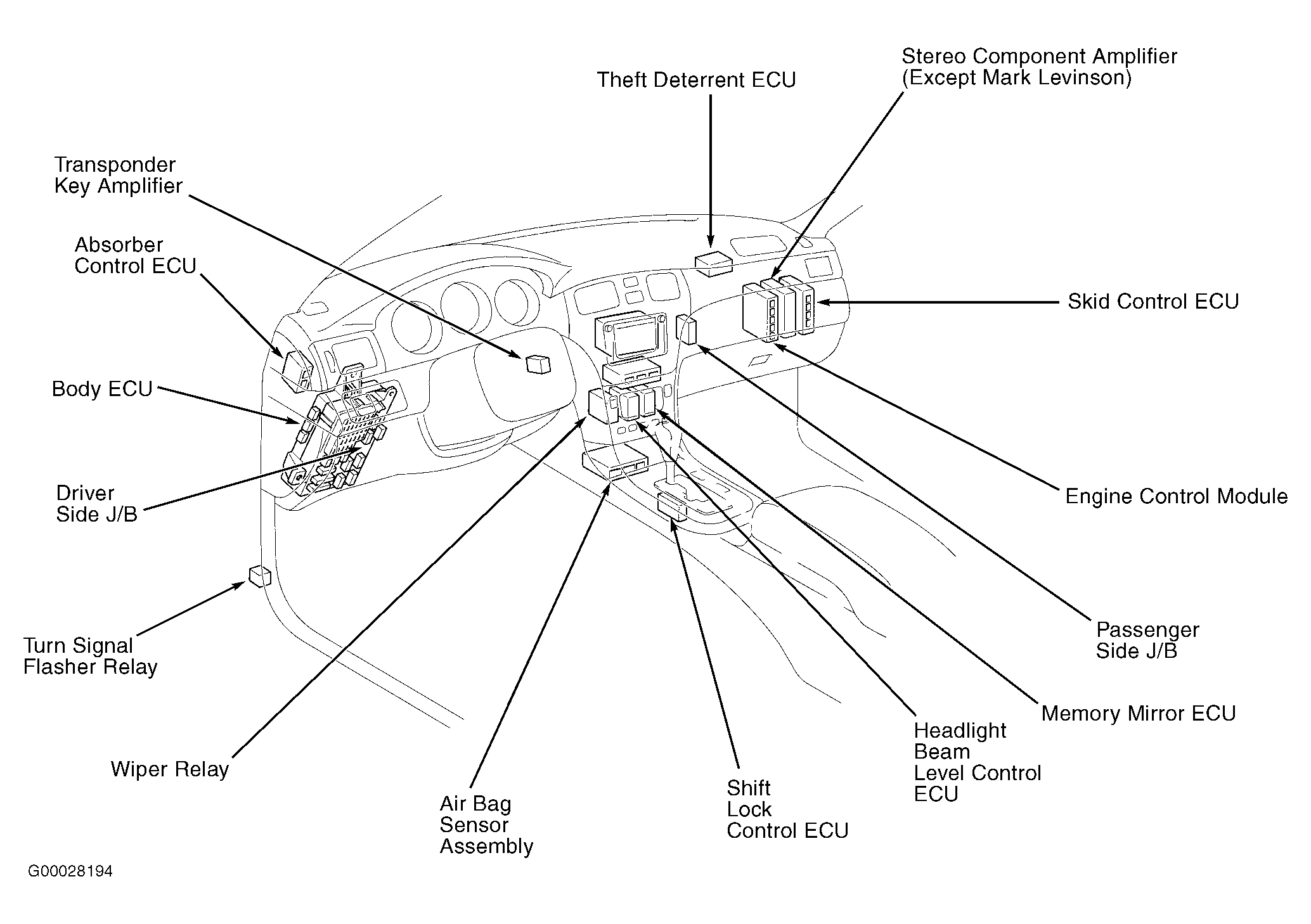

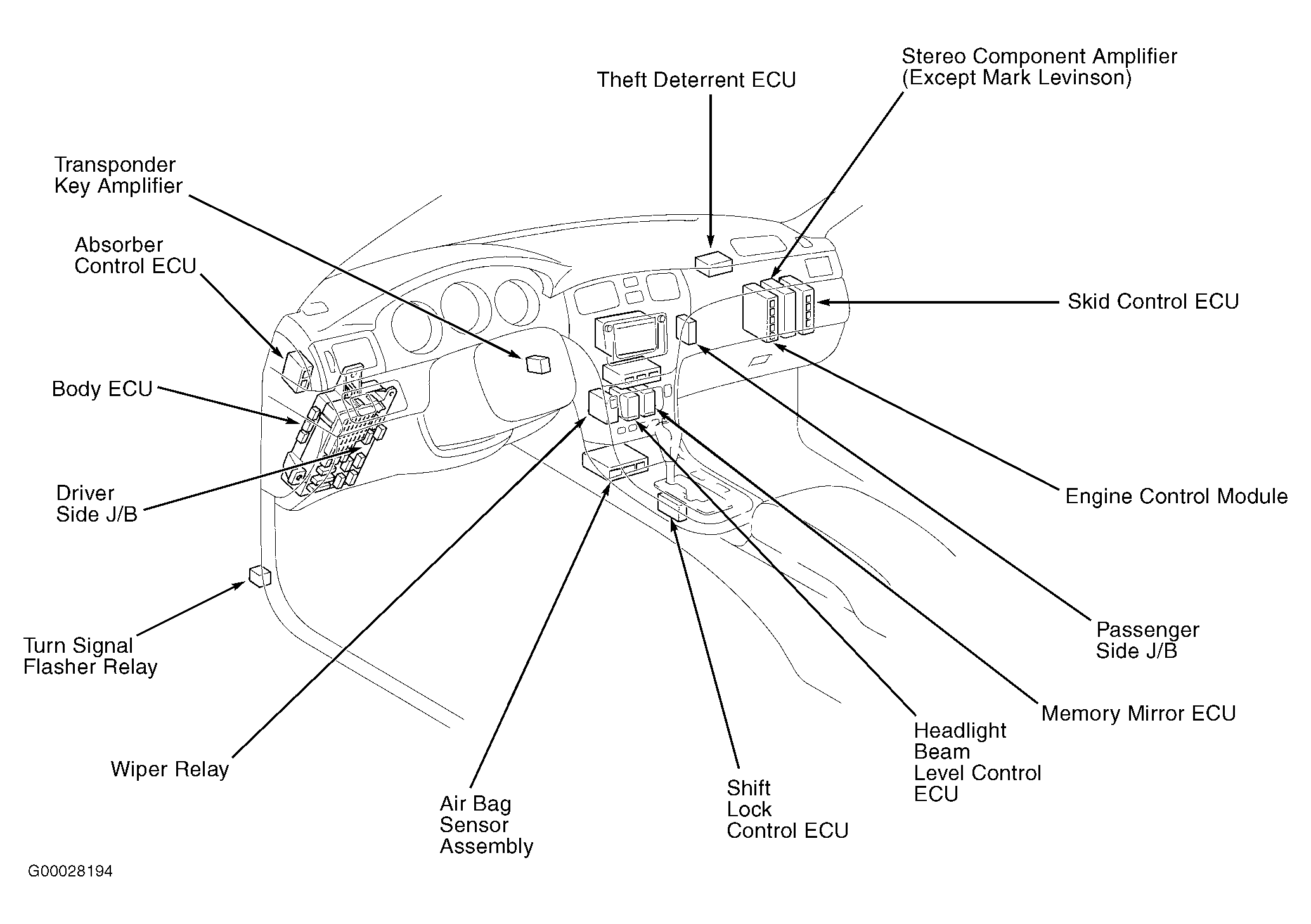

| Driver Side J/B | Behind left side of dash. See Figure. |

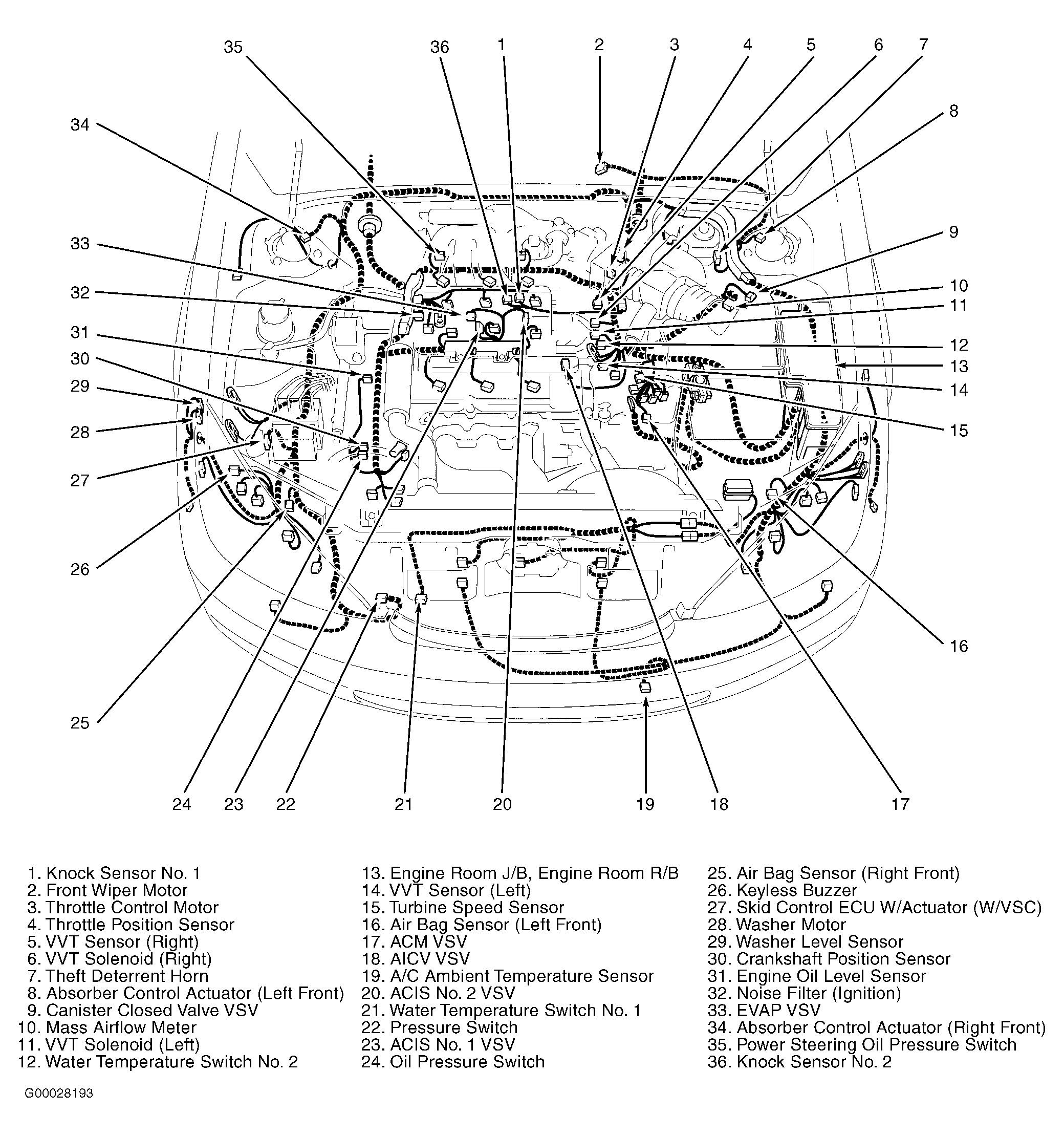

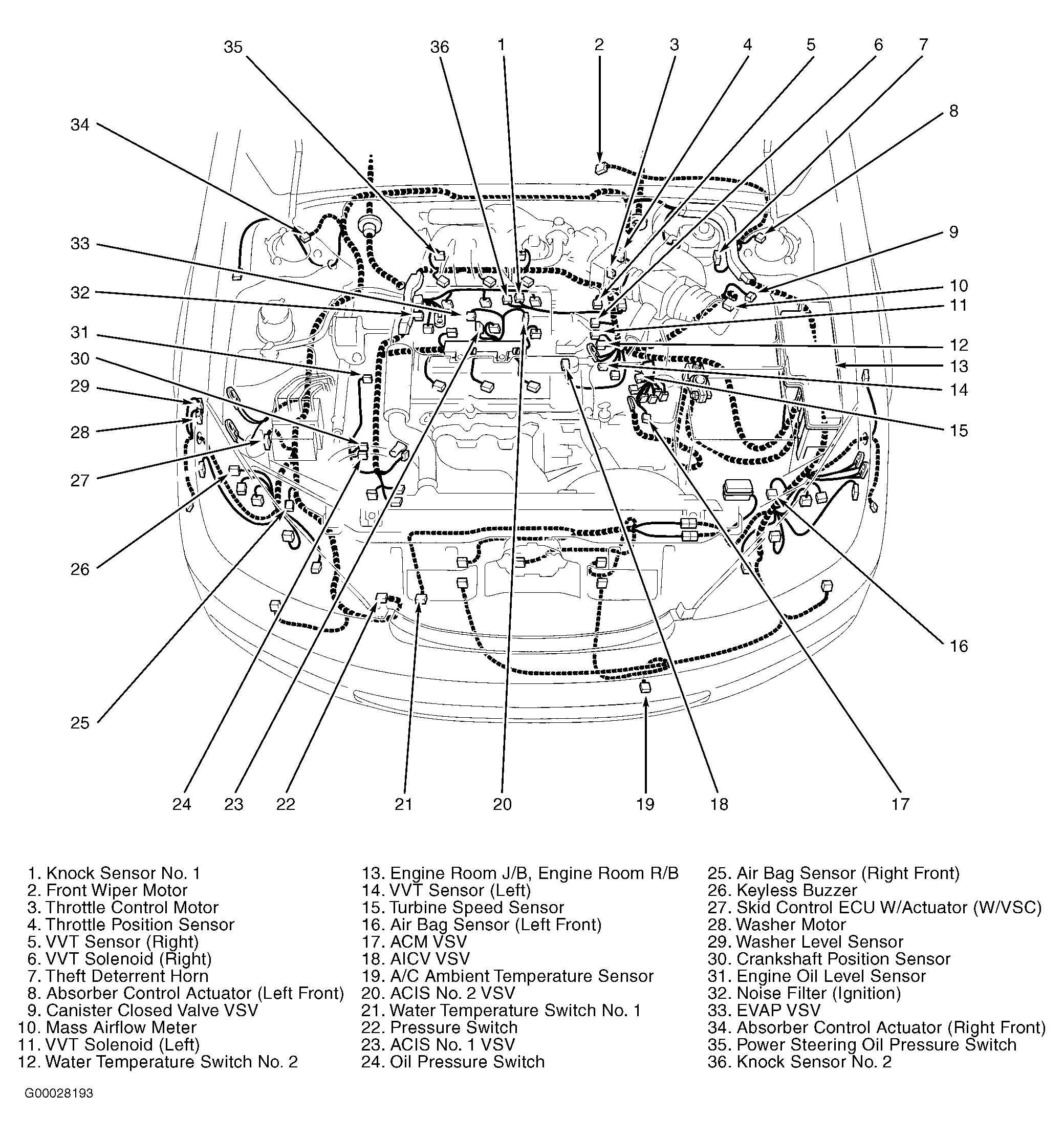

| Engine Room J/B | On left side of engine compartment. See Figure. |
| Engine Room R/B | On left side of engine compartment. See Figure. |

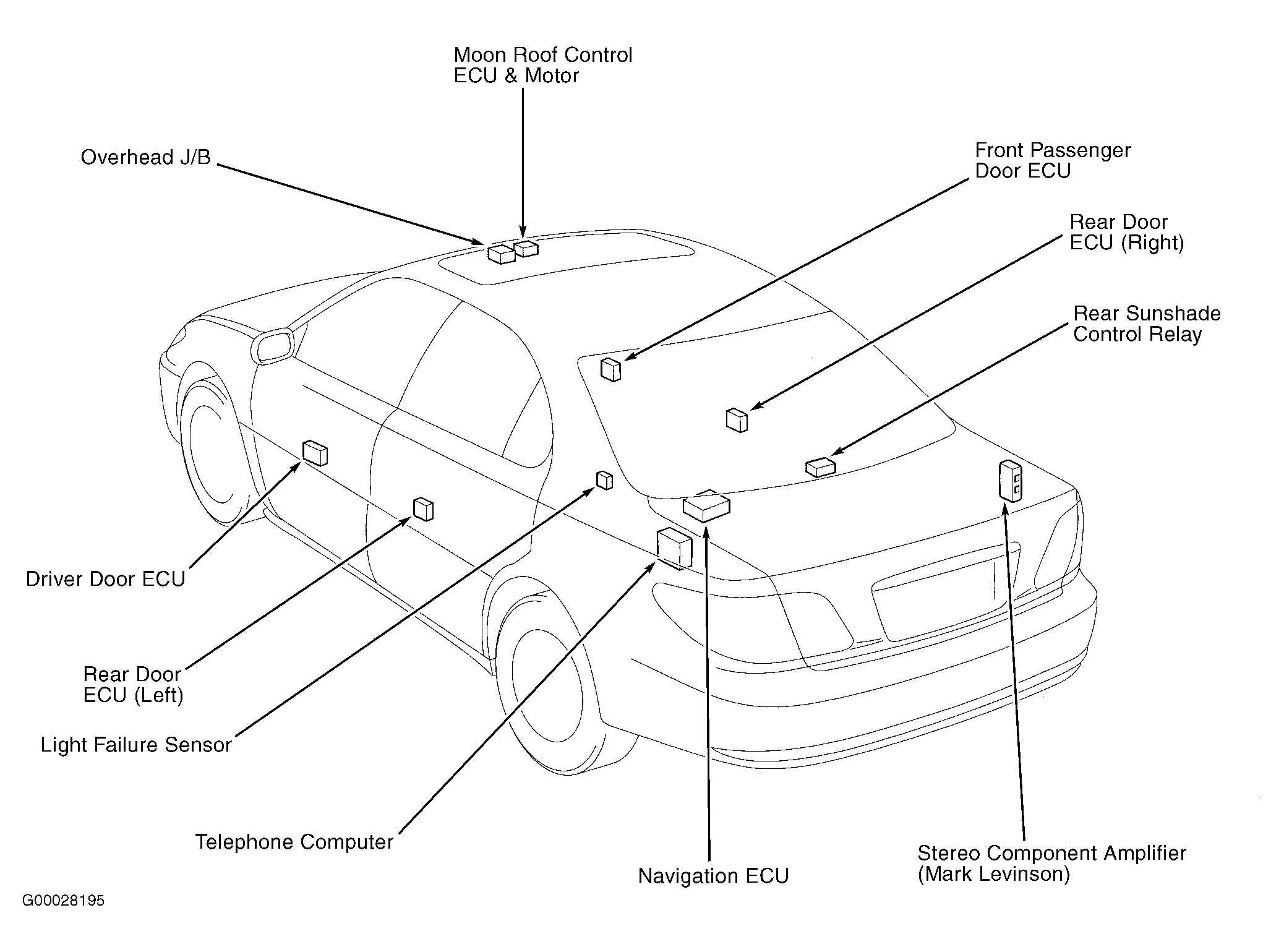

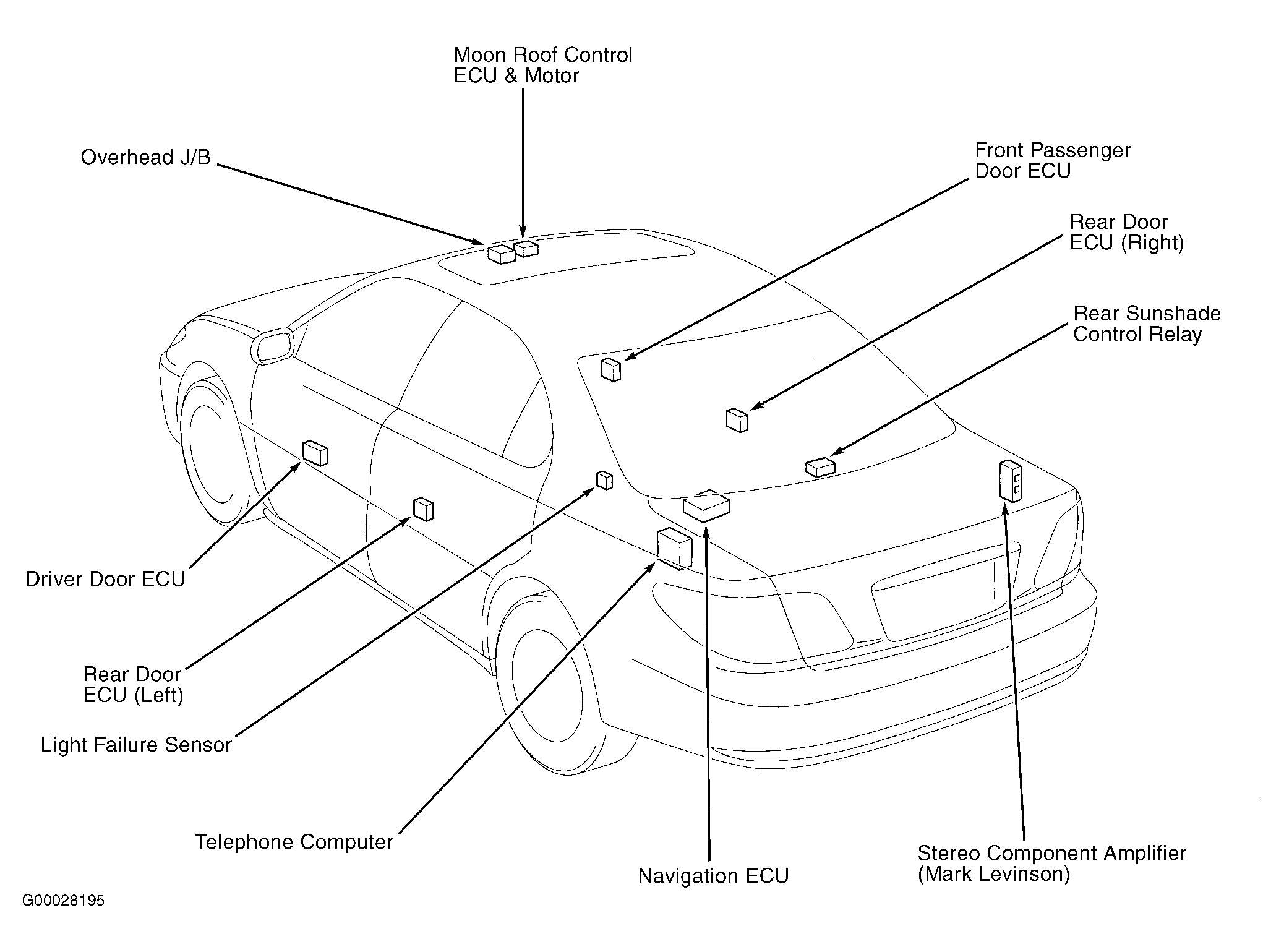

| Overhead J/B | On front center of roof. See Figure. |
| Passenger Side J/B | Behind right side of dash. See Figure. |
