Fuel Pump ASSY: Components

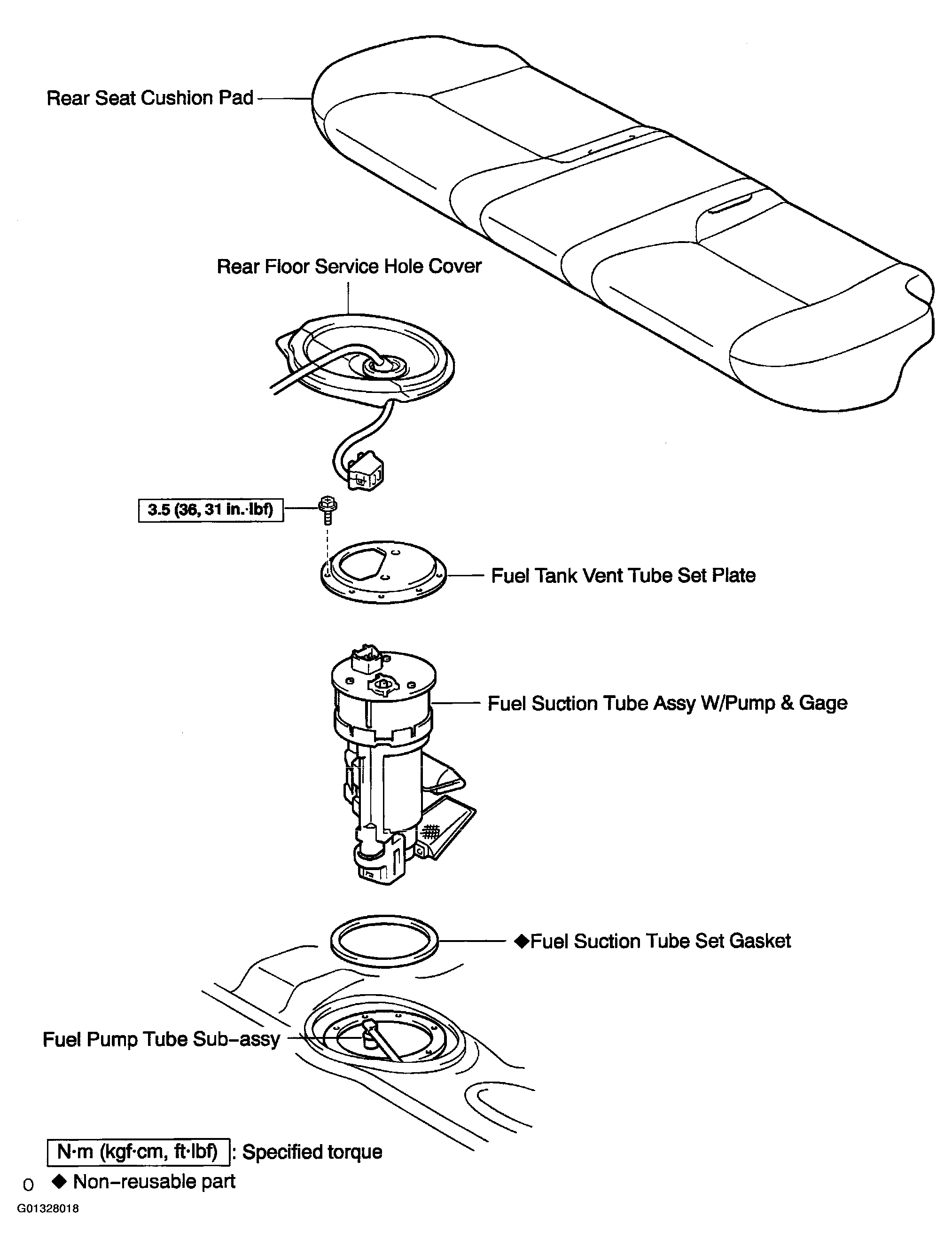

Fig 1: Identifying Components (1 Of 2)
G01328018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

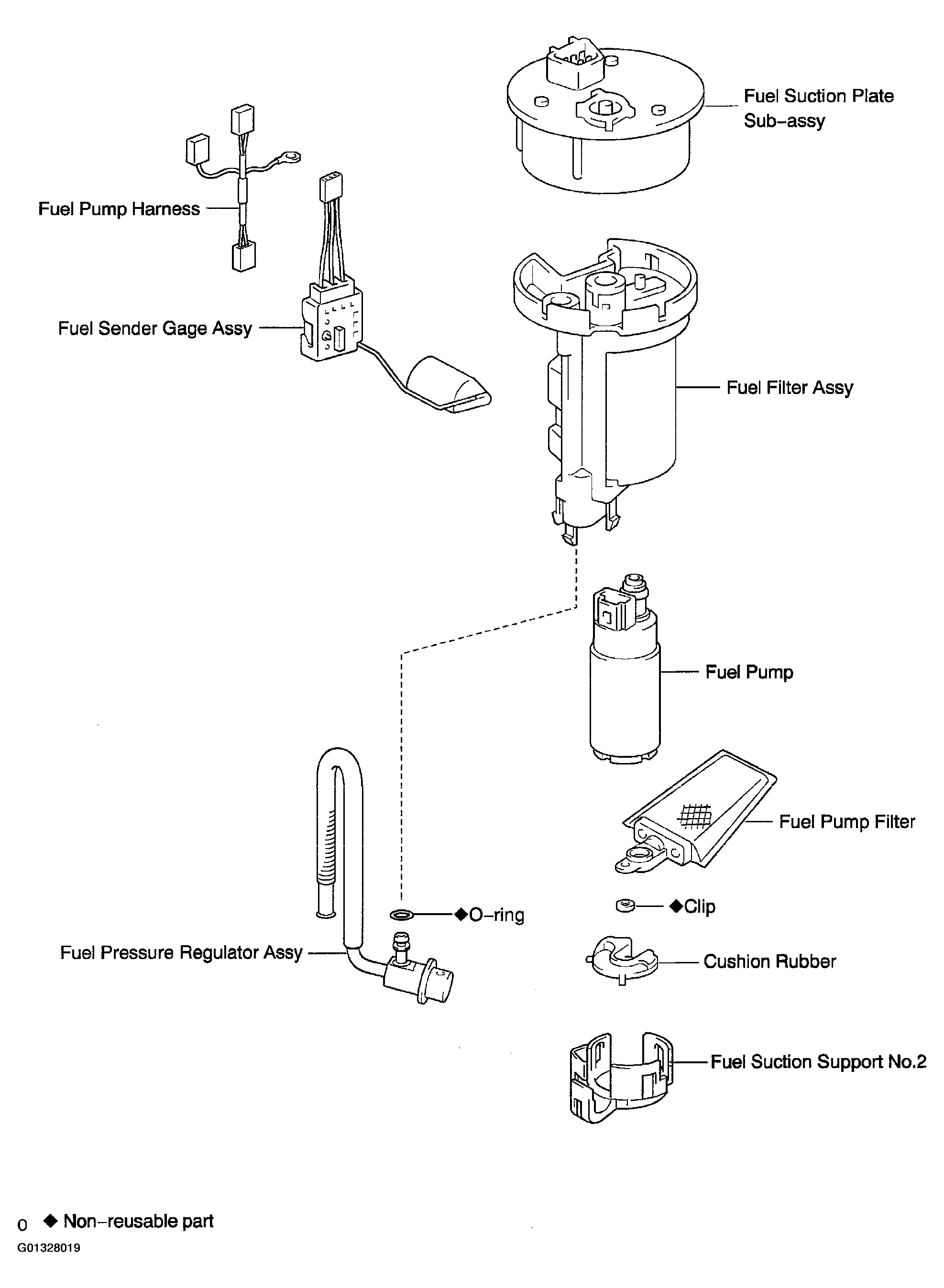

Fig 2: Identifying Components (2 Of 2)
G01328019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
