Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.
  1. A : Vehicle Identification Number Plate
  2. B : Certification Label

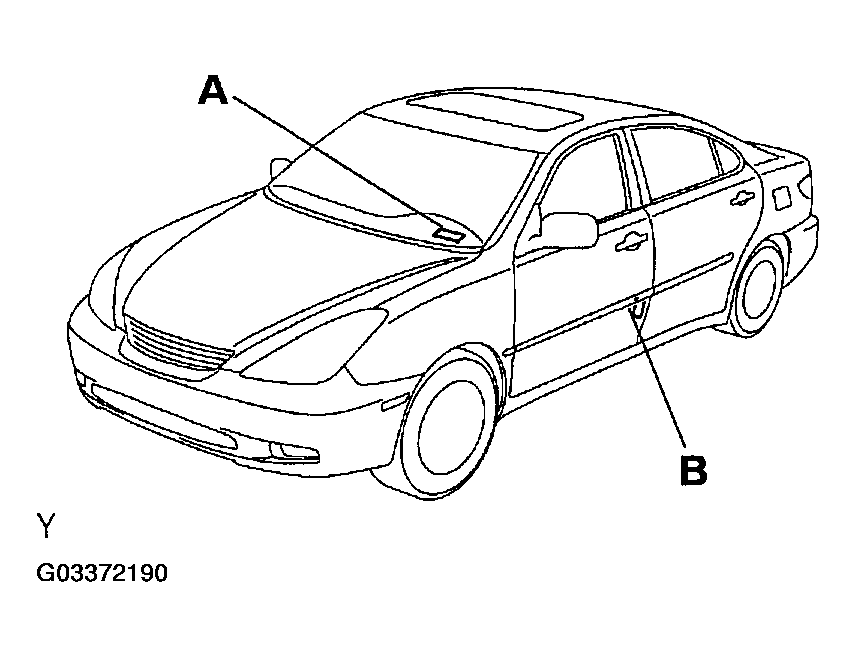

    Fig 1: Identifying Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.
  1. A : Engine Serial Number
  2. B : Transaxle Serial Number

    Fig 2: Identifying Engine Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

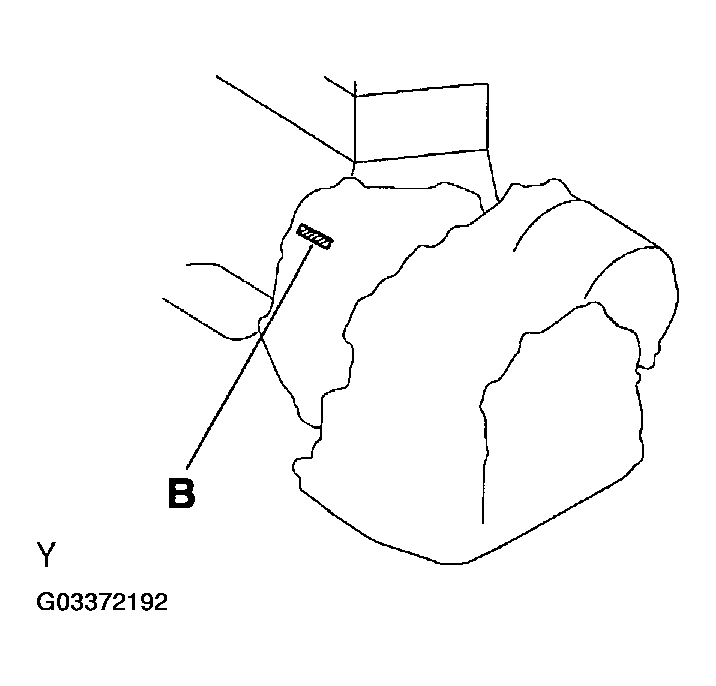

    Fig 3: Identifying Transaxle Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
