Power Window Control System: Location

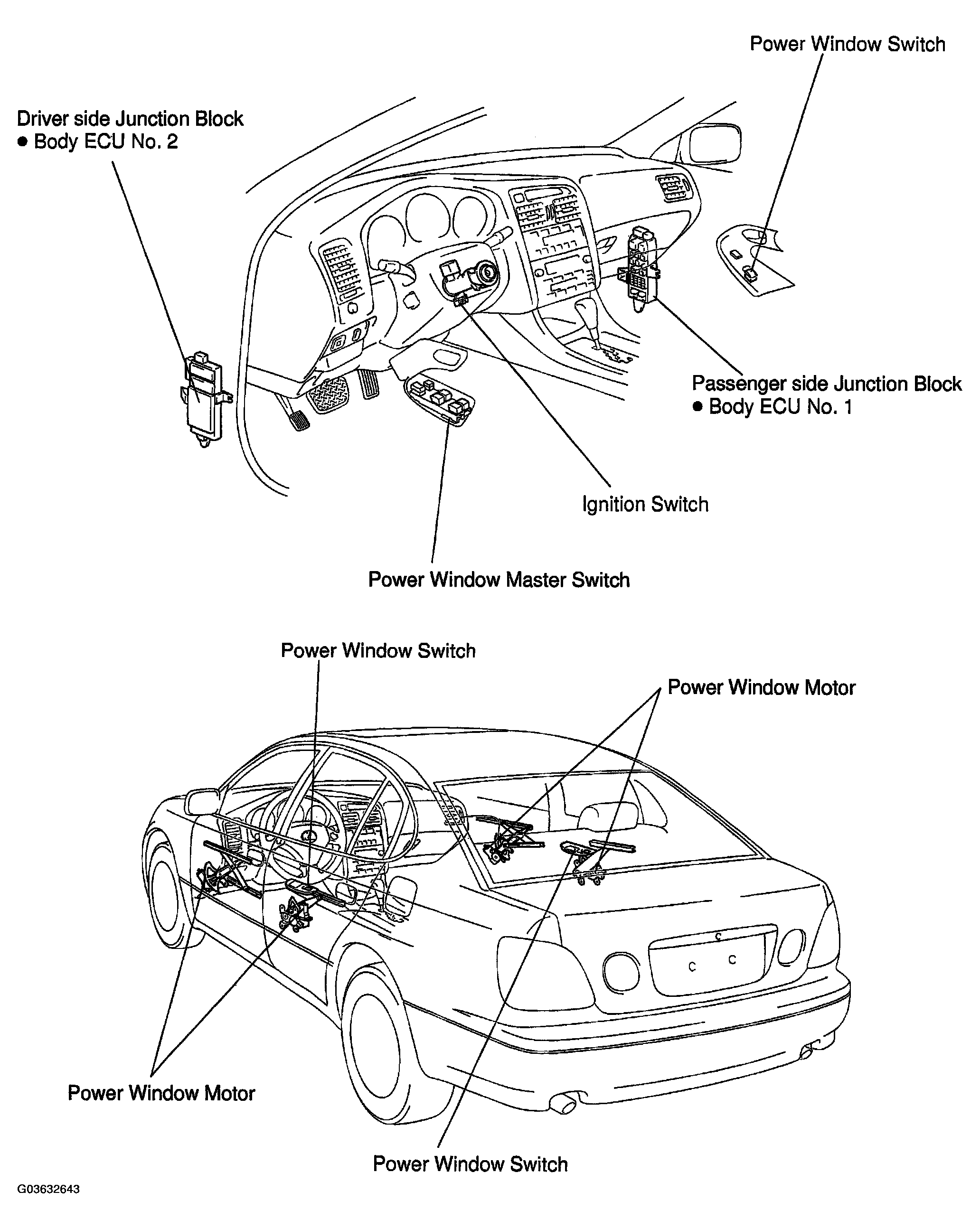

Fig 1: Identifying Power Window Control System Component Location
G03632643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
