Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 & Fig 3 .

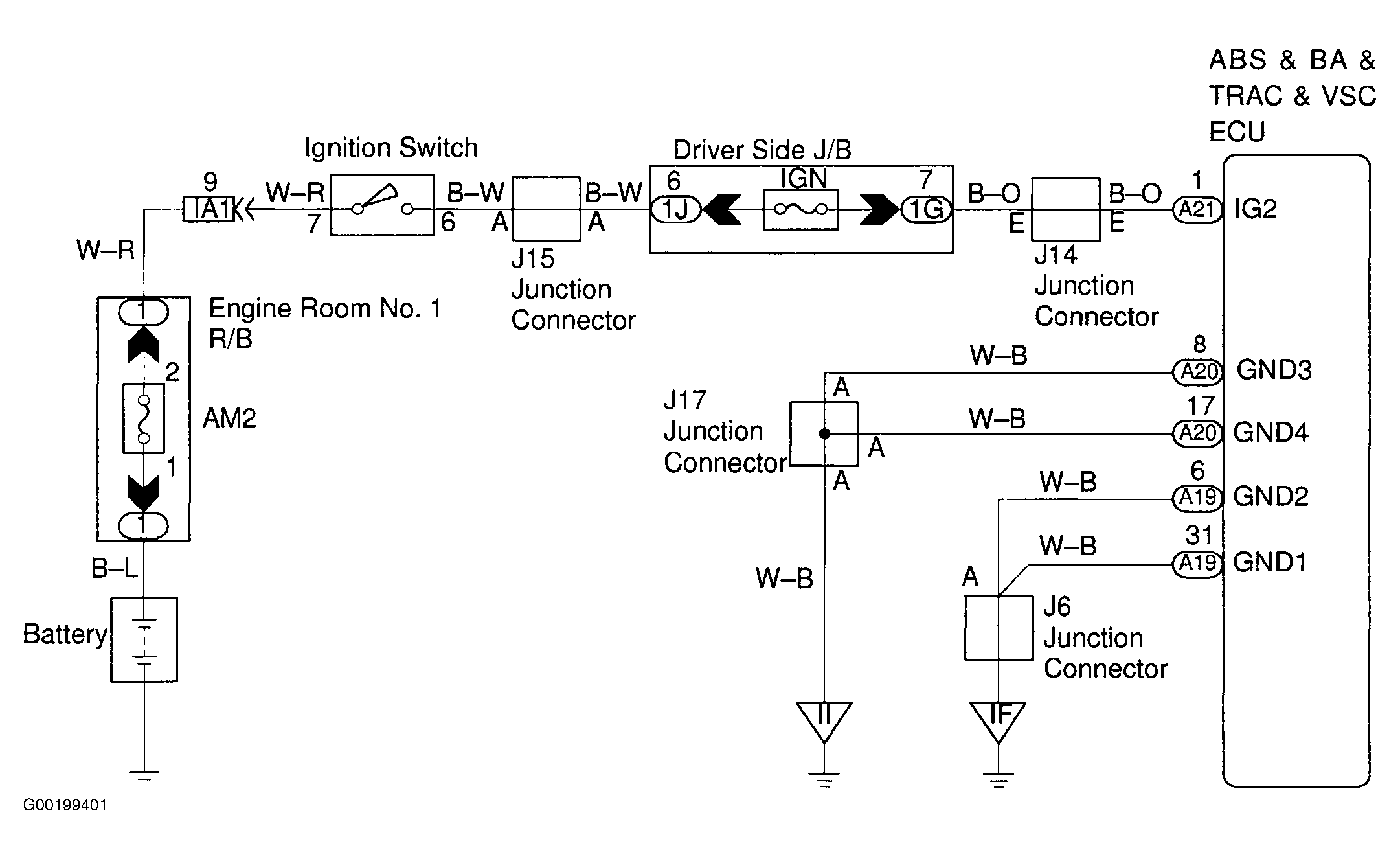

Fig 1: Wiring Diagram IG2 Power Source Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

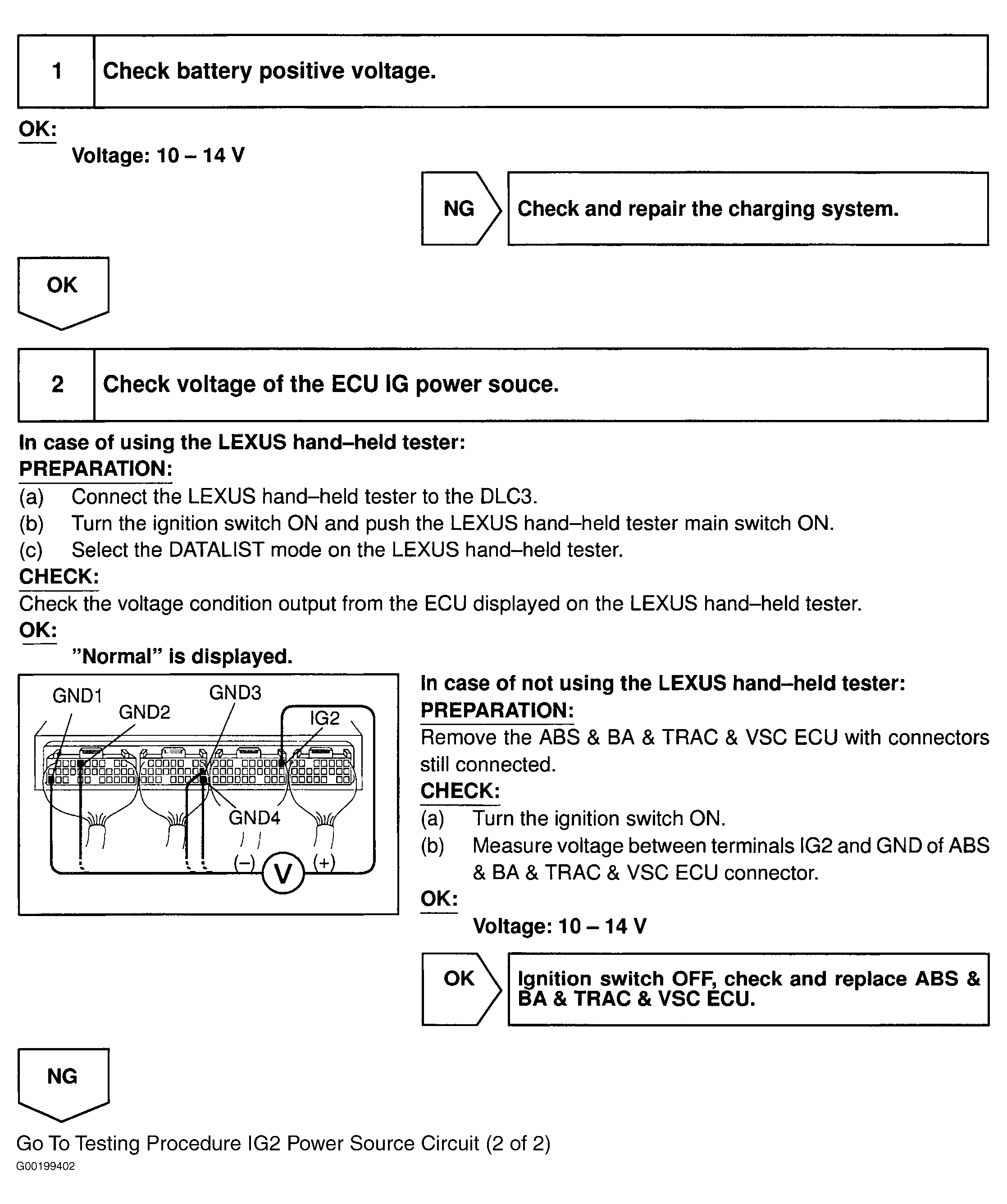

Fig 2: Testing Procedure IG2 Power Source Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

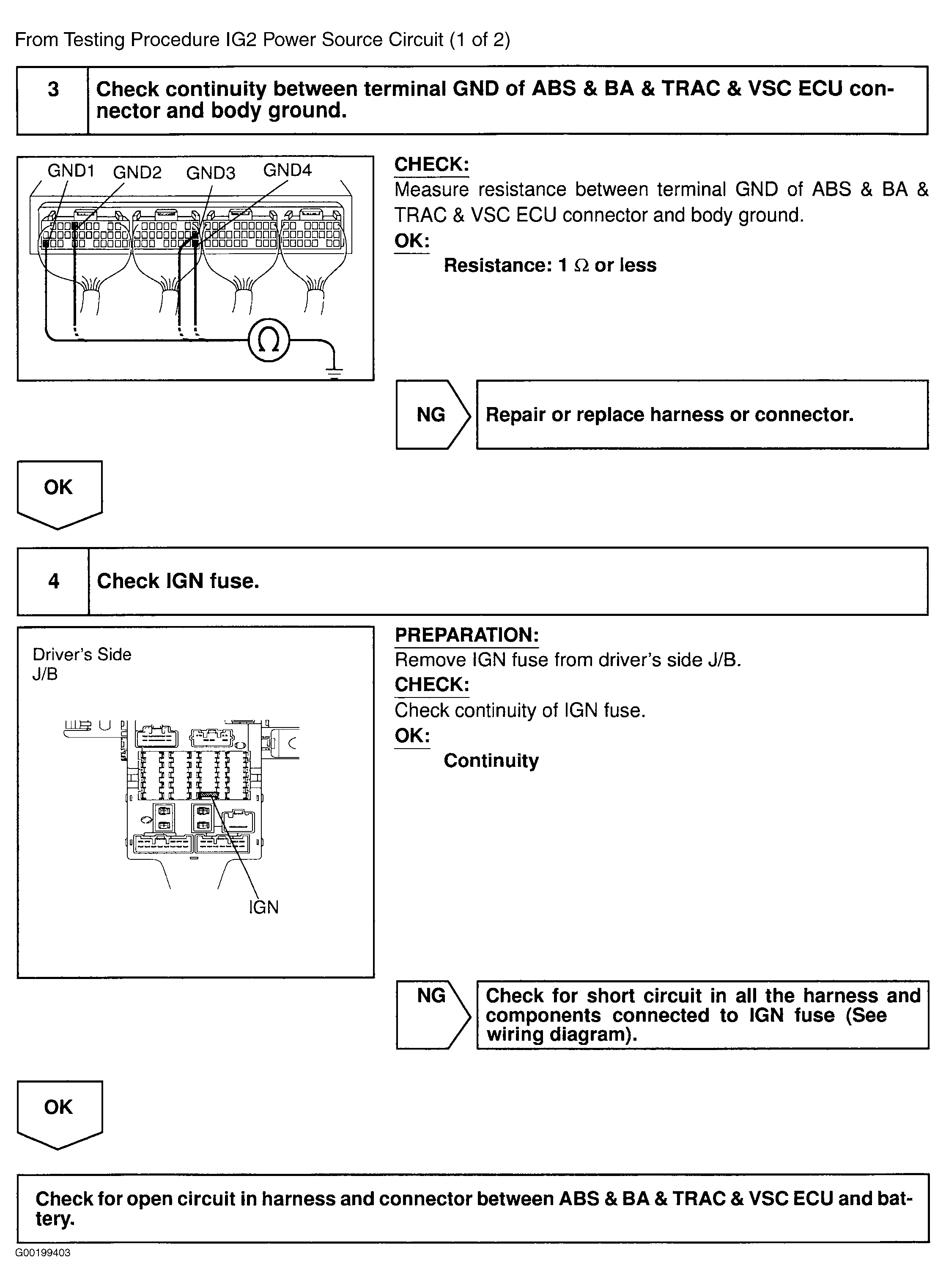

Fig 3: Testing Procedure IG2 Power Source Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
