Testing Procedure

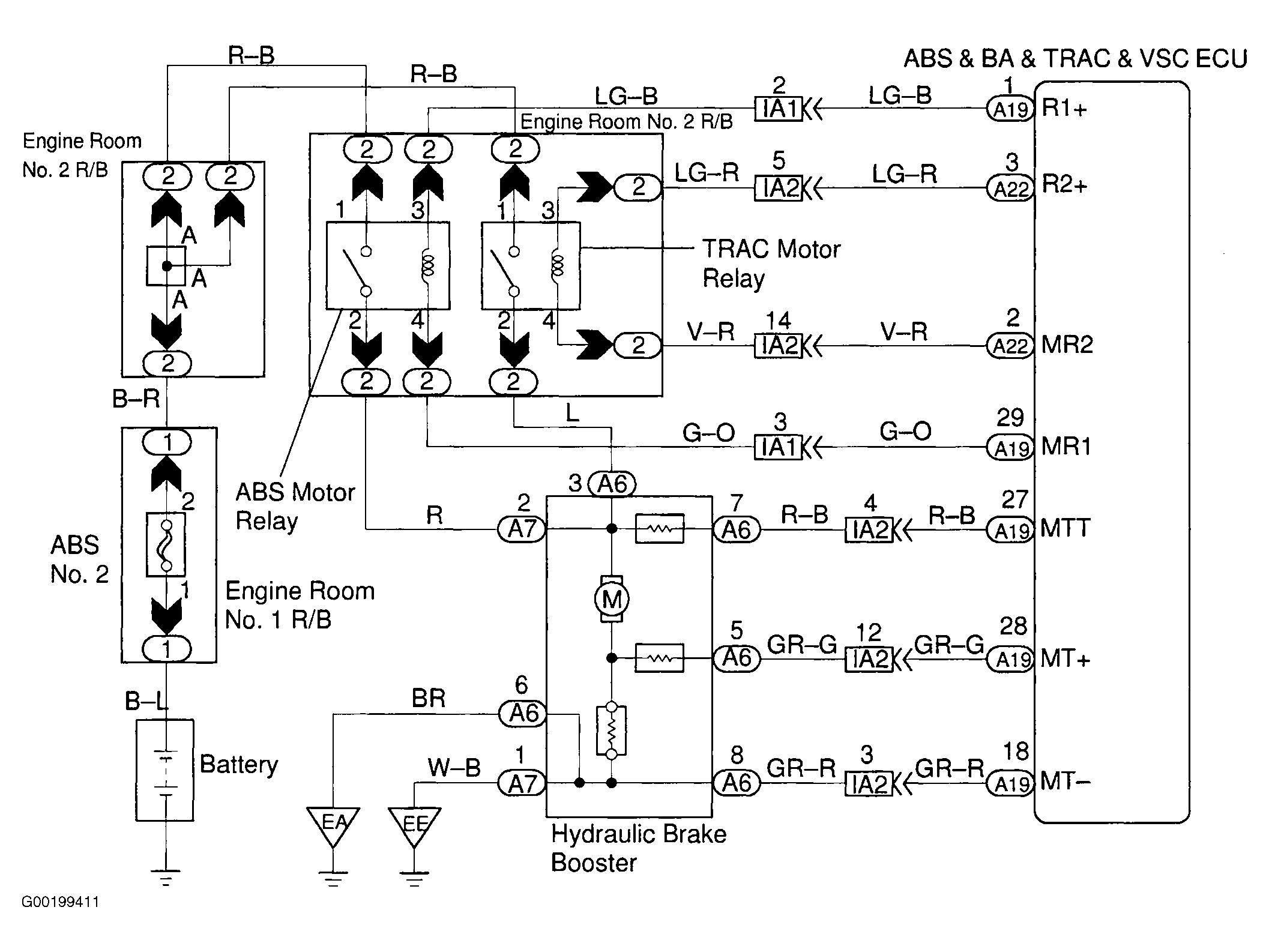

For wiring diagram, see Figure. For testing procedure, see Fig 1 - Fig 5 .

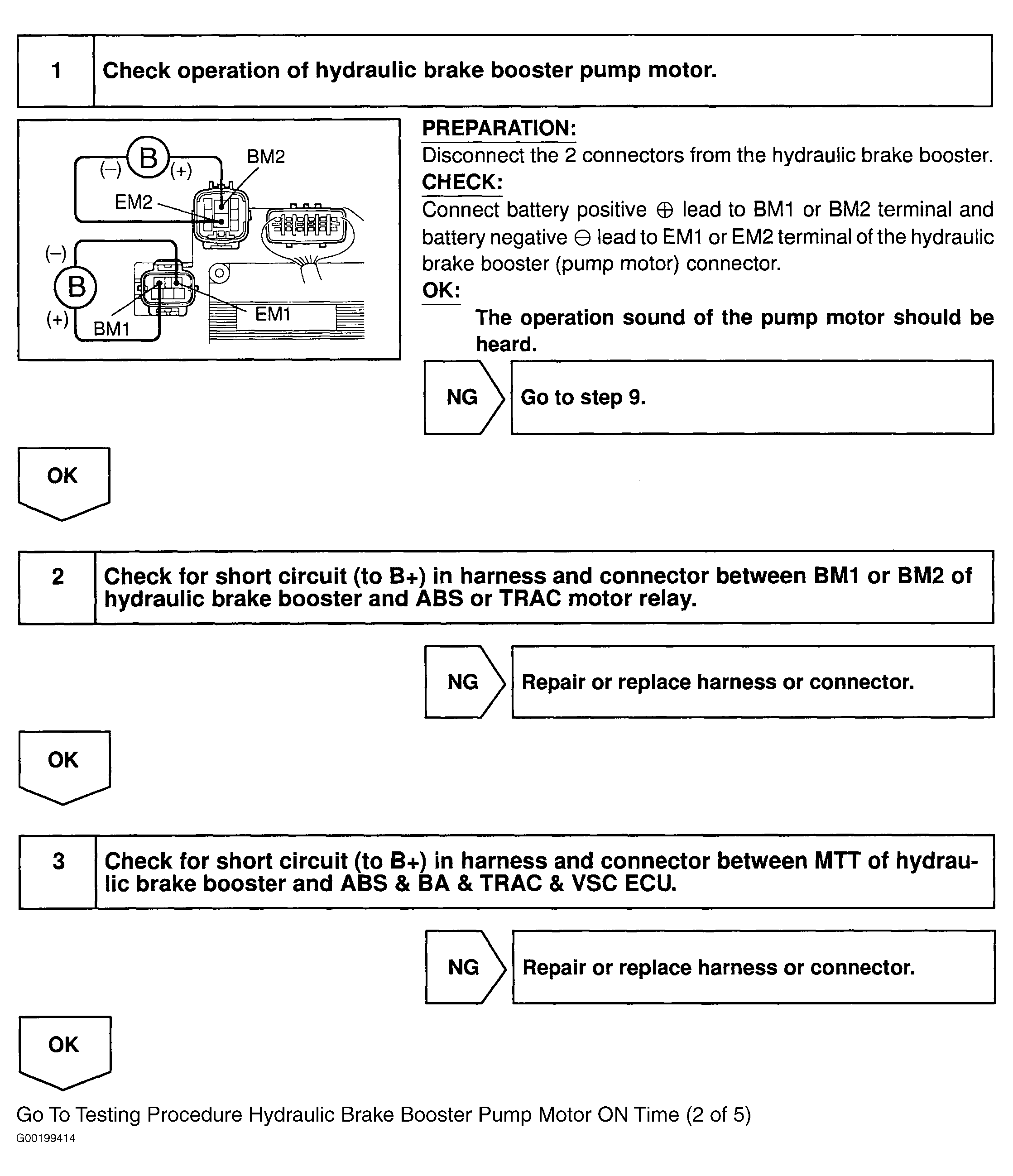

Fig 1: Testing Procedure Hydraulic Brake Booster Pump Motor ON Time (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing Procedure Hydraulic Brake Booster Pump Motor ON Time (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Procedure Hydraulic Brake Booster Pump Motor ON Time (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

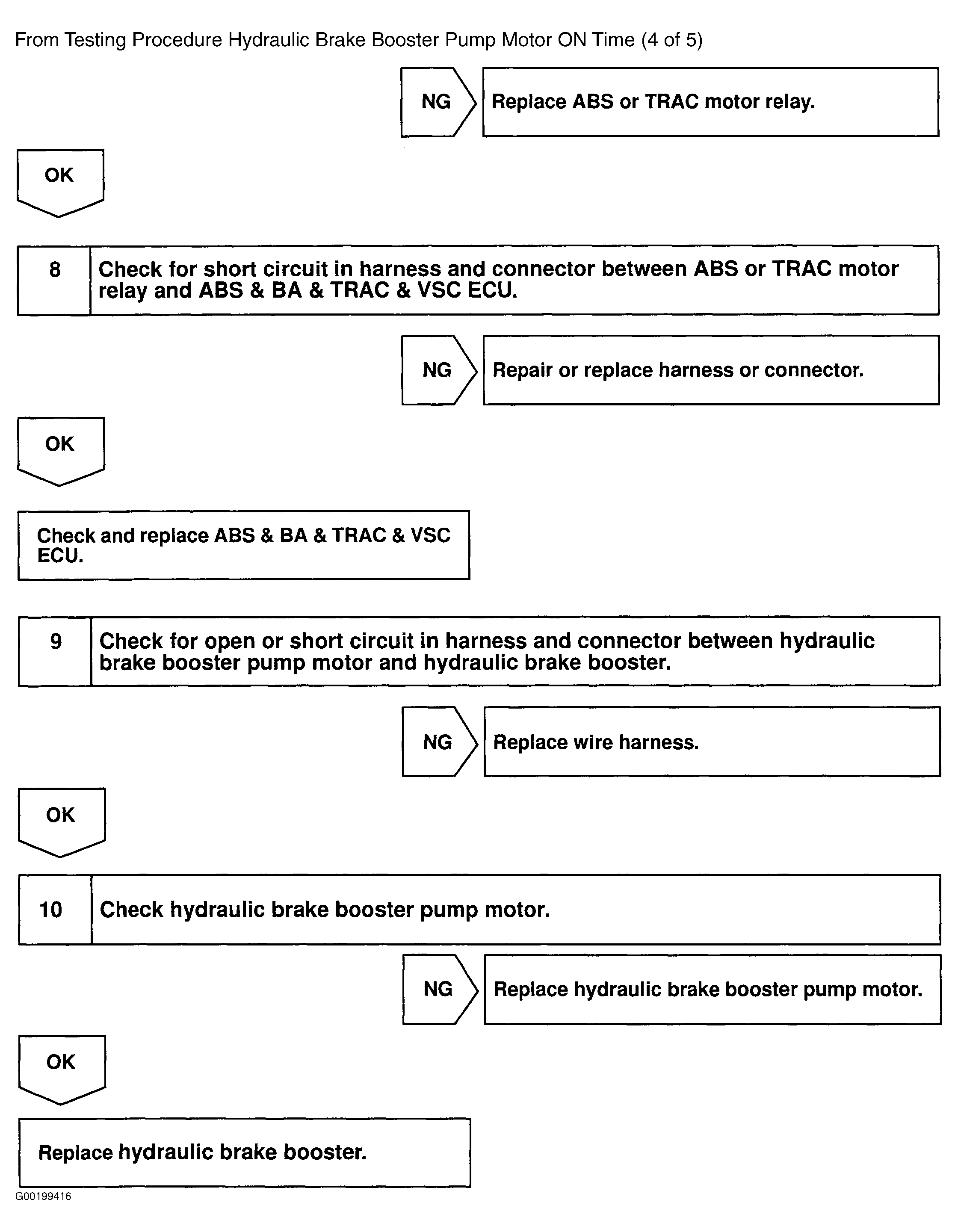

Fig 4: Testing Procedure Hydraulic Brake Booster Pump Motor ON Time (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Testing Procedure Hydraulic Brake Booster Pump Motor ON Time (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
