Fuel Lid: Components: Removal

REMOVE LUGGAGE COMPARTMENT FLOOR MAT
REMOVE REAR FLOOR FINISH PLATE
REMOVE LUGGAGE COMPARTMENT TRIM FRONT COVER
REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVER LH
REMOVE FUEL LID LOCK ASSEMBLY

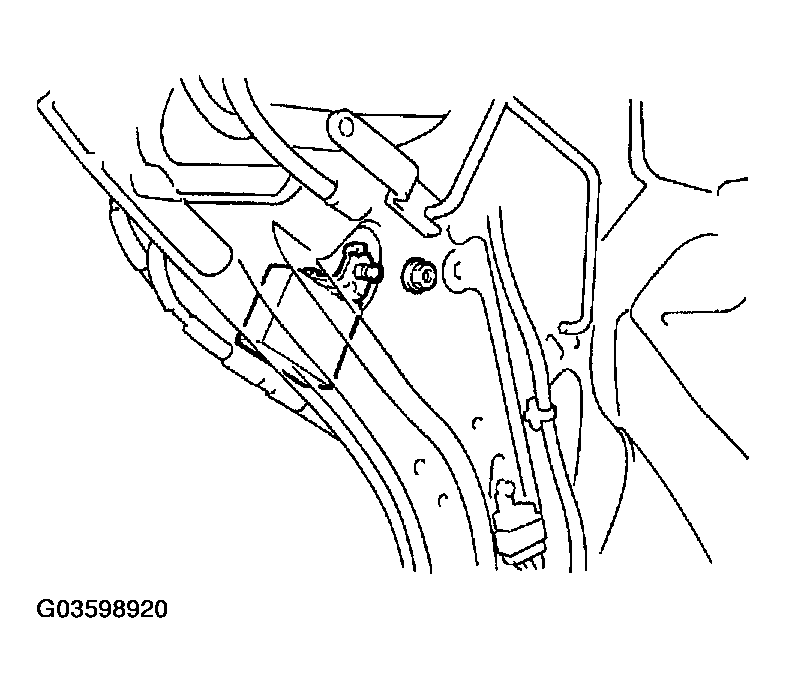

1. Remove the nut, and remove the lamp failure relay, then disconnect the connector.

  Fig 1: Identifying Lamp Failure Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut from the fuel lid side.

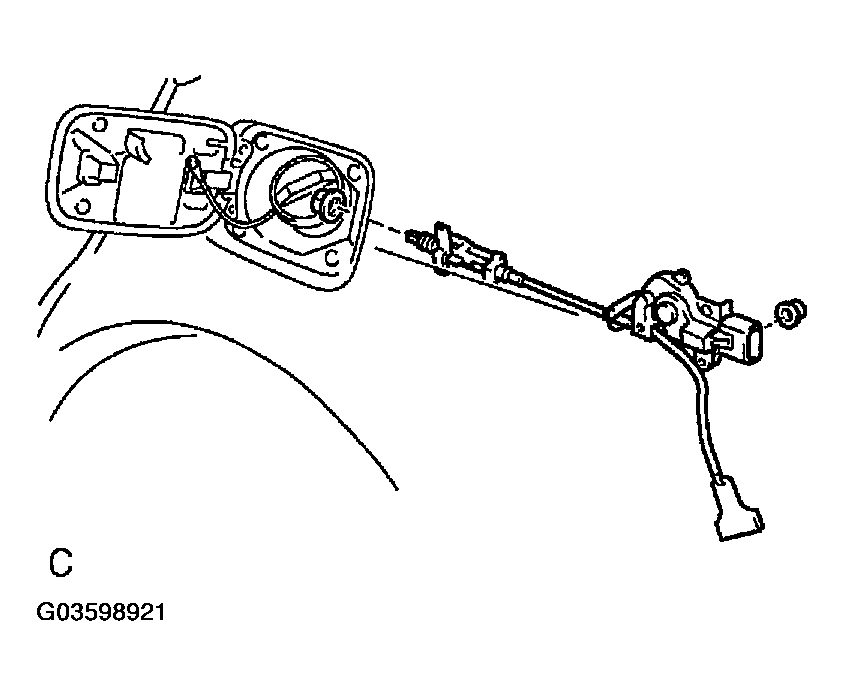

3. Remove the nut and lock assembly, then disconnect the connector.
Fig 2: Identifying Lock Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL TANK CAP TETHER FROM FUEL FILLER OPENING LID
Remove the clip and fuel tank cap tether from the fuel filler opening lid.
REMOVE FUEL TANK FILLER PIPE SHIELD

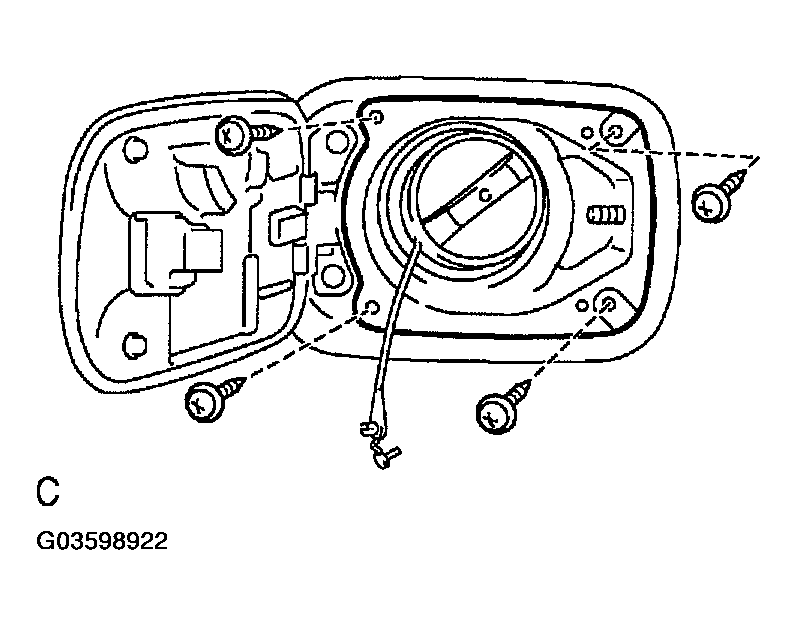

1. Remove the 4 screws.
2. Remove the fuel tank cap and shield.
  CAUTION: Always keep the tank cap closed when it is not required to be open. Keep all fire away during the operation.

  Fig 3: Identifying Fuel Tank Cap And Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the fuel tank cap quickly.
REMOVE FUEL FILLER OPENING LID

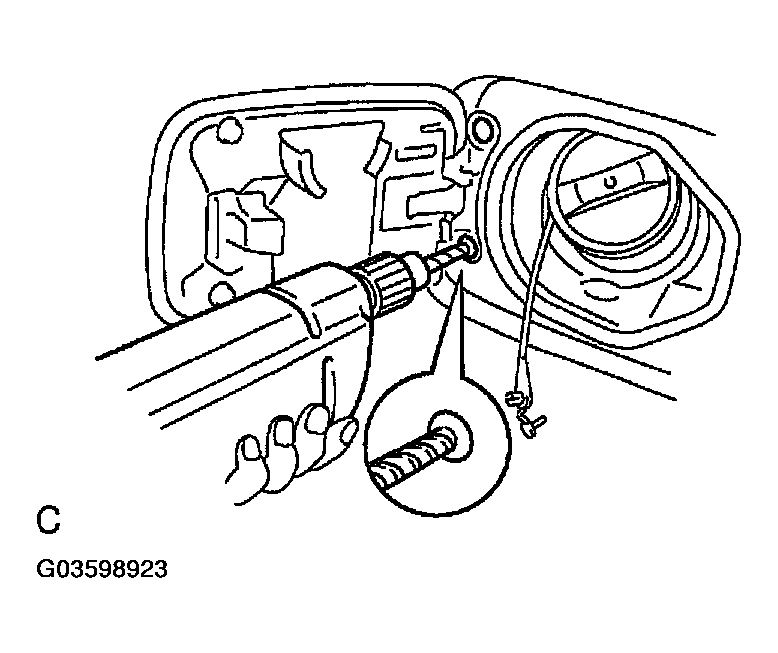

1. Using a drill, drill out the rivet heads.
2. Remove the fuel filler opening lid.
3. Remove the nut and fuel filler opening lid lock retainer from the opening lid.
REMOVE NO. 3 FUEL TANK FILLER PIPE SHIELD
