Shift Lever: Removal
- Raise and support vehicle.
- Remove front exhaust pipe. See REMOVAL under PARK/NEUTRAL POSITION SWITCH.
- Remove shift control rod nut and disconnect from shift lever. See Figure.
- Lower vehicle.
- Remove the following interior components listed below. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT.
- End pad
- No. 1 safety pad
- No. 2 under cover
- Glove compartment panel assembly
- Ash receptacle
- Cluster finish panel
- No. 3 console box mounting bracket
- Lower rear console box
- Console box and rear console armrest
- No. 1 console box duct
- Finish plate
- Box plate
- Remove floor shift lever assembly using the following steps:
- Disconnect connectors and wire harness from shift lever assembly.

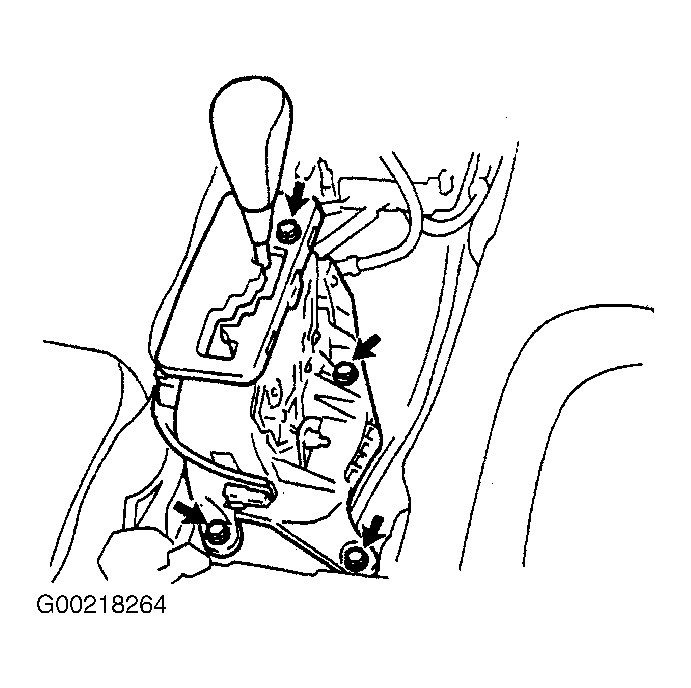

- Remove 4 bolts. See Fig 1.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
