Diagnosis & Repair

For wiring diagram, see Fig 1. For wire color identification, see WIRE COLOR IDENTIFICATION  table. For diagnosis and repair, see Fig 2-Fig 4 .

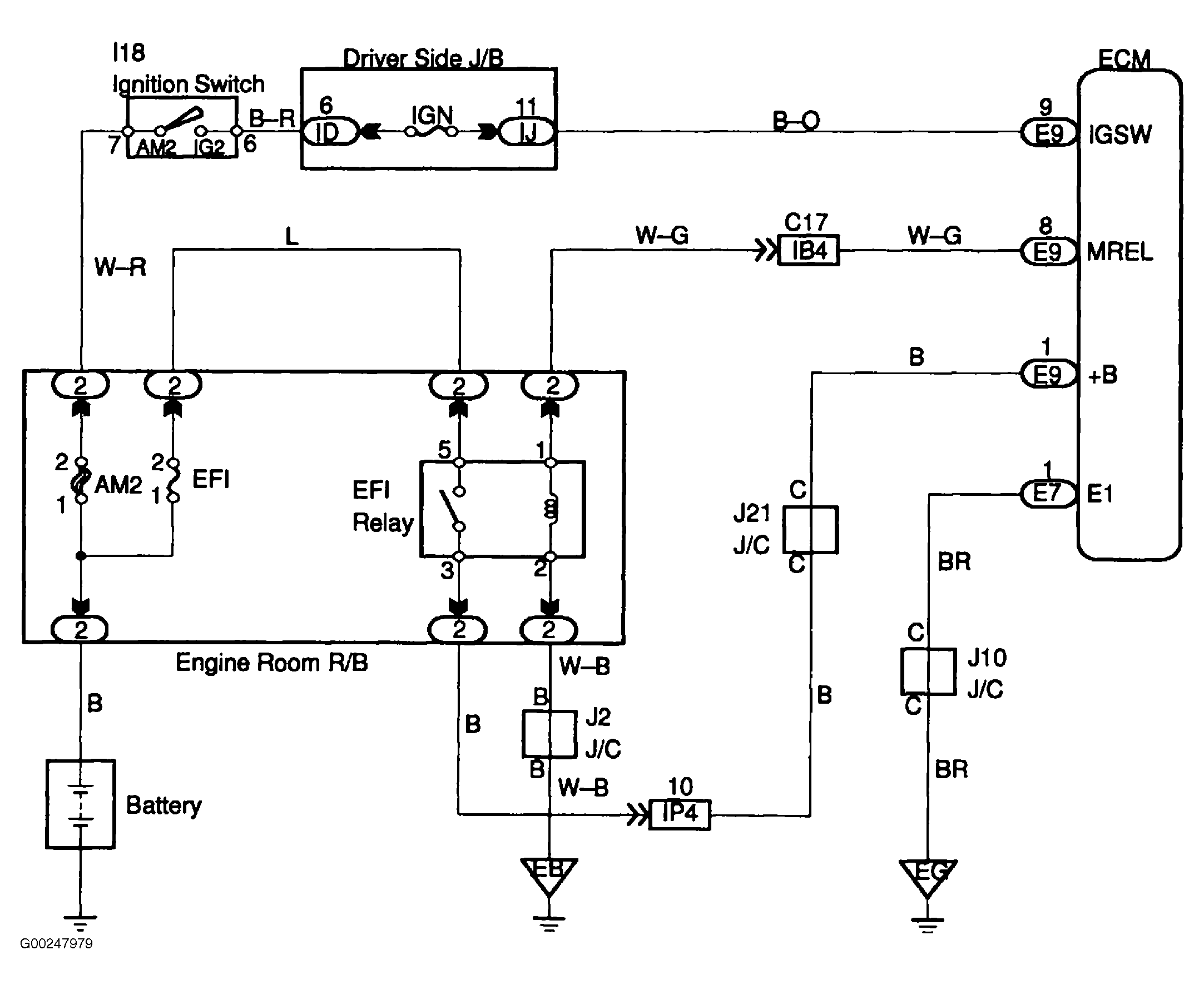

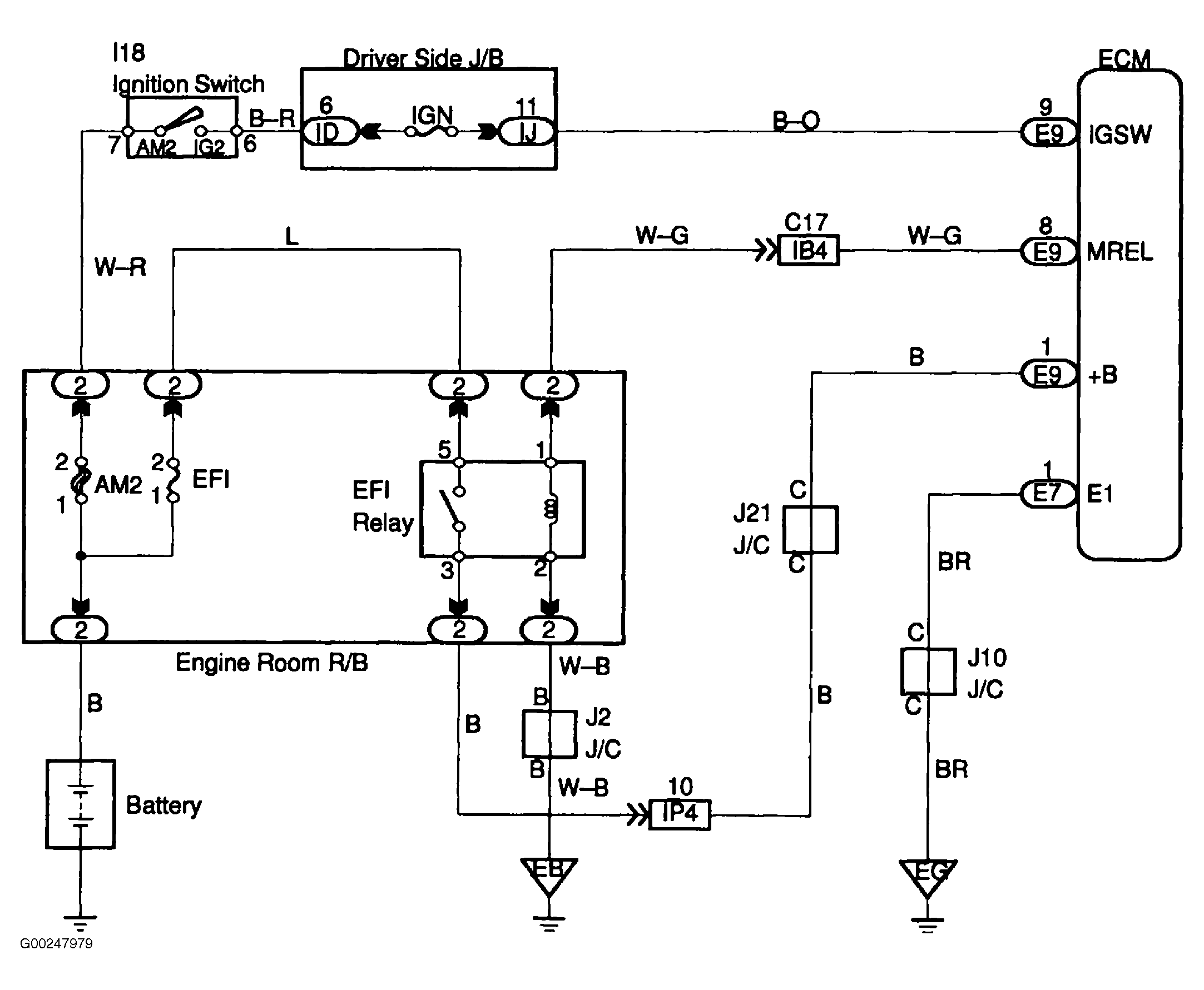

Fig 1: ECM Power Source Circuit Wiring Diagram
G00247979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

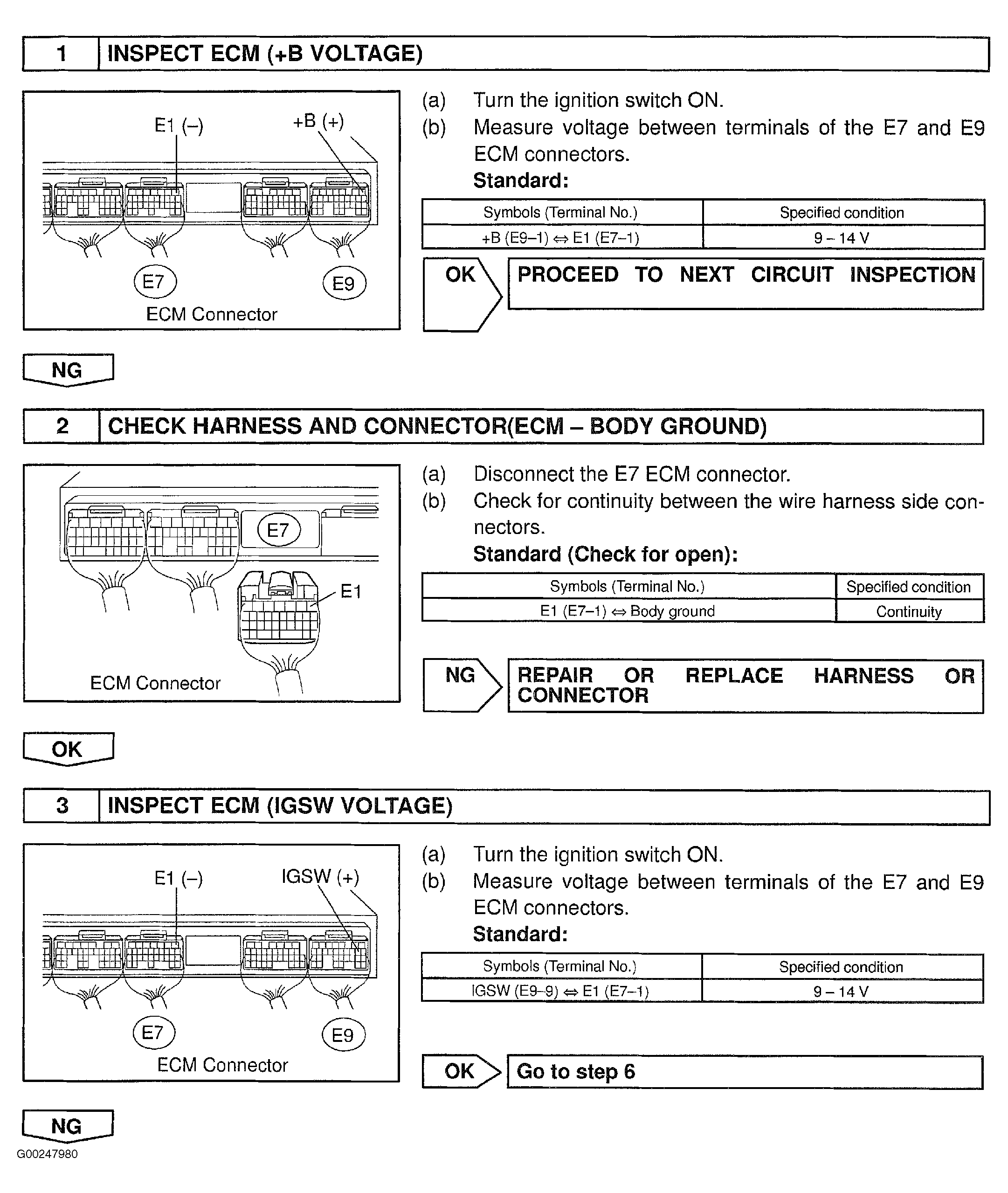

Fig 2: Diagnosis & Repair Of ECM Power Source Circuit (Step 1-3)
G00247980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

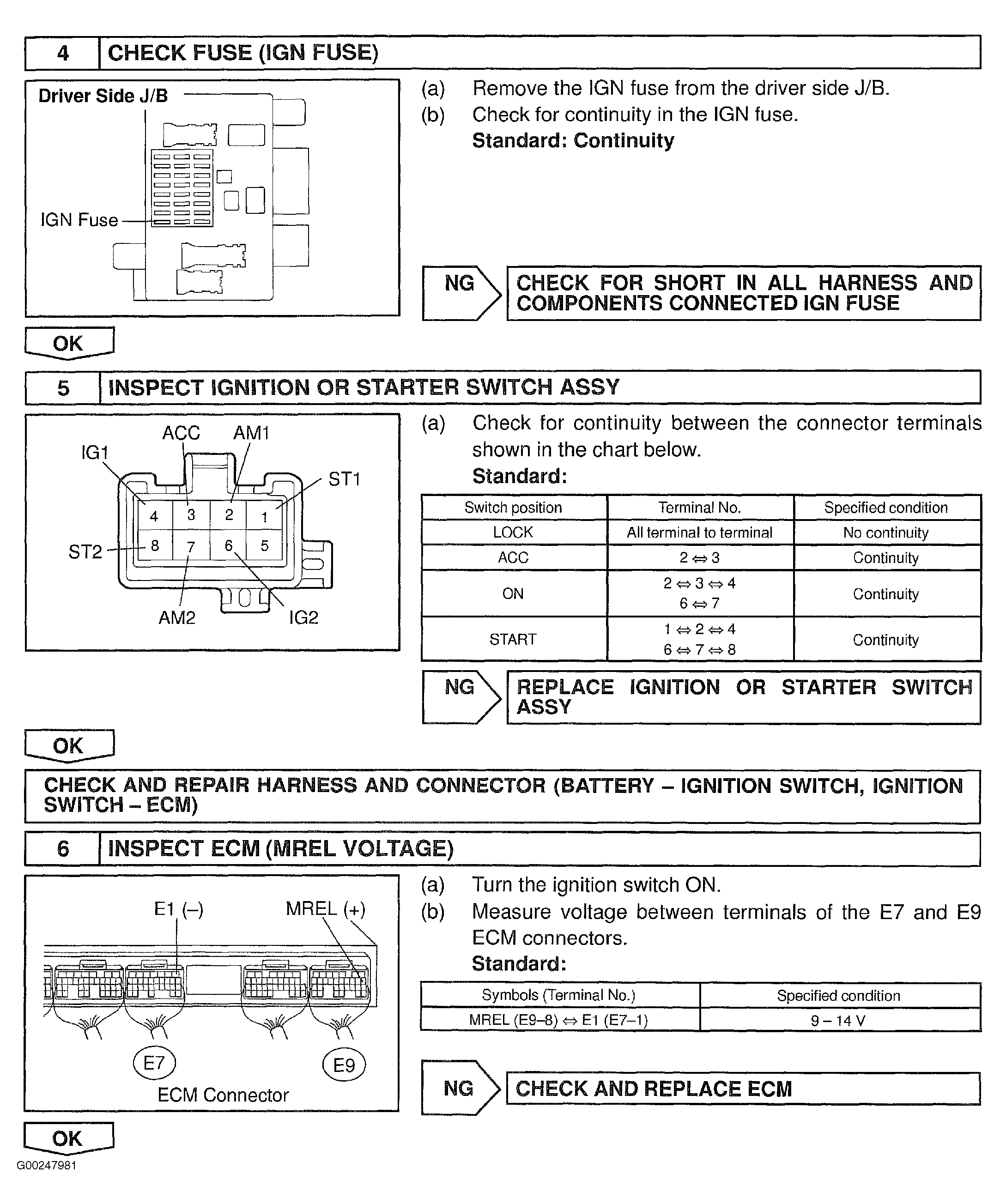

Fig 3: Diagnosis & Repair Of ECM Power Source Circuit Step 4-6)
G00247981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

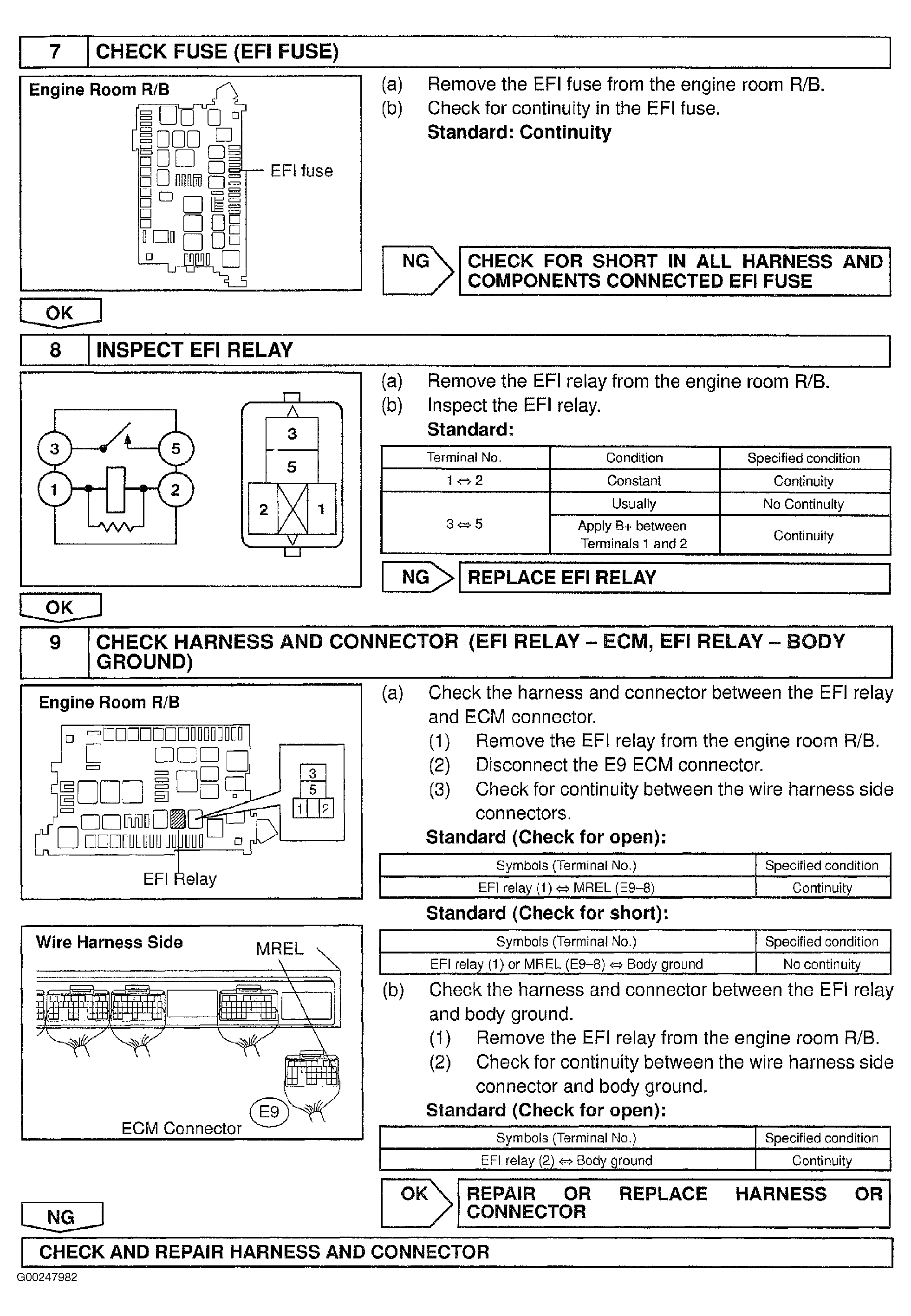

Fig 4: Diagnosis & Repair Of ECM Power Source Circuit (Step 7-9)
G00247982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
