Component Locations

For component locations, see Fig 1 and Fig 2 .

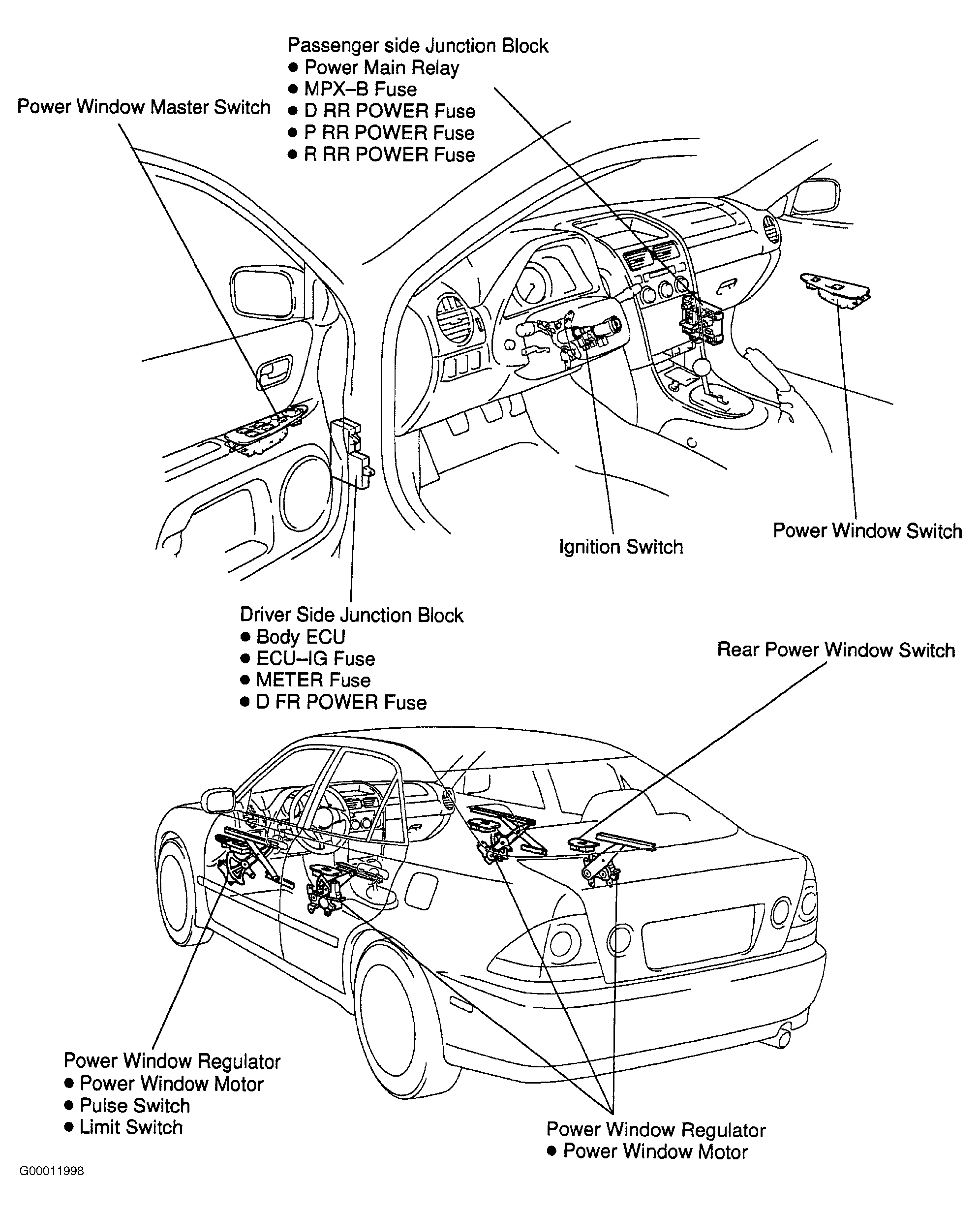

Fig 1: Identifying Power Window Component Locations (1 Of 2)
G00011998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

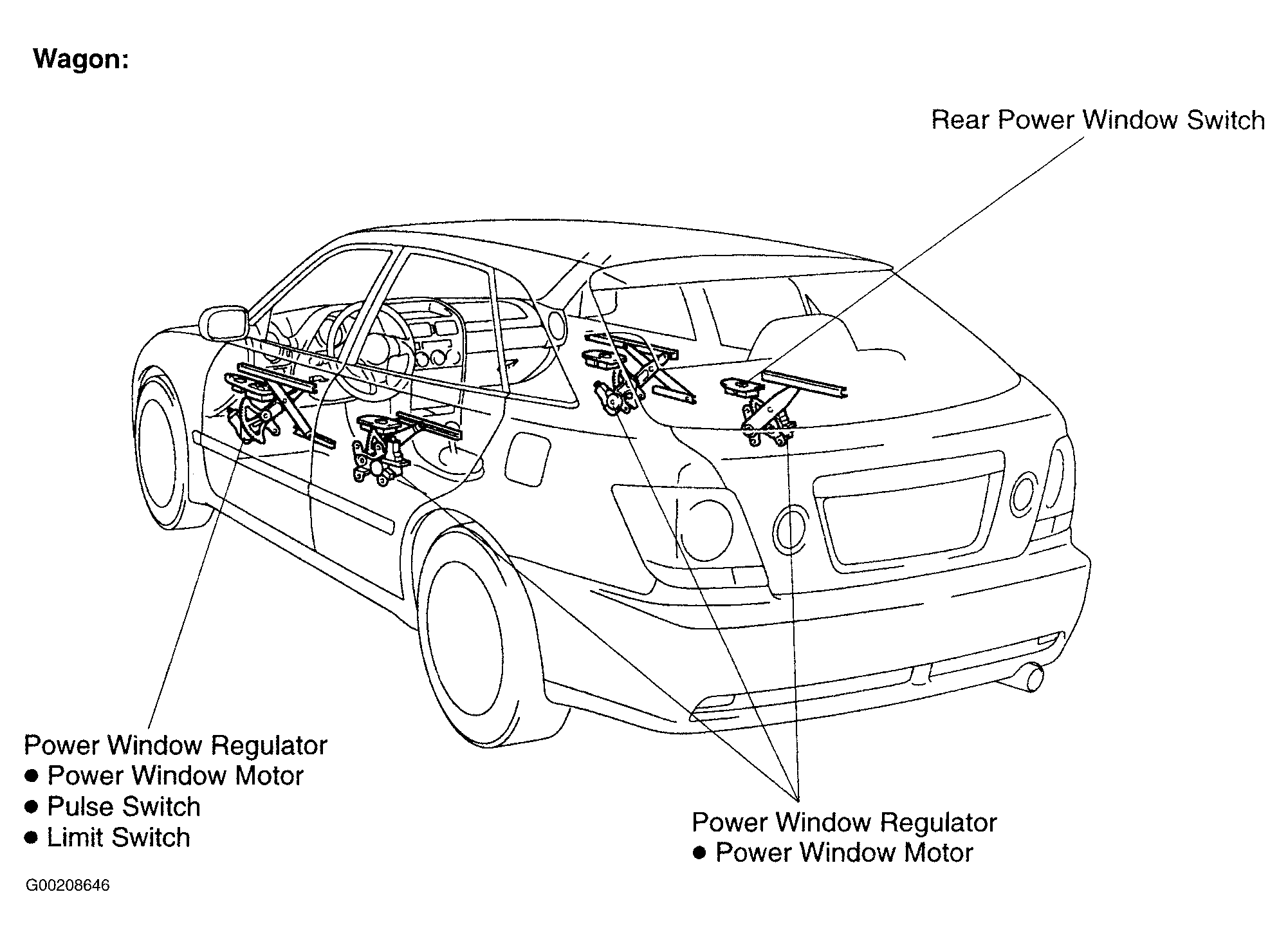

Fig 2: Identifying Power Window Component Locations (2 Of 2)
G00208646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
