Cylinder Block: Components

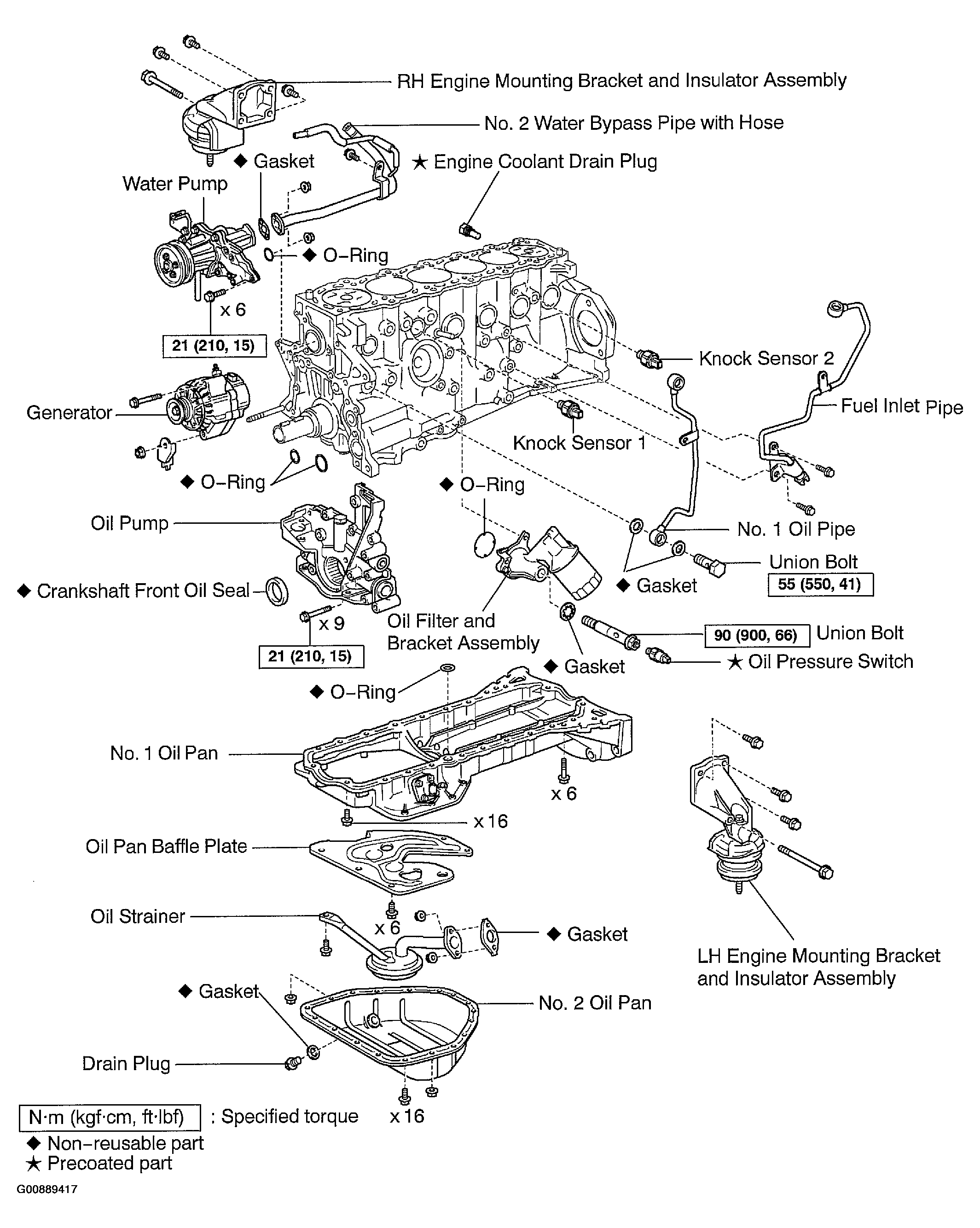

Fig 1: Identifying Components Of Cylinder Block (1 Of 2)
G00889417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

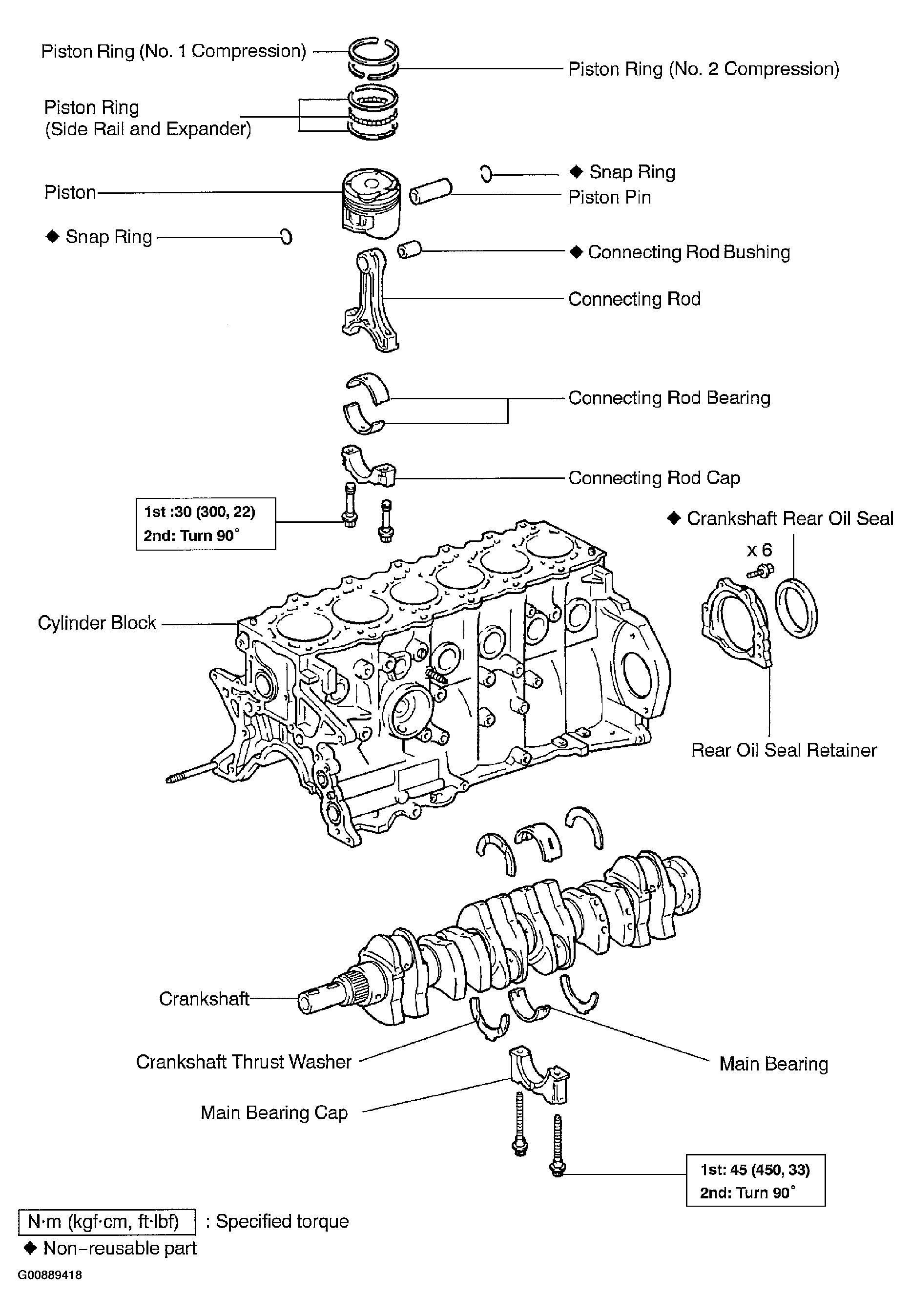

Fig 2: Identifying Components Of Cylinder Block (2 Of 2)
G00889418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
