Timing Belt: Components

Fig 1: Identifying Components Of Timing Belt (1 Of 2)
G00889215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

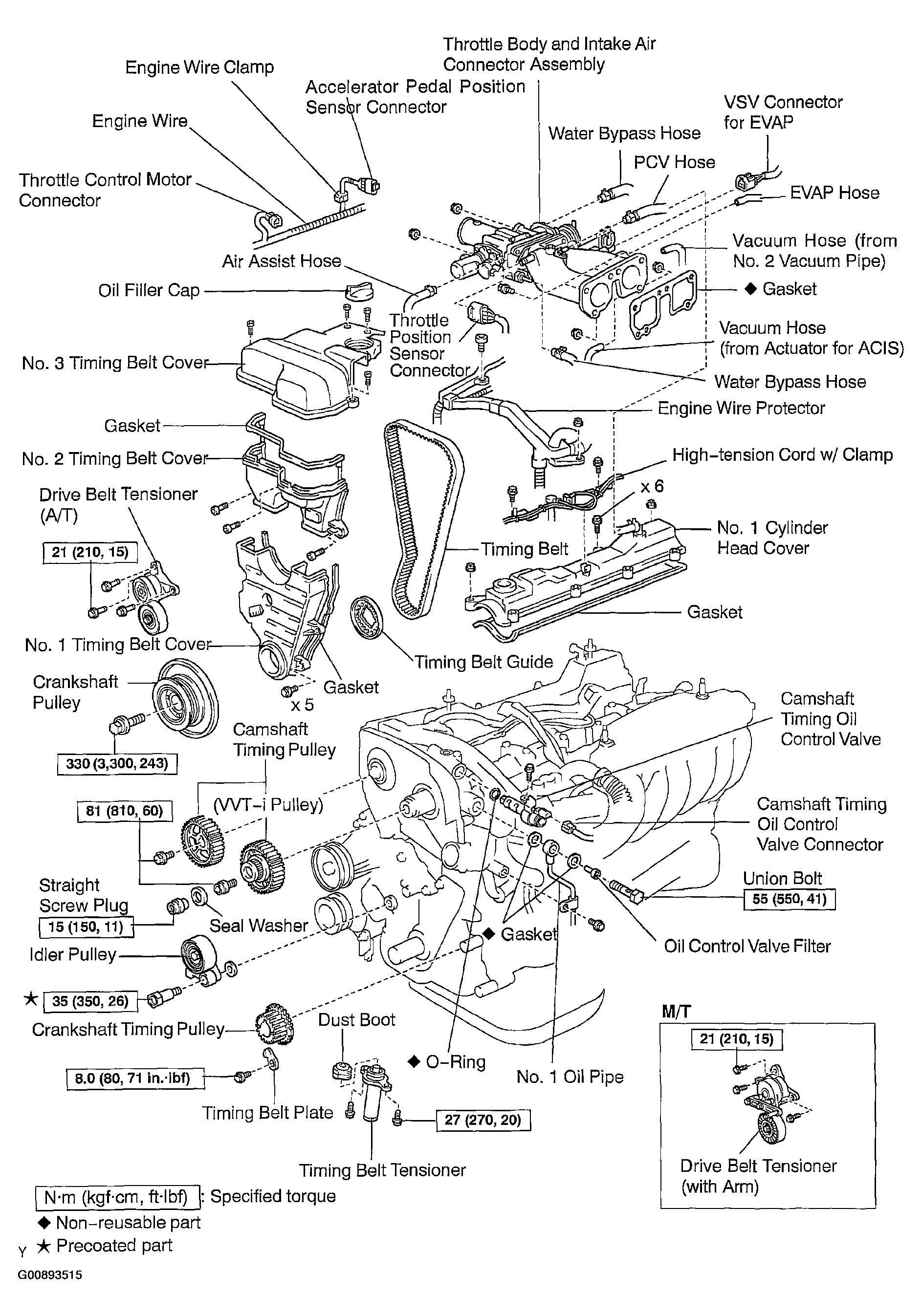

Fig 2: Identifying Components Of Timing Belt (2 Of 2)
G00893515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
