Model Coverage: Notes

2002 MODEL COVERAGE

MODEL ENGINE ENGINE ID (1) FUEL SYSTEM (2) IGNITION SYSTEM (3)
ES300 3.0L V6 (1MZ-FE) F SFI DIS
GS300 3.0L 6-Cyl. (2JZ-GE) D SFI DIS
GS430 4.3L V8 (3UZ-FE) N SFI DIS
GX470 4.7L V8 (2UZ-FE) T SFI DIS
IS300 3.0L 6-Cyl. (2JZ-GE) D SFI DIS
LS430 4.3L V8 (3UZ-FE) N SFI DIS
LX470 4.7L V8 (2UZ-FE) T SFI DIS
RX300 3.0L V6 (1MZ-FE) F SFI DIS
SC430 4.3L V8 (3UZ-FE) N SFI DIS

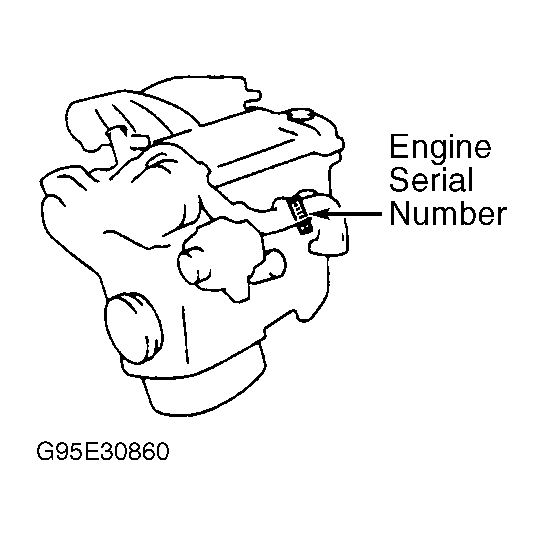

(1) Engine may be identified by Vehicle Identification Number (VIN). Vin is located on VIN plate on left side of instrument panel. See Figure-Figure . Engine serial number is stamped on cylinder block. See Figure-Figure .
(2) Fuel injection system is a Sequential Multiport Fuel Injection (SFI) system.
(3) Application uses a Distributorless Ignition System (DIS).

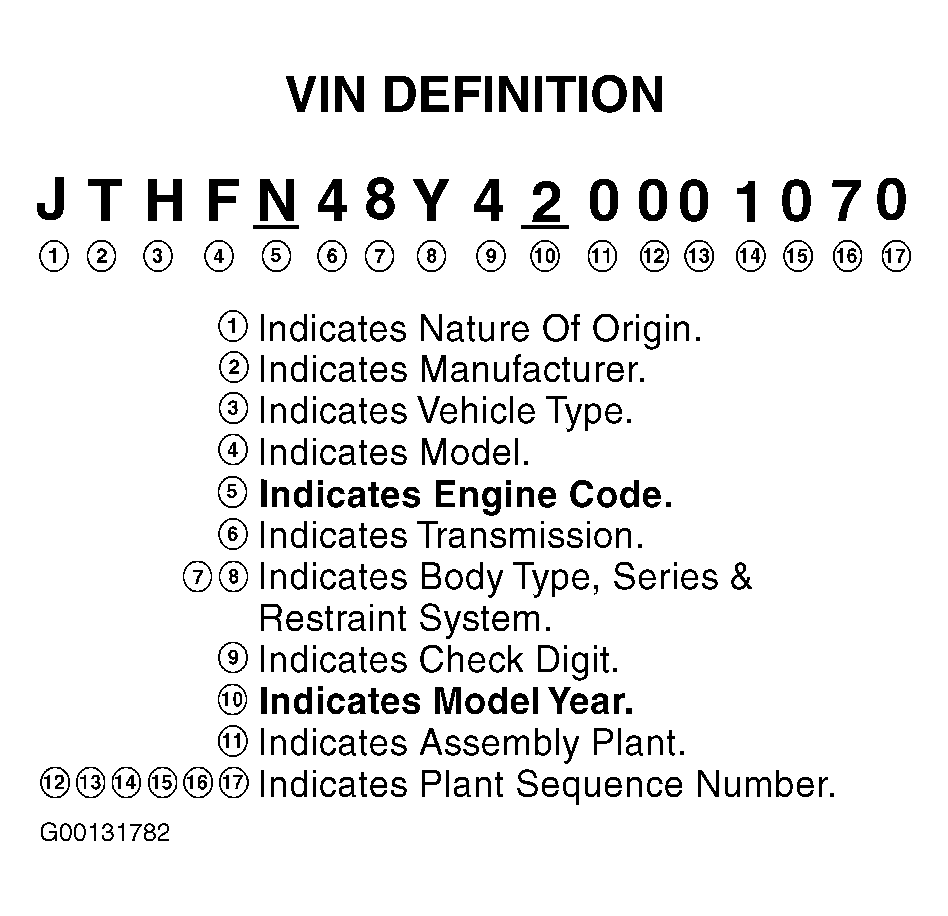

Fig 1: VIN Definition
G00131782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
