Crankshaft Position Sensor: Removal

  1. REMOVE GENERATOR (See  REMOVAL & INSTALLATION  )
  2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
    1. Disconnect the sensor connector.
    2. Remove the bolt holding the connector bracket to the water pump.

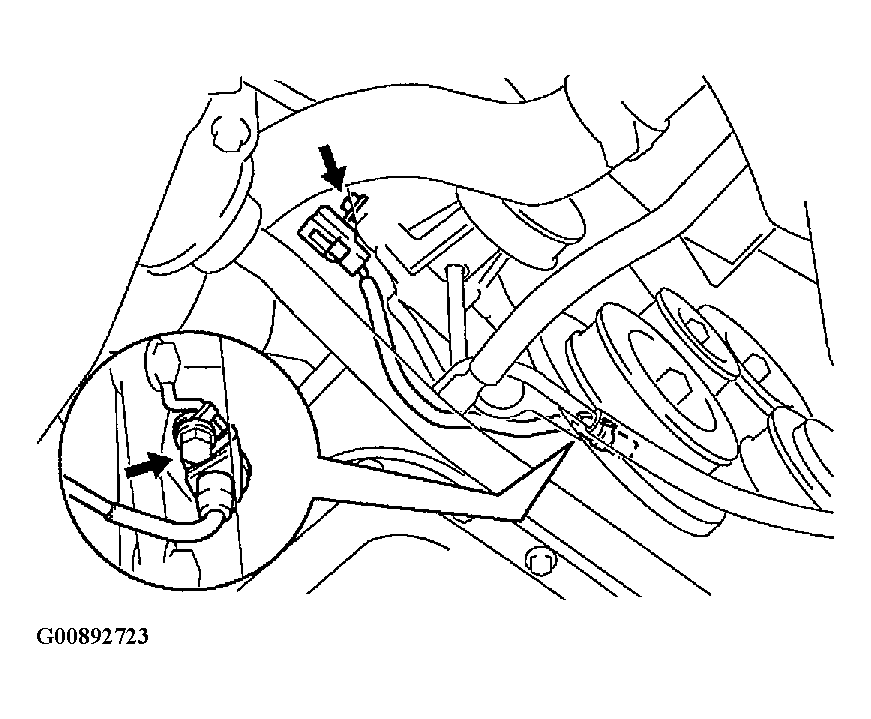

      Fig 1: Removing Connector Bracket Bolt
      G00892723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Remove the bolt and sensor.
      1. Torque: 9.0 N.m (90 kgf.cm, 80 in..lbf)
    2. Remove the connector bracket from the connector.
