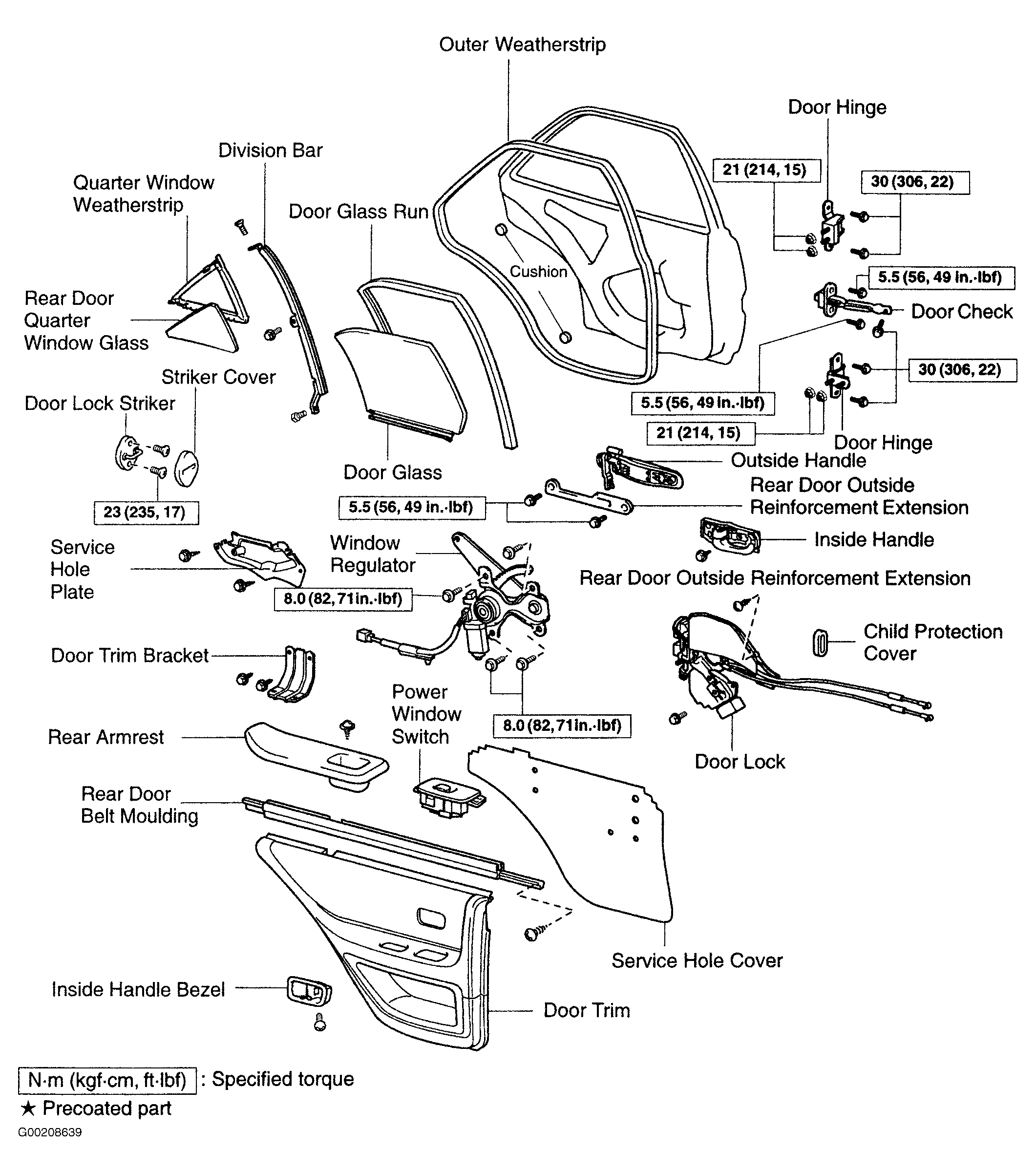

Power Window Regulator Motor (Rear): Installation

NOTE: Apply MP grease to the sliding and rotating parts of the window regulator. See Fig 1.

Install the window regulator with the 4 bolts. See TORQUE SPECIFICATIONS table. Connect the connector.

NOTE: Insert a shop rag inside the door panel to prevent scratching the glass.

Tilt the door glass and connect the roller of the regulator to the glass channel to install the door glass. See Figure.

CAUTION: Do not damage the glass.

Install the quarter window weatherstrip to the glass. See Figure. Install the rear door quarter window glass.
Insert the division bar to the door panel, then rotate it 90 degrees. Install the 2 bolts and screw.
Install door glass run.

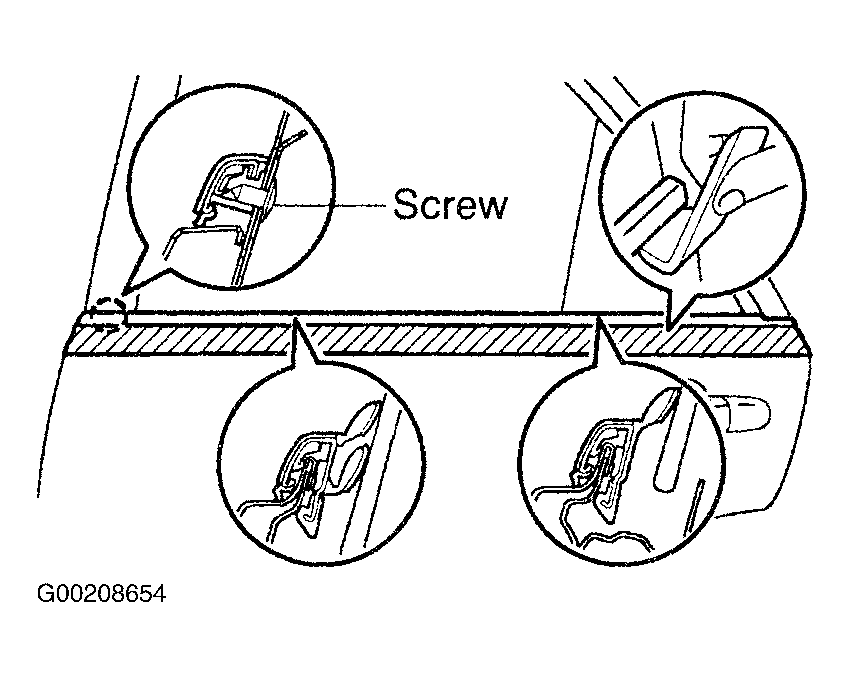

Install the rear door belt moulding with the screw. See Figure.
Install the service hole plate with the 2 screws.

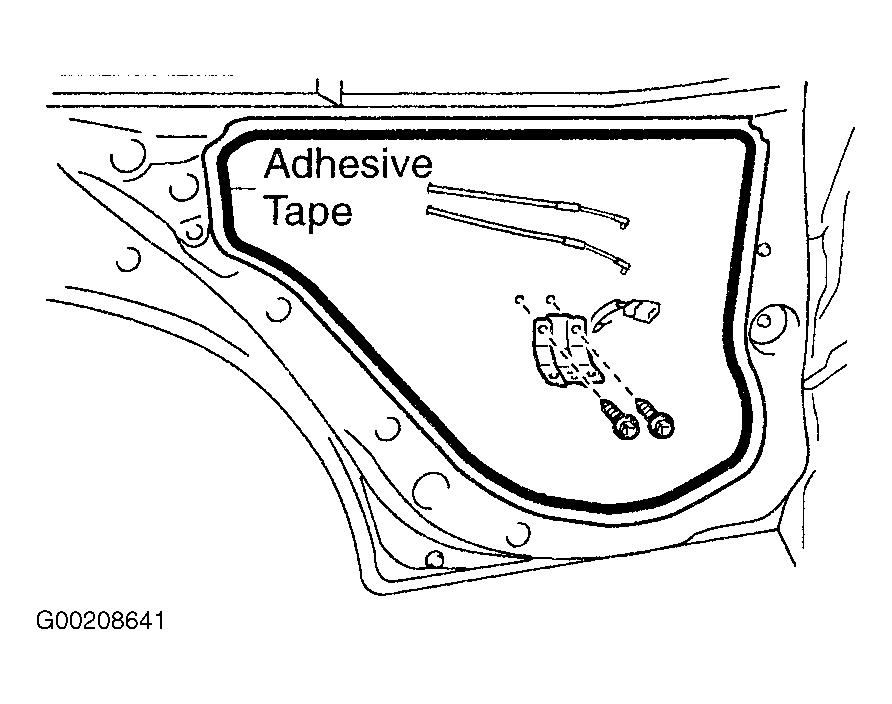

Install the service hole cover to the door panel. See Figure. When installing the service hole cover, pull out the links and connectors through the service hole cover. There should be no wrinkles or folds after attaching the service hole cover. After attaching the service hole cover, sealing condition shall be confirmed. Install the door trim bracket with the 2 screws. Connect the connector.
Connect the 2 cables to the inside handle, then install the inside handle with the screw. At the time of locking cable reassembly:
- Set the door lock assembly to the LOCK position.
- Hold the lock knob to the LOCK position by hand and do not pull the cable, while connecting the locking cable.
Install the rear door trim panel. See DOOR TRIM PANEL (REAR) under REMOVAL & INSTALLATION under POWER DOOR LOCKS & TRUNK LID article under DOOR LOCKS & ANTI-THEFT SYSTEMS in ACCESSORIES & EQUIPMENT.

Fig 1: Installing Rear Window Regulator Grease
