Testing Procedure

For wiring diagram see Figure. For testing procedure see Fig 1.

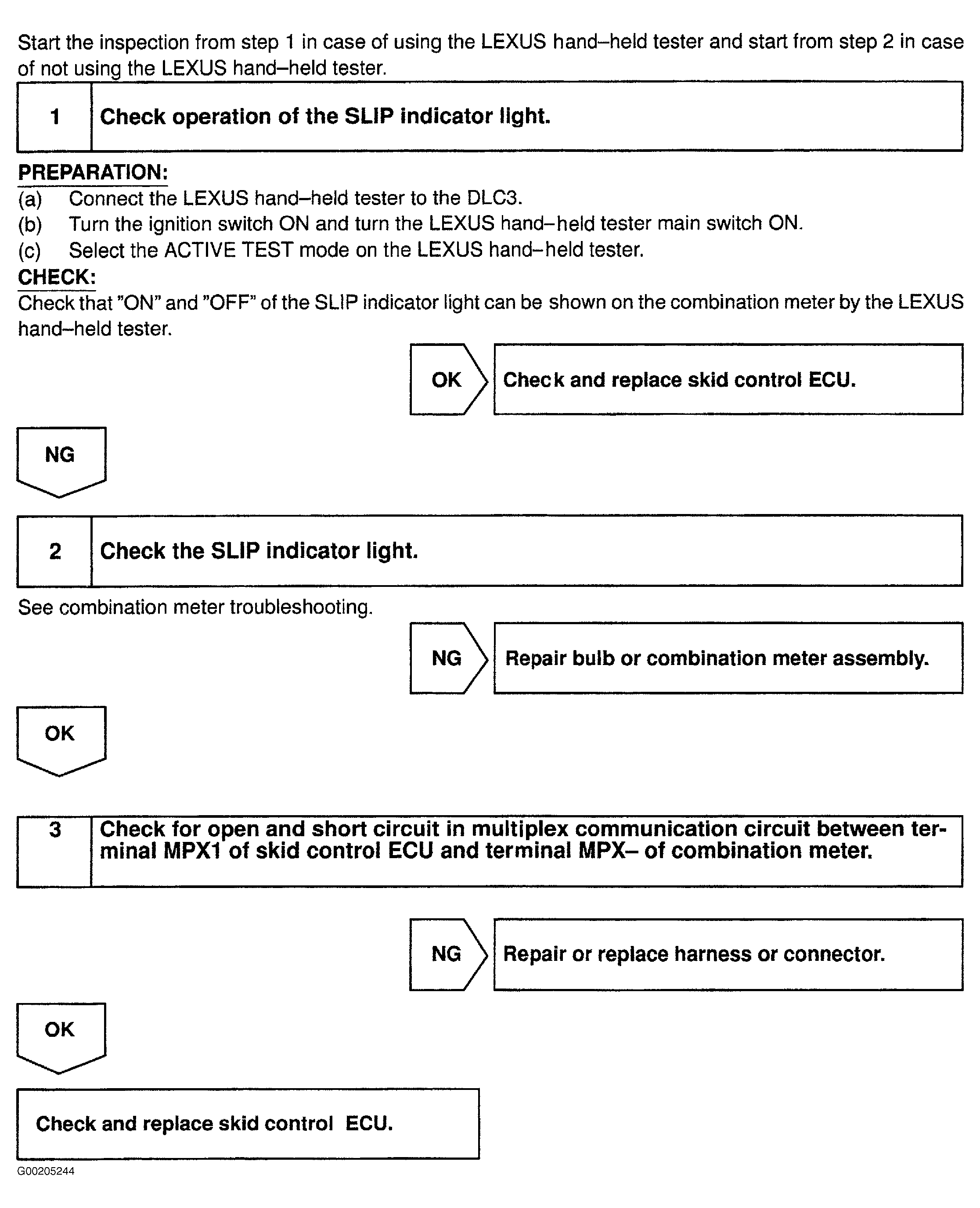

Fig 1: Testing Procedure SLIP Indicator Light Circuit
G00205244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
