Component Locations
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

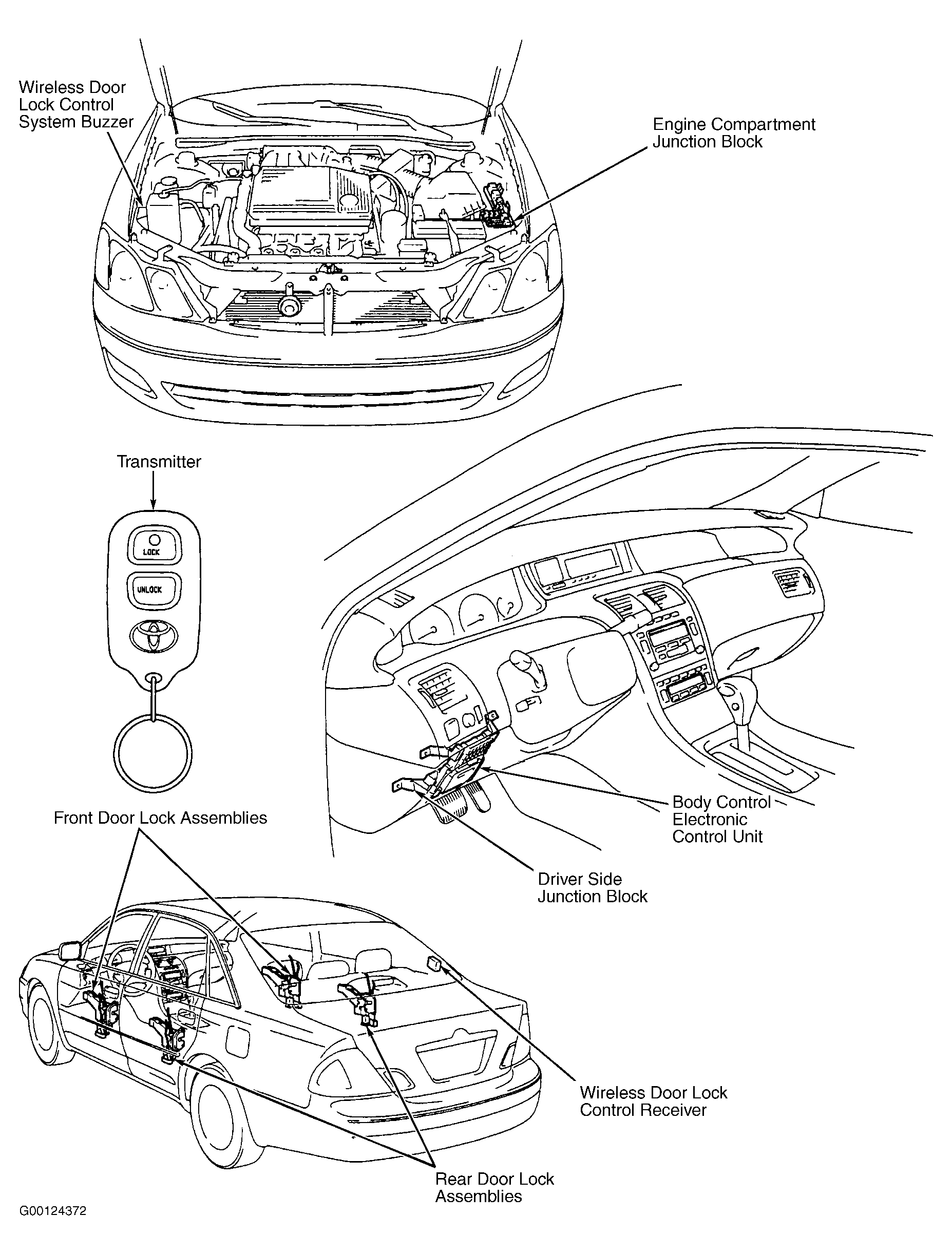

For additional wireless door lock control system component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Door Lock Assembly | Inside Each Door |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Engine Compartment Junction Block | Left Side Of Engine Compartment, In Front Of Shock Tower |
| Wireless Door Lock Control System Buzzer | Right Front Corner Of Engine Compartment, To Right Of Washer Fluid Reservoir Filler Neck |
| Wireless Door Lock Control System Receiver | Right "C" Pillar |
