Component Locations
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

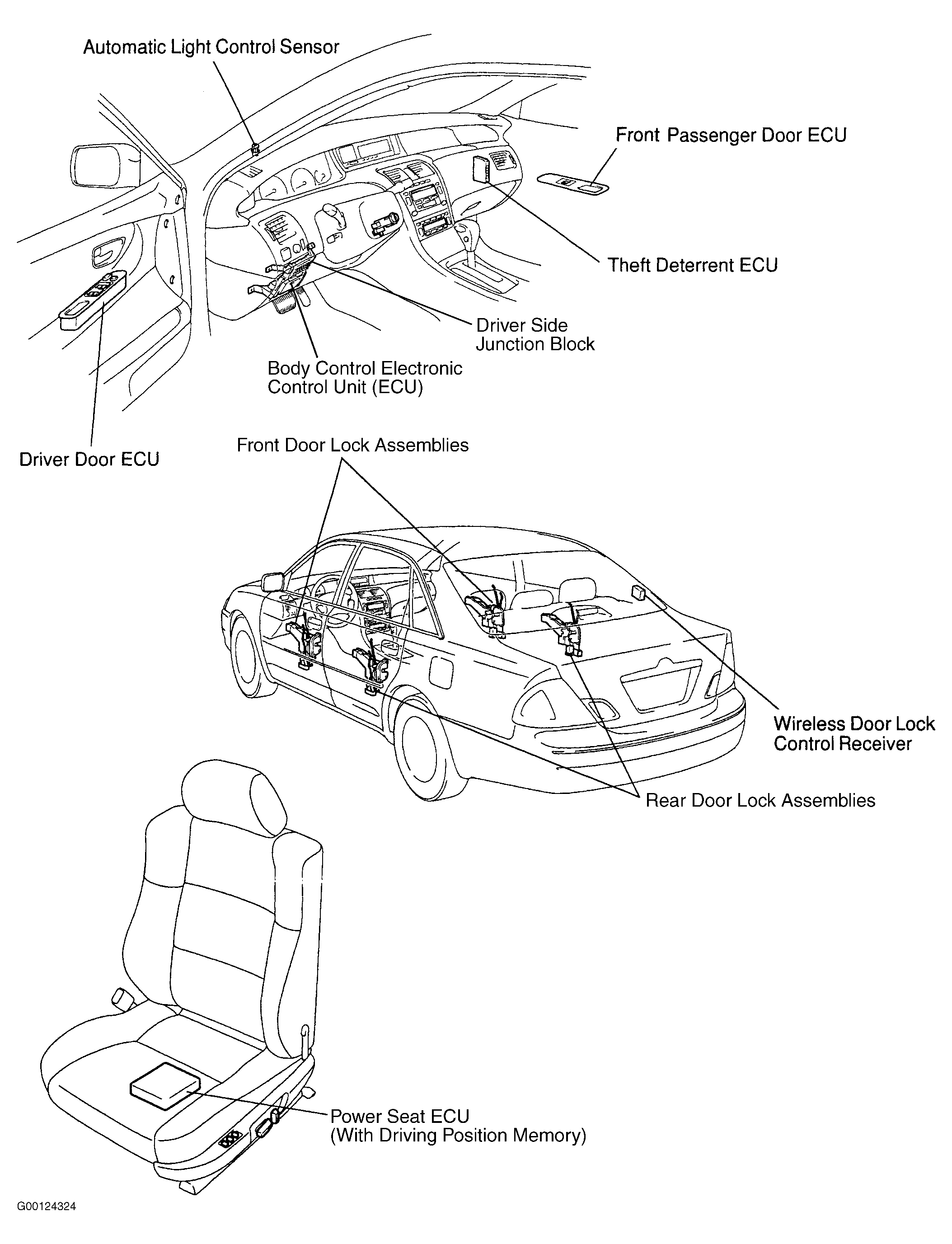

For additional multiplex control system locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Center Airbag Sensor Assembly | Under Center Of Instrument Panel, On Floorpan Tunnel |
| Data Link Connector No. 1 (DLC1) | Right Rear Corner Of Engine Compartment, On Idle Air Control Valve Bracket |
| Data Link Connector No. 3 (DLC3) | Under Left Side Of Instrument Panel, To Right Of Driver Side Junction Block |
| Driver Door ECU | In Driver Door Armrest |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Front Passenger Door ECU | In Passenger Door Armrest |
| Multi-Display Information Center | Center Of Instrument Panel, Just Above Air Vent Assembly |
| OPEN DOOR Indicator Light | On Service Reminder Indicators & Warning Buzzer Display Center |
| Service Reminder Indicators & Warning Buzzer Display Center | Part Of Multi-Display Information Center |
| Power Seat ECU (With Driving Position Memory) | Under Driver Seat |
| Theft Deterrent ECU | Behind Passenger Kick Panel |
| Wireless Door Lock Control Receiver | In Right "C" Pillar |
