Connector Identification

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

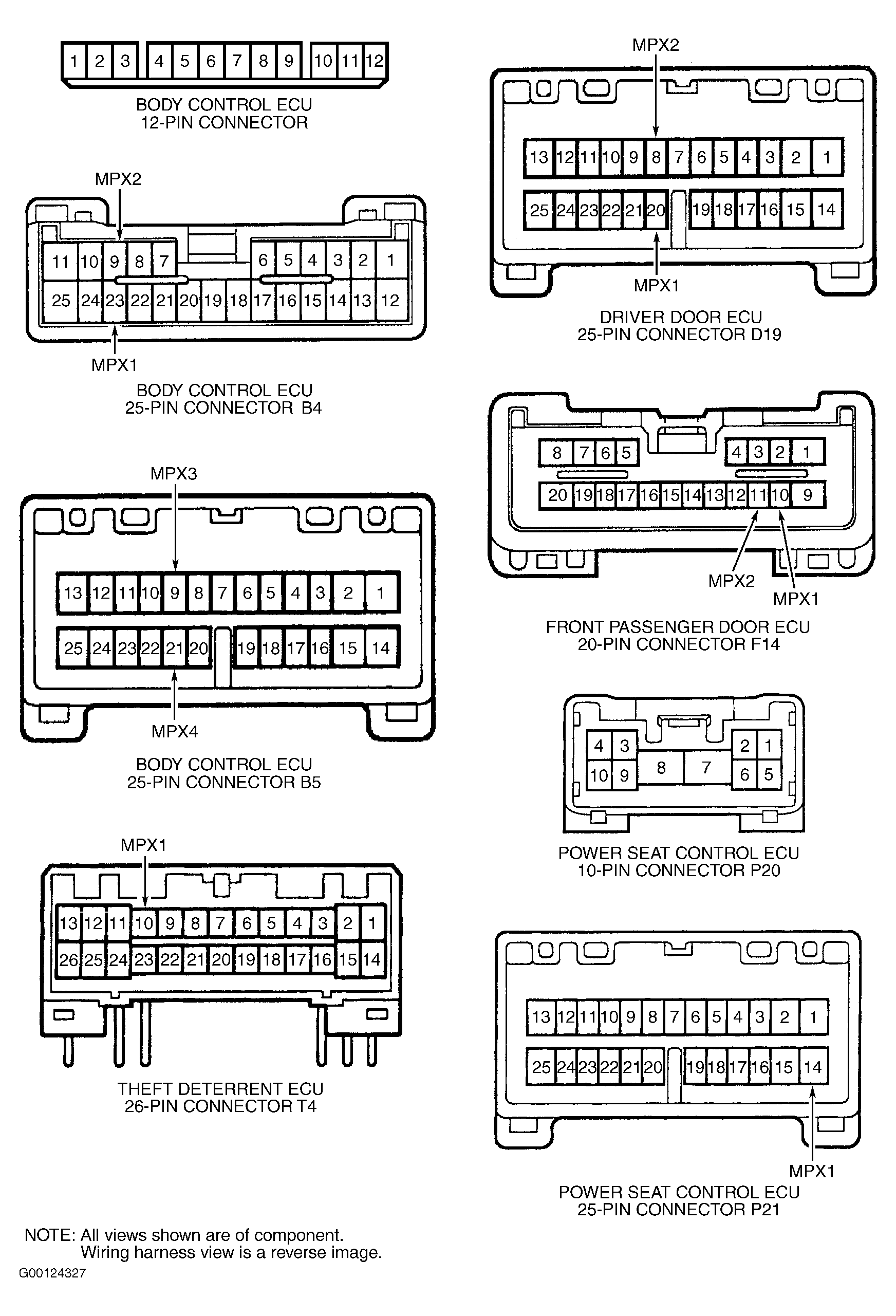

Fig 1: Identifying Multiplex Control System ECU Connectors & Terminals
G00124327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
