Seat Belt: Components

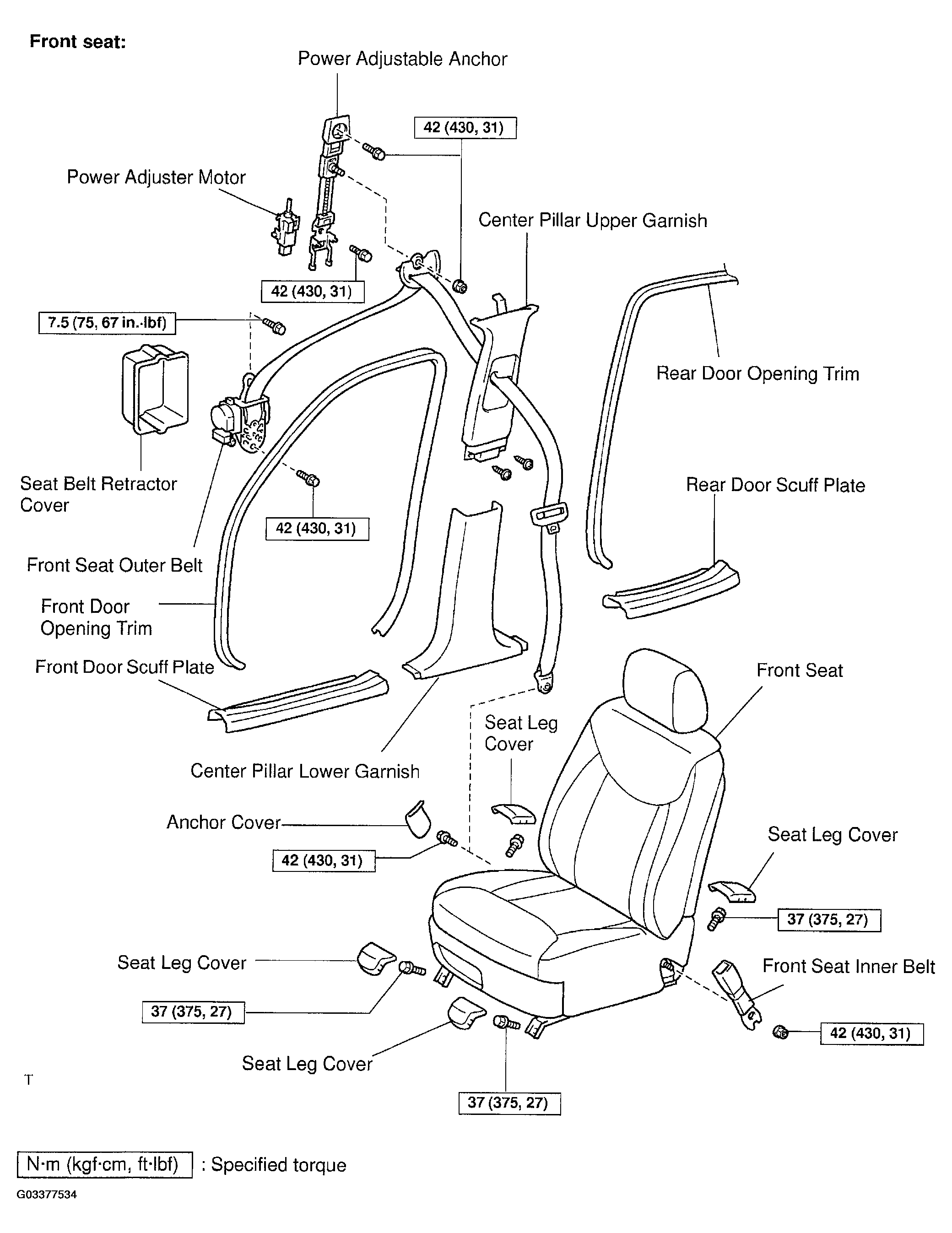

Fig 1: Identifying Seat Belt Components (Front)
G03377534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

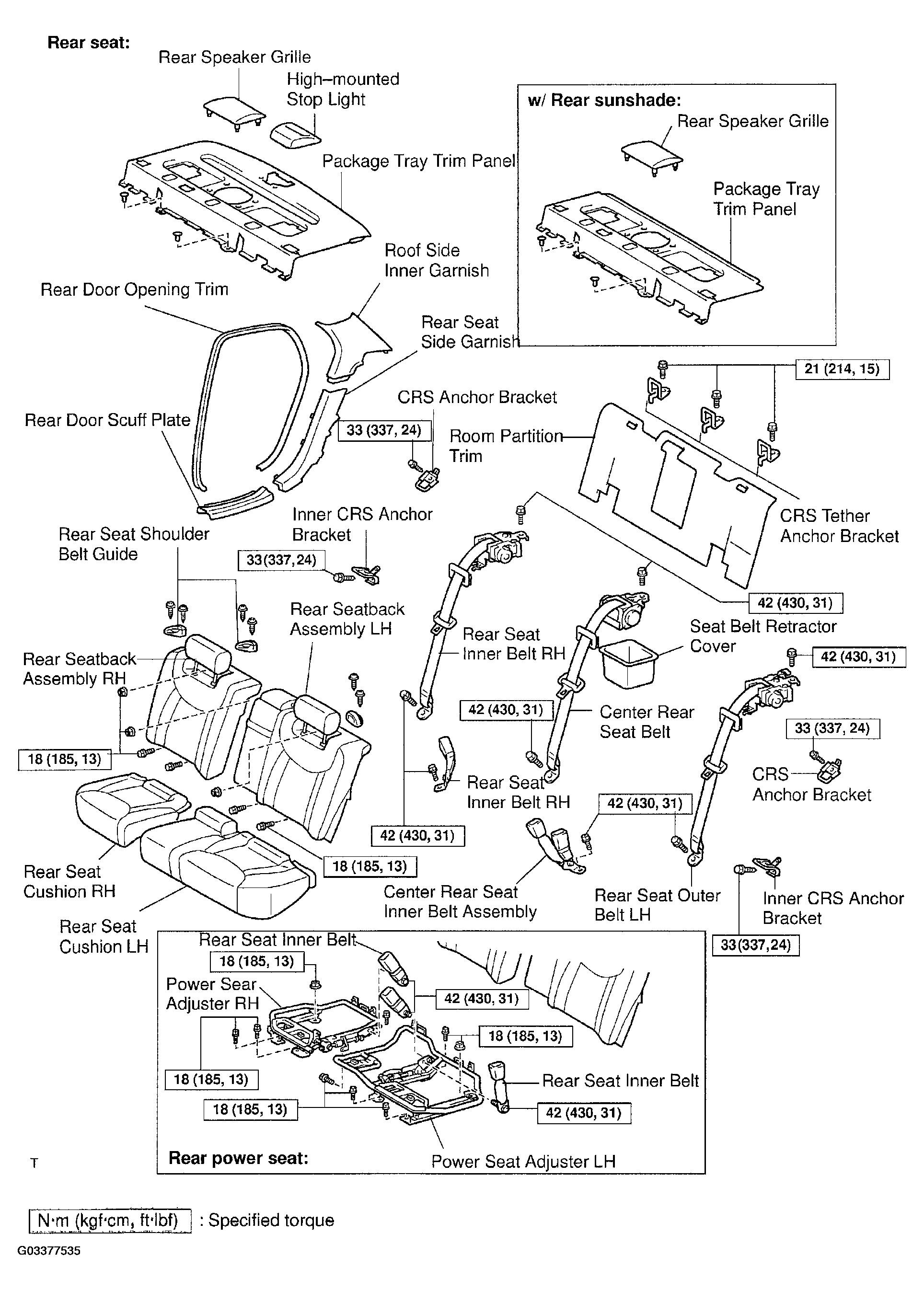

Fig 2: Identifying Seat Belt Components (Rear)
G03377535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
