Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

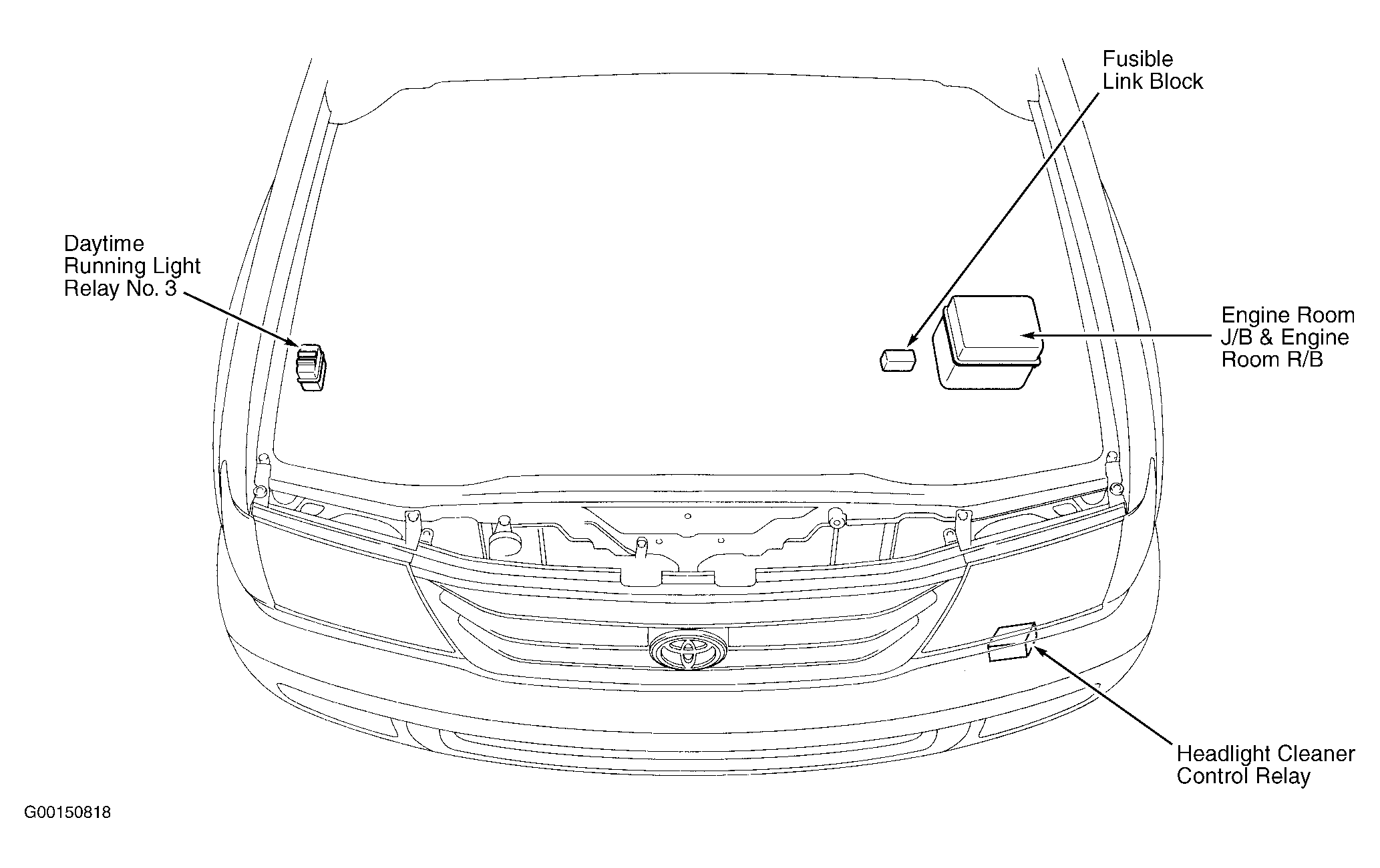

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

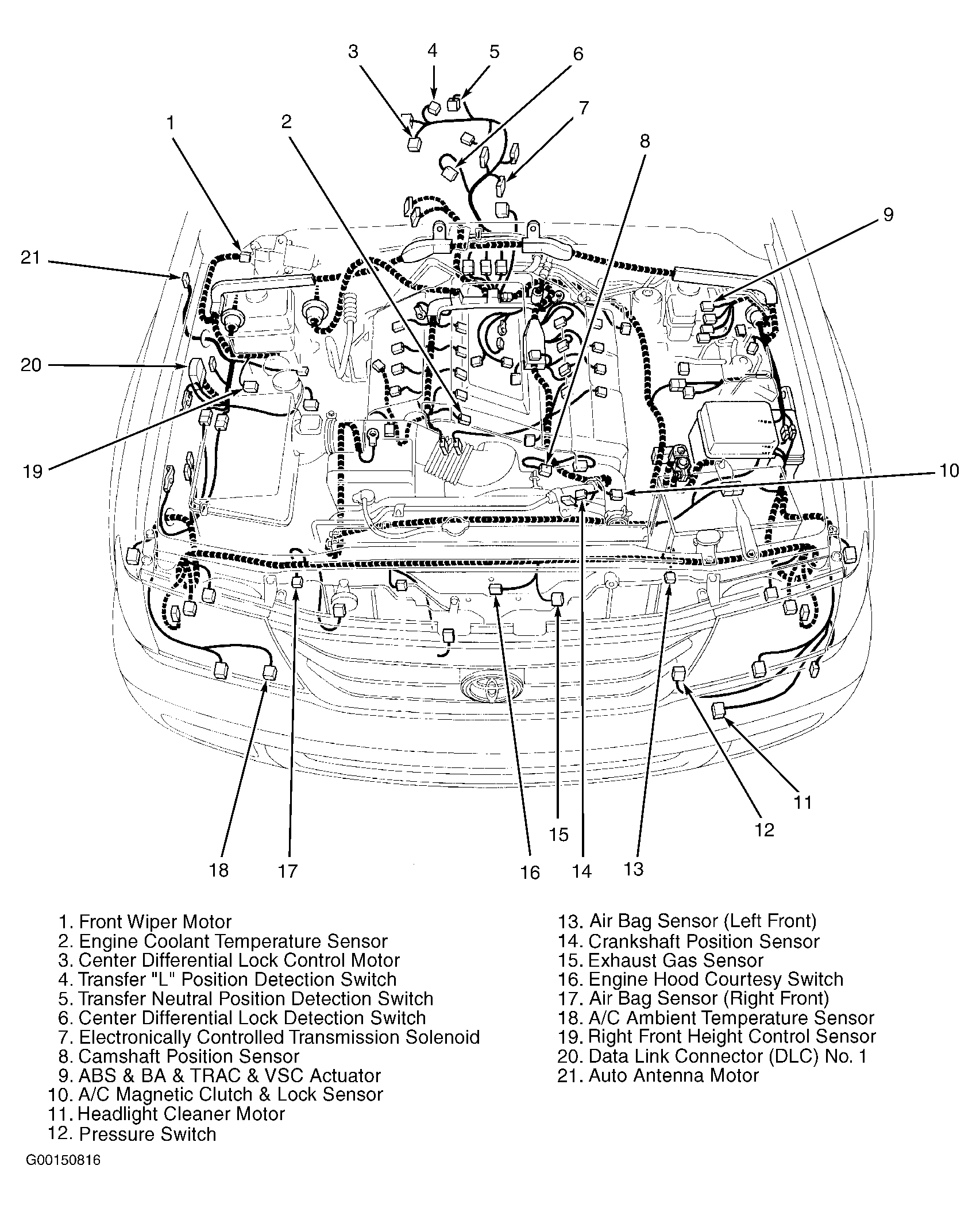

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

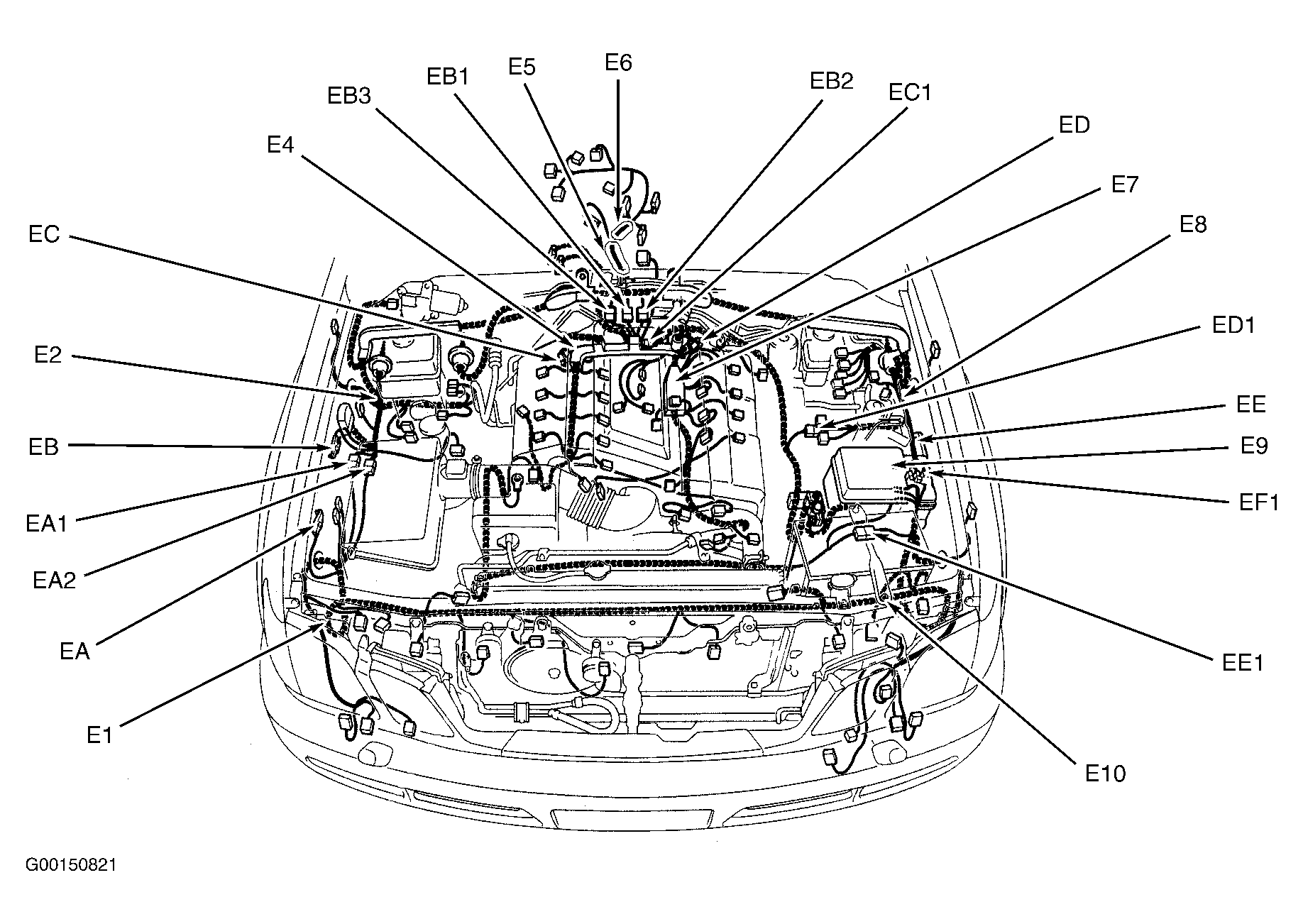

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

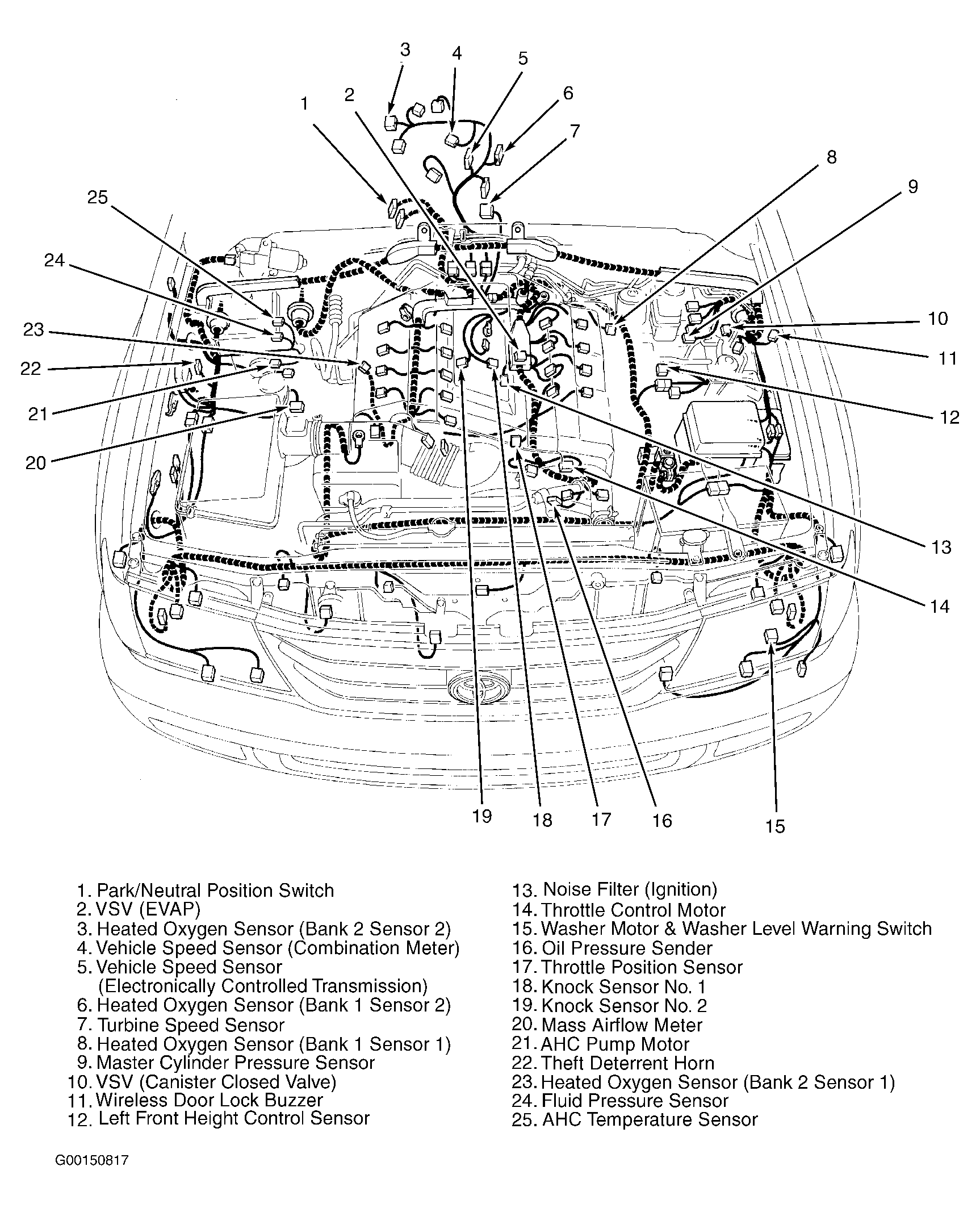

Fig 4: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

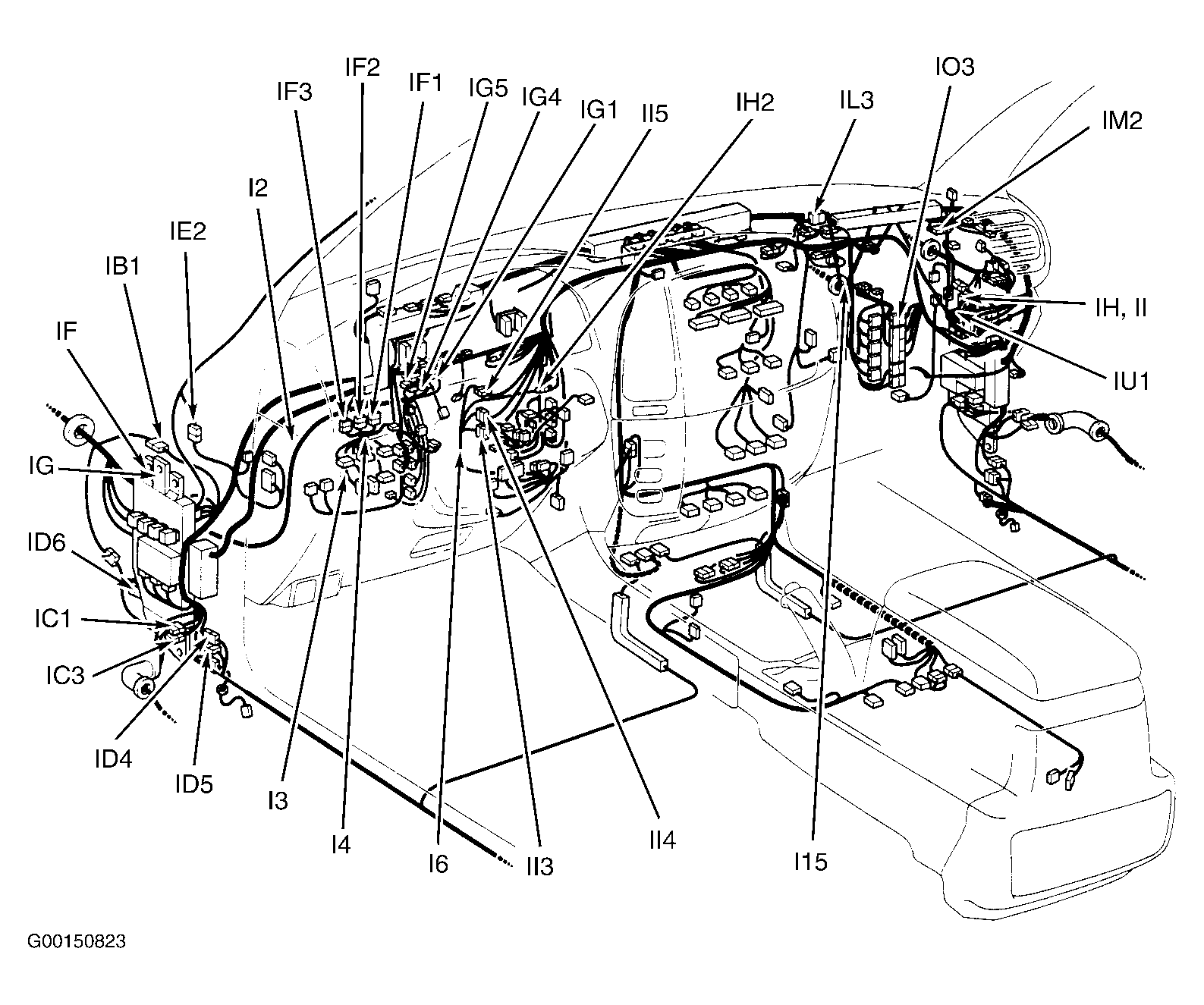

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Auto Antenna Control Relay
Center Differential Lock Control Relay
AHC Main Relay

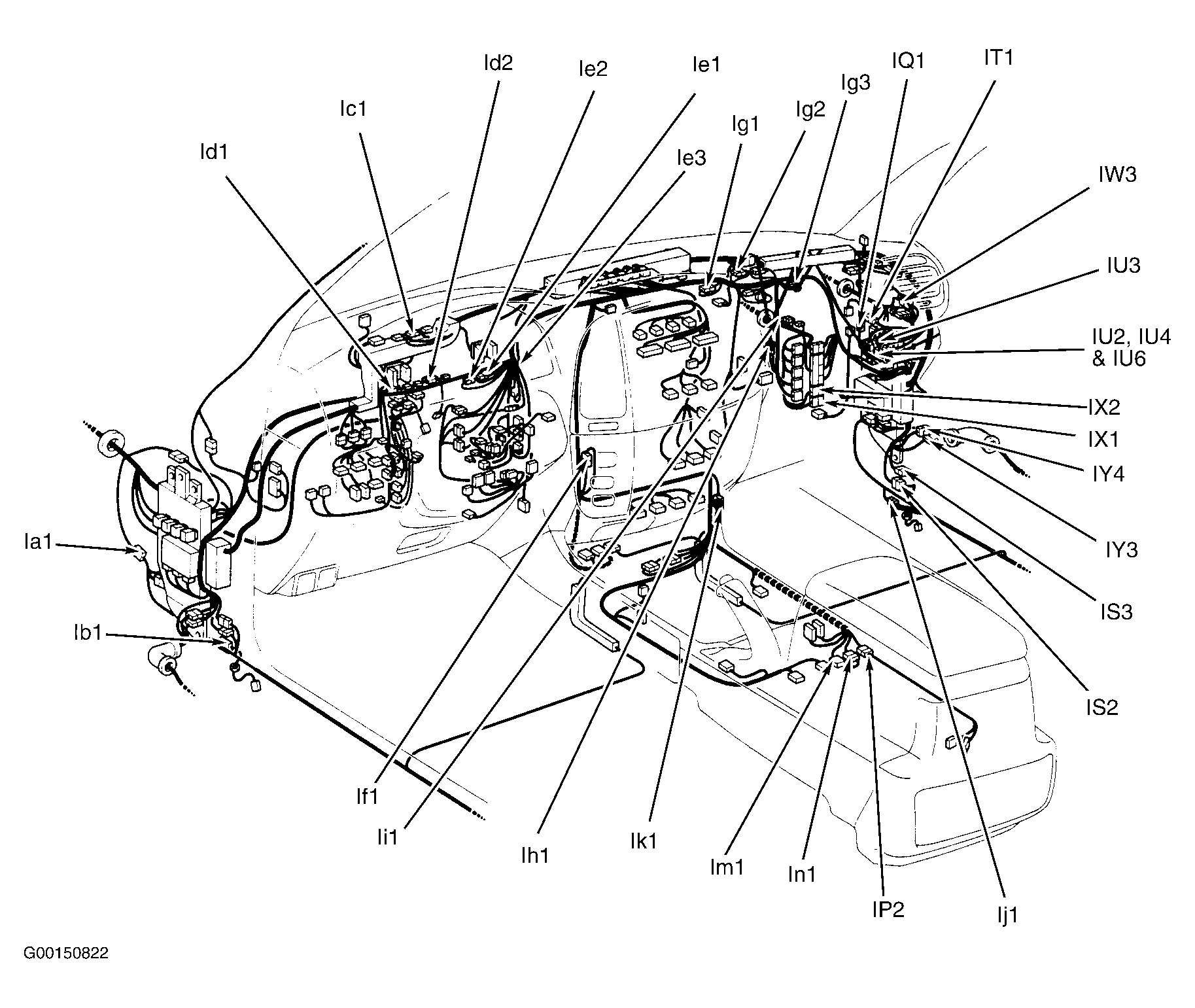

Fig 6: Dash

Fig 7: Dash

Fig 8: Left Side Of Vehicle

REAR VEHICLE RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Cooler Relay
Towing Converter Relay
