Repair and Diagnosis: Electrical: Gauges: Compass: Pre-Check

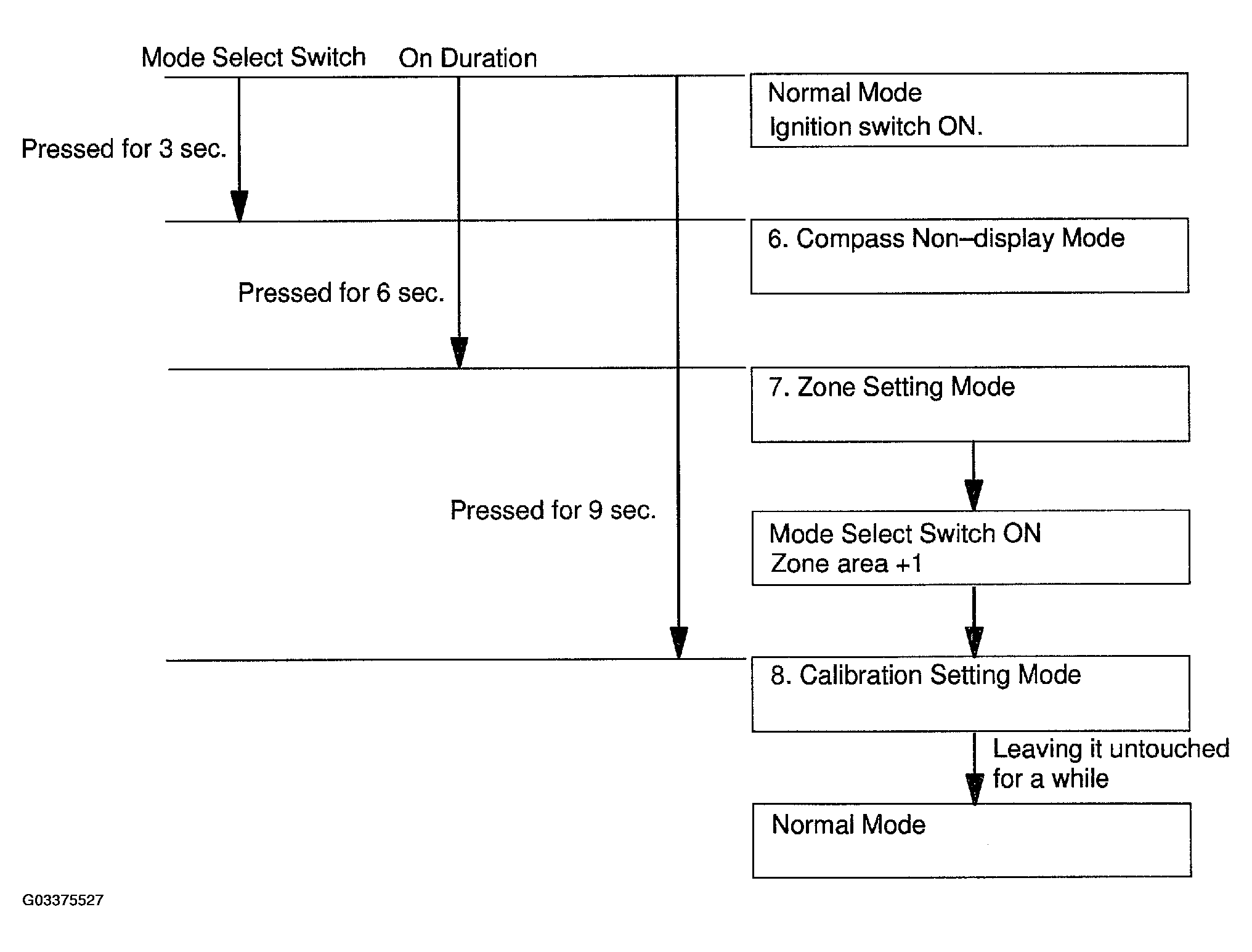

The mode select switch allows you to select a Display or Non-display mode of the compass.

The mode select is operated by the automatic glare-proof / non-glare proof switch on the rear-view mirror.

Deviation between the magnetic north and "actual north" differs depending on the terrestrial location, therefore, an adjustment in magnetism is required. Since the magnetic condition differs according to the area where the vehicle to be used, it is necessary for each user to set the zone. (Refer to Compass Zone Map). The zone setting can be changed using the mode select switch of the inner mirror.

Because each vehicle has its own magnetic field, calibration should be performed for each vehicle. This compass function is used when storing the record of the vehicle's magnetic field.

A compass could be magnetized during shipping by vessels or freight cars. Before delivery, therefore, make sure to perform calibration and ensure the calibration is completed. If it could not be completed in spite of driving round several times, it may be caused by magnetization. Demagnetize the vehicle using a demagnetizer and perform calibration again.

1. Turn the ignition switch ON.
2. Check that the LED on the inner mirror comes on (green).
3. Check that the compass display indicates an azimuthal direction (N, NE, E, SE, S, SW, W, or NW) or "C".
4. Pressing the mode select switch on the inner mirror for 3 sec. or more erases the above mentioned display and activates the Non-display mode.

HINT:

Immediately after pressing the mode select switch, the LED goes off and the Non-glare-proof mode is activated. However, when the switch remains pressed, the LED comes on again after 3 sec. and the system enters the automatic glare-proof mode.

1. Keep pressing the mode select switch for 3 sec. after selecting the compass display mode activates the zone setting mode, showing a number (1-15) on the compass display.

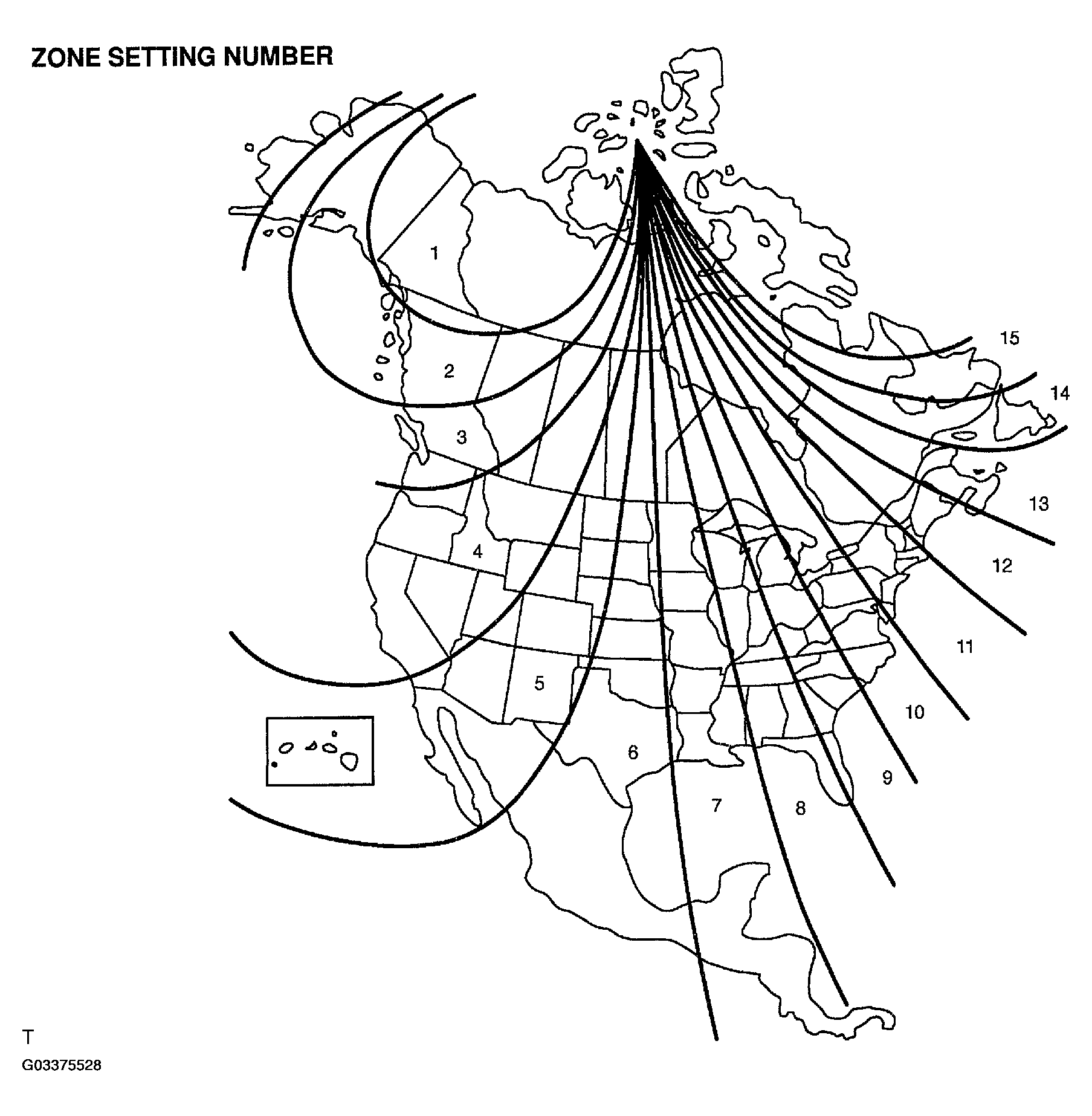

   Fig 2: Identifying Azimuthal Zone Setting Number

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pressing the mode select switch for 6 sec. after selecting, the normal mode also activate the zone setting mode.

   HINT:

   In the initial status, "8" is displayed.

3. The displayed number increases +1 every time the mode select switch is pressed. Referring to the map, check the number for the area where the vehicle to be used and set the zone number.
4. Leave it untouched for several seconds after setting and check that the compass display shows an azimuthal direction (N, NE, E, SE, S, SW, W, or NW) or "C".

1. After the set zone is displayed, if the switch remains pressed another 3 sec, the calibration setting mode is activated.
2. Pressing the switch for 9 sec. after selecting, the normal mode also activate the calibration setting mode.
3. Drive the vehicle at a slow speed of 5 MPH (8 km/h) or less in the circular direction.
4. By driving round the circle 1 to 3 times, the display shows the azimuthal direction, and the calibration is completed.

HINT:

Once calibration is completed, it is not necessary to perform the above procedures unless the magnetic field strength is drastically changed. If this happens, the azimuthal display will be changed to "C".
