Fuel Pump Resistor

Fuel pump resistor is located on right side of engine compartment. See Fig 1. Remove fuel pump resistor. Using an ohmmeter, measure resistance between terminals. See Fig 2. Resistance should be .70-.76 ohm at 68°F (20°C). Reinstall fuel pump resistor and tighten to 106 inch lbs. (12 N.m.).

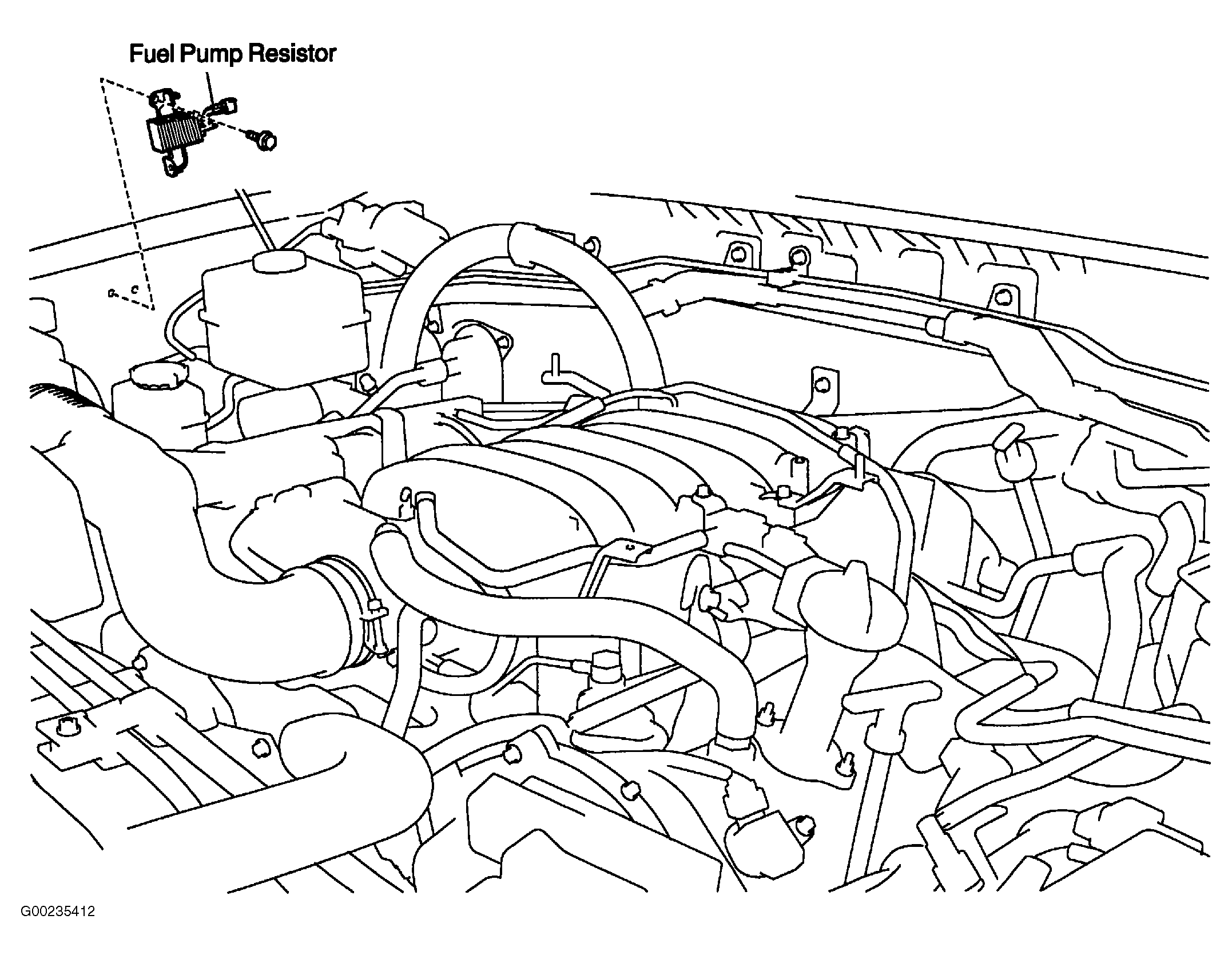

Fig 1: Locating Fuel Pump Resistor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

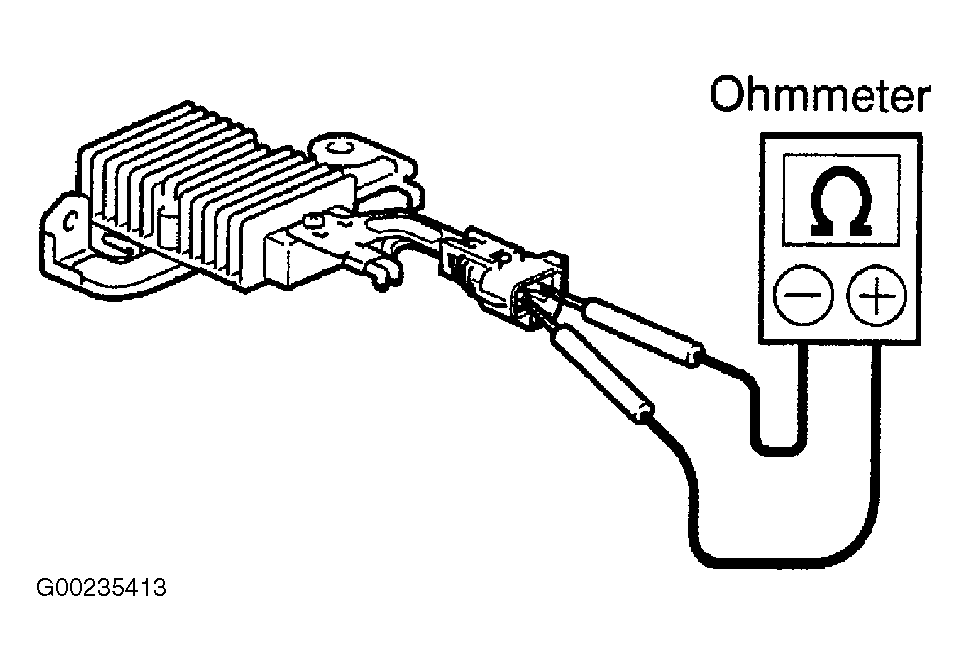

Fig 2: Inspecting Fuel Pump Resistor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
