BRAKELIGHT Switch

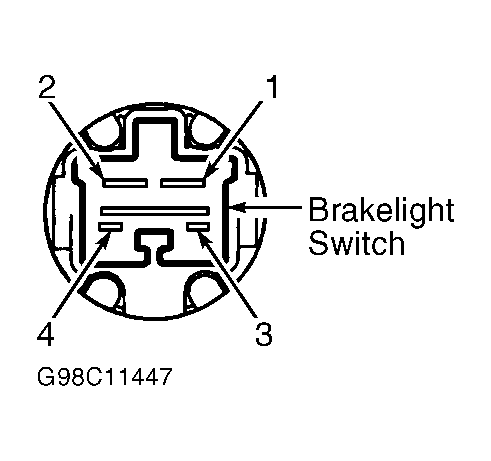

- Disconnect electrical connector at brakelight switch. Brakelight switch is located near top of brake pedal. Note terminal identification on brakelight switch. See Fig 1.
- Using ohmmeter, check that continuity exists between terminals No. 1 and 2 with brake pedal depressed. Check that no continuity exists between terminals No. 1 and 2 with brake pedal released.
- Check that no continuity exists between terminals No. 3 and 4 with brake pedal depressed. Check that continuity exists between terminals No. 3 and 4 with brake pedal released. Adjust or replace brakelight switch if operation is not as described.
