Section 249 (Power Mirror Control System): Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

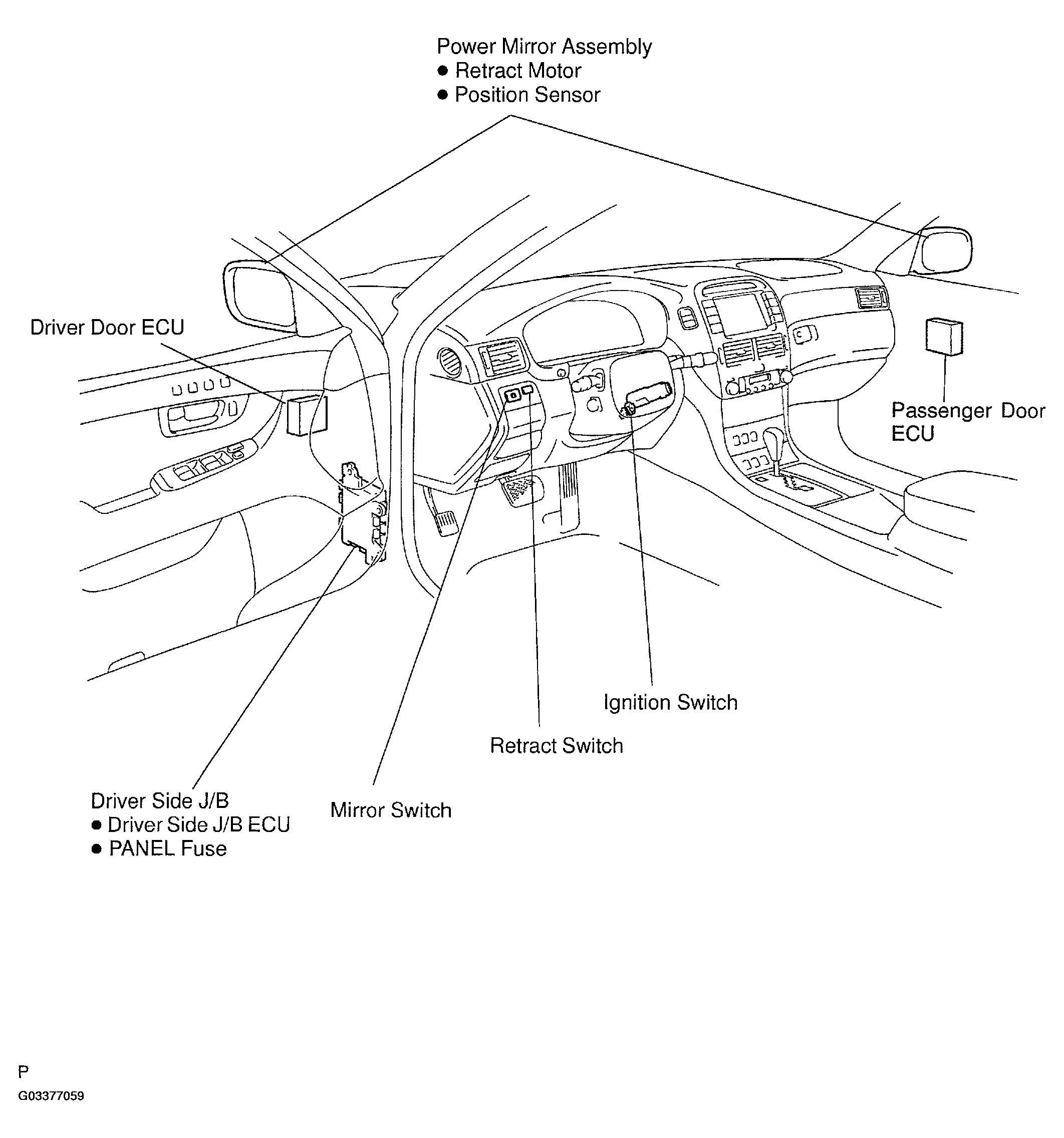

Fig 1: Locating Power Mirror Control System Components
G03377059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
