Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.

    1. A: Vehicle Identification Number Plate
    2. B: Certification Label

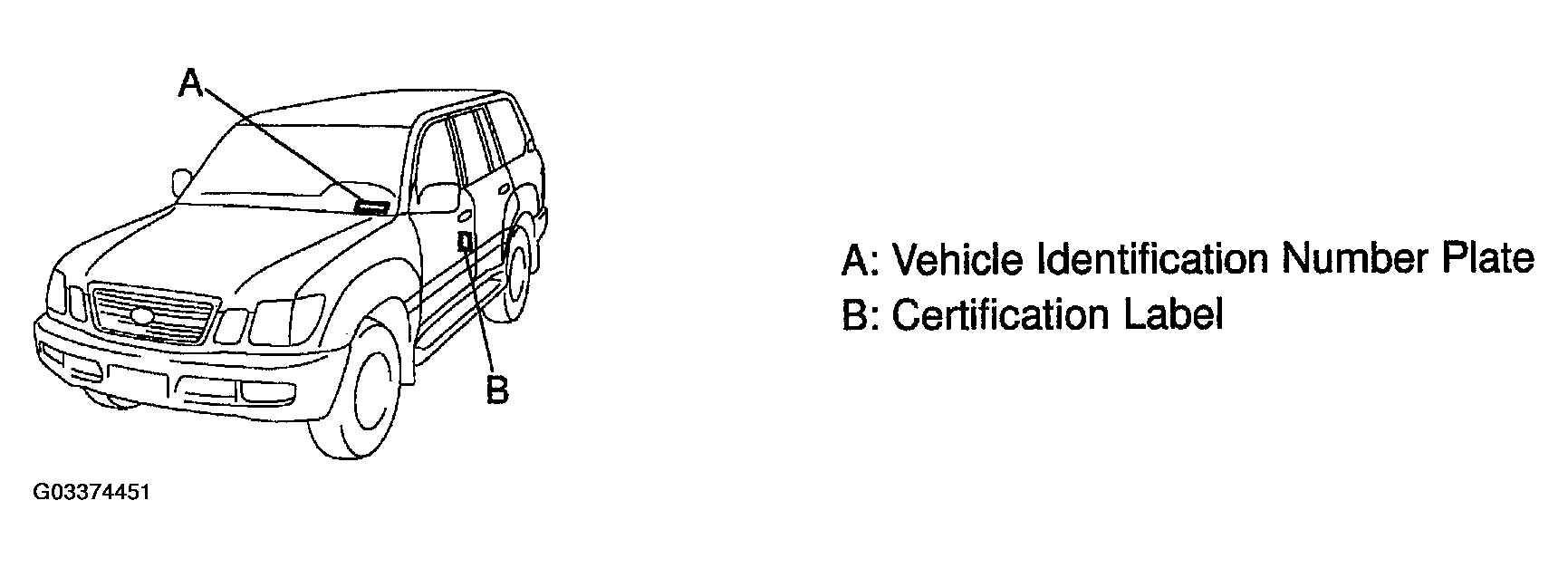

    Fig 1: Identifying Vehicle Identification Number Plate & Certification Label
    G03374451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in the illustration.

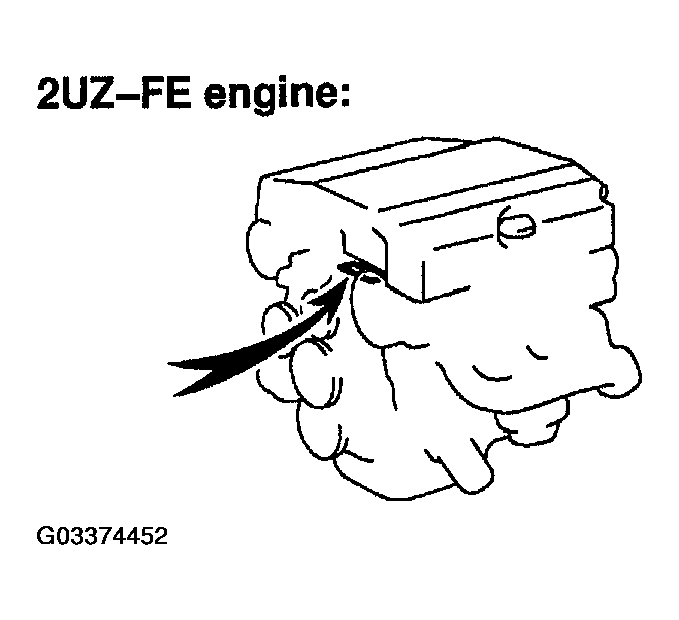

    Fig 2: Identifying Engine Serial Number (2UZ-FE Engine)
    G03374452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
