Seat Belt: Components

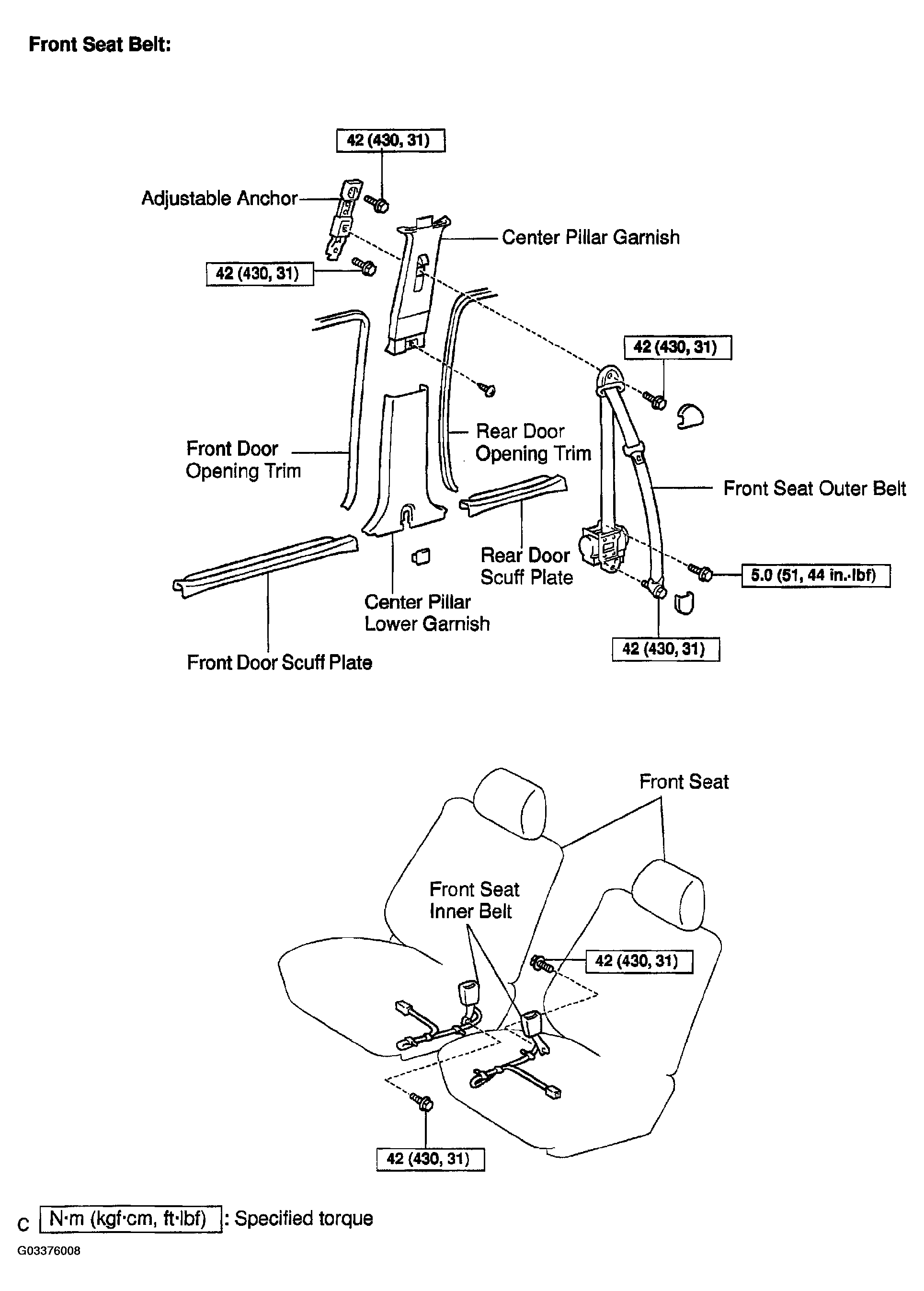

Fig 1: Identifying Seat Belt Components (1 Of 2)
G03376008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

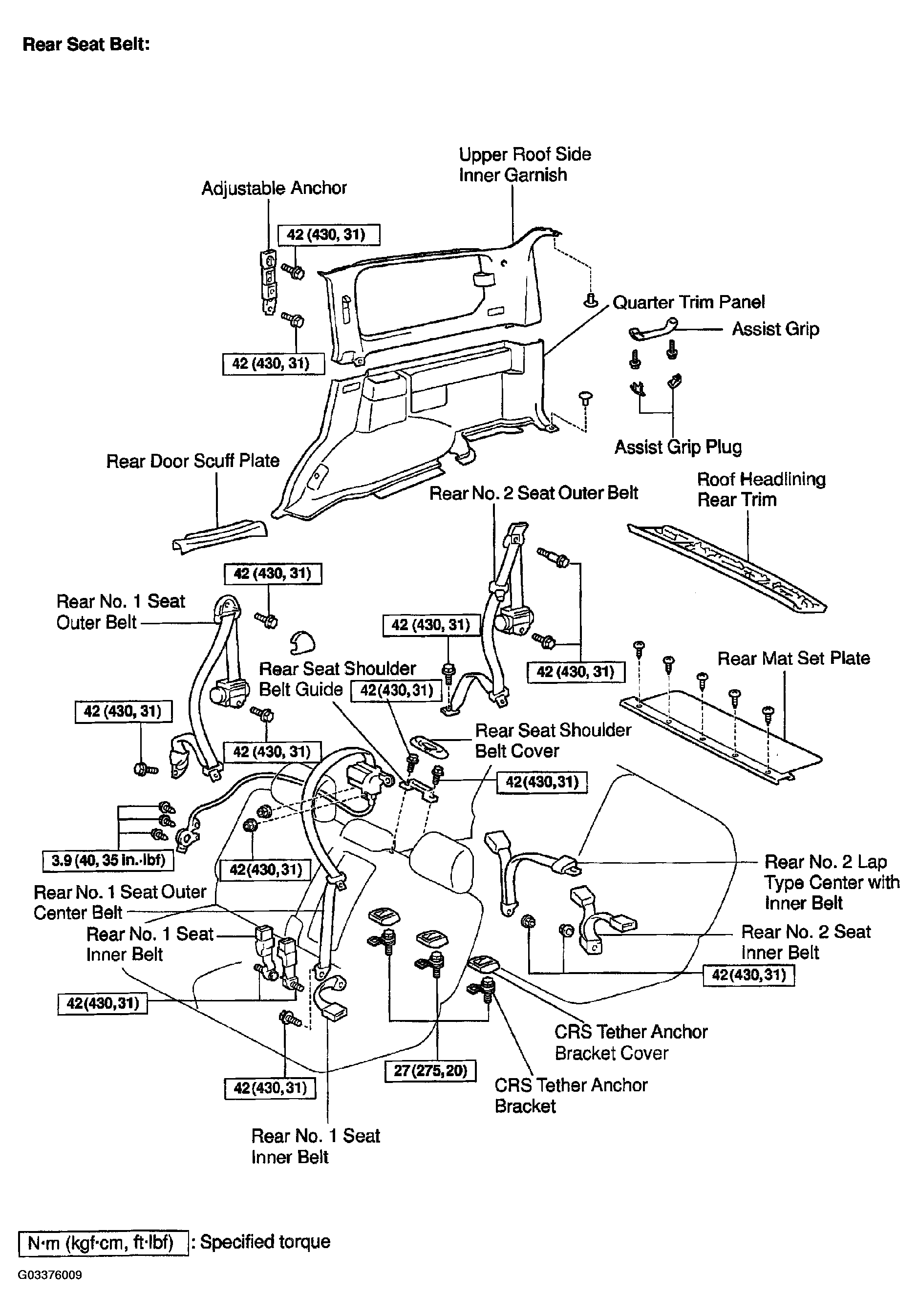

Fig 2: Identifying Seat Belt Components (2 Of 2)
G03376009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
