Automatic Transmission System: Operation

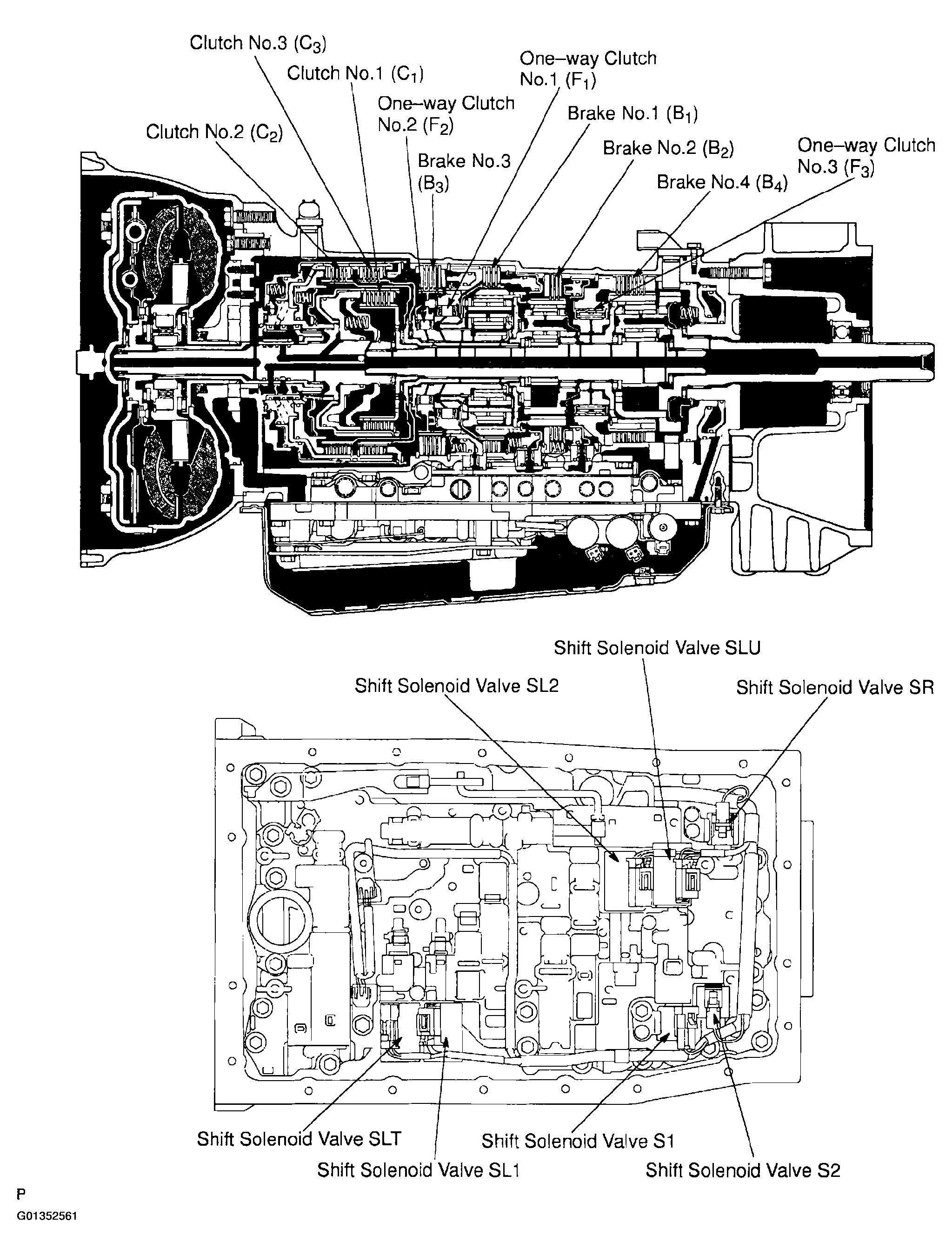

Fig 1: Identifying Automatic Transmission System
G01352561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

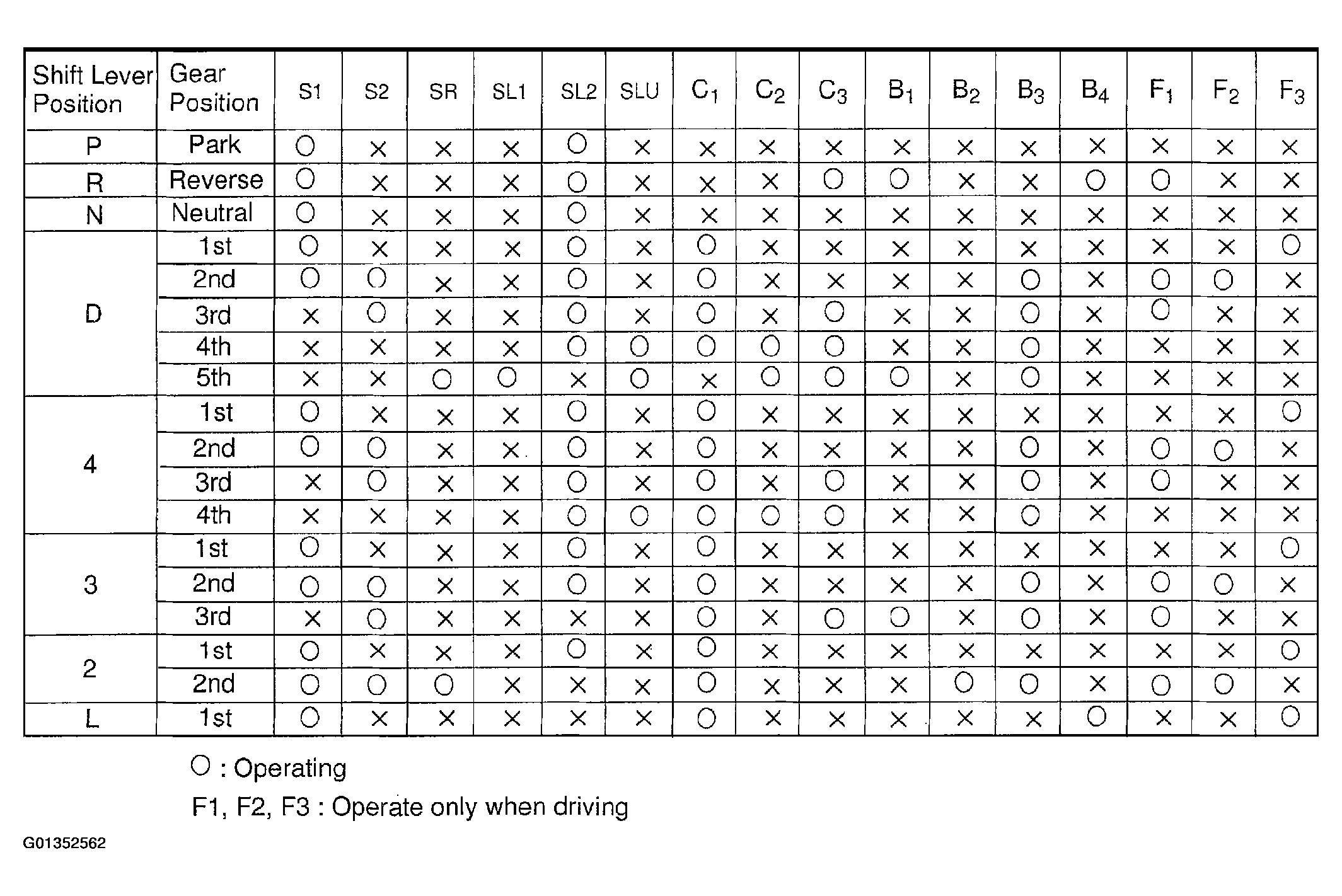

Fig 2: Automatic Transmission System Operation Chart
G01352562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
