Front Extension Housing: Components

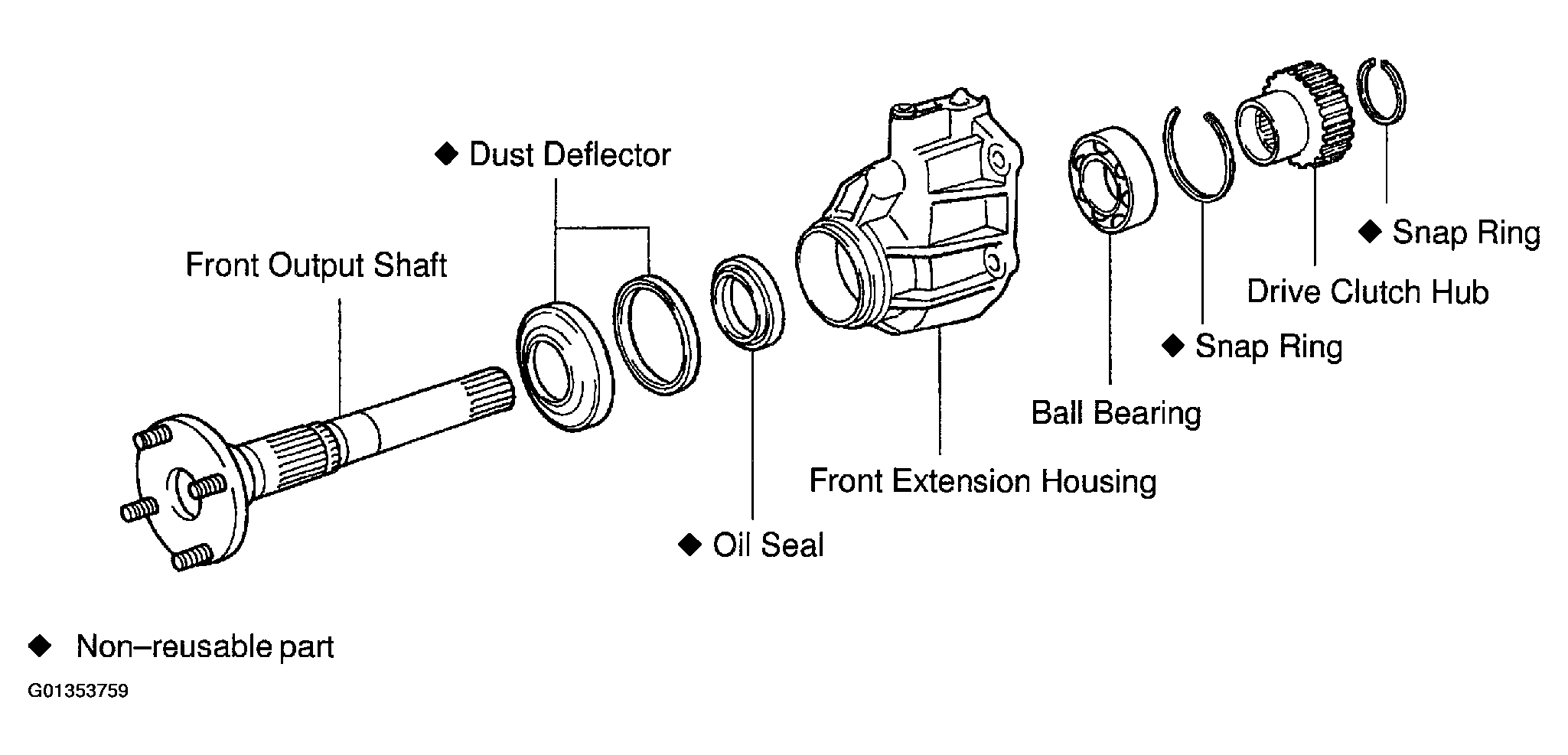

Fig 1: Identifying Front Extension Housing Components
G01353759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
