Rear Extension Housing: Components

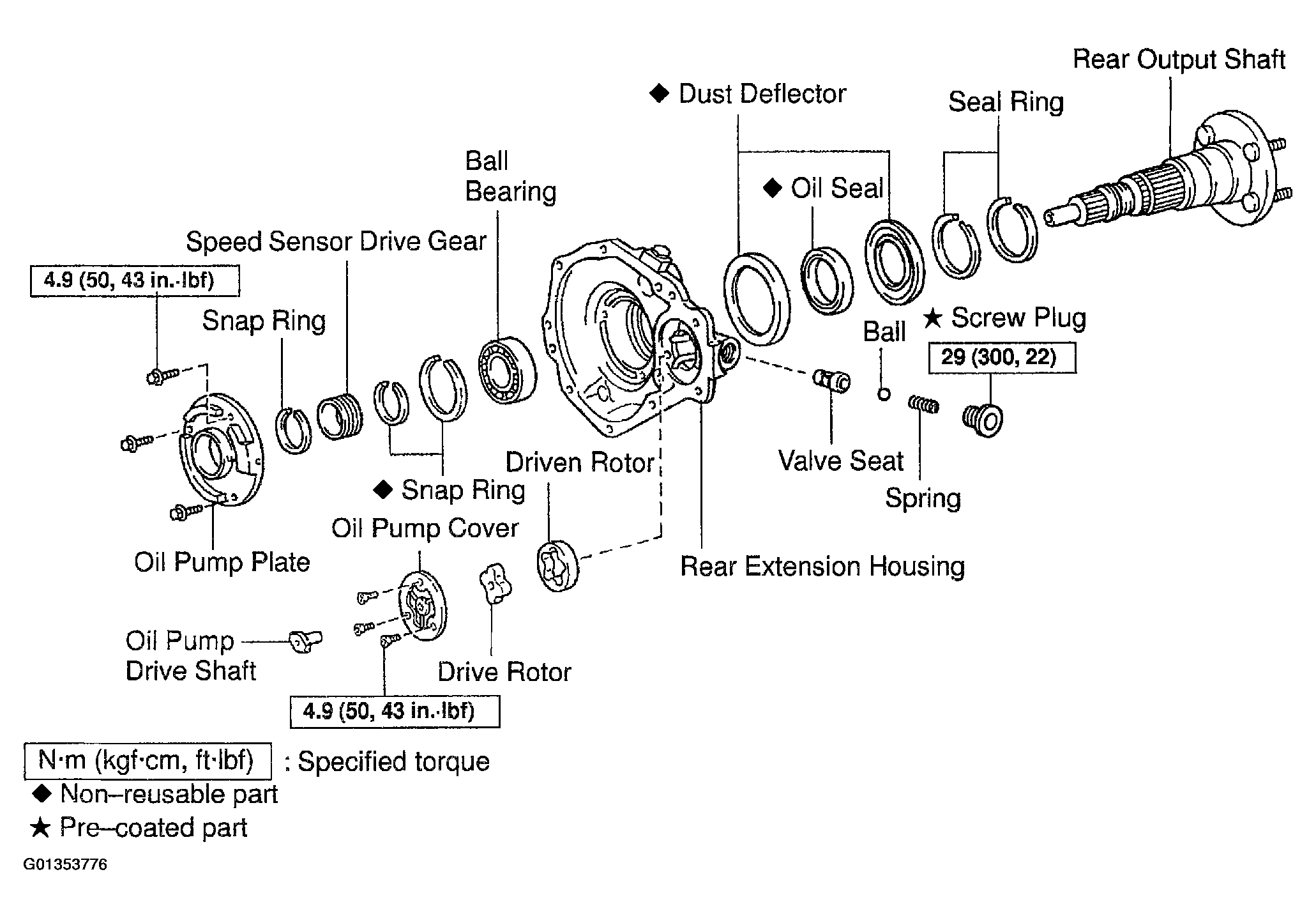

Fig 1: Identifying Rear Extension Housing Components
G01353776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
