Transfer Assembly: Reassembly

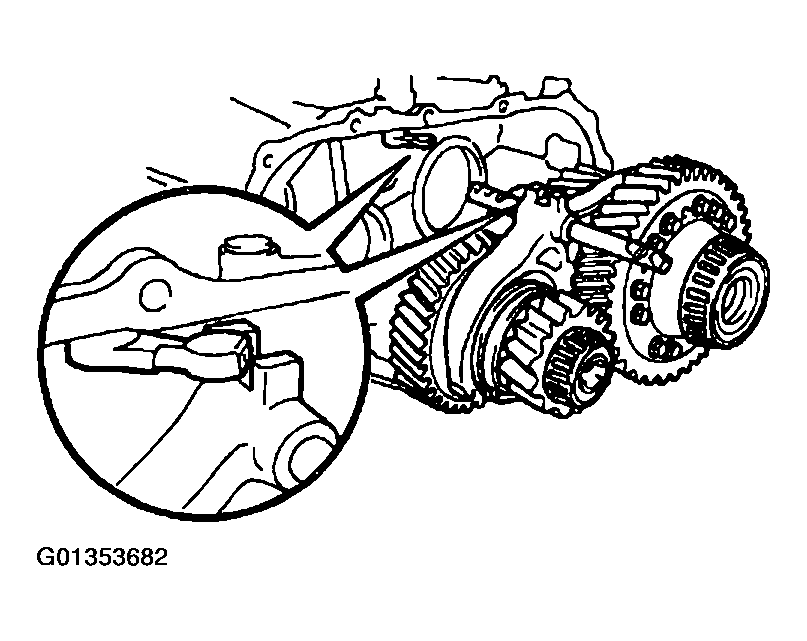

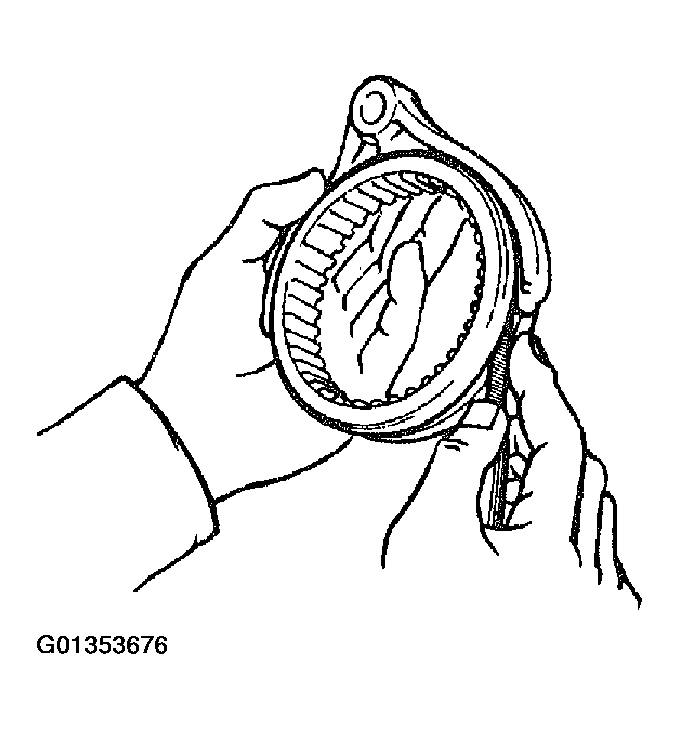

Using a feeler gauge, measure the clearance between the shift fork No. 2 and clutch sleeve.

Standard clearance:

0.10 - 0.40 mm (0.0039 - 0.0157 in.)

Maximum clearance:

0.40 mm (0.0157 in.)

Fig 1: Measuring Clearance Between Shift Fork And Clutch Sleeve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

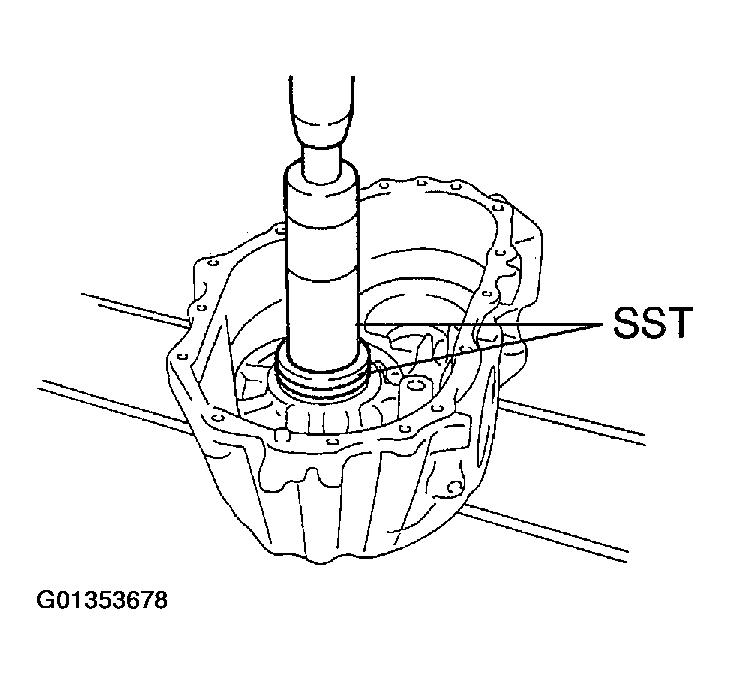

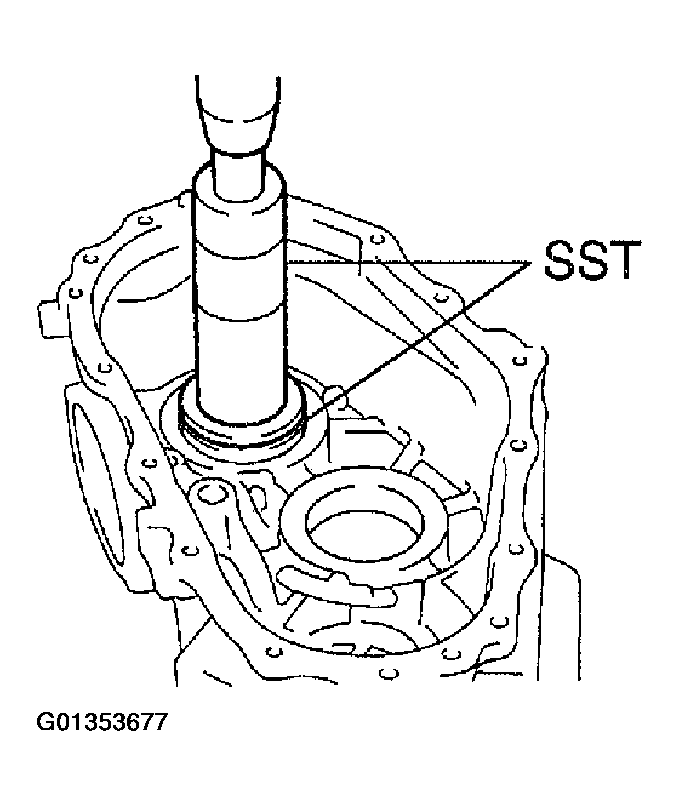

Using SST and a press, install the bearing race.

SST 09316-60011 (09316-00011, 09316-00031), 09950-60020 (09951-00890)

Fig 2: Installing Output Shaft Bearing Race

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST and a press, install the bearing race.

SST 09316-60011 (09316-00011, 09316-00031), 09950-60020 (09951-00790)

Fig 3: Installing Idler Gear Bearing Race

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

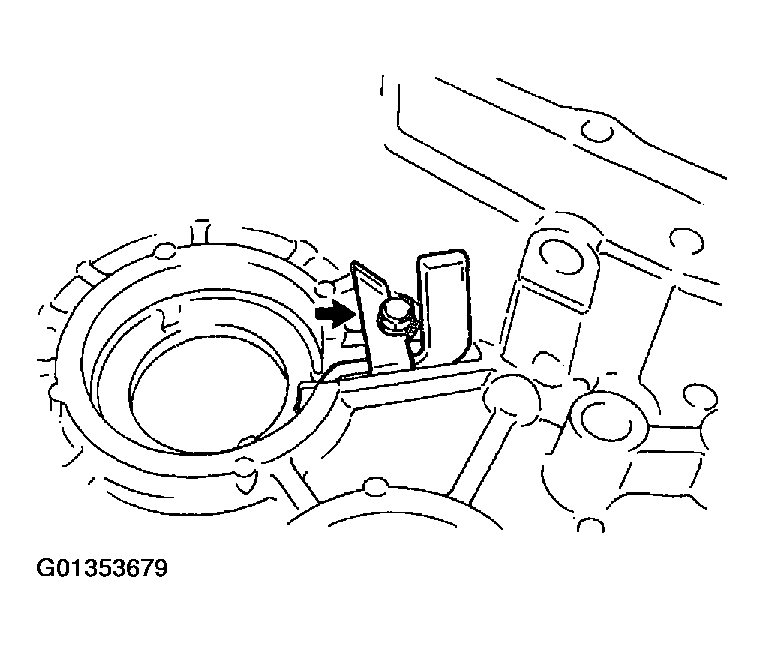

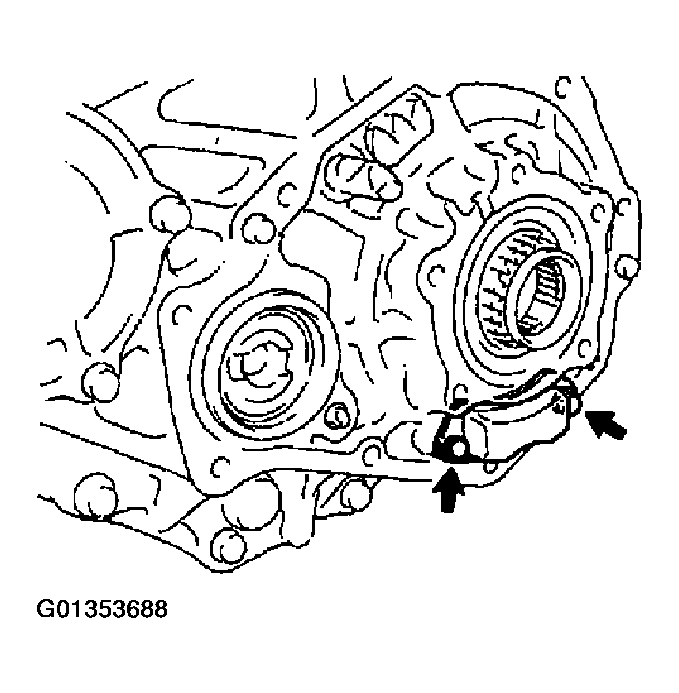

Install the oil receiver and bolt.

Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)

Fig 4: Installing Oil Receiver And Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

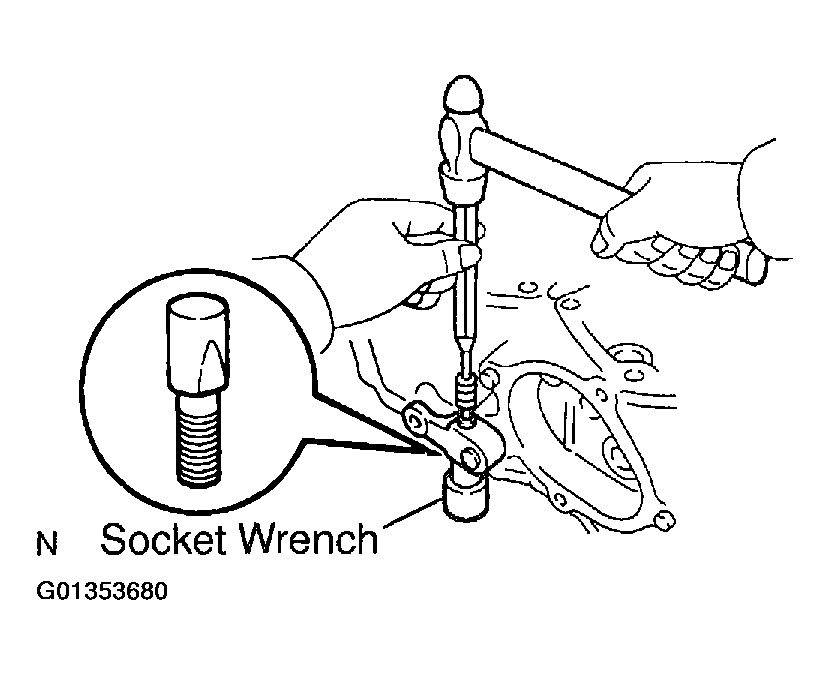

1. Install the shift inner lever, washer and outer lever to the front case.
2. Using a pin punch, hammer and socket wrench, tap in the lever lock pin.
3. Install the washer and nut to the shift outer lever.

Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)

Fig 5: Tapping In Lever Lock Pin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

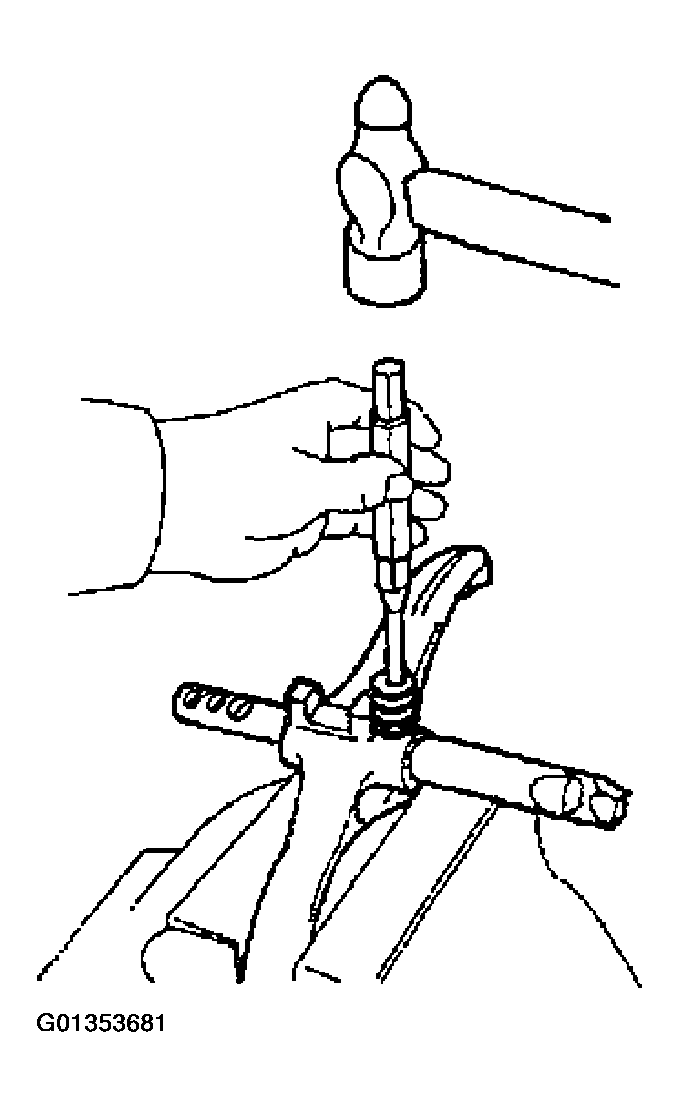

1. Assemble the shift fork No. 1 and shift fork No. 1 shaft.
2. Using a pin punch and hammer, drive in the slotted spring pin.
   Fig 6: Driving In Slotted Spring Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

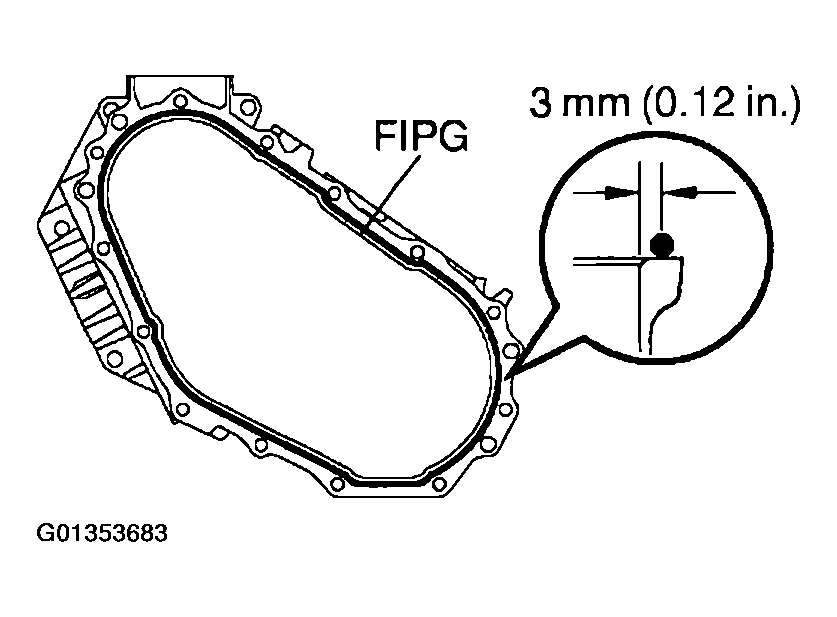

1. Apply FIPG to the front case.

   FIPG:

   Part No. 08826-00090, THREE BOND 1281 or equivalent

2. Assemble the front case and rear case.
   Fig 8: Applying FIPG To Front Case

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

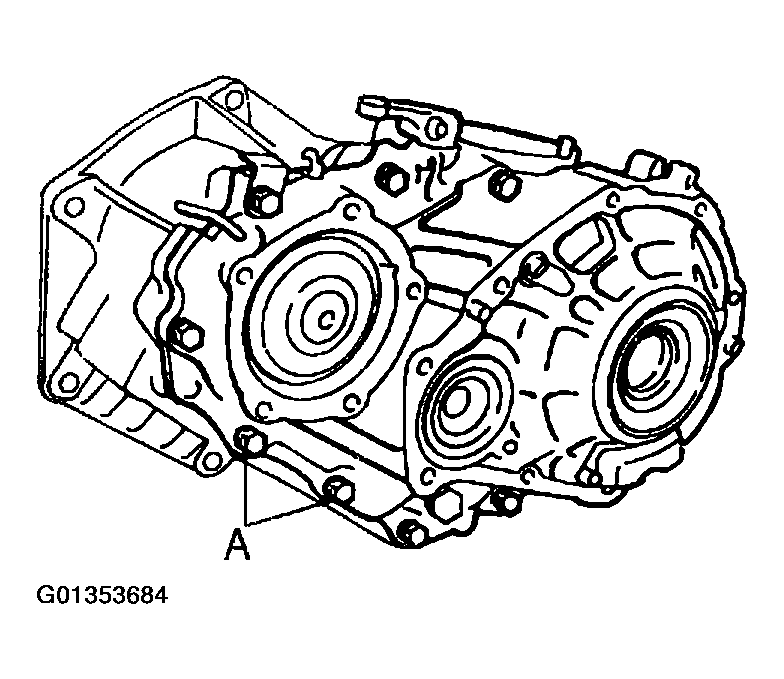

3. Apply liquid sealer to the "A" bolt threads.

   Sealant:

   Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

4. Install the 8 bolts.

   Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

   Fig 9: Installing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

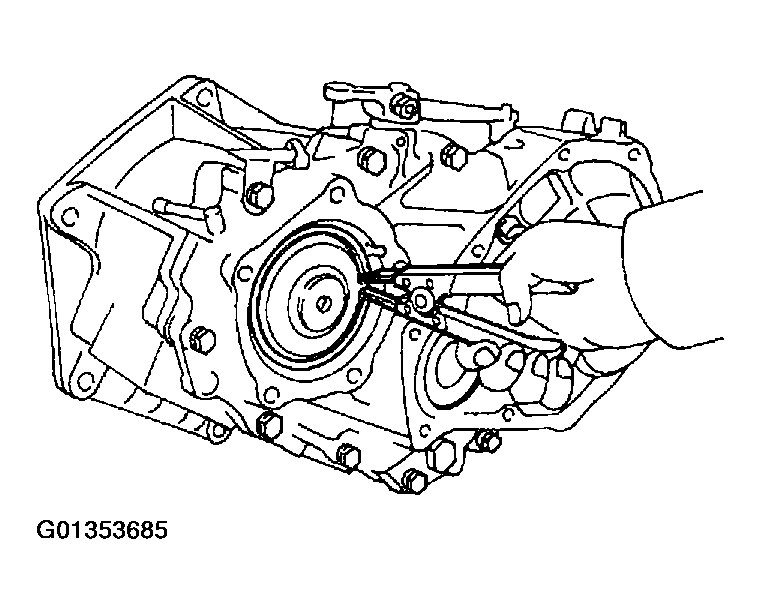

Using a snap ring expander, install the snap ring to the rear case.

Fig 10: Installing Snap Ring Using Snap Ring Expander

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

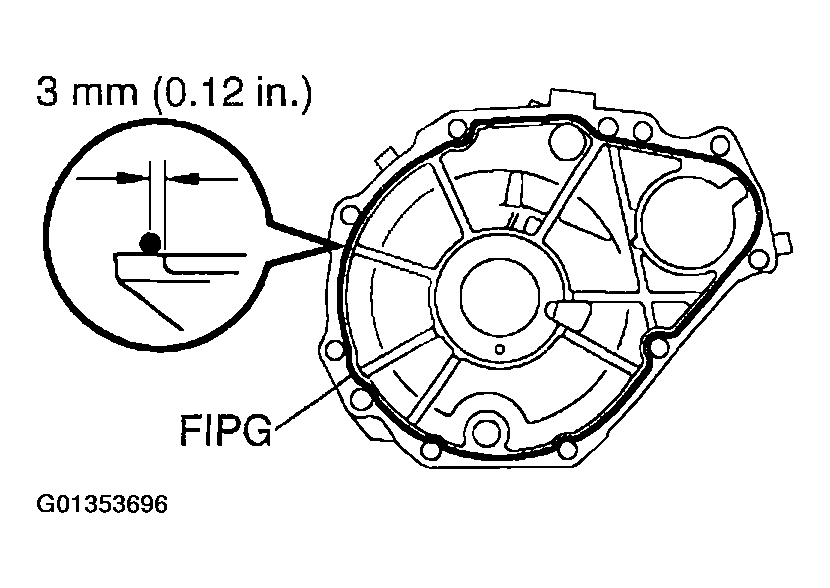

1. Apply FIPG to the rear case.

   FIPG:

   Part No. 08826-00090, THREE BOND 1281 or equivalent

2. Install the case cover.
   Fig 11: Applying FIPG To Rear Case

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply liquid sealer to the bolt threads.

   Sealant:

   Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

4. Install the 5 bolts.

   Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

   Fig 12: Installing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the oil strainer and 2 bolts.

Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

Fig 13: Installing Oil Strainer To Rear Case

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

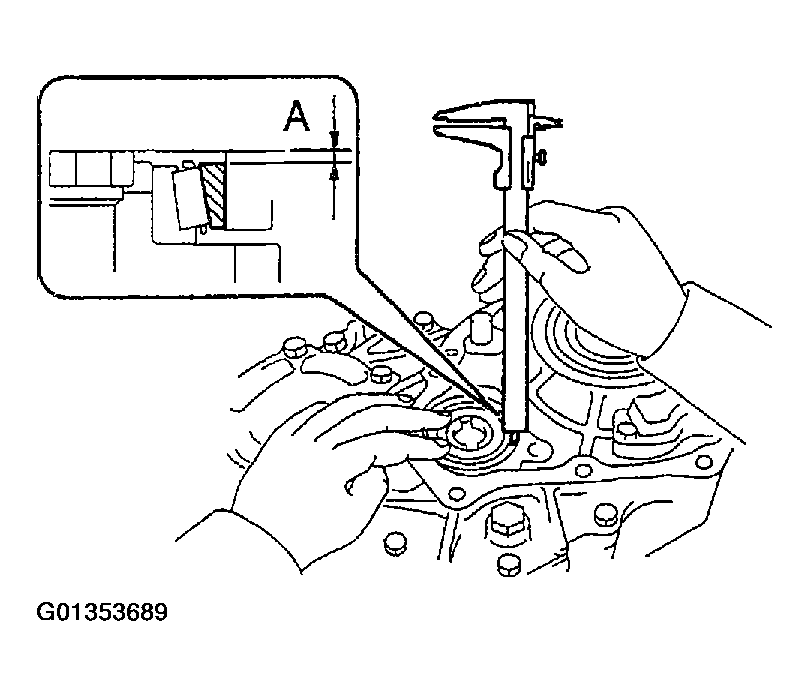

1. Using vernier calipers, measure dimension "A".
2. Lightly hole down the bearing outer race in the thrust direction to eliminate any looseness before making the measurement.
   Fig 14: Measuring Dimension A Using Vernier Calipers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

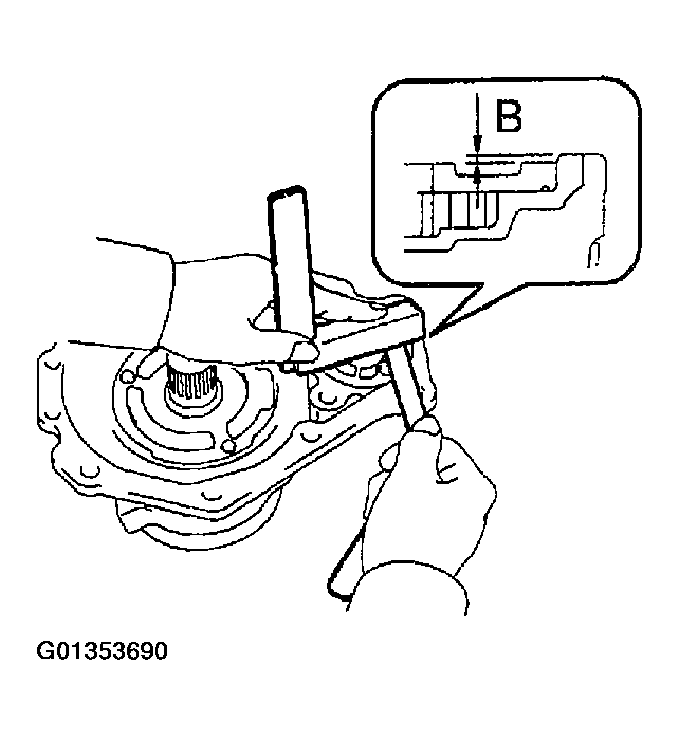

3. Using a steel straight edge and feeler gauge, measure the clearance of dimension "B".
4. Calculate the required thickness of the adjusting shim.

   Thickness: Dimension "A" + Dimension "B" + [0.022 - 0.049 mm, (0.0009 - 0.0019 In.)]

   Fig 15: Measuring Clearance Of Dimension B Using Steel Straight Edge And Feeler Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

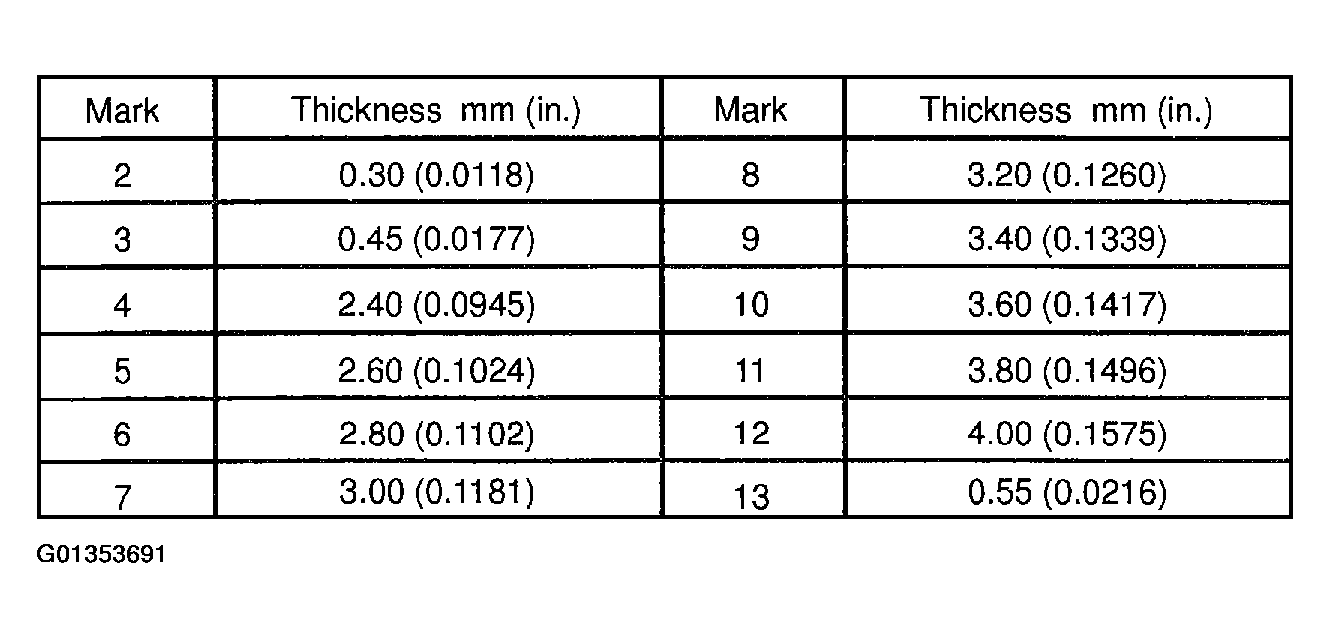

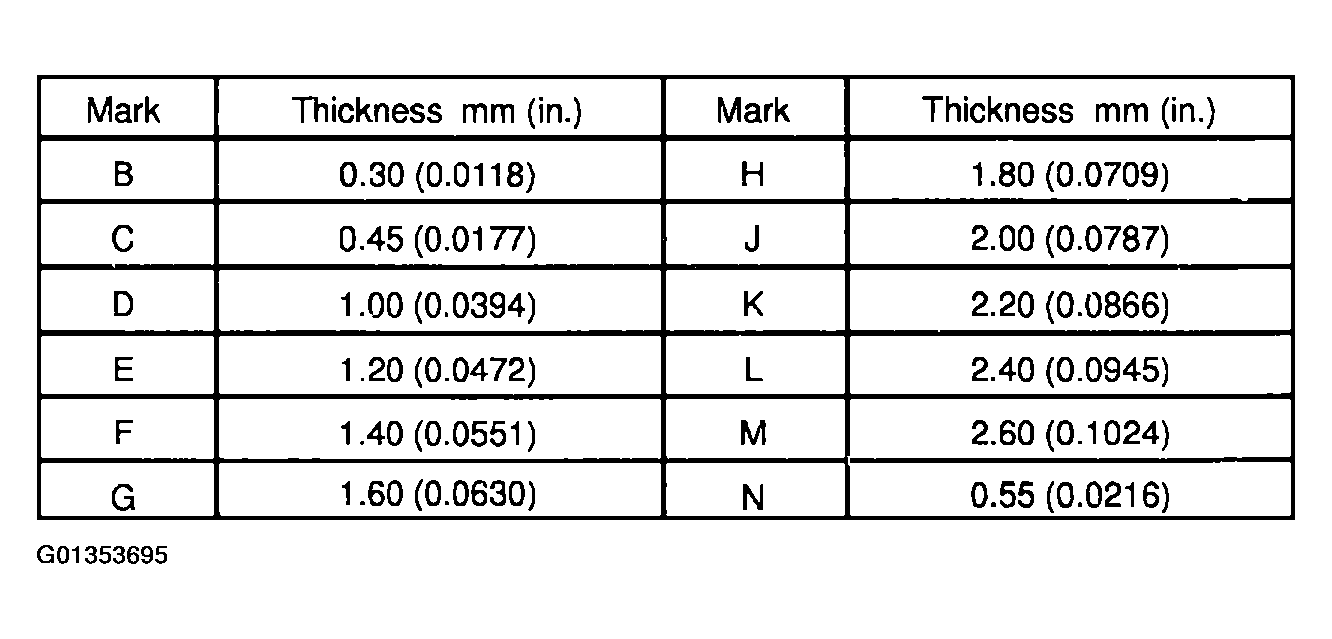

5. From the following table, select a shim so that its thickness is within the range of the calculation.
   Fig 16: Shim Specification Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

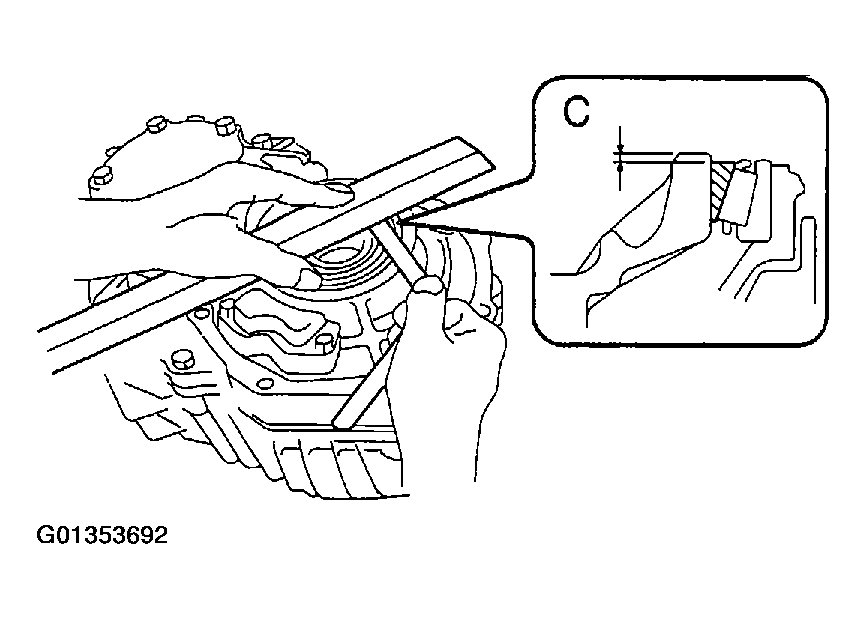

1. Using a steel straight edge and feeler gauge, measure the clearance of dimension "C".
2. Lightly hold down the bearing outer race in the thrust direction to eliminate any looseness before making the measurement.
   Fig 17: Measuring Clearance Of Dimension C

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

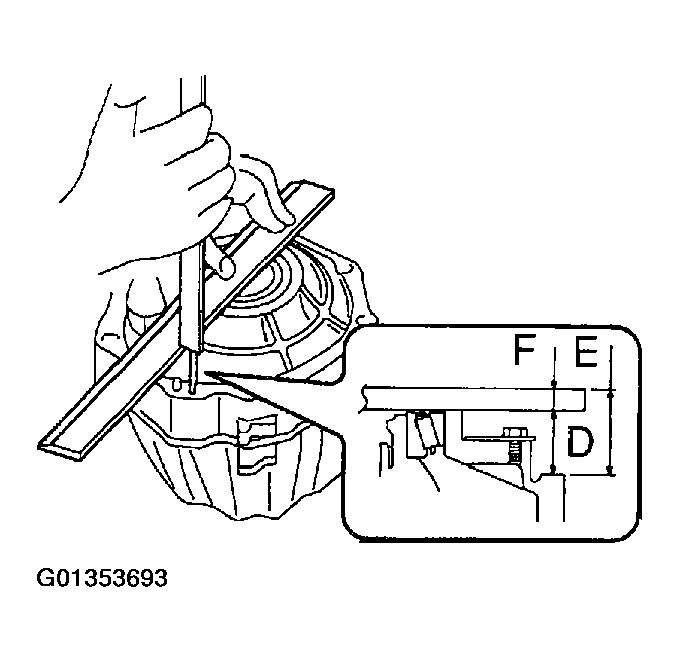

3. Using a steel straight edge and vernier calipers with depth gauge, measure dimension "D".
4. Dimension "D" is the straight edge thickness (Dimension "F") subtracted from dimension "E" in the illustration to the left.

   Dimension "D": Dimension "E" - Dimension "F"

   Fig 18: Measuring Clearance Of Dimension D, F And E Using Steel Straight Edge And Feeler Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

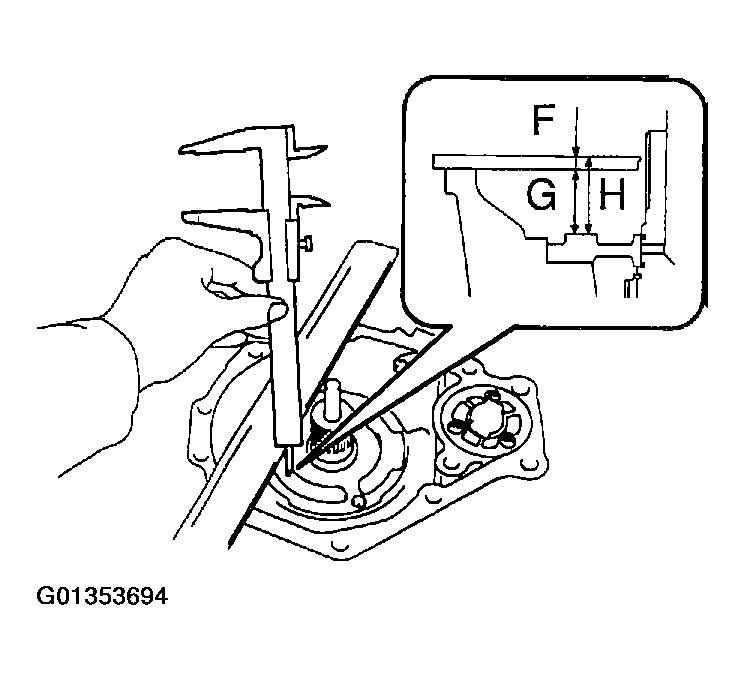

5. Using a steel straight edge and vernier calipers with depth gauge, measure dimension "G".
6. Dimension "G" is the straight edge thickness (Dimension "F") subtracted from Dimension "H".

   Dimension "G": Dimension "H" - Dimension "F"

7. Calculate the required thickness of the adjusting shim.

   Thickness: Dimension "G" - (Dimension "D" - Dimension "C") + [0.014 ~ 0.039 mm, (0.0006 ~ 0.0015 in-)]

   Fig 19: Measuring Clearance Of Dimension G Using Steel Straight Edge And Feeler Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. From the following table, select a shim so that its thickness is within the range of the calculation.
   Fig 20: Shim Specification Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

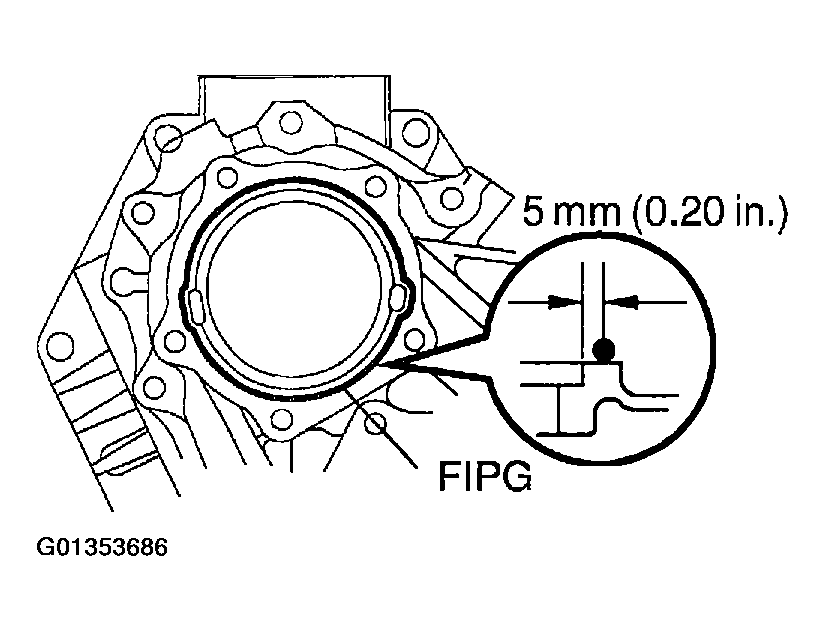

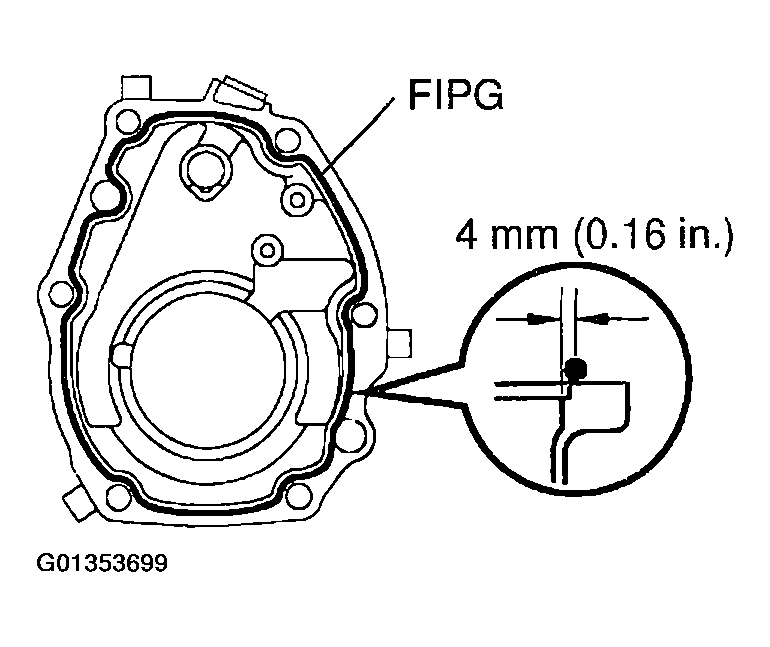

1. Apply FIPG to the rear extension housing.

   FIPG:

   Part No. 08826-00090, THREE BOND 1281 or equivalent

   Fig 21: Applying FIPG To Rear Extension Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

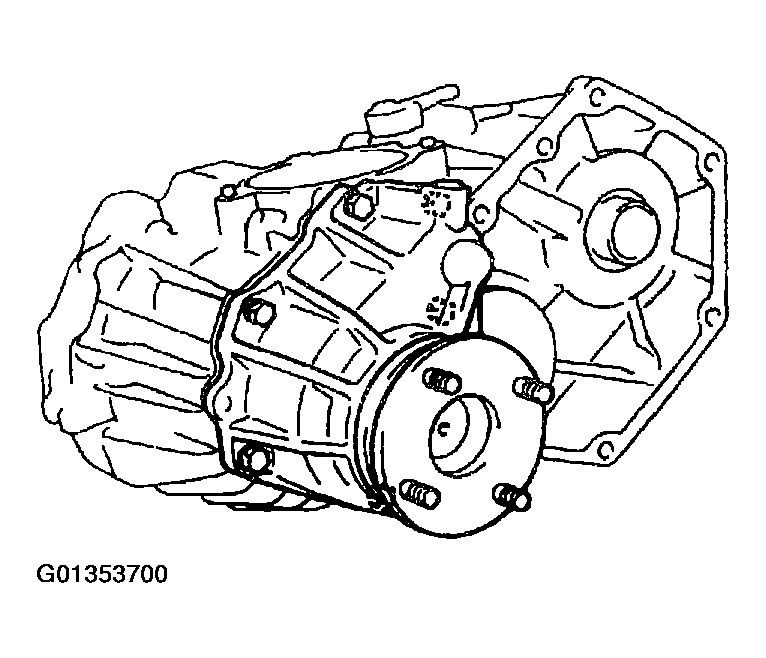

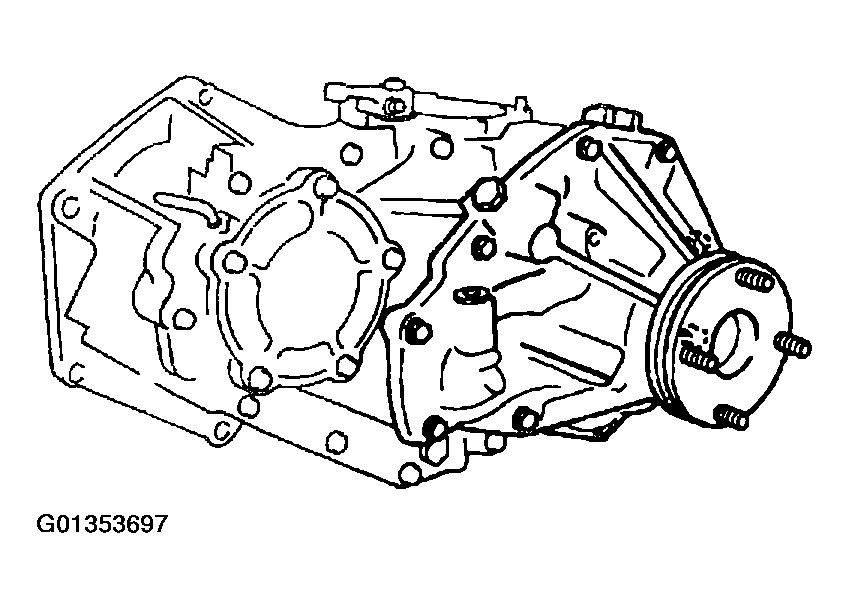

2. Install the rear extension housing and 9 bolts.

   Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

1. Install the shift fork No. 2 to the shift fork No. 2 shaft.
2. Install the 3 snap rings to the shift fork No. 2 shaft.
   Fig 22: Installing Rear Extension Housing And 9 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

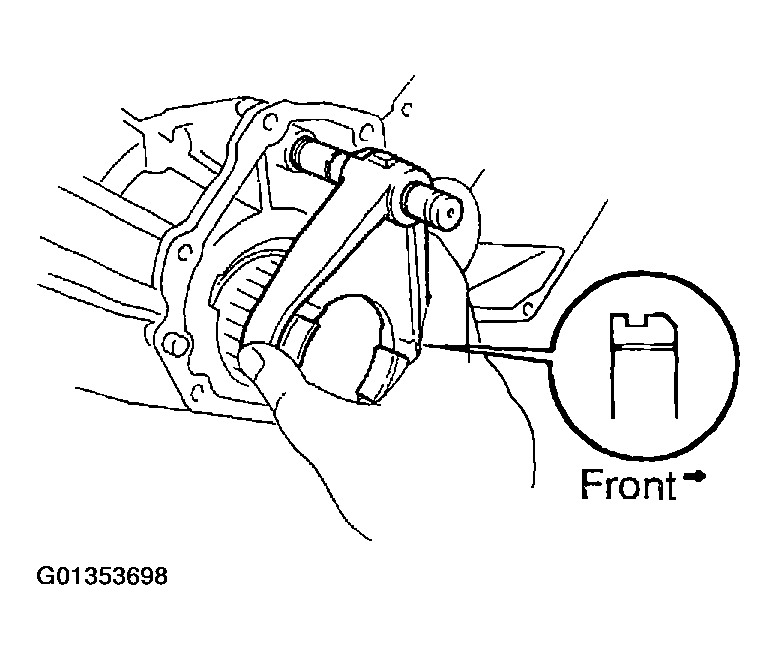

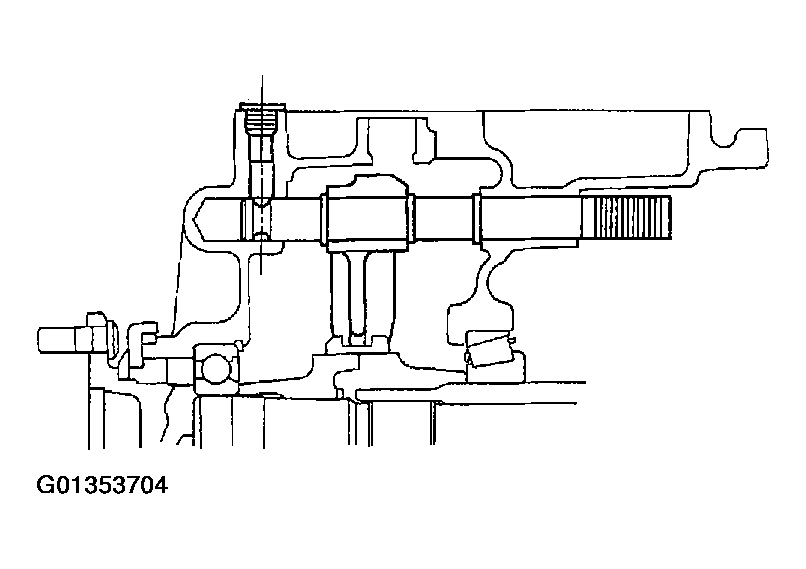

HINT:

Make sure to install the clutch sleeve in the correct direction.

Fig 23: Install Clutch Sleeve With Shift Fork No. 2 Shaft And Shift Fork No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply FIPG to the front extension housing.

   FIPG:

   Part No. 08826-00090, THREE BOND 1281 or equivalent

   Fig 24: Applying FIPG To Front Extension Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

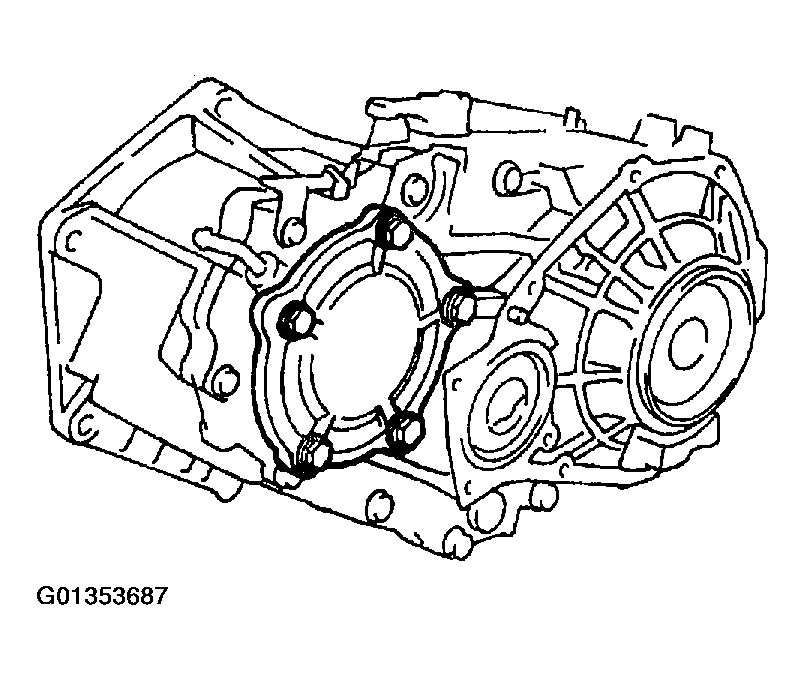

2. Install the front extension housing and 6 bolts.

   Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

   HINT:

   Set the clutch sleeve in differential lock condition.

Install the 3 transfer indicator switches with 3 new gaskets.

Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

Fig 25: Installing Front Extension Housing And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

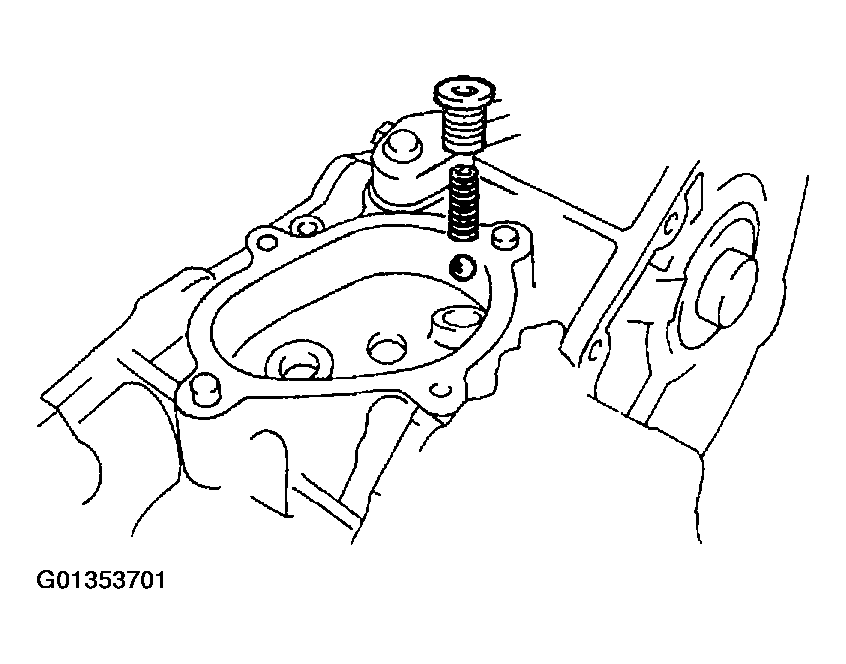

1. Install the ball and spring.
2. Apply liquid sealer to the screw plug threads.

   Sealant:

   Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

3. Using a torx socket wrench (T40), install the screw plug.

   Torque: 19 N.m (190 kgf.cm, 14 ft.lbf)

   Fig 26: Installing Ball, Spring & Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

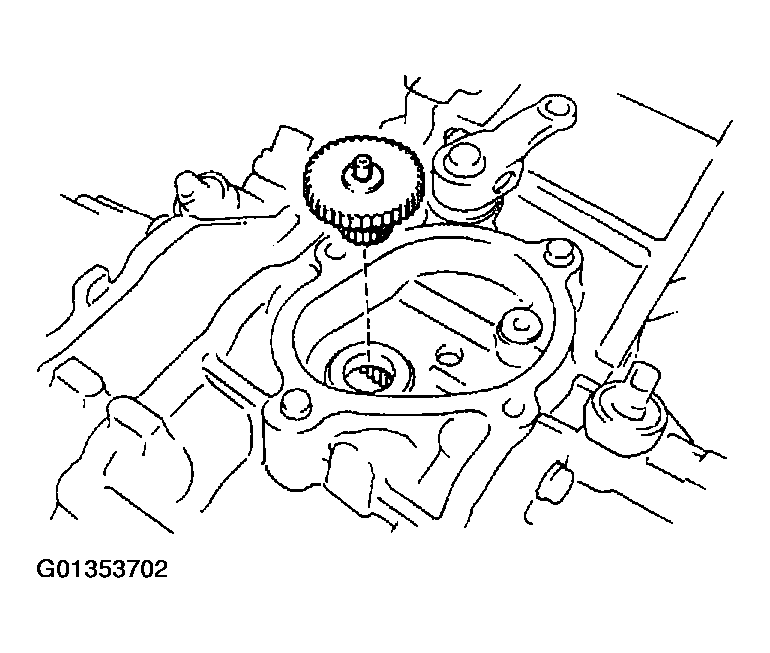

HINT:

Apply gear oil to the output gear.

Fig 27: Installing Output Gear To Front Case

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

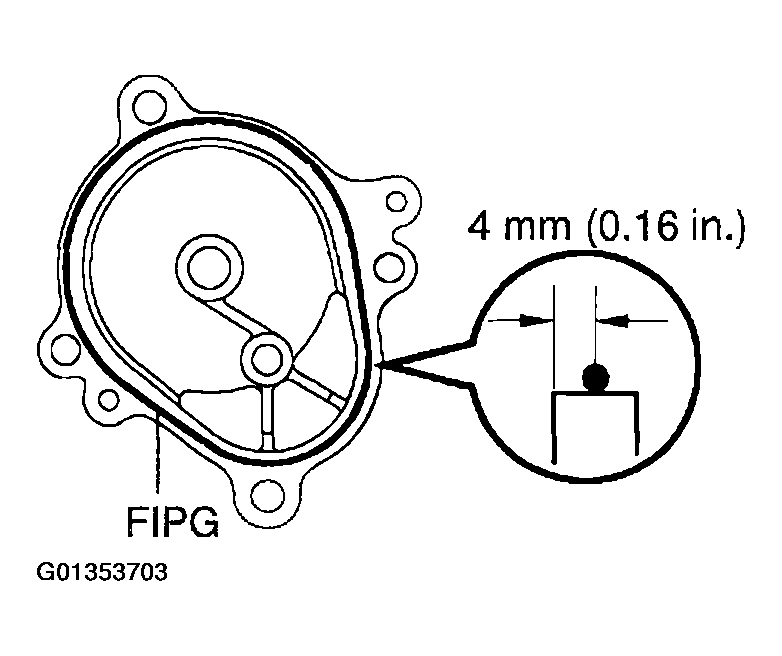

1. Apply FIPG to the motor actuator.

   FIPG:

   Part No. 08826-00090, THREE BOND 1281 or equivalent

   Fig 28: Applying FIPG To Motor Actuator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Set the motor actuator in differential lock condition.

   Fig 29: Setting Motor Actuator In Differential Lock Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

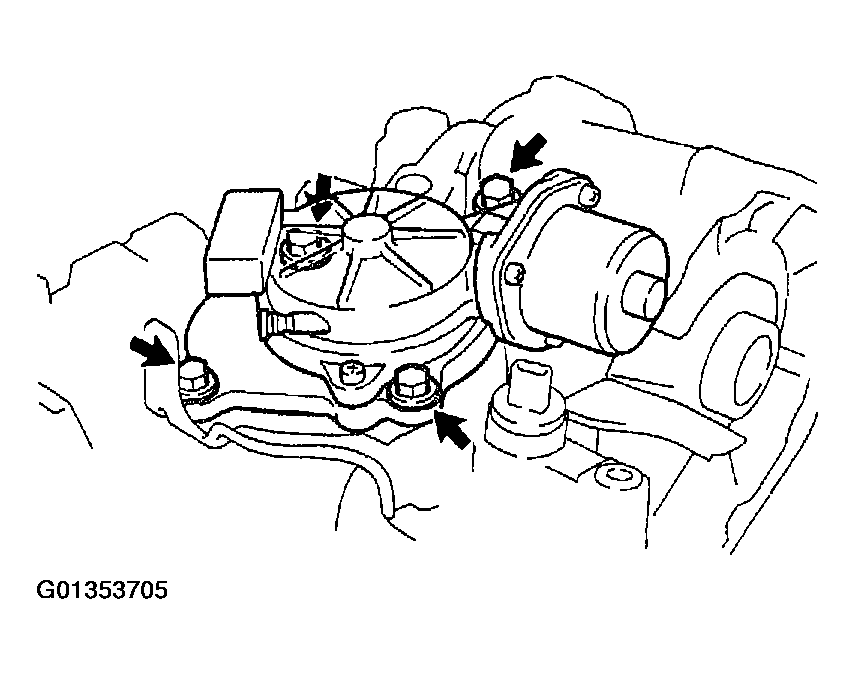

2. Install the motor actuator and 4 bolts.

   Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

   Fig 30: Installing Motor Actuator And 4 Bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the driven gear and bolt.

Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)
