Problem Symptoms Table

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

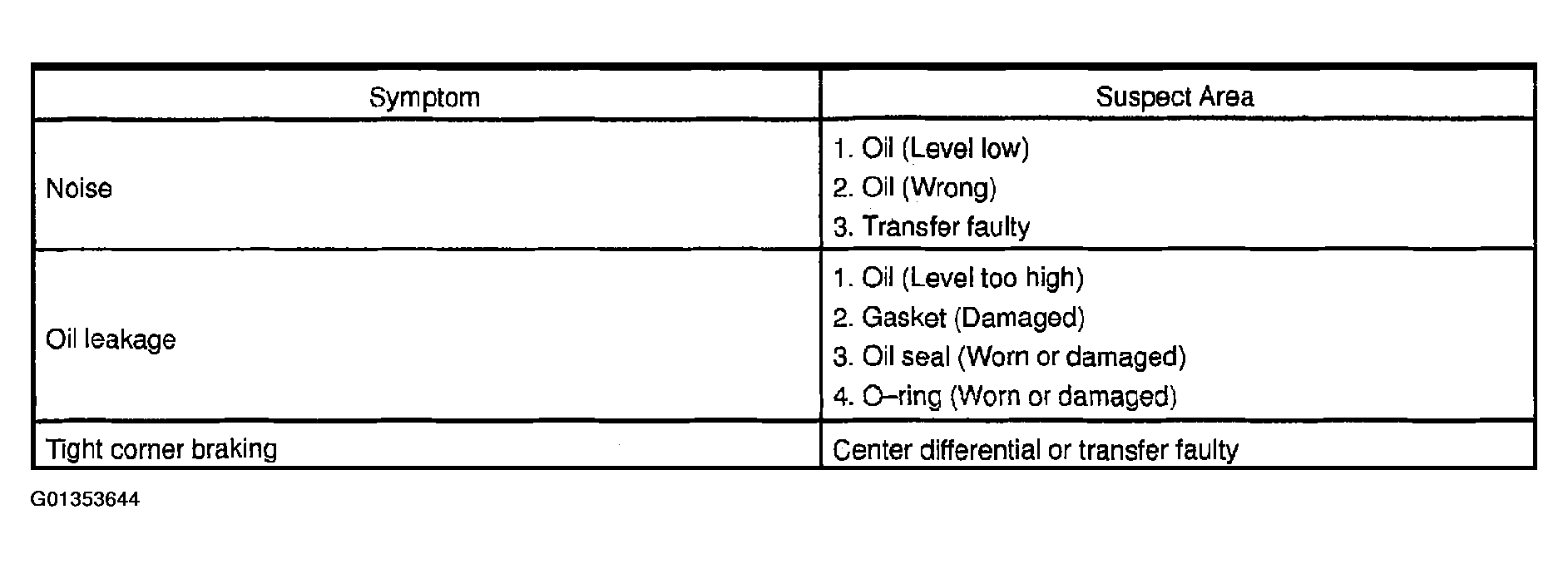

Fig 1: Problem Symptoms Table
G01353644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
